Gold top valve located in Oubei Town, Wenzhou, China,where can make all kinds of precision balls,including top entry,metal seat and V type balls.On this base,our products range of floating,trunnion,Gate globe check valve ,butterfly valve ,etc.Surely we can design them by customer's special requirements.
 |
| Place of Origin: | 中国 |
| Brand Name: | GOLD TOP |
| Certification: | API602 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 30days |
| Supply Ability: | 100+pcs+30 days |
| Size: | 1/4”～2” | Class: | 150 # ～2500# |
|---|---|---|---|
| Materials: | Carbon / Stainless / Alloy Steel | Ends: | Flanged / SW / NPT |
| Design: | API602 | Pressure Testing: | API 598 |

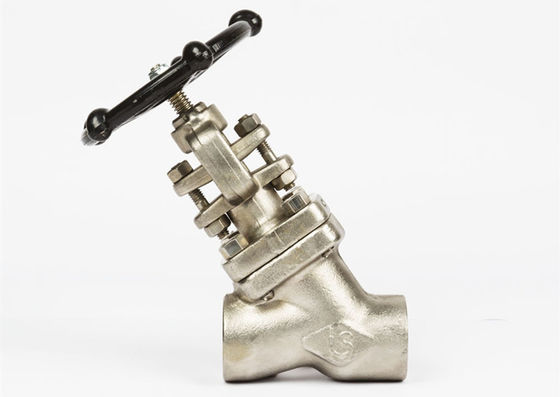

| Type: | Y Type Globe Valve | ||
| High Light: | socket weld valve,hand wheel valve |
||
|
Features:
|
|||
|
1
|
designed and qualified for high pressure/temp services
|
||
|
2
|
corrosion resistant
|
||
|
3
|
solid wedge
|
||
|
4
|
optional cryogenic structure
|
||
|
5
|
repairable 2-piece stem drive.
|
||
|
Specification:
|
|||
|
Type:
|
forged
|
||
|
Body Structure :
|
single body
|
||
|
Direction Type :
|
two-ways
|
||
|
Bore Type:
|
full bore and reduced bore
|
||
|
Standard Connection:
|
flanged,socket weld,threaded
|
||
|
Sizes range:
|
1/2'' (DN15)
|
to
|
2'' (DN50)
|
|
Pressure range:
|
|
|
|
|
Class 800#
|
to
|
Class 2680#
|
|
|
Materials:
|
|||
|
Body Materials Available
|
|||
|
carbon steel
|
ASTM A182 Gr. F316
|
||
|
stainless steel
|
ASTM A105
|
||
|
Trim Materials Available
|
|||
|
CA15HT
|
CoCr Alloy
|
||
|
|
|
||
|
Seat Materials Available
|
|||
|
RPTFE
|
PTFE
|
11-13Cr
|
|
|
PEEK
|
|
alloy
|
|
|
Standard:
|
|||
|
Design Standard:
|
API 602
|
||
|
API 598
|
|||
|
ASME B16.10
|
|||
|
ASME B16.5
|
|||
|
Pressure -Temperature ratings:
|
ASME B16.34, ASME B16.5, API 602
|
||
|
Wall thickness:
|
ASME B16.34
|
||
|
Face to Face Dimension:
|
Flange
|
ASME B16.10
|
|
|
End to End Dimensions:
|
Socked/NPT
|
ASME B16.10
|
|
|
End Connections Dimensions:
|
Flange
|
ASME B16.5
|
|
|
Butt-Weld
|
ASME B16.25
|
||
|
Socket Weld
|
ASME B16.11
|
||
|
NPT
|
ASME B1.20.1
|
||
|
Pressure Test:
|
API 598, API 6D
|
||
|
Fire Test:
|
API 607, API 6FA
|
||
|
Marking:
|
MSP-SP 25
|
||
|
Surface Quality :
|
MSP-SP 55
|
||
|
Sour Service:
|
Nace Mr 01-75, Nace Mr 01-03
|
||
|
Low Fugitive Emission:
|
ISO 15848, SPE 77/312, TA-luft
|
||
|
Applications:
|
|||
|
oil & gas
|
general Industry
|
refinery
|
|
|
petrochemical
|
chemical
|
LNG & cryogenic sevice
|
|
|
power
|
marine
|
|
|
