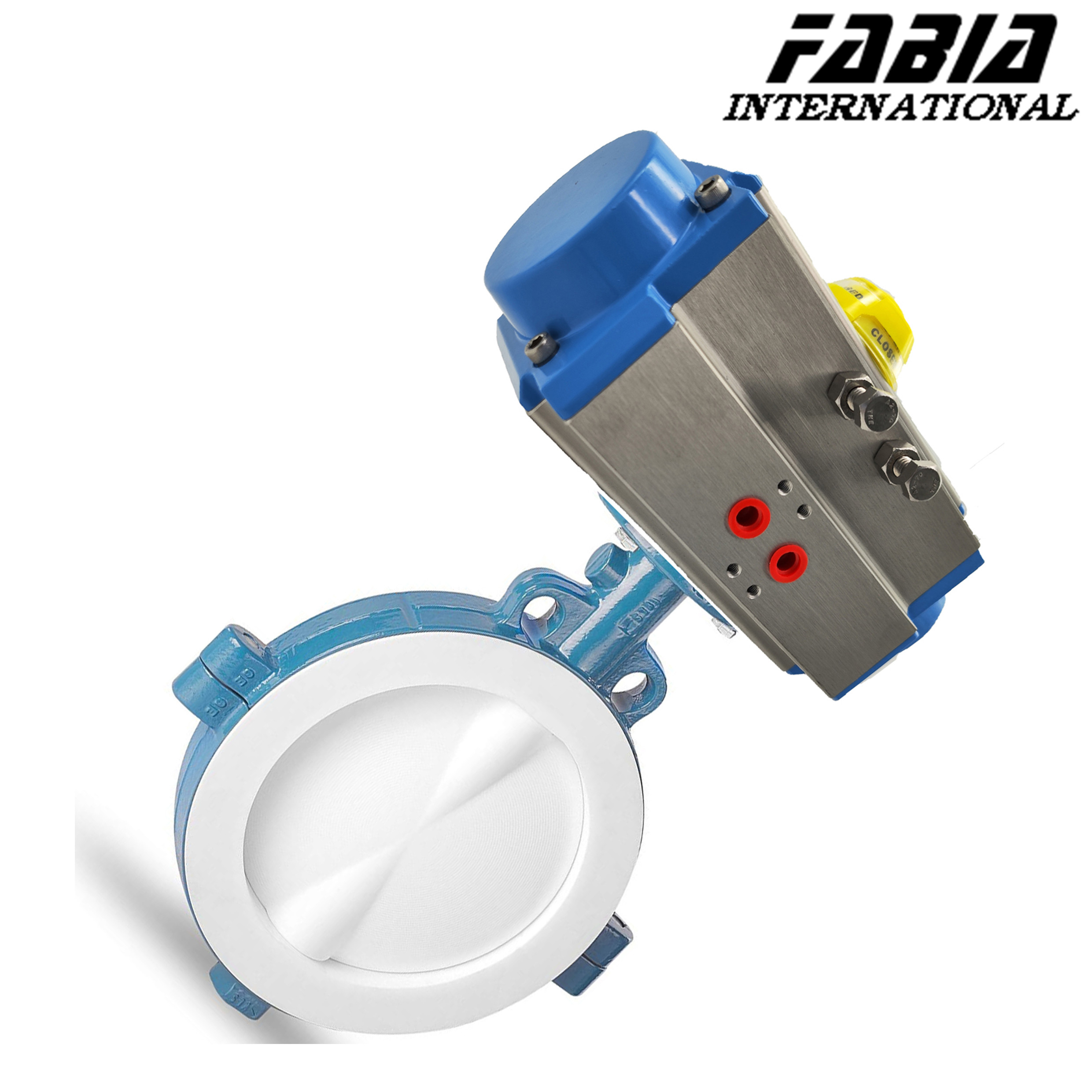

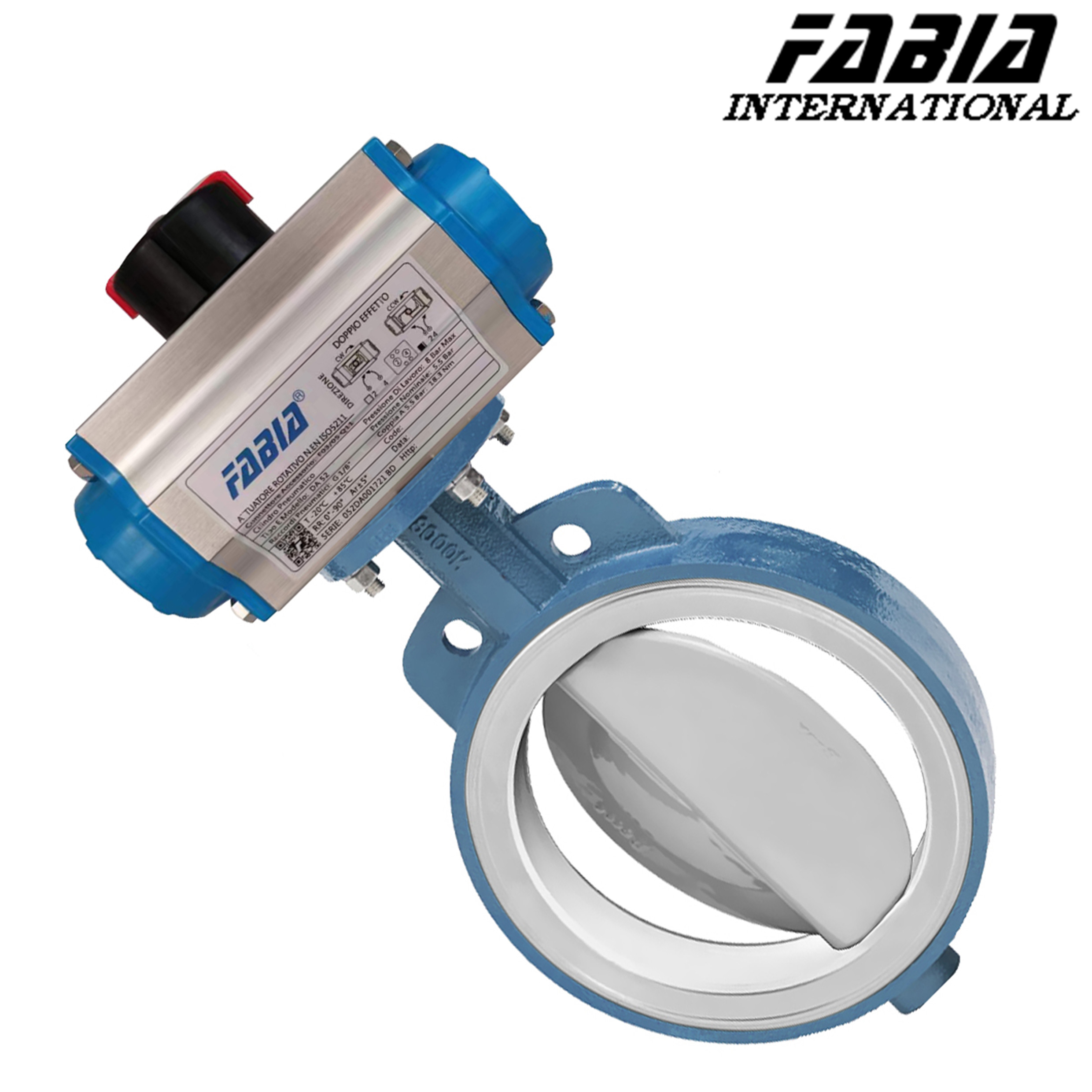

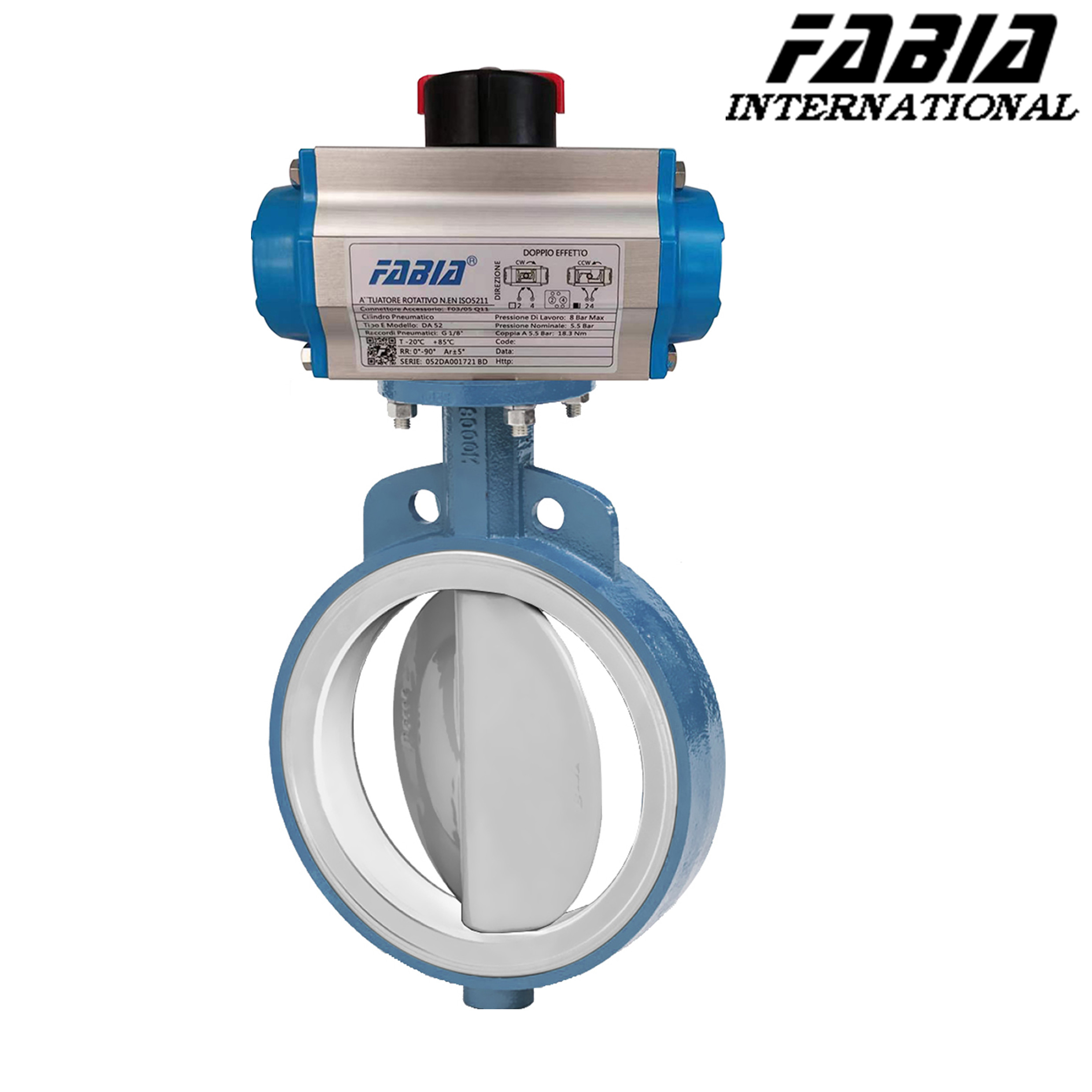

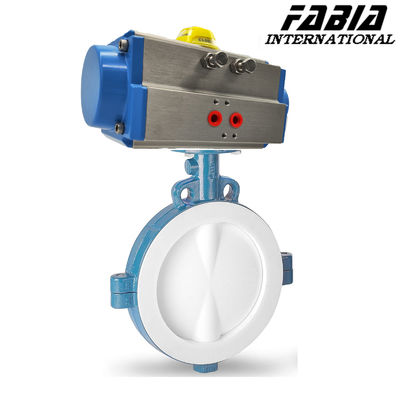

Pneumatic Fluorine Lined Clamp Butterfly Valve Clamp End

  • Pneumatic Fluorine Lined Clamp Butterfly Valve Clamp End
  • Pneumatic Fluorine Lined Clamp Butterfly Valve Clamp End
  • Pneumatic Fluorine Lined Clamp Butterfly Valve Clamp End
  • Pneumatic Fluorine Lined Clamp Butterfly Valve Clamp End
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic Clamp Butterfly Valve Valve Type Pneumatic Butterfly Valve
Material Carbon Steel Operation Pneumatic
Connection Clamp Application Petroleum, Chemical, Power, Etc.
Actuator Pneumatic Pressure 150LB-2500LB
Sealing Soft Sealing Size 1/2''-48''
Temperature -20℃-120℃
High Light

clamp butterfly valve

,

butterfly valve clamp end

,

clamp butterfly
Leave a Message
Product Description

FABIA Pneumatic Fluorine Lined Clamp Butterfly Valve



1. Description:



Pneumatic fluorine lined butterfly valve has a wide temperature range, which is especially suitable for the corrosive medium environment such as strong acid and alkali, and is widely used in chemical agents, factories, dye plants, hydropower stations and other industries.



2. Specification:



FABIA Valve Parameter List
Valve type: Pneumatic Fluorine Lined Clamp Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........



3. Features:



  • Pneumatic fluorine lined butterfly valve has scientific design, compact connection between components, small size and small space area.
  • Pneumatic driving device opens and closes quickly, sensitive induction, labor-saving and convenient for fluid control.
  • Installation is not limited, it is very suitable for the pipeline with limited installation space, and the later maintenance is very convenient.
  • Butterfly Valve adopts double sealing structure, and the fluid is not restricted by the space direction when running.
  • Valve body is made of strong anti-erosion material, and the service time is longer.



Pneumatic Fluorine Lined Clamp Butterfly Valve Clamp End 0

Pneumatic Fluorine Lined Clamp Butterfly Valve Clamp End 1
