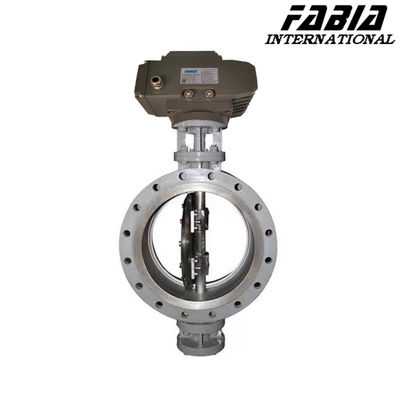

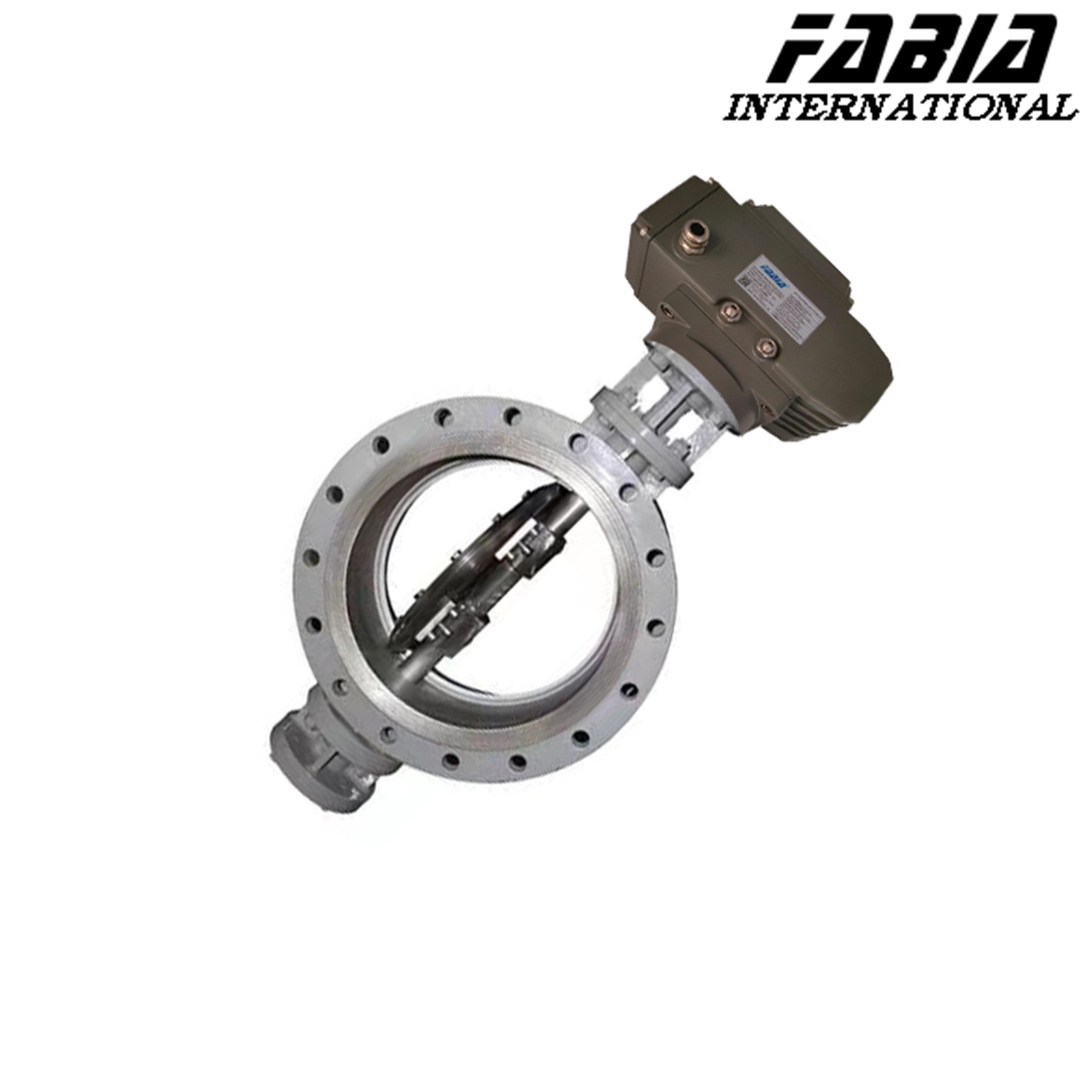

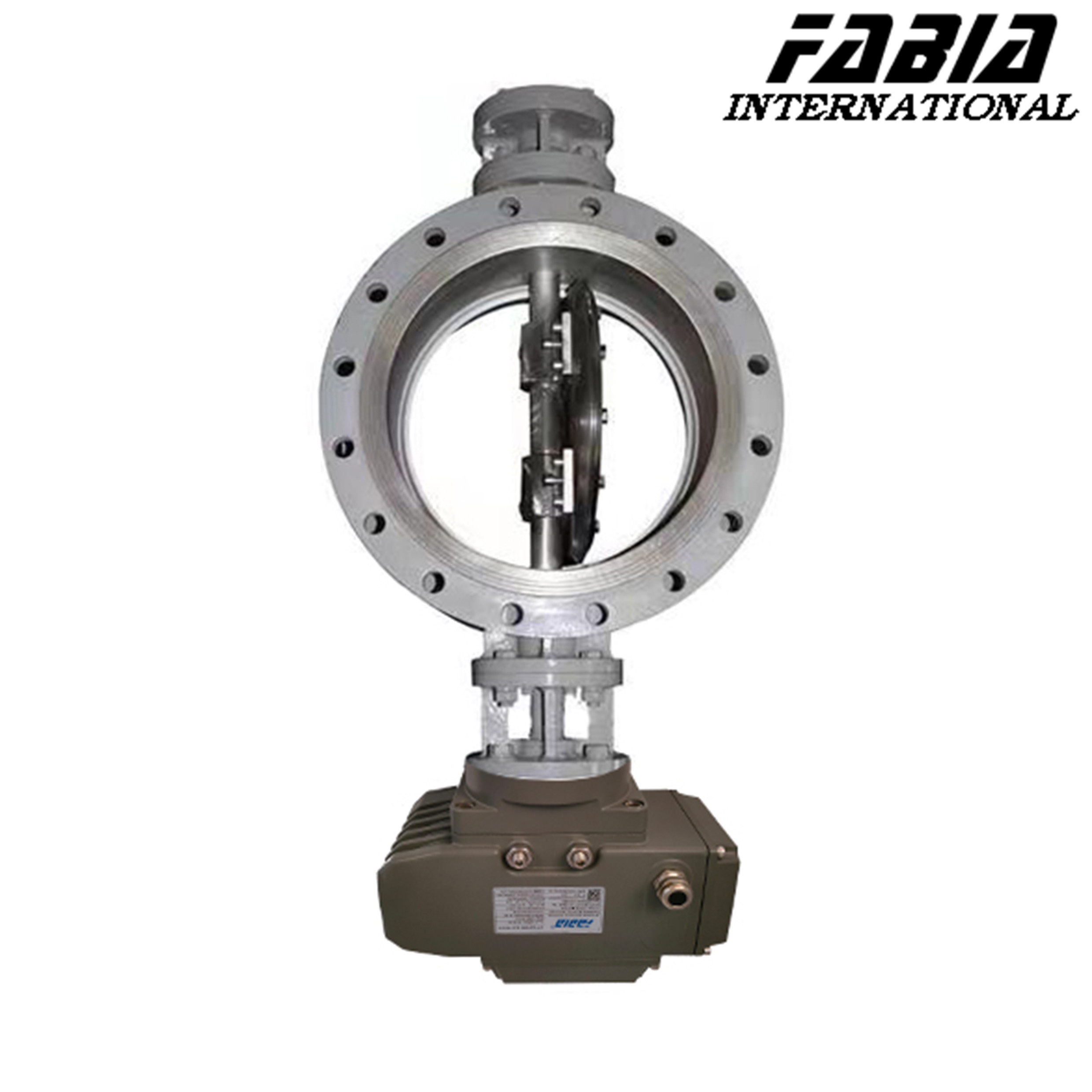

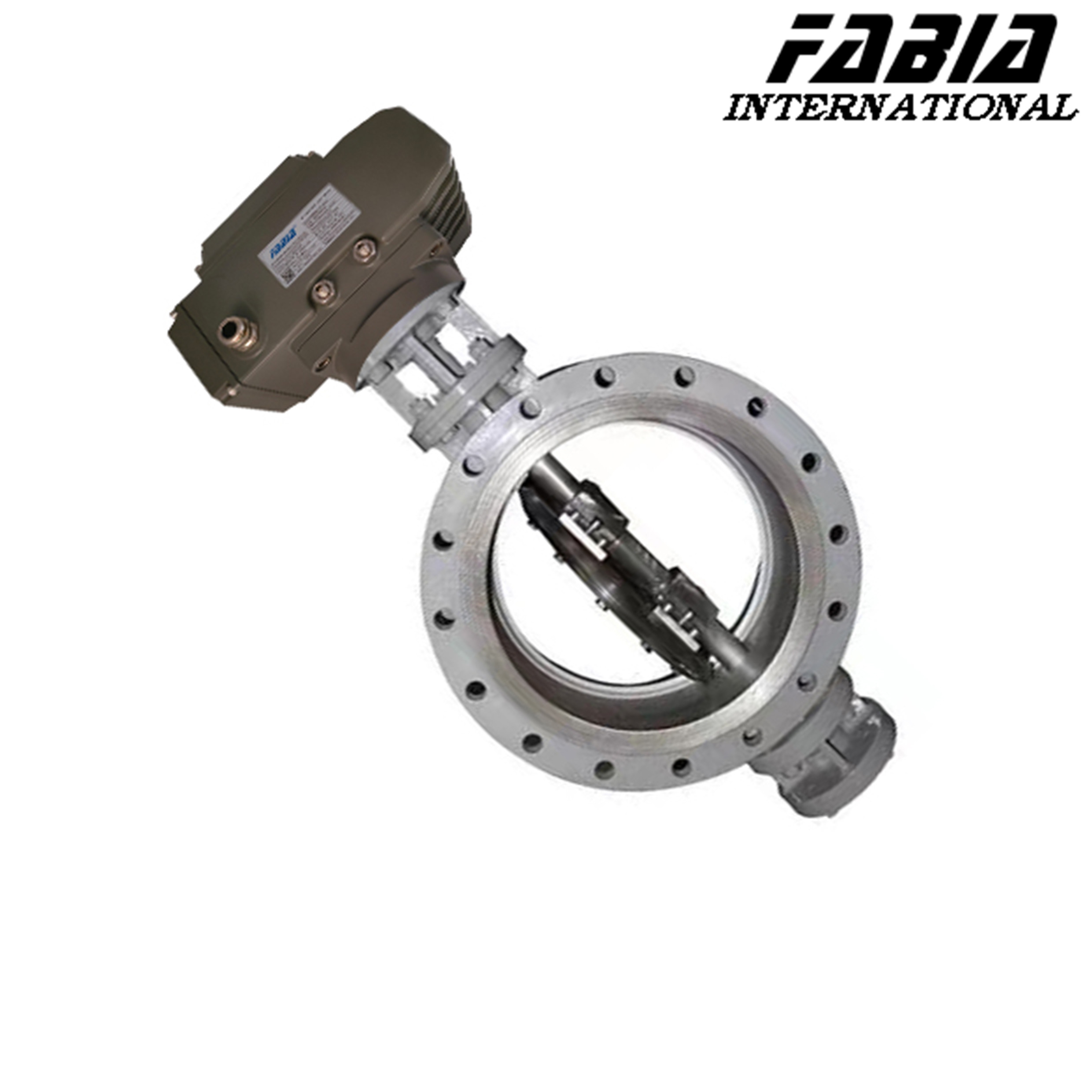

4 Inch 2 Inch 3 Inch Stainless Steel Butterfly Valve Sanitary

Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ~ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Industrial Butterfly Valve Stainless Steel Name Industrial Butterfly Valve
Flow Characteristic Linear, Equal Percentage, Quick Opening Material Stainless Steel
Actuator Electric Connection Flange
Design Double Flange Operation Electric
Pressure PN16 Size 1/2-36 Inch
Temperature -40~1000℃ Seal PTFE, PEEK, EPDM
Standard API, ANSI, DIN, JIS, BS, GB Application Petroleum, Chemical, Power, Metallurgy, Shipbuilding, Papermaking, Pharmaceutical, Food
High Light

2 Inch 3 Inch Stainless Steel Butterfly Valve


stainless steel sanitary butterfly valve


stainless steel butterfly

Leave a Message
Product Description

FABIA Industrial butterfly valve Stainless steel insulated butterfly valve


1. Description:


Industrial butterfly valve is a simple structure of the control valve, can be used for the switch control of low-pressure pipeline medium butterfly valve refers to the closing part (valve disc or butterfly plate) for the disc, revolving around the valve shaft to achieve the opening and closing of a valve, the valve can be used to control air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media and other types of fluid flow.


Mainly plays the role of cutting and throttling on the pipeline, and the butterfly valve opening and closing part is a disc-shaped butterfly plate, rotating around its own axis in the valve body, so as to achieve the purpose of opening and closing or adjusting.


2. Specification:


FABIA Valve Parameter List
Valve type: Industrial butterfly valve Stainless steel insulated butterfly valve
Size: 2 inch ~ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt /Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1~PN16
Temperature: -40℃~1000℃
Model: FB-DB..........


3. Features:


  • Easy to open and close, labor saving, fluid resistance is small, can be often operated.
  • Simple structure, small size, short structure length, small volume, light weight, suitable for large diameter valves.
  • Can transport mud, the least liquid in the pipe mouth.
  • Low pressure, can achieve a good seal.
  • Good adjustment performance.
  • When fully opened, the effective flow area of the valve seat channel is large and the fluid resistance is small.
  • Opening and closing torque is small, because the two sides of the rotating shaft are basically equal to the effect of the medium, and the direction of the torque is opposite, so the opening and closing is less labor.
  • Sealing surface material is generally used rubber, plastic, so the low pressure sealing performance is good.
  • Easy to install.
  • Operation is flexible and labor-saving, manual, electric, pneumatic, hydraulic mode can be selected.
