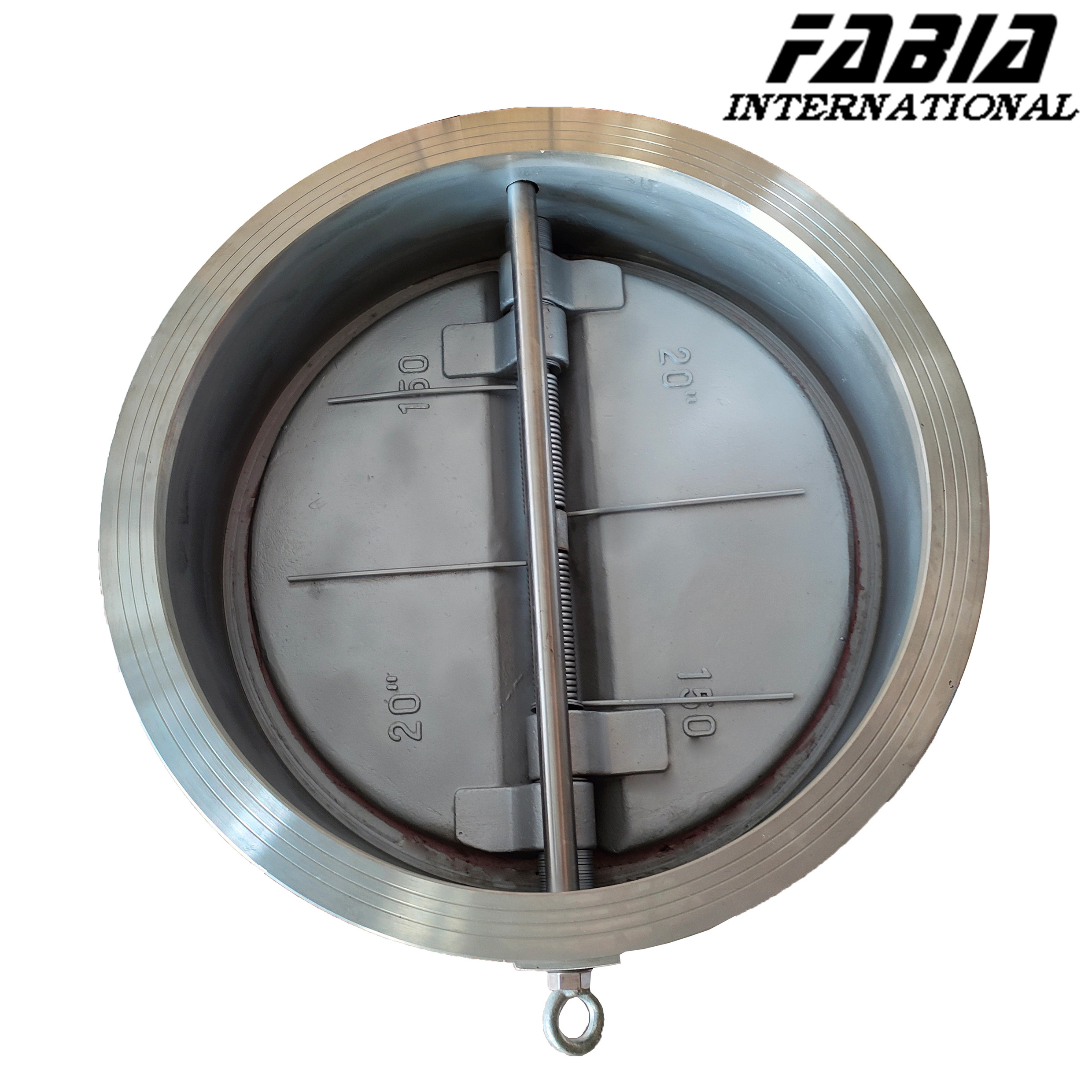

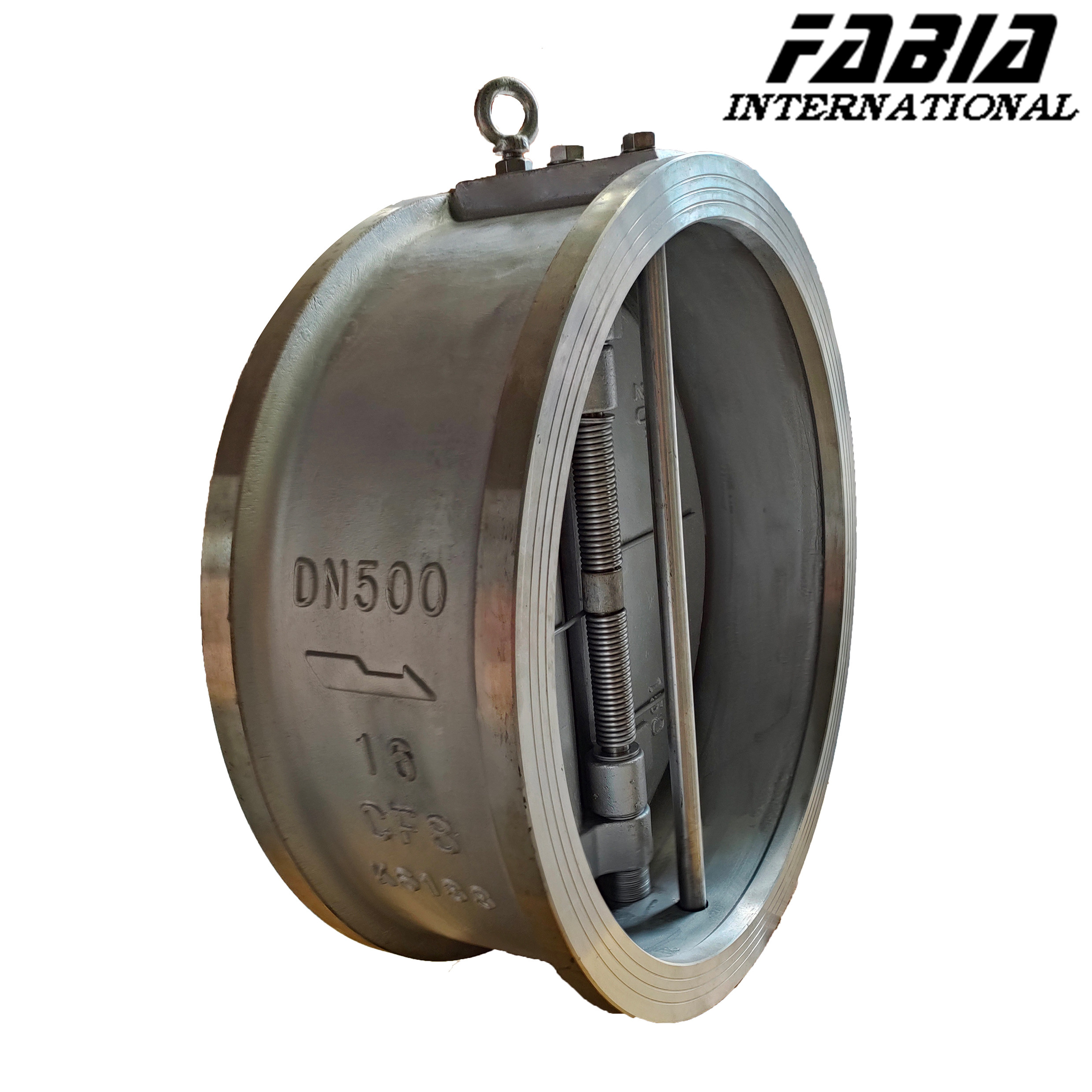

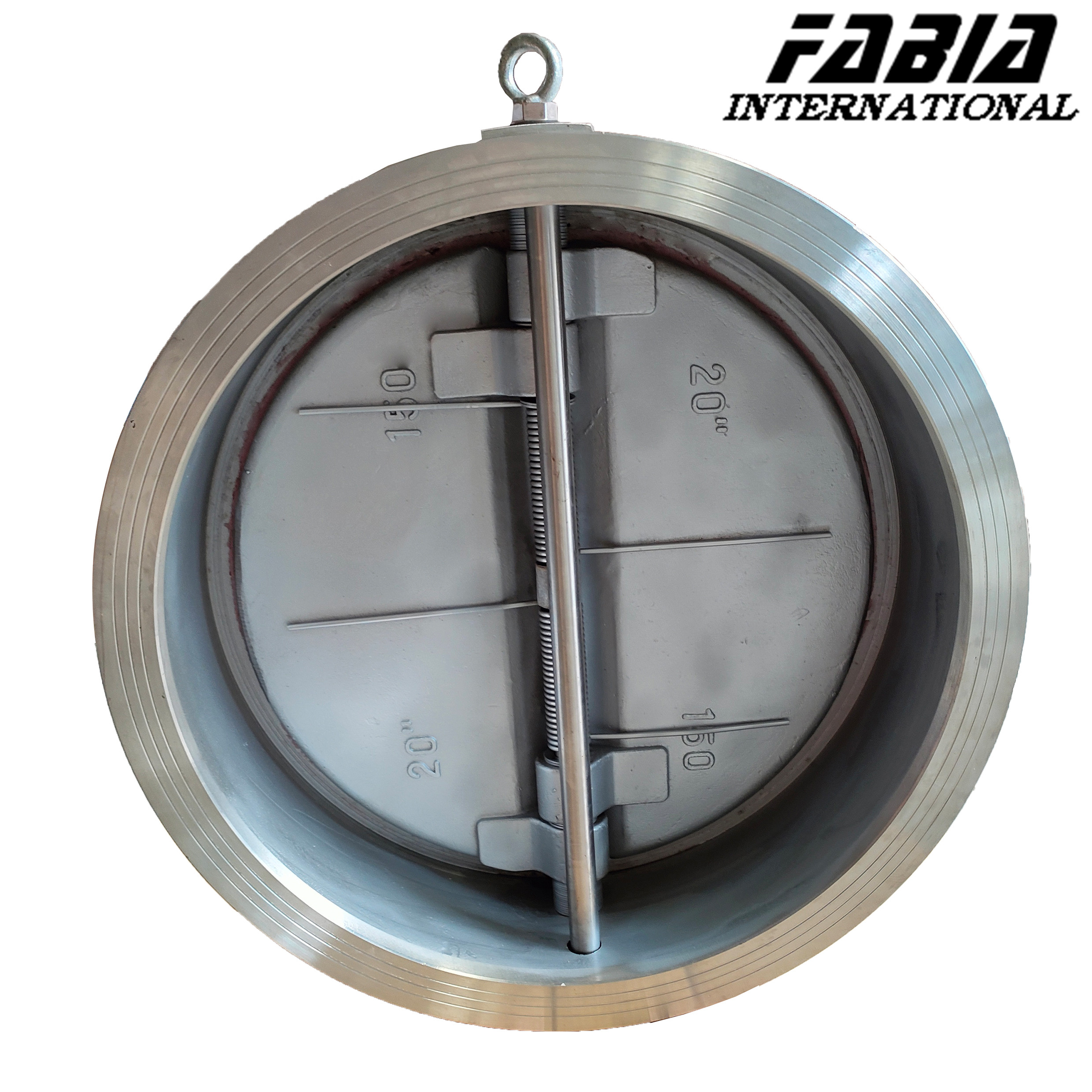

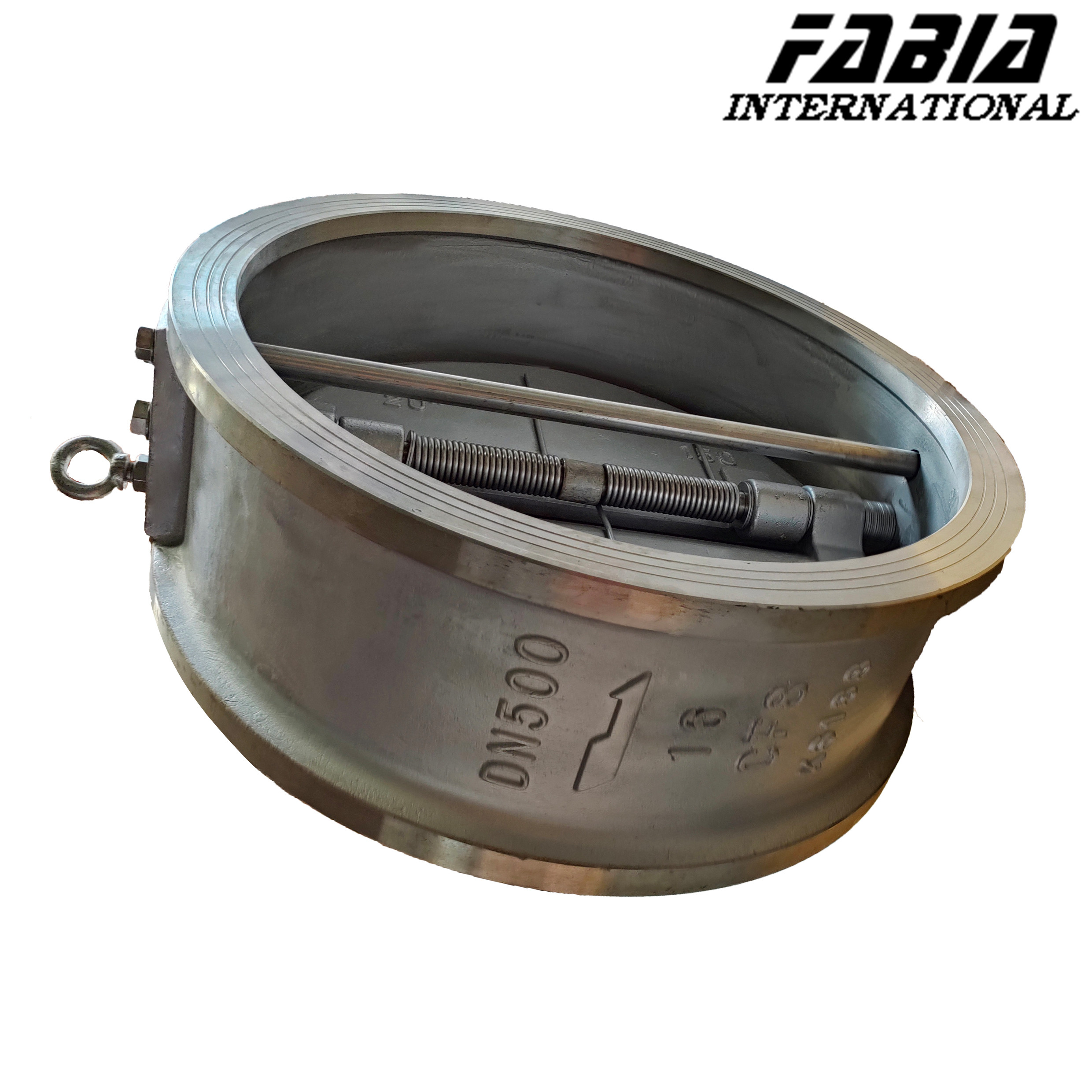

Ventilation Industrial Butterfly Valve Stainless Steel Large Diameter DN500
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Ventilation Industrial Butterfly Valve | Valve Type | Butterfly Valve |
|---|---|---|---|
| Valve Material | Stainless Steel | Valve Connection | Clamp |
| Valve Operation | Manual/Electric/Pneumatic/Hydraulic | Valve Application | Ventilation |
| Valve Certification | ISO/CE/API | Valve Medium | Air/Gas/Oil/Water |
| Valve Pressure | 150-300 PSI | Valve Quality | High |
| Valve Sealing | Soft/Metal | Valve Size | 2-36 Inch |
| Valve Temperature | 0-200℃ |
Product Description
Ventilation Industrial Butterfly Valve Stainless Steel Large Diameter DN500
1. Description:
An air valve is a device used to regulate and control air flow. It is commonly used in ventilation and air conditioning systems, and can also be used in other industrial applications. The role of the air valve is to control the speed and direction of the air flow, prevent backflow and air leakage, so as to achieve efficient operation of the system.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Ventilation Industrial Butterfly Valve Stainless Steel Large Diameter DN500 | |
| Size: | 2 inch ～ 36 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-D.......... | |
3. Features:
- Nozzle size of the multi-blade air volume regulating valve is the same as that of the rectangular air pipe stipulated in the national ventilation pipe standardization.
- Blades of the air volume regulating valve are open and open, which are used as regulating valves in ventilation, air conditioning, air purification and other systems.
- Through the measurement, the air tightness of the air volume control valve is good, its relative air leakage is very low, and the adjustment performance is very good.
