Electric 304 Stainless Steel Butterfly Valve Clamp Type Industrial Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Clamping Butterfly Valve | Actuator Type | Electric |
|---|---|---|---|
| Structure | Industrial Butterfly | Body Materials | Stainless Steel |
| Connection | Clamping | Valve Application | Ventilation |
| Pressure | PN16 | Seat | Metal Seal |
| Temperature | -20-180℃ | Pressure Ratings | Class 150-600 |
| High Light | 304 Stainless Steel Butterfly Valve,Electric Stainless Steel Butterfly Valve,Clamp Type Industrial Butterfly Valve |
||
Product Description

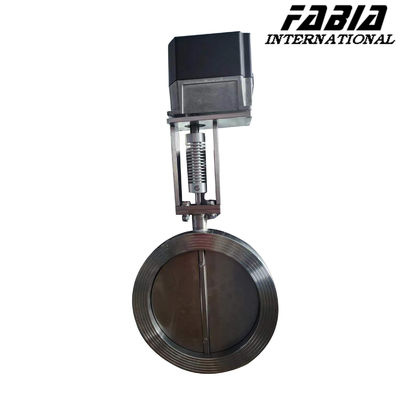

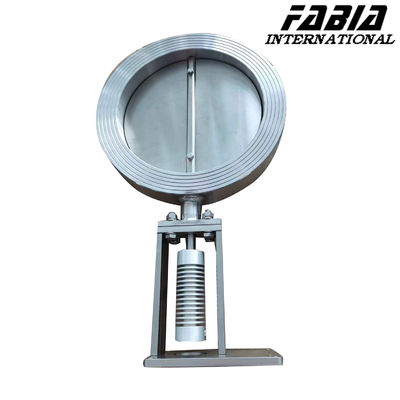

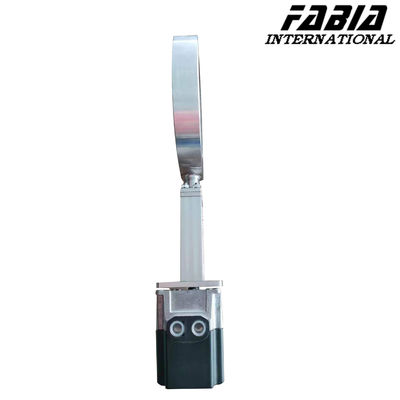

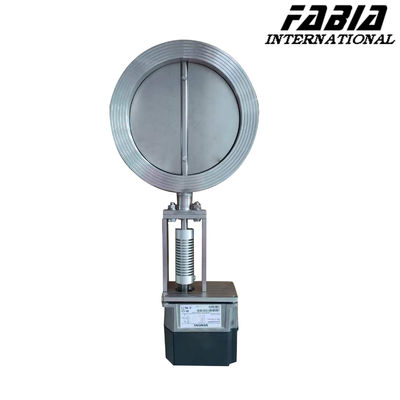

Electric Stainless Steel Butterfly Valve Clamp Type 304 Industrial Valve
1. Description:
Electric flange type ventilation butterfly valve is mainly used in gold, chemical, building materials, power stations, glass and other industries in the ventilation, environmental protection engineering dust containing cold air or hot air gas pipeline, as a gas medium to adjust the flow or cut off devices.
Suitable for building materials, metallurgy, mining, electric power and other production process medium temperature ≤300℃ nominal pressure of 0.1Mpa on the pipeline, used to connect, open and close or adjust the medium quality.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric Stainless Steel Butterfly Valve Clamp Type 304 Industrial Valve | |
| Size: | 1/8 inch ～ 18 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN10,0～100Mpa | |
| Temperature: | -40℃～450℃ | |
| Model: | FB-DB.......... | |
3. Features:
- Electric flange type ventilation butterfly valve is designed and manufactured with a new structural form of welding between medium line dish plate and short structure steel plate to avoid the influence of high temperature expansion.
- No connecting rod, bolts, etc., reliable work, long service life. Can be installed in multiple stations, not affected by the flow of media.
- Novel design, reasonable, unique structure, light weight, fast opening and closing.
- Electric flange type ventilation butterfly valve torque is small, easy to operate, labor-saving dexterity.
- Electric flange type ventilation butterfly valve uses suitable materials to meet the low, medium and high different medium temperatures and corrosive media.
