Air Actuated Ball Valve With Pneumatic Actuator Two Way Butt Welding
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic Butt Welding Ball Valve | Valve Type | Pneumatic Ball Valve |
|---|---|---|---|
| Valve Material | Stainless Steel | Valve Actuator | Pneumatic |
| Valve Connection | Threaded | Valve Design | 2-way |
| Valve Media | Air/Gas/Water | Valve Pressure | 150LB-1500LB |
| Valve Standard | ANS/DIN/JIS | ||
| High Light | ball valve with pneumatic actuator,air actuated ball valve,air ball valve |
||
Product Description

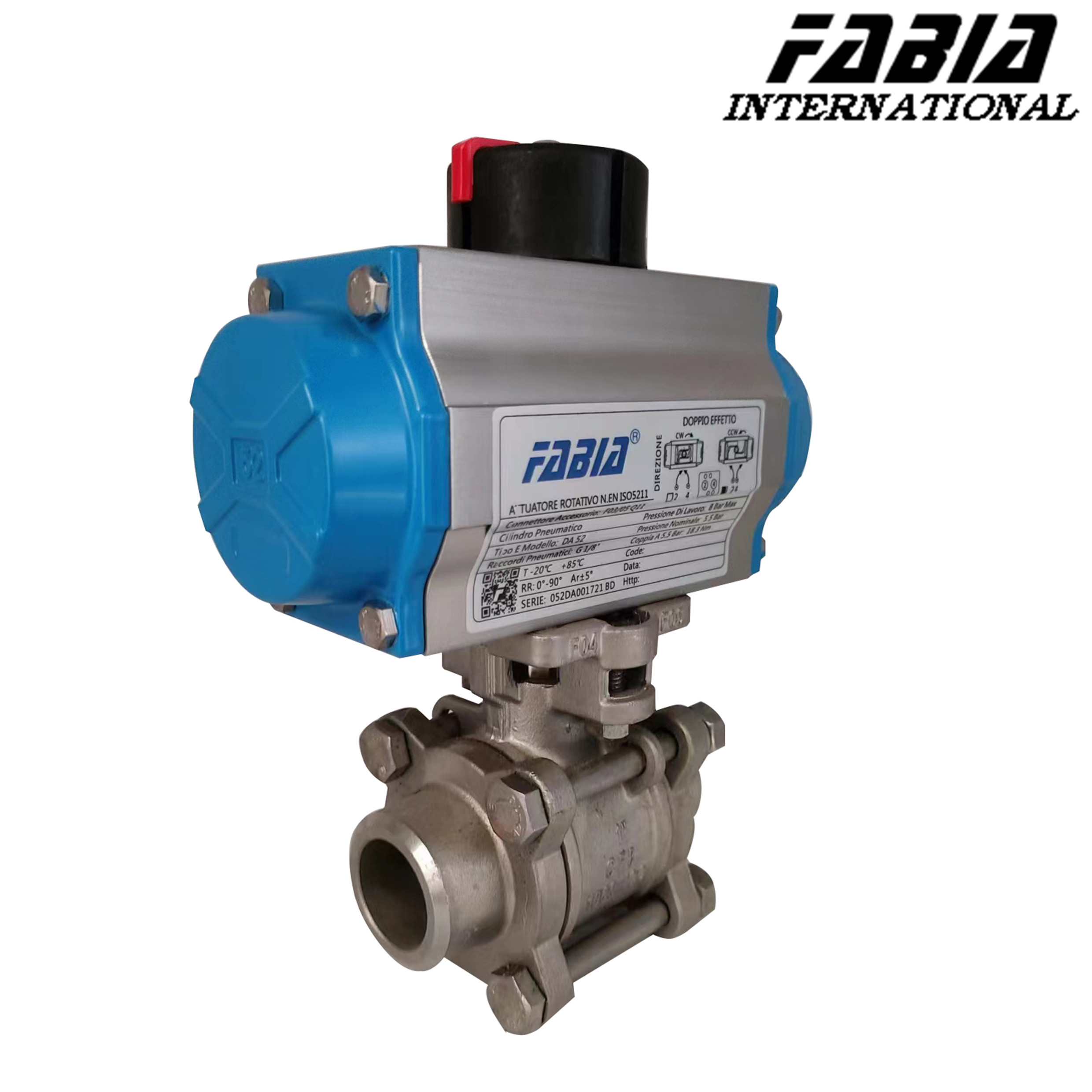

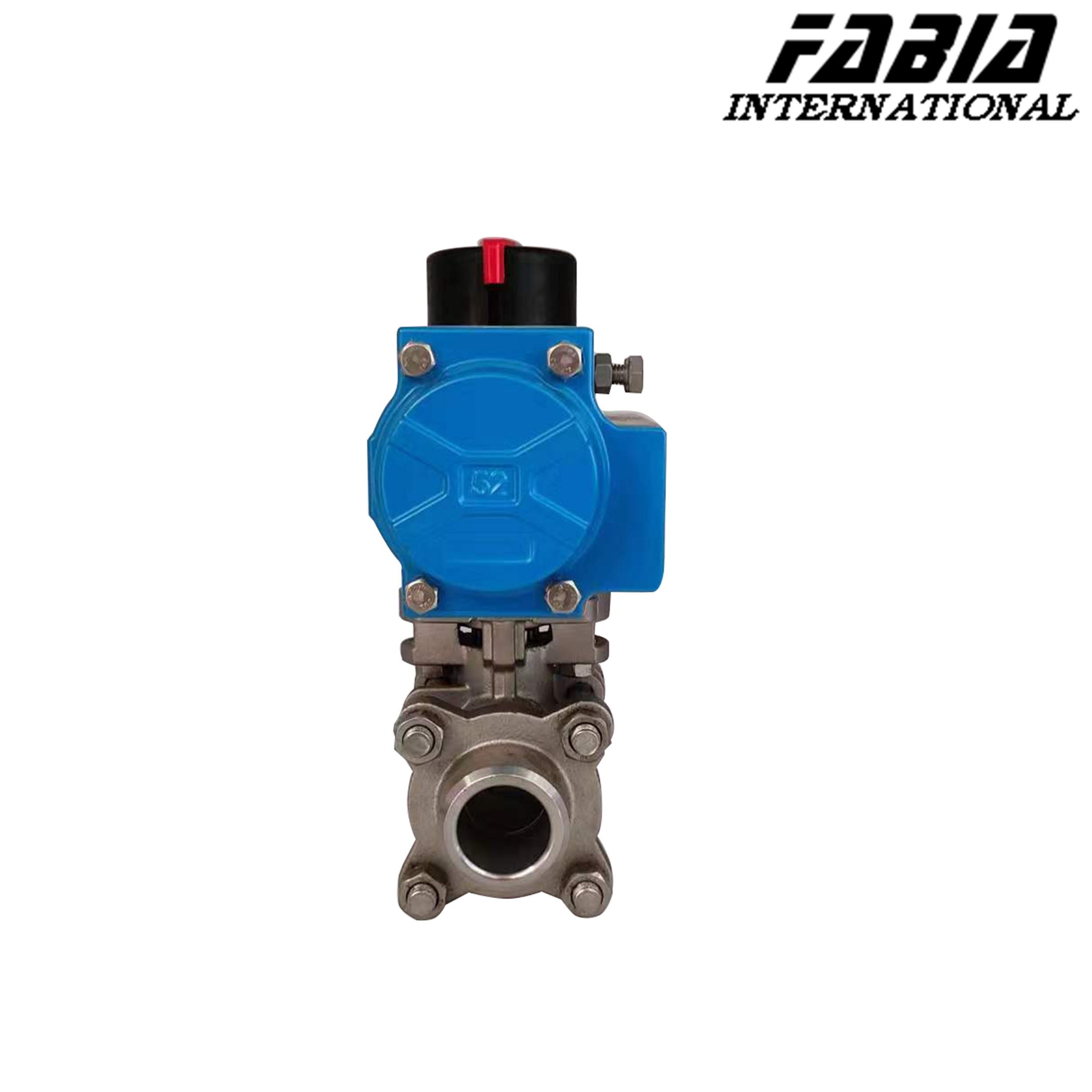

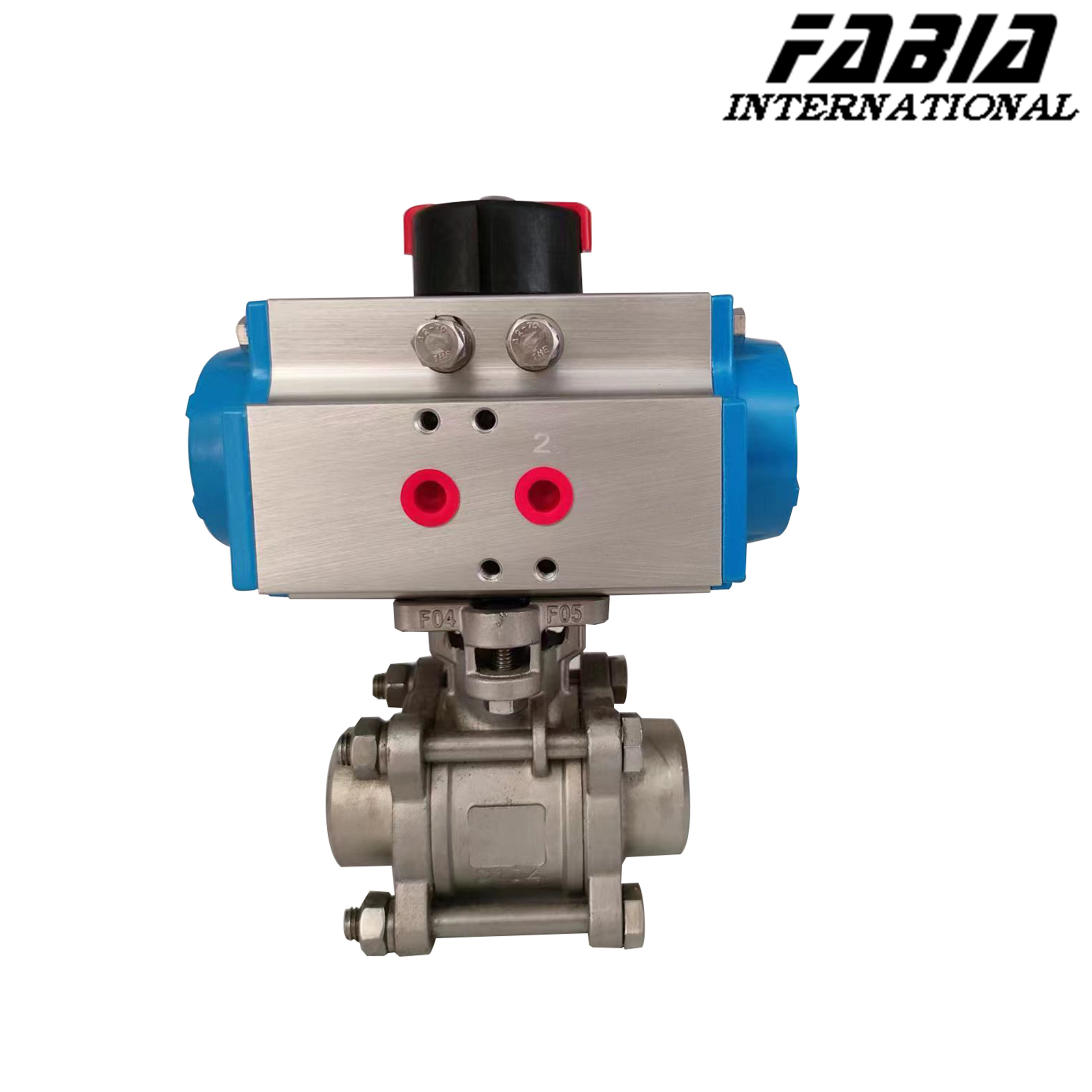

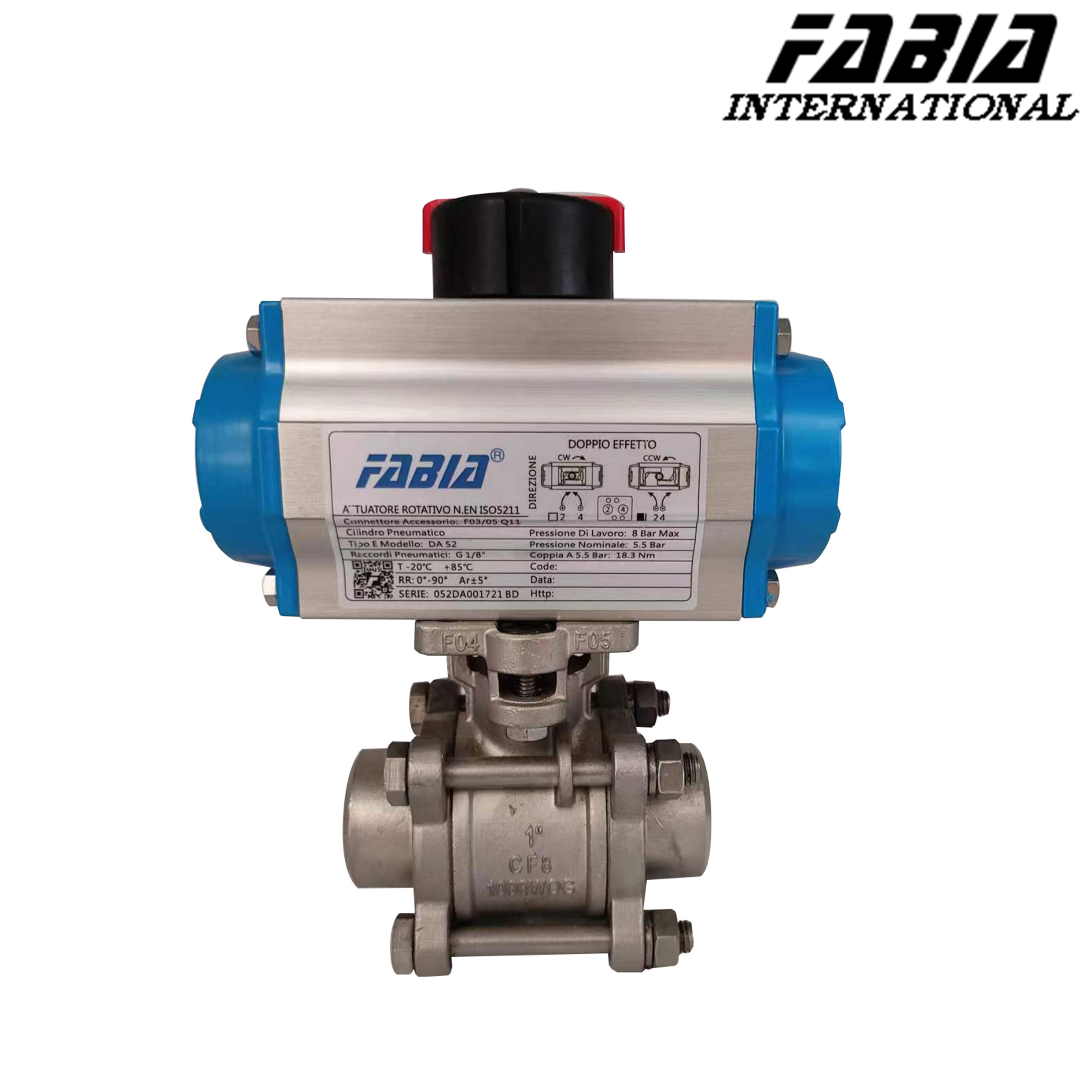

FABIA Air Actuated Ball Valve With Pneumatic Actuator Two Way Butt Welding
1. Description:
Pneumatic ball valve is mainly used to cut off or connect the medium in the pipeline, can also be used for fluid regulation and control, pneumatic ball valve compared with other types, with angular stroke output torque, open quickly, stable and reliable, widely used, and other advantages.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Air Actuated Ball Valve With Pneumatic Actuator Two Way Butt Welding | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Ball valve itself has compact structure, reliable sealing, simple structure, convenient maintenance, sealing surface
- Spherical surface are often in a closed state, not easy to be washed by the medium, easy to operate
- Maintain, suitable for water, solvents, acids and natural gas and other general working media,
- Suitable for poor working conditions of the medium, such as oxygen, hydrogen peroxide, methane and ethylene, etc.,
- Various industries have been widely used.
- Ball valve body can be integral, can also be combined.
