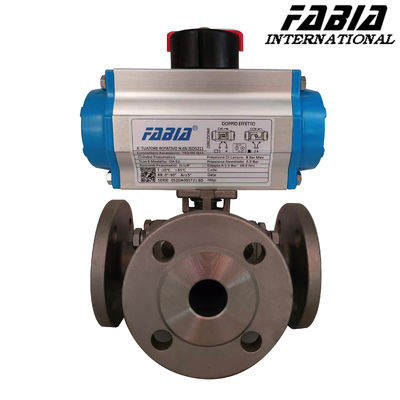

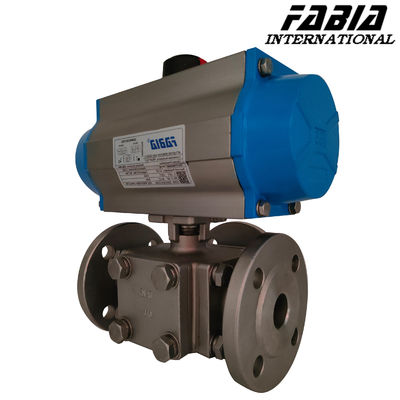

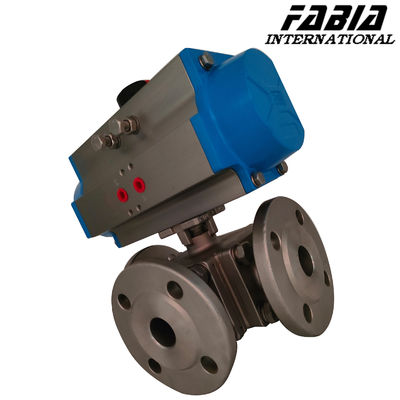

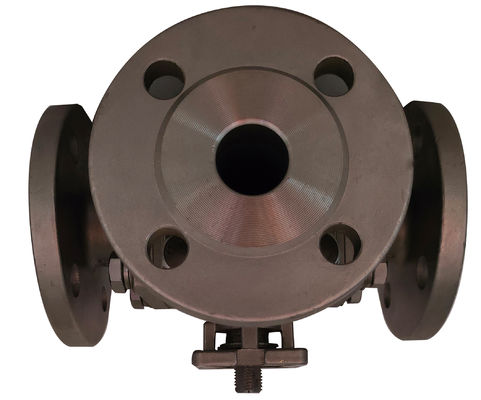

Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control

  • Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
  • Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
  • Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
  • Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic Flanged Ball Valve Valve Type Pneumatic Ball Valve
Material Stainless Steel Operation Pneumatic
Connection Flange Pressure 150-300 BL
Actuator Pneumatic Media Water/Oil/Gas
Seal Flange Temperature -29℃~+180℃
High Light

sanitary pneumatic ball valve

,

1 1 2 inch ball valve

,

1 2 inch ball valve
Leave a Message
Product Description

FABIA Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control



1.Description:



Three-piece flange ball valve,for water, steam, oil, nitric acid, acetic acid and other media equipment.



The valve body casting adopts the advanced technology introduced in Taiwan, with reasonable structure and beautiful shape. The seat adopts elastic sealing structure, reliable sealing, easy opening and closing.



2. Specification:



FABIA Valve Parameter List
Valve type: Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • The valve stem adopts the down-mounted structure with reverse seal, and the valve stem will not be rushed out when the valve. chamber is abnormally pressurized.
  • Drive mode: manual, electric, pneumatic, can set 90° switch positioning mechanism, lock according to need to prevent misoperation
  • Suitable for PN1.0 ~ 4.0MPa.
  • Working temperature -29 ~ 180℃(seal ring for enhanced polytetrafluoroethylene) or -29 ~ 300℃(seal ring for para polystyrene) of various pipelines.
  • Used to cut off or connect the medium in the pipeline. Choose different materials, can be applied to water, steam, oil, nitric acid, acetic acid and other media.



Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control 0

Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control 1
