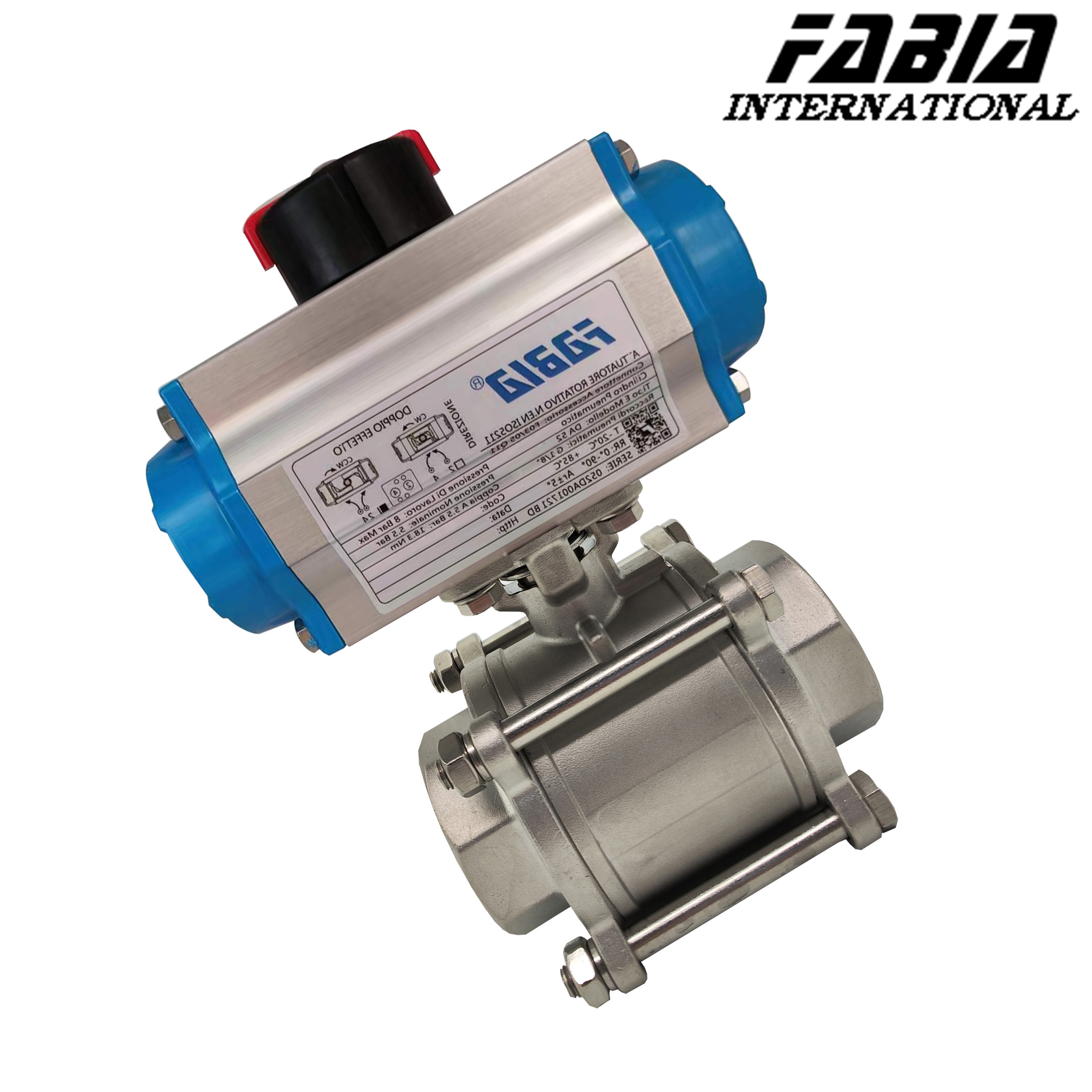

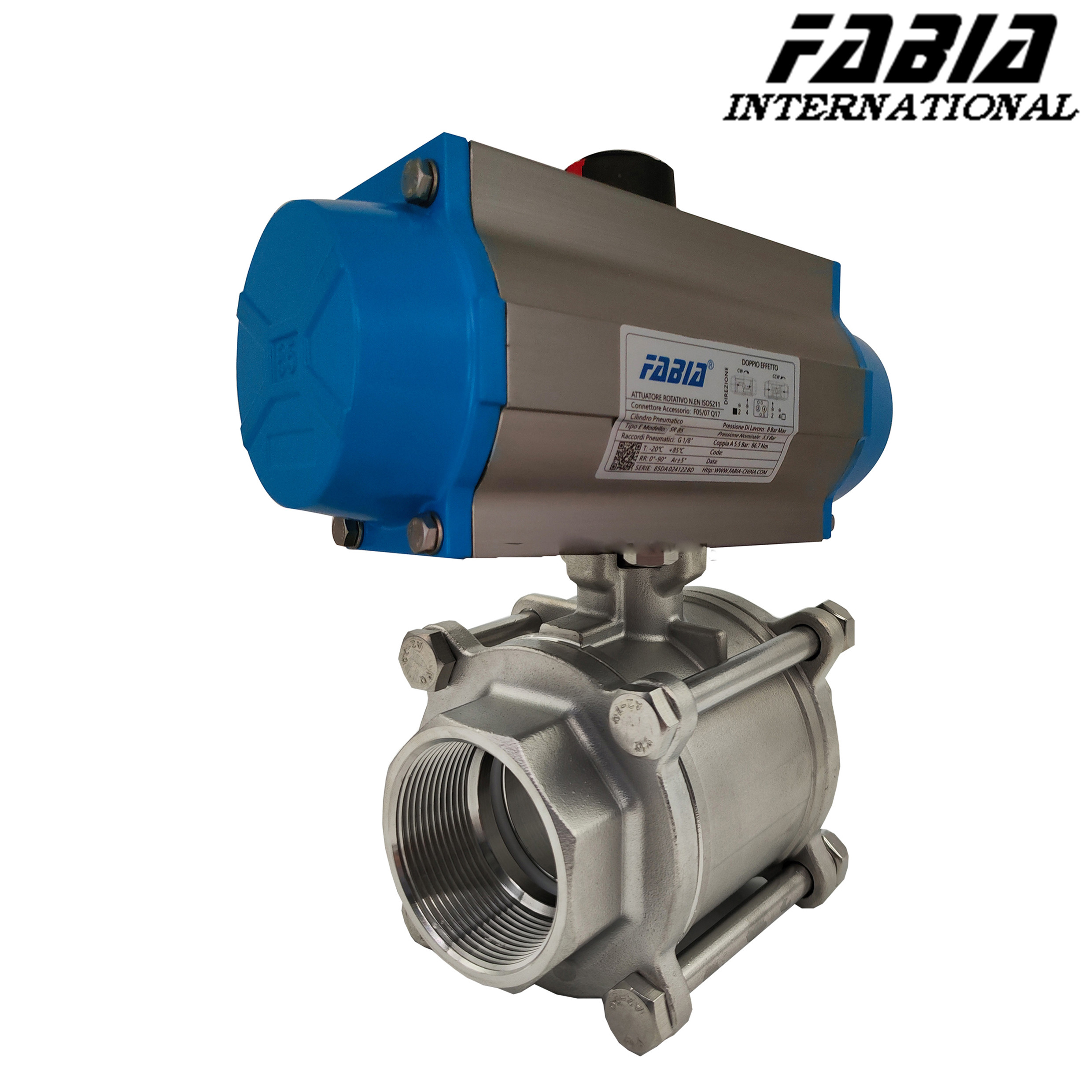

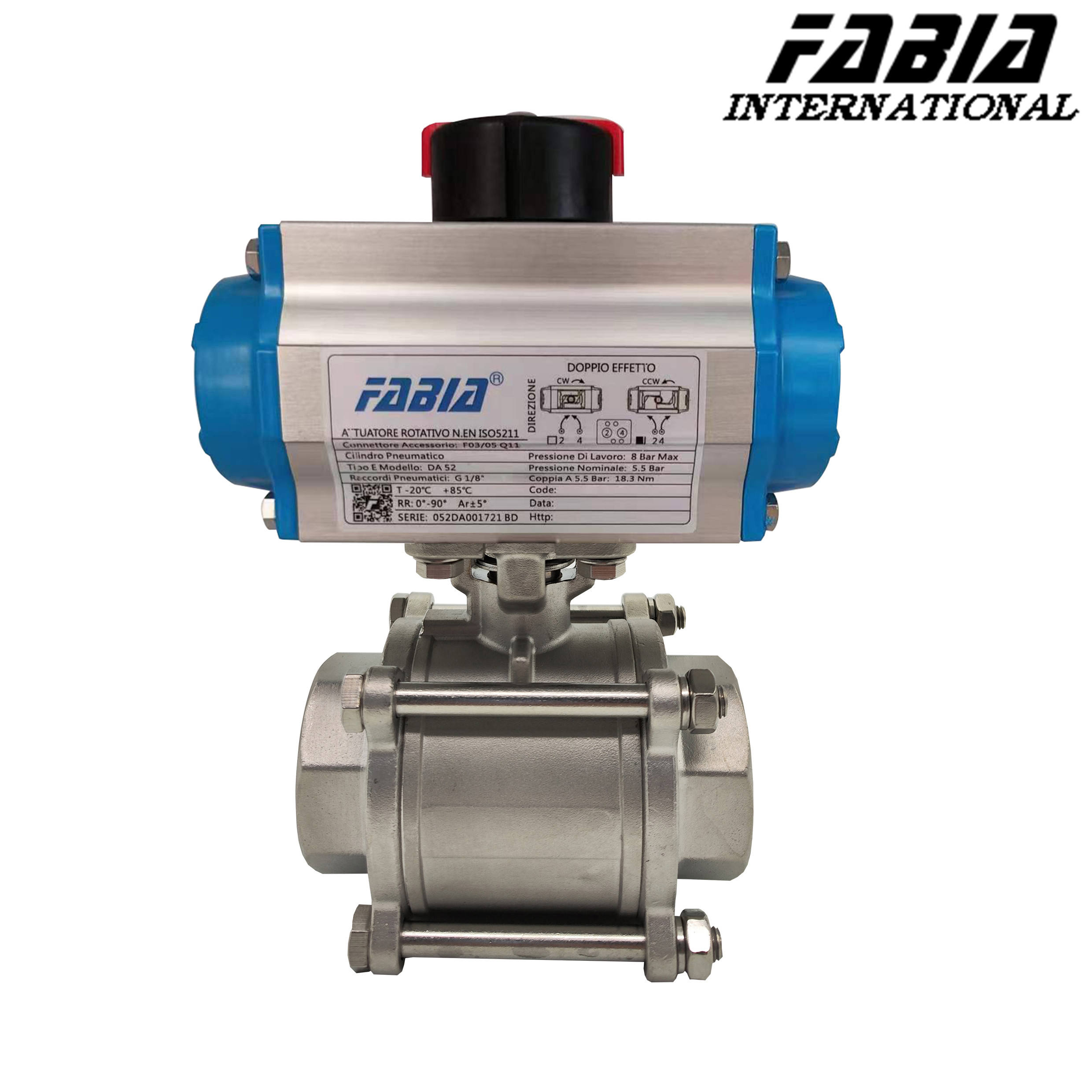

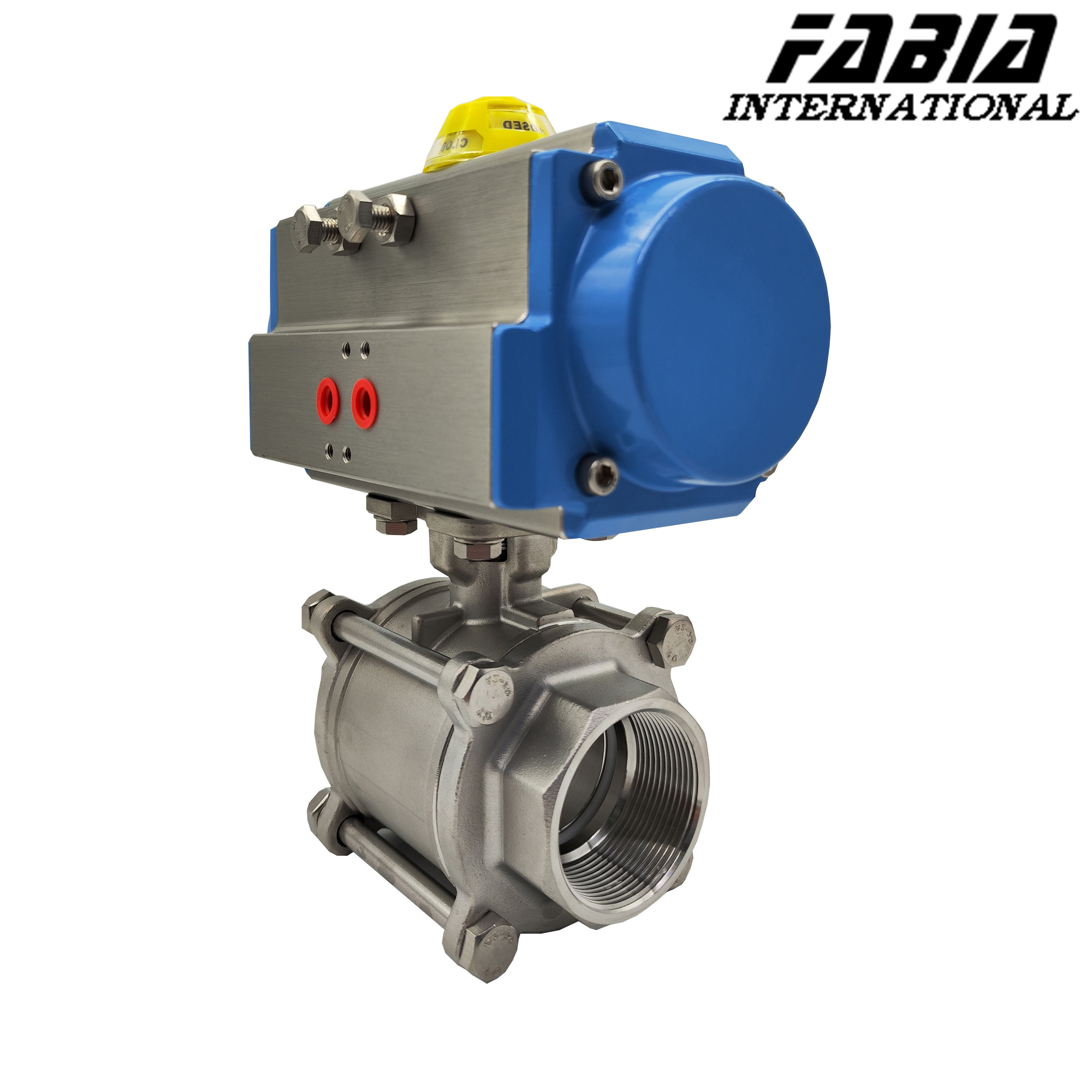

Pneumatic 3-Piece Ball Valve With Internal Thread For Pipeline Control

  • Pneumatic 3-Piece Ball Valve With Internal Thread For Pipeline Control
  • Pneumatic 3-Piece Ball Valve With Internal Thread For Pipeline Control
  • Pneumatic 3-Piece Ball Valve With Internal Thread For Pipeline Control
  • Pneumatic 3-Piece Ball Valve With Internal Thread For Pipeline Control
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic 3-Piece Ball Valve Valve Type Pneumatic Ball Valve
Material Stainless Steel Valve Actuation Pneumatic
Connection Internal Teeth Pressure 1.6Mpa
Medium Gas, Water, Oil Seal PTFE
Size 2 Inch Control Pneumatic
Temperature -30℃~+260℃
High Light

pneumatic actuated high pressure ball valve

,

pneumatic actuated pvc ball valve

,

pneumatic ball valve actuator
Leave a Message
Product Description

FABIA Pneumatic 3-Piece Ball Valve With Internal Thread For Pipeline Control



1. Description:



Pneumatic three-piece ball valve with internal thread is a spherical valve for pipeline control, which uses an electric actuator to drive the ball to rotate, so as to achieve opening and closing and flow control.



Valve has the characteristics of simple structure, reliable sealing, easy operation, long life, etc., and has been widely used in industry, chemical industry, petroleum, natural gas, water treatment and other fields.



2. Specification:



FABIA Valve Parameter List
Valve type: Pneumatic 3-Piece Ball Valve With Internal Thread For Pipeline Control
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Pneumatic three-piece ball valve with internal thread is composed of a ball, a seat, a stem and an actuator.
  • Ball adopts the three-piece structure, which can easily repair and replace the seat;
  • Aalve seat is made of PTFE and other corrosion-resistant materials, with good sealing performance;
  • Valve stem and ball are made of stainless steel precision machining, after multi-channel polishing treatment, with good wear resistance and sealing performance;
  • Actuator comprises a motor, a reducer, a stopper, a manual device, a power supply, etc., which is connected to the control system through an interface.









Pneumatic 3-Piece Ball Valve With Internal Thread For Pipeline Control 0

Pneumatic 3-Piece Ball Valve With Internal Thread For Pipeline Control 1
