Clamp Ptfe Lined Ball Valve With Double Acting Pneumatic Actuator

Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ~ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic Clamp Ball Valve Valve Type Pneumatic Ball Valve
Material Stainless Steel Valve Actuator Type Pneumatic
Valve Connection Type Clamp Valve Pressure Rating PN16-40
Valve Seal Material PTFE Valve Temperature Rating -30℃~+150℃
Valve Application Petroleum, Chemical, Power, Water Treatment, Etc.
Highlight

ptfe lined ball valve

,

ptfe ball valve

,

clamp ball valve

Leave a Message
Product Description

FABIA Clamp Ptfe Lined Ball Valve With Double Acting Pneumatic Actuator



1. Description:



Pneumatic clamp ball valve is widely used in beer engineering, food engineering, chemical engineering, pharmaceutical engineering, biological engineering and water treatment engineering and other fields.



2. Specification:



FABIA Valve Parameter List
Valve type: Clamp Ptfe Lined Ball Valve With Double Acting Pneumatic Actuator
Size: 1/8 inch ~ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0~PN64,ANSI CLASS 150-900,JIS10-20K;
Temperature: -196℃~540℃
Model: FB-Q..........



3. Features:



  • Fast operation time, stable output and high reliability.
  • Simple structure, small size, light weight.
  • Simple matching, large circulation capacity.

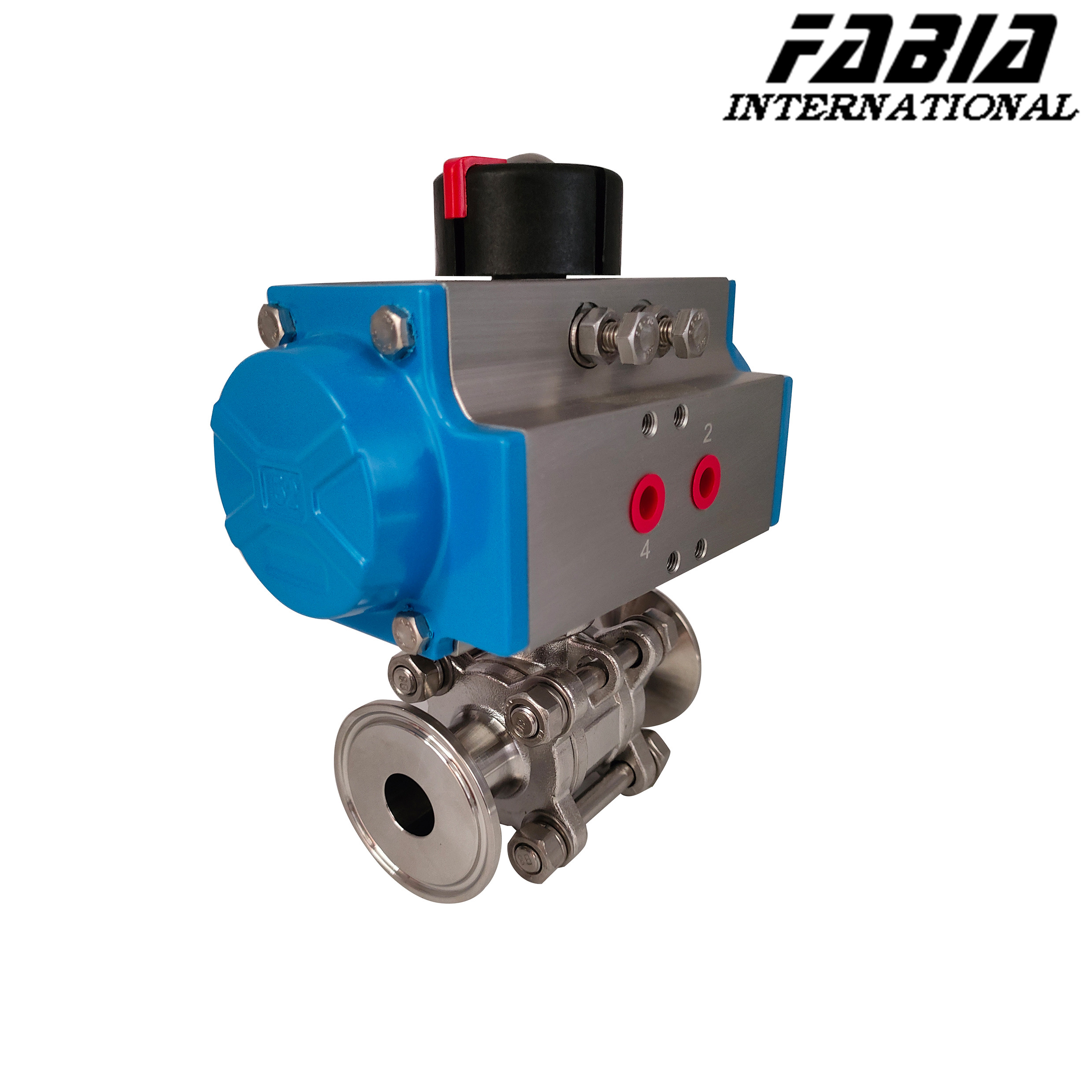

Clamp Ptfe Lined Ball Valve With Double Acting Pneumatic Actuator 0

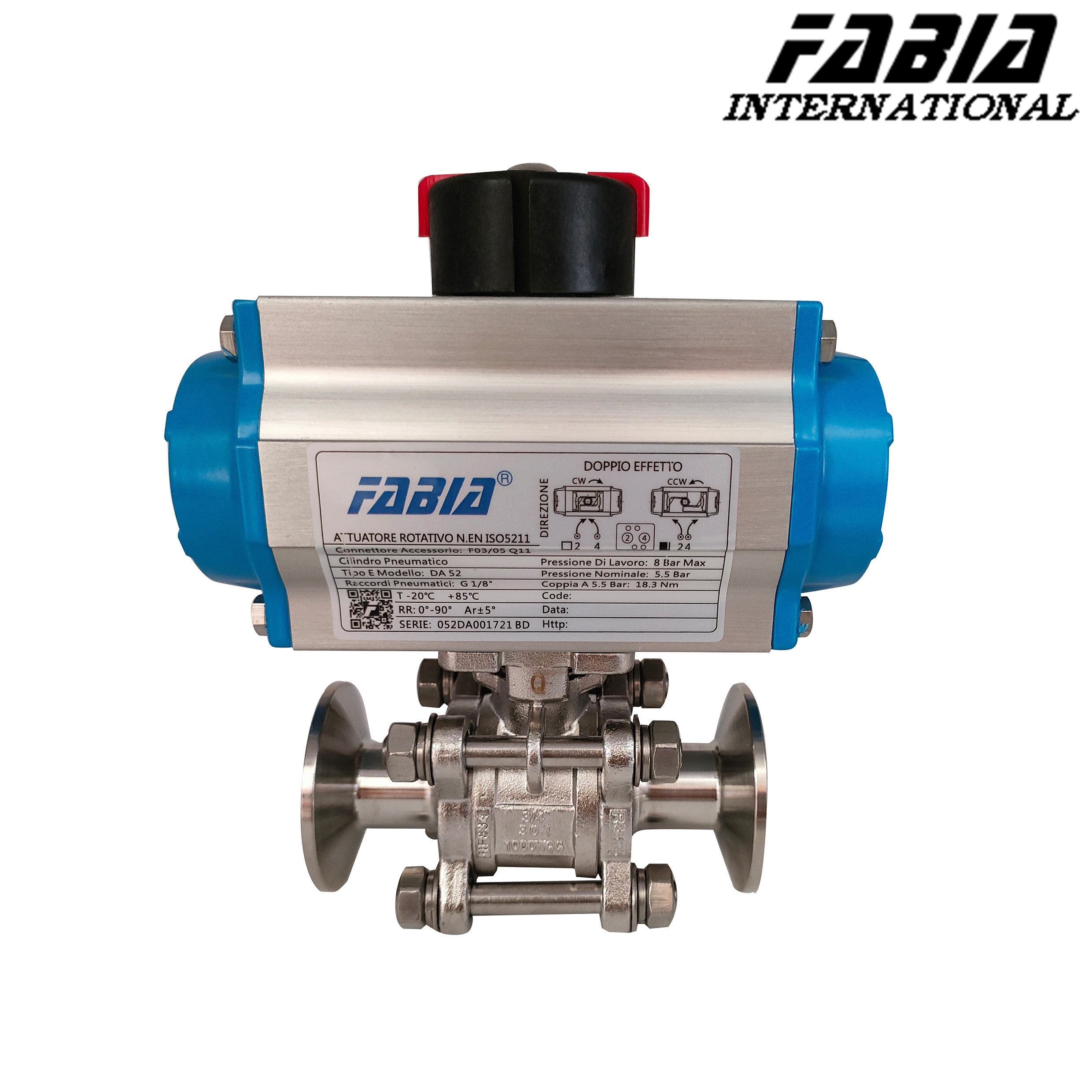

Clamp Ptfe Lined Ball Valve With Double Acting Pneumatic Actuator 1
