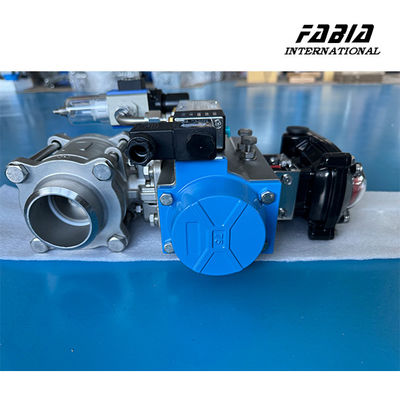

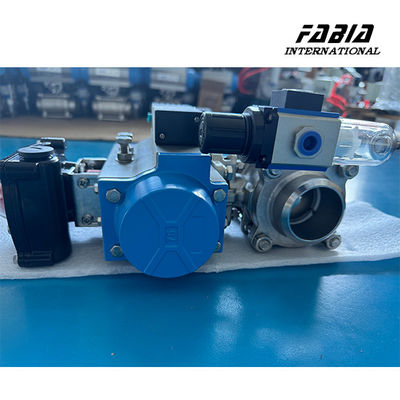

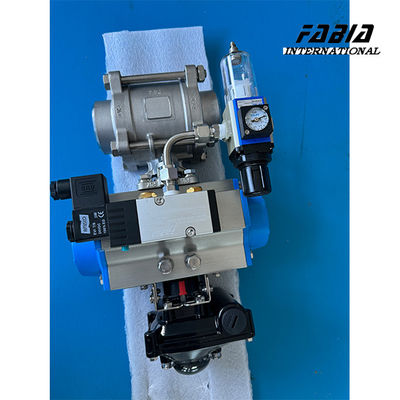

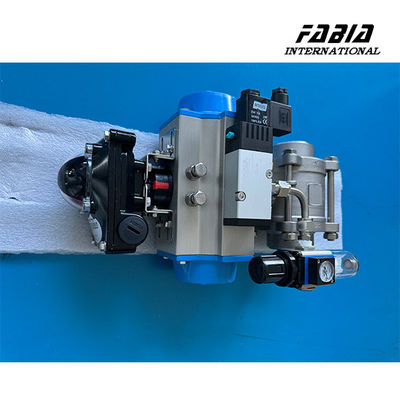

Pneumatic Three-Pieces Stainless Steel Butt-Weld 6 inchBall Valve Leak-Proof and High-Pressure
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic Three-piece Ball Valve | Valve Type | Pneumatic Ball Valve |
|---|---|---|---|
| Actuator | Pneumatic | Material | Stainless Steel |
| Connection | Threaded | Pressure | 150 PSI |
| Operation Type | Pneumatic | Body Type | Split Body |
| Valve Design | Floating Ball | Valve Operation Direction | Bidirectional |
| Size | 1/2 Inch | Temperature | -20℃~+150℃ |
| Valve Operation | 2-Way | ||
| Highlight | Leak Proof Pneumatic Ball Valve,High Pressure Pneumatic Ball Valve,Pneumatic Three-Pieces Ball Valve |
||
Product Description
Pneumatic Three-Pieces Stainless Steel Butt-Weld 6 inchBall Valve Leak-Proof and High-Pressure
1. Description:
This pneumatic three-pieces stainless steel butt-weld ball valve is designed for efficient flow control in demanding industrial applications. Constructed with high-grade stainless steel, it offers outstanding corrosion resistance and durability, making it suitable for use in industries such as chemical processing, oil and gas, food and beverage, and pharmaceuticals. The three-piece design allows for easy disassembly, cleaning, and maintenance without removing the entire valve from the pipeline. The pneumatic actuator ensures fast, automatic, and precise control, which enhances operational efficiency and reduces manual labor.
2.Specification:
| FABIA Valve Parameter List | ||
| Valve type: | pneumatic three-pieces stainless steel butt-weld ball valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3.Ball valve features:
- Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss with the ball is small, so the service life of the ball valve is long.
- Pneumatic, electric and other driving mechanisms can be configured to achieve remote control and automatic operation.
- Channel in the valve body is smooth and smooth, which can transport viscous fluid, slurry and solid particles.
- Easy to install, can be installed in any direction in any part of the pipeline.
4.Working principle:
- Working principle of the three-piece ball valve is to control the flow of the medium by rotating the ball.
- When the valve is closed, the ball is tightly fitted to the seat to prevent media leakage.
- When the valve is opened, the ball is rotated 90 degrees, and the medium can flow through the all-pass design of the ball.
- Through manual, electric, pneumatic and other driving methods to control the rotation of the ball, so as to achieve the control of the medium.
5. Application:
- Three-piece ball valve is widely used in petroleum, chemical, natural gas, pharmaceutical, food and other industries.
- It can be used to control the flow of various media, such as water, oil, gas, steam, etc.
- Because of its compact structure, easy maintenance and good corrosion resistance, it is widely used in various industrial fields.
