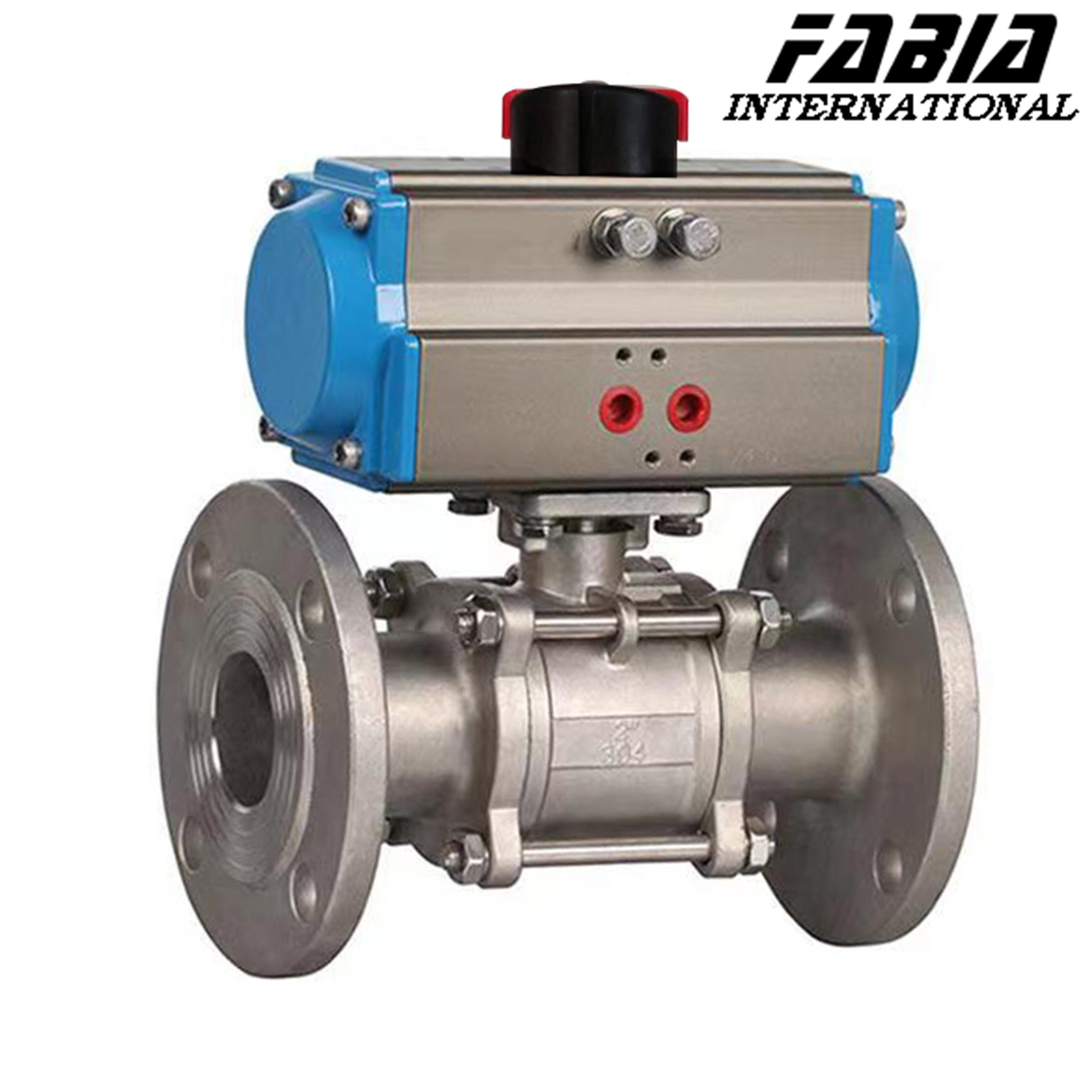

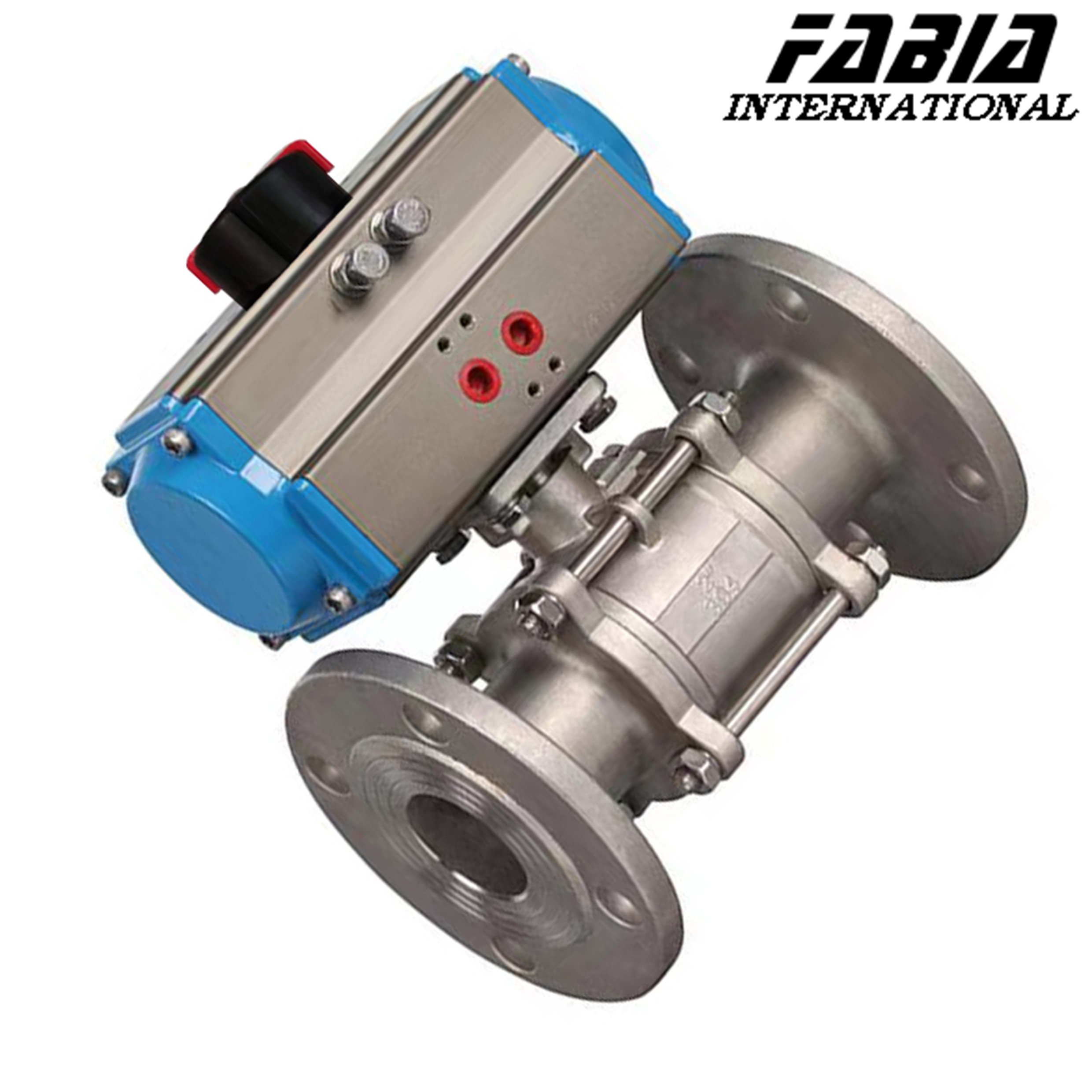

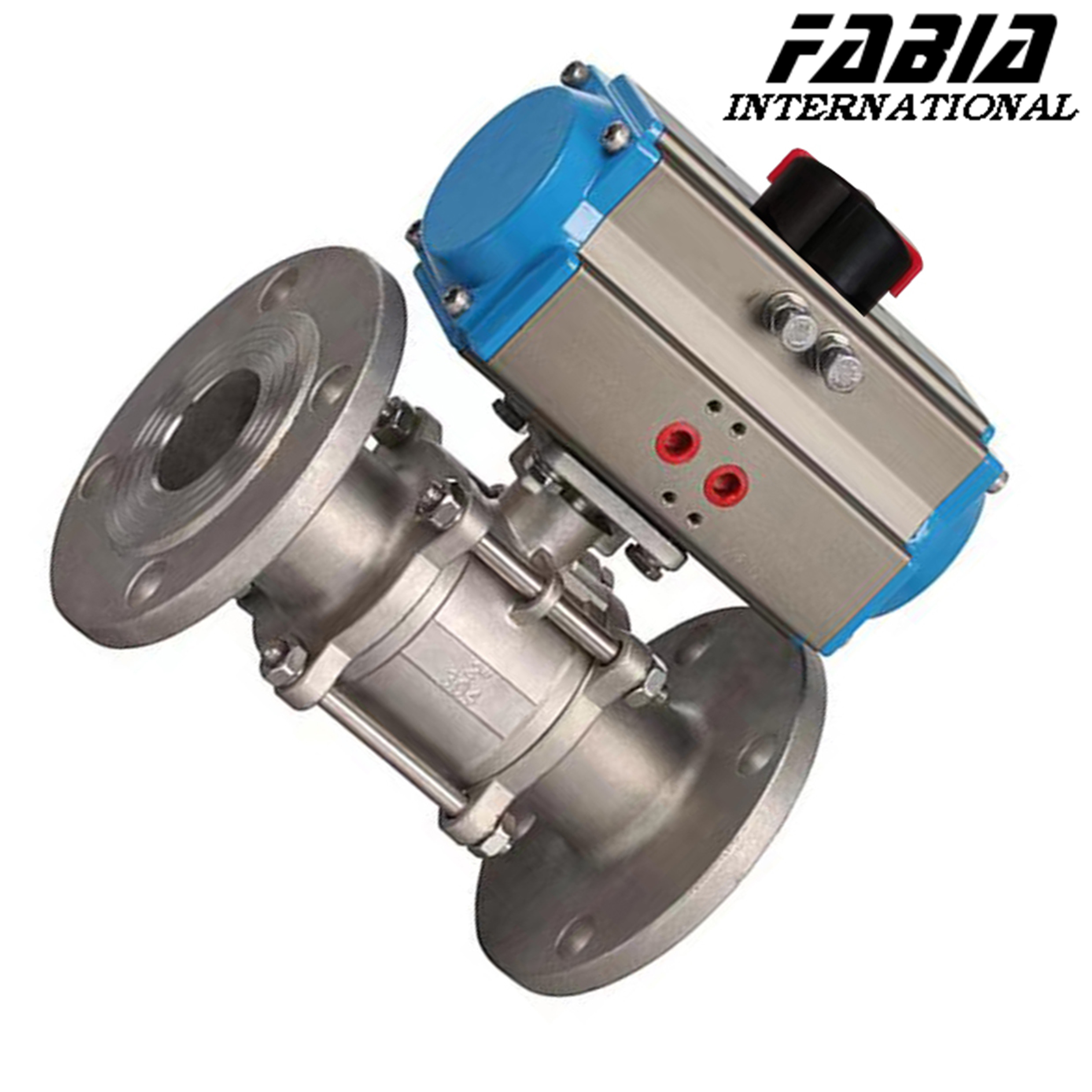

Pneumatic High Pressure Ball Valve Three Piece Flanged Industrial Ball Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Pressure Three Piece Ball Valve | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Valve Actuator | Pneumatic | Valve Material | Stainless Steel |
| Valve End Connection | Flanged | Valve Sealing | Metal To Metal |
| Valve Operation | Pneumatic | Valve Pressure Rating | 1000 PSI |
| Valve Seat | PTFE/EPDM | Valve Size | 8-inch |
| Valve Stem | Stainless Steel | Valve Temperature Rating | 200°F |
| High Light | Three Piece Ball Valve 1000 PSI,Pneumatic High Pressure Industrial Ball Valve,Flanged Pneumatic Ball Valve |
||
Product Description
Pneumatic High Pressure Three Piece Flanged Industrial Ball Valve
1. Description:
Pneumatic high-pressure three-piece flanged ball valve is a relatively new type of ball valve category, it has its own structure has some unique advantages, such as no friction switch, seal is not easy to wear, small opening and closing torque.
Reduces the size of the configured actuator. With a multi-rotary pneumatic actuator, the medium can be adjusted and tightly cut off.
Widely used in petrochemical city water supply and drainage and other conditions requiring strict cut-off.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic High Pressure Three Piece Flanged Industrial Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
- Simple structure, small size, light weight.
- Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has been widely used in the vacuum system.
- Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
- Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
- When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.
- Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.
