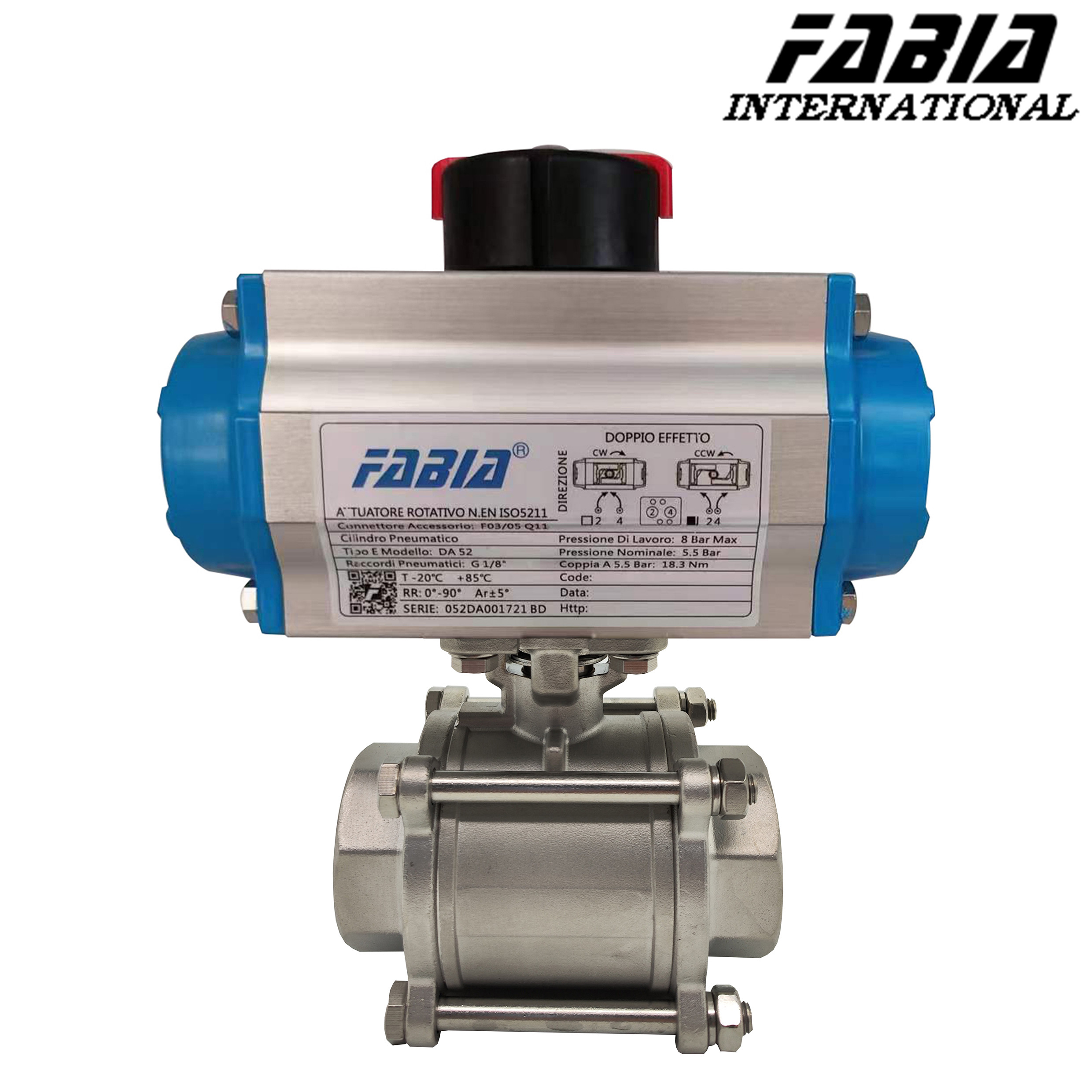

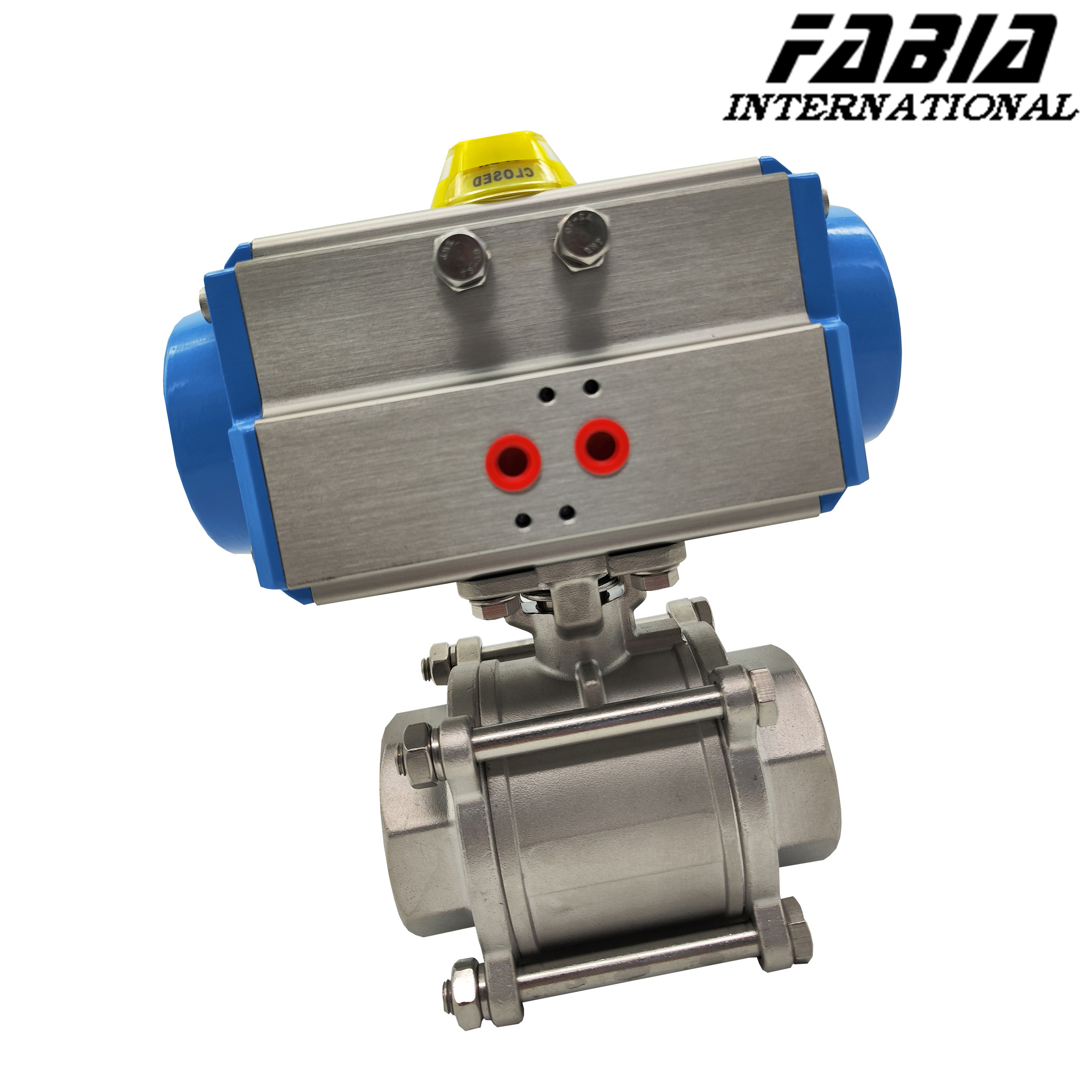

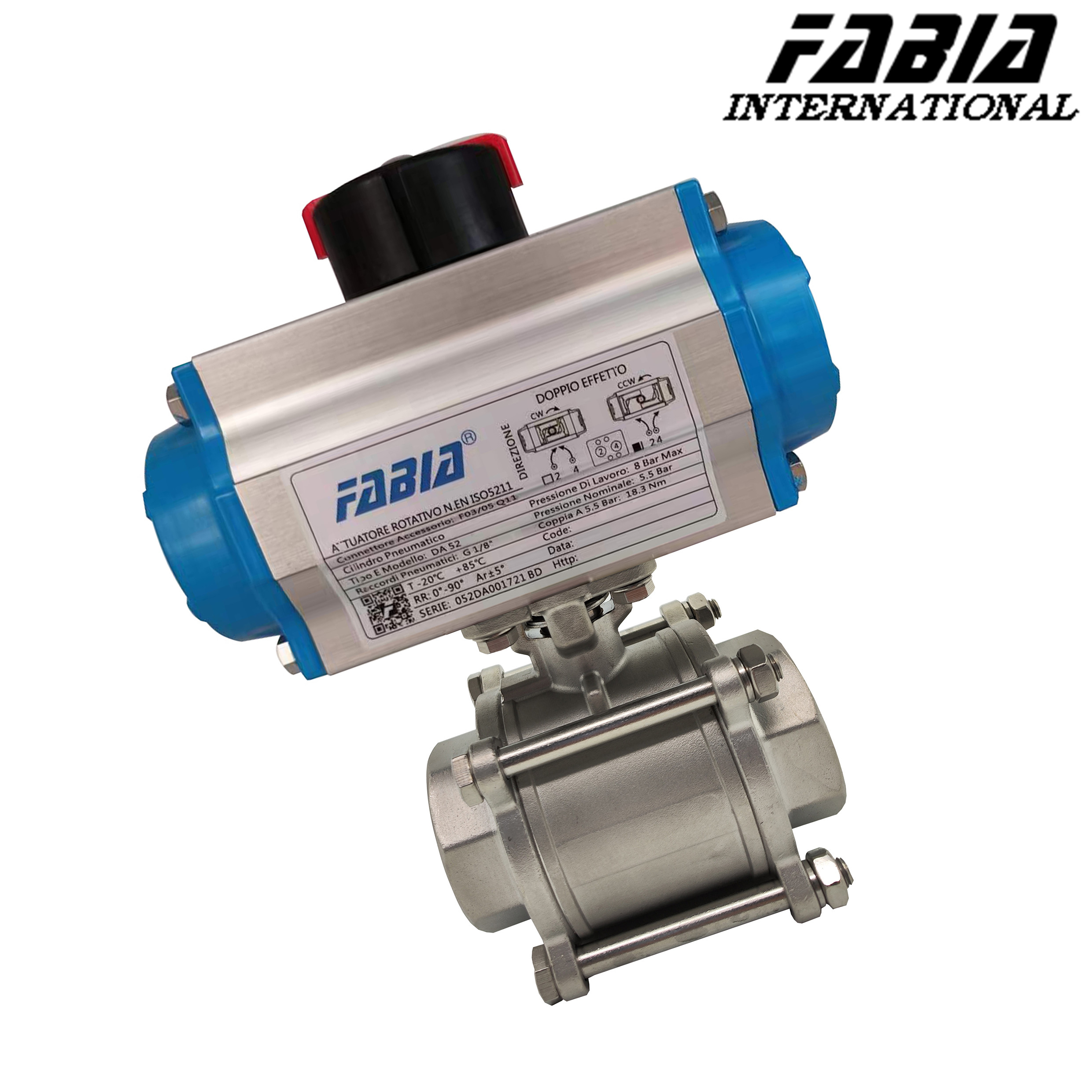

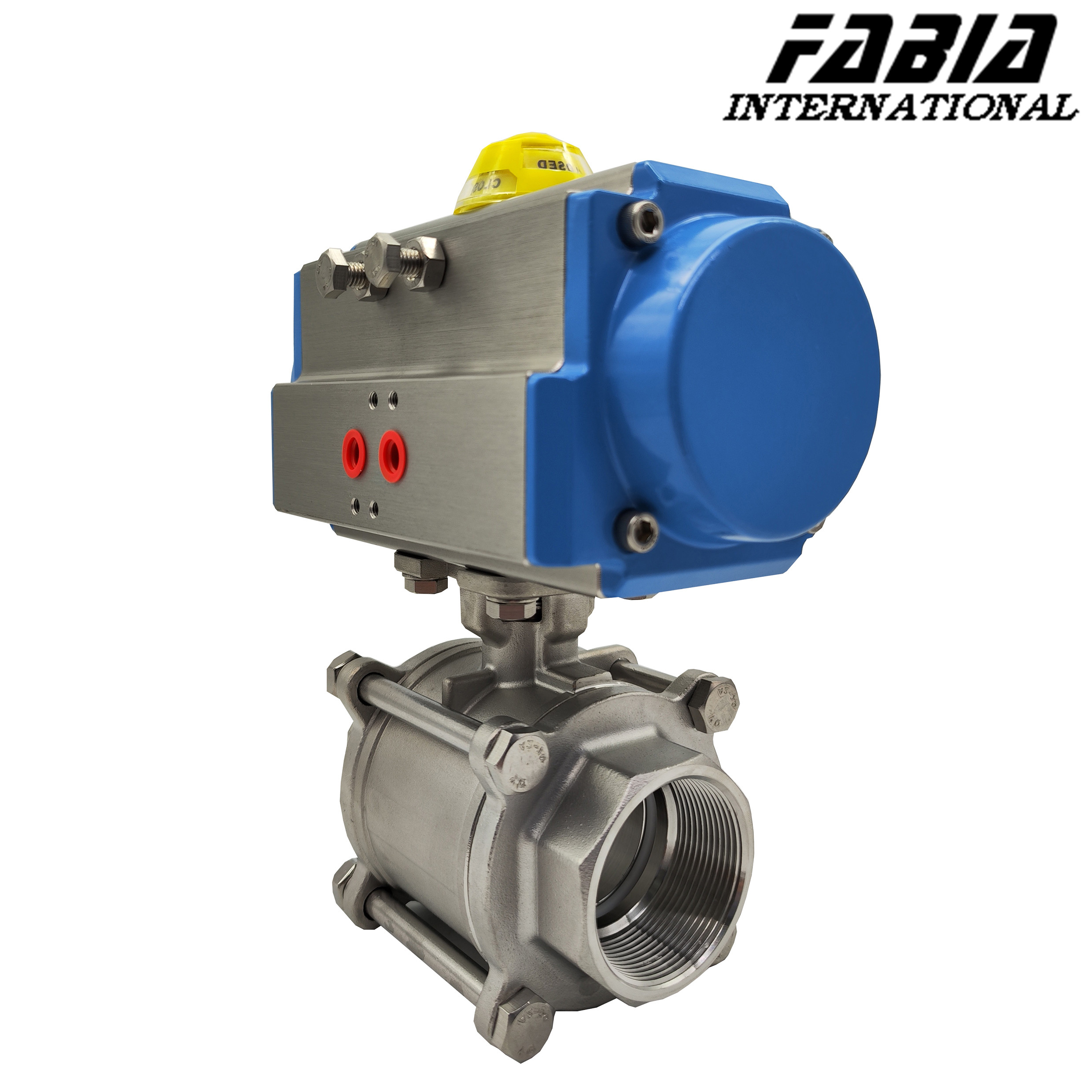

Three-Piece Pneumatic Ball Valve For Automatic Operation
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic Three-piece Ball Valve | Valve Type | Pneumatic Ball Valve |
|---|---|---|---|
| Actuator | Pneumatic | Material | Stainless Steel |
| Connection | Threaded | Pressure | 150 PSI |
| Operation Type | Pneumatic | Body Type | Split Body |
| Valve Design | Floating Ball | Valve Operation Direction | Bidirectional |
| Size | 1/2 Inch | Temperature | -20℃~+150℃ |
| Valve Operation | 2-Way | ||
| High Light | 3 piece threaded ball valve,stainless steel three piece ball valve,ball valve 3 piece stainless steel |
||
Product Description
Three-Piece Pneumatic Ball Valve For Automatic Operation
1. Description:
Three-piece ball valve is a high-performance valve, widely used in petroleum, chemical, natural gas, pharmaceutical, food and other industries.
This paper will introduce the characteristics, structure, working principle, application and maintenance of the three-piece internal screw ball valve from the following aspects.
2.Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic two-way ball valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3.Ball valve features:
- Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss with the ball is small, so the service life of the ball valve is long.
- Pneumatic, electric and other driving mechanisms can be configured to achieve remote control and automatic operation.
- Channel in the valve body is smooth and smooth, which can transport viscous fluid, slurry and solid particles.
- Easy to install, can be installed in any direction in any part of the pipeline.
4.Working principle:
- Working principle of the three-piece ball valve is to control the flow of the medium by rotating the ball.
- When the valve is closed, the ball is tightly fitted to the seat to prevent media leakage.
- When the valve is opened, the ball is rotated 90 degrees, and the medium can flow through the all-pass design of the ball.
- Through manual, electric, pneumatic and other driving methods to control the rotation of the ball, so as to achieve the control of the medium.
5. Application:
- Three-piece ball valve is widely used in petroleum, chemical, natural gas, pharmaceutical, food and other industries.
- It can be used to control the flow of various media, such as water, oil, gas, steam, etc.
- Because of its compact structure, easy maintenance and good corrosion resistance, it is widely used in various industrial fields.
