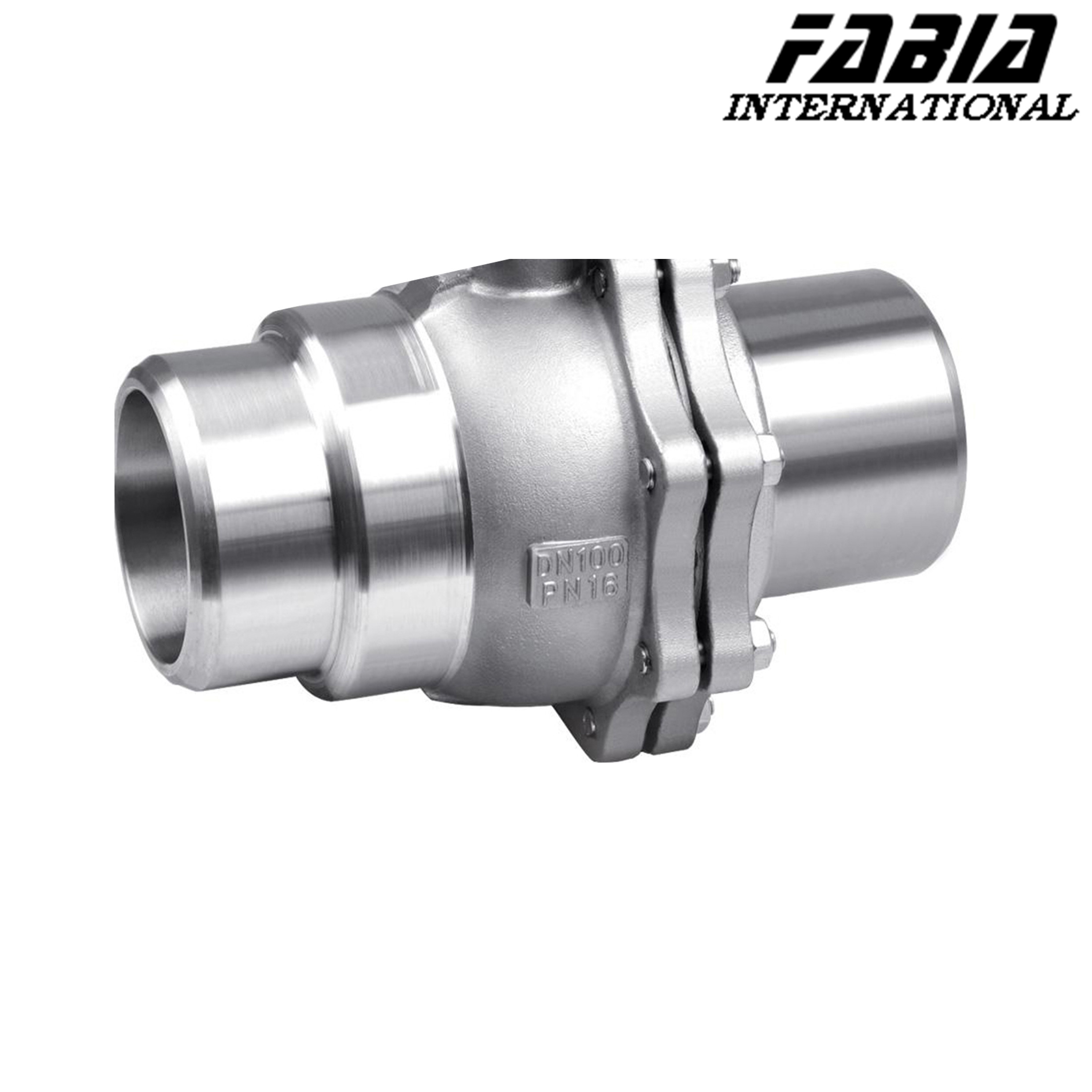

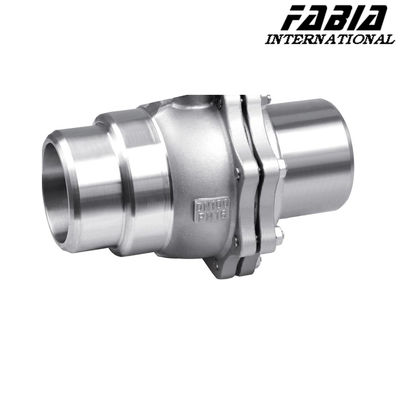

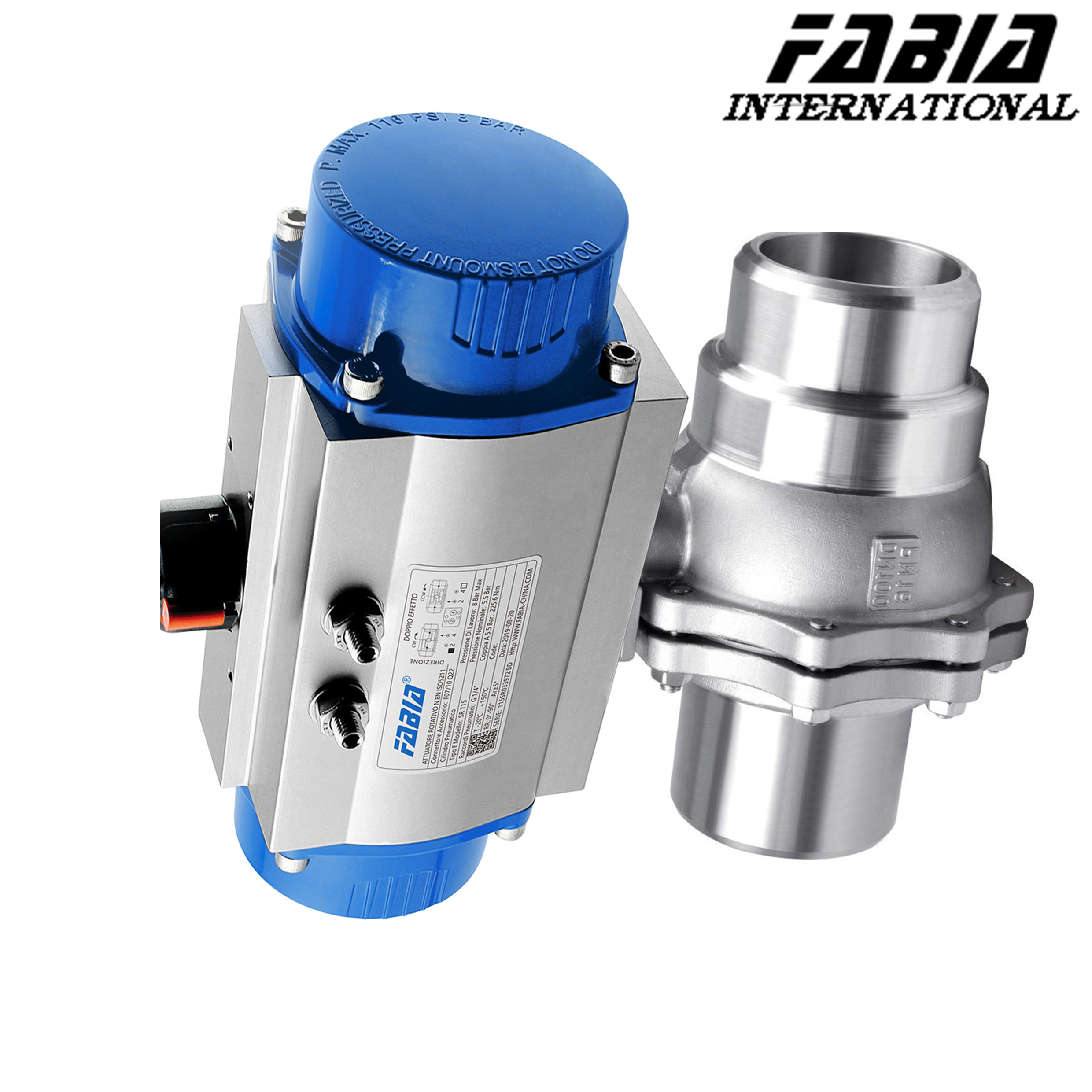

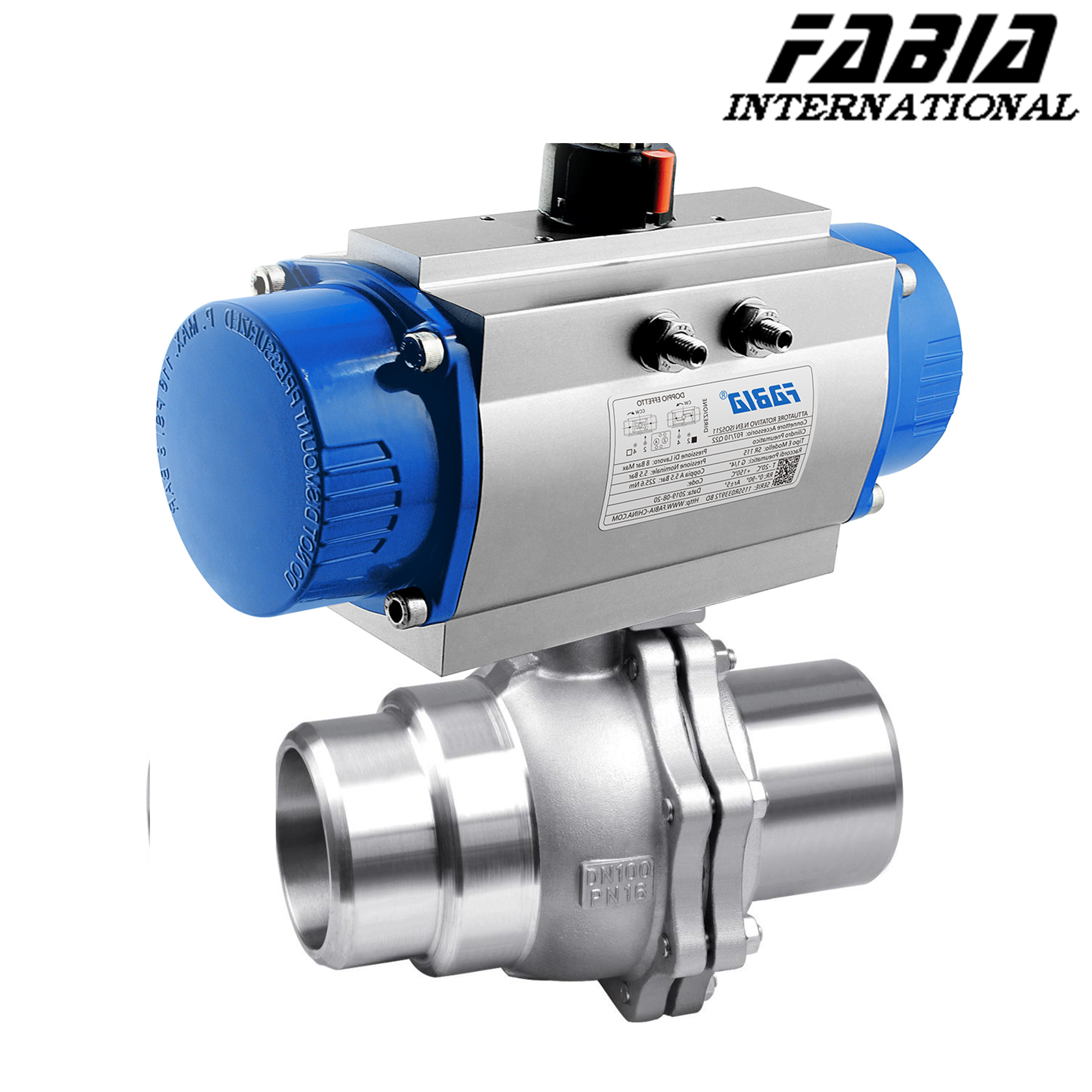

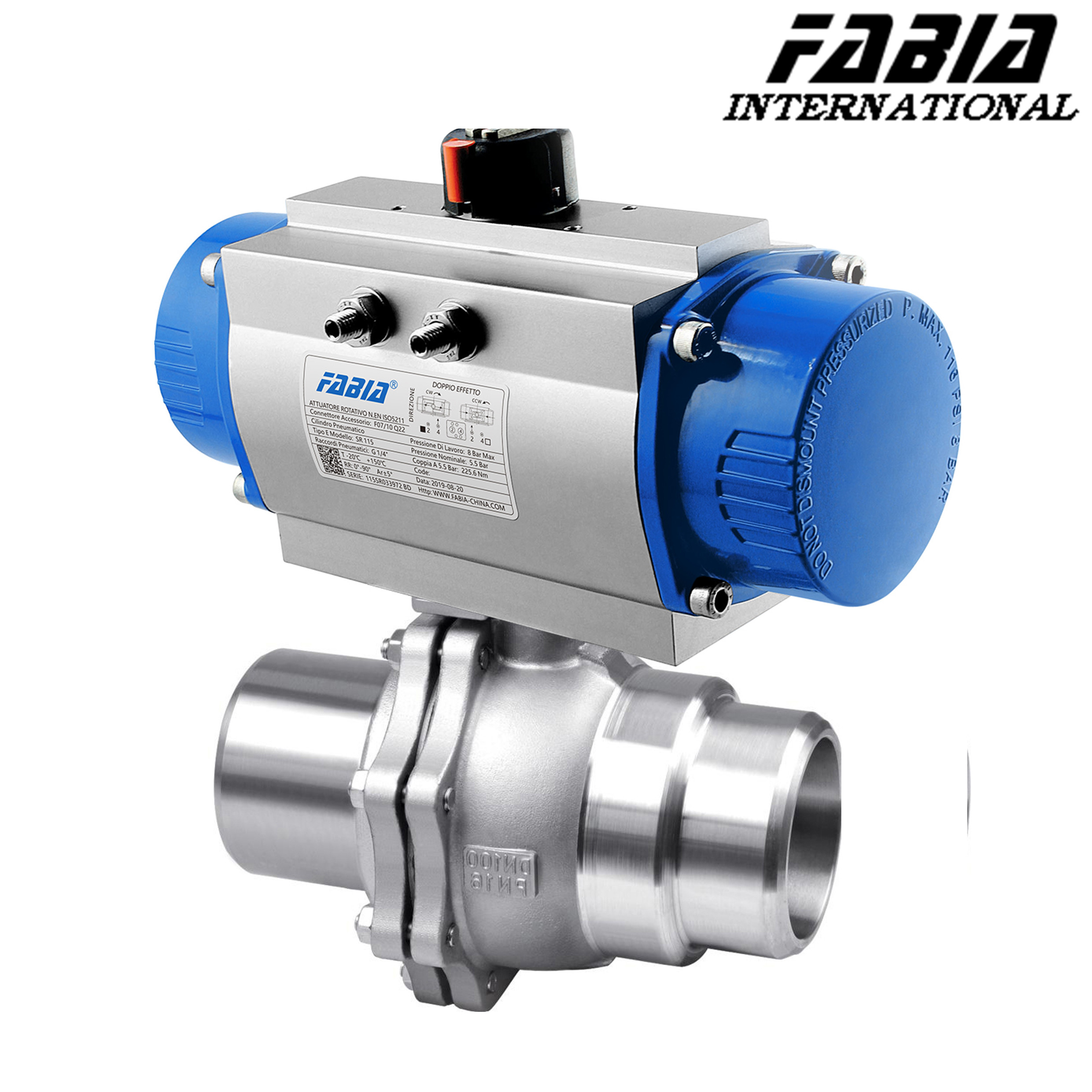

Pneumatic Two-Piece Ball Valve With Low Resistance Pneumatic Ball Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic Two-piece Ball Valve | Valve Type | Pneumatic Ball Valve |
|---|---|---|---|
| Material | Stainless Steel | Operation Type | Pneumatic |
| Connection Type | Socket Weld | Pressure Rating | 150-2500LB |
| Actuator | Pneumatic Actuator | Seal Material | PTFE, PPL |
| Size | 1/2”-48” | Temperature Range | -30℃~+150℃ |
| End Connection | ANSI B16.5, JIS, DIN, Etc. | Control Mode | Normally Open, Normally Closed, Etc. |
| Highlight | pneumatic sanitary ball valve,ball valve with pneumatic rotary actuator,1 1 4 ball valve |
||
Product Description
FABIA Pneumatic Two-Piece Ball Valve With Low Resistance
1. Description:
Ball valve is a relatively new type of ball valve category, it has its own structure has some unique advantages, such as no friction switch, seal is not easy to wear, small opening and closing torque. This reduces the size of the configured actuator. With a multi-turn electric actuator, the medium can be adjusted and tightly cut off.
It is widely used in petroleum, chemical industry, urban water supply and drainage and other conditions requiring strict cut-off.
2.Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic Two-Piece Ball Valve With Low Resistance | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
- Simple structure, small size, light weight.
- Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has been widely used in the vacuum system.
- Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
- Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
- When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause the erosion of the sealing surface of the valve.
- Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied. When the ball is rotated 90 degrees, the inlet and outlet should all be spherical, thus cutting off the flow.
