Pneumatic Double Command Ball Valve with PVC Body
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic Double Command Ball Valve | Valve Type | Pneumatic Ball Valve |
|---|---|---|---|
| Body Material | PVC | Operation Type | Pneumatic |
| Connection Type | PVC | Actuator Type | Pneumatic |
| Pressure | PN16 | Seat Material | PTFE |
| Size | 1/2”-48” | Temperature Range | -30℃-135℃ |
| Highlight | double ball valve,6mm pneumatic ball valve,10mm ball valve |
||
Product Description

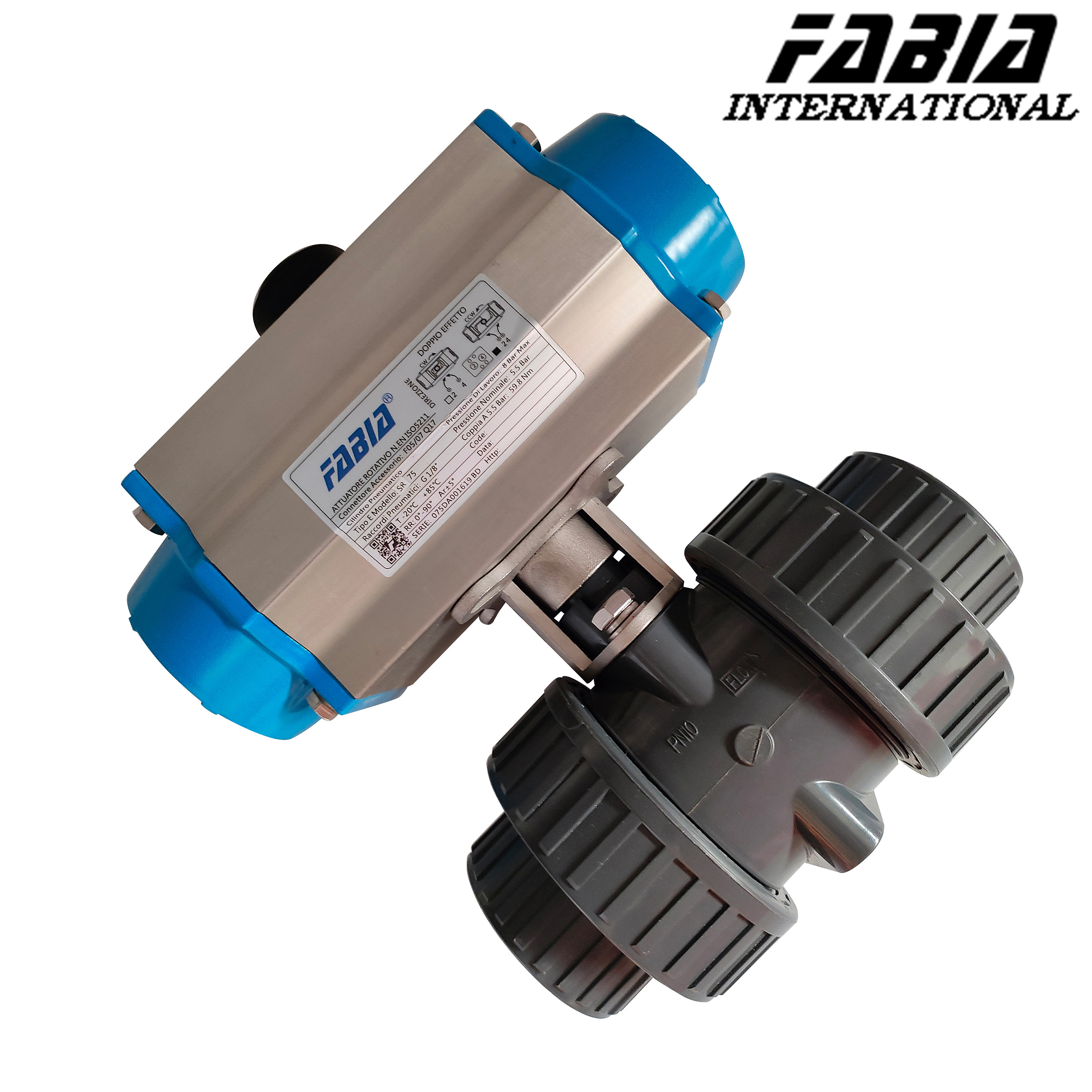

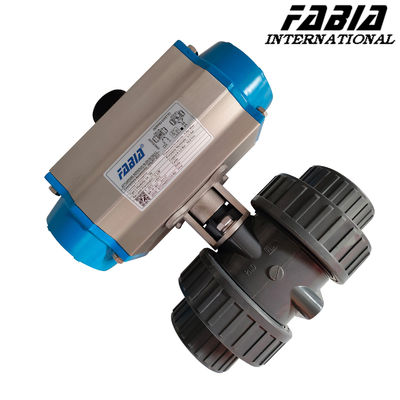

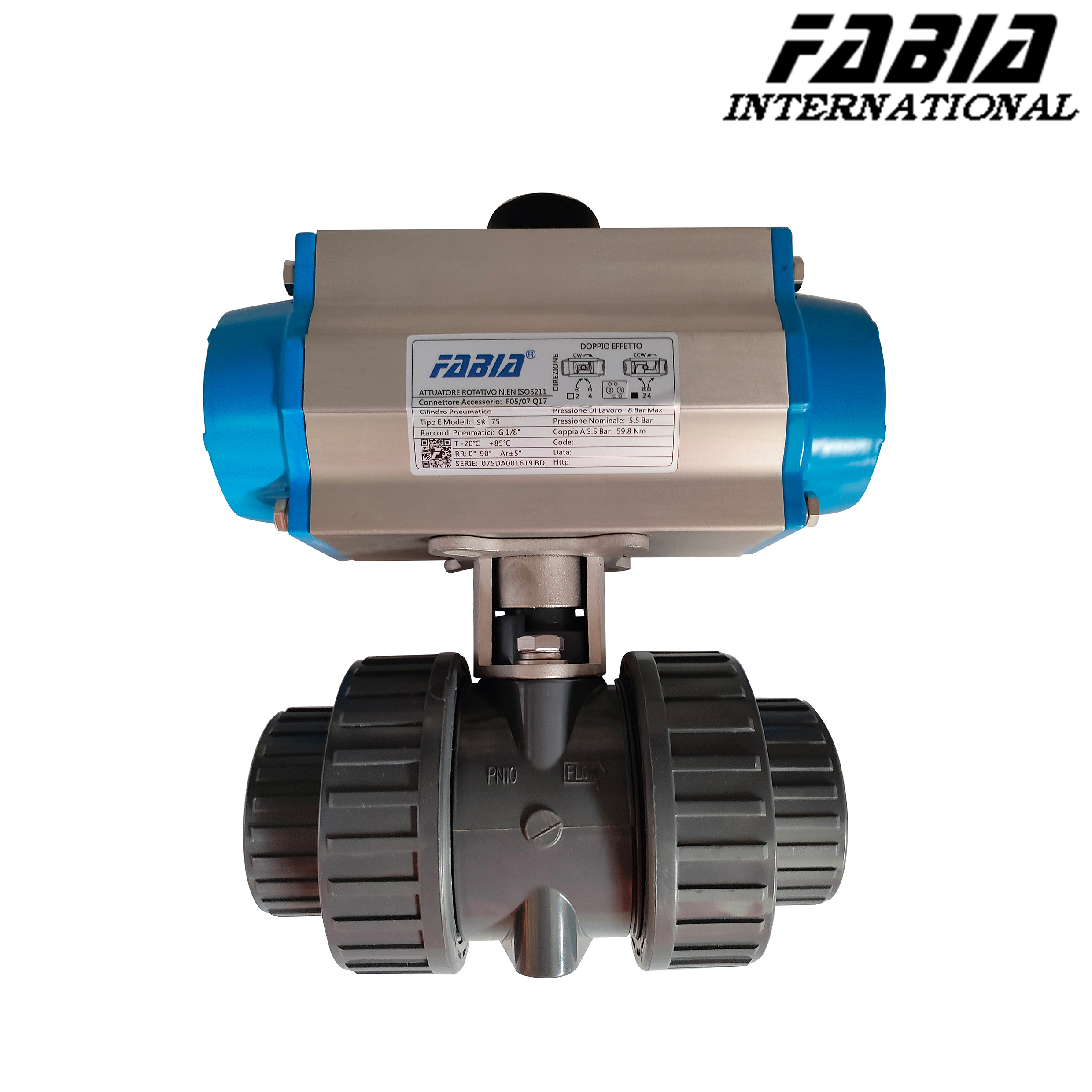

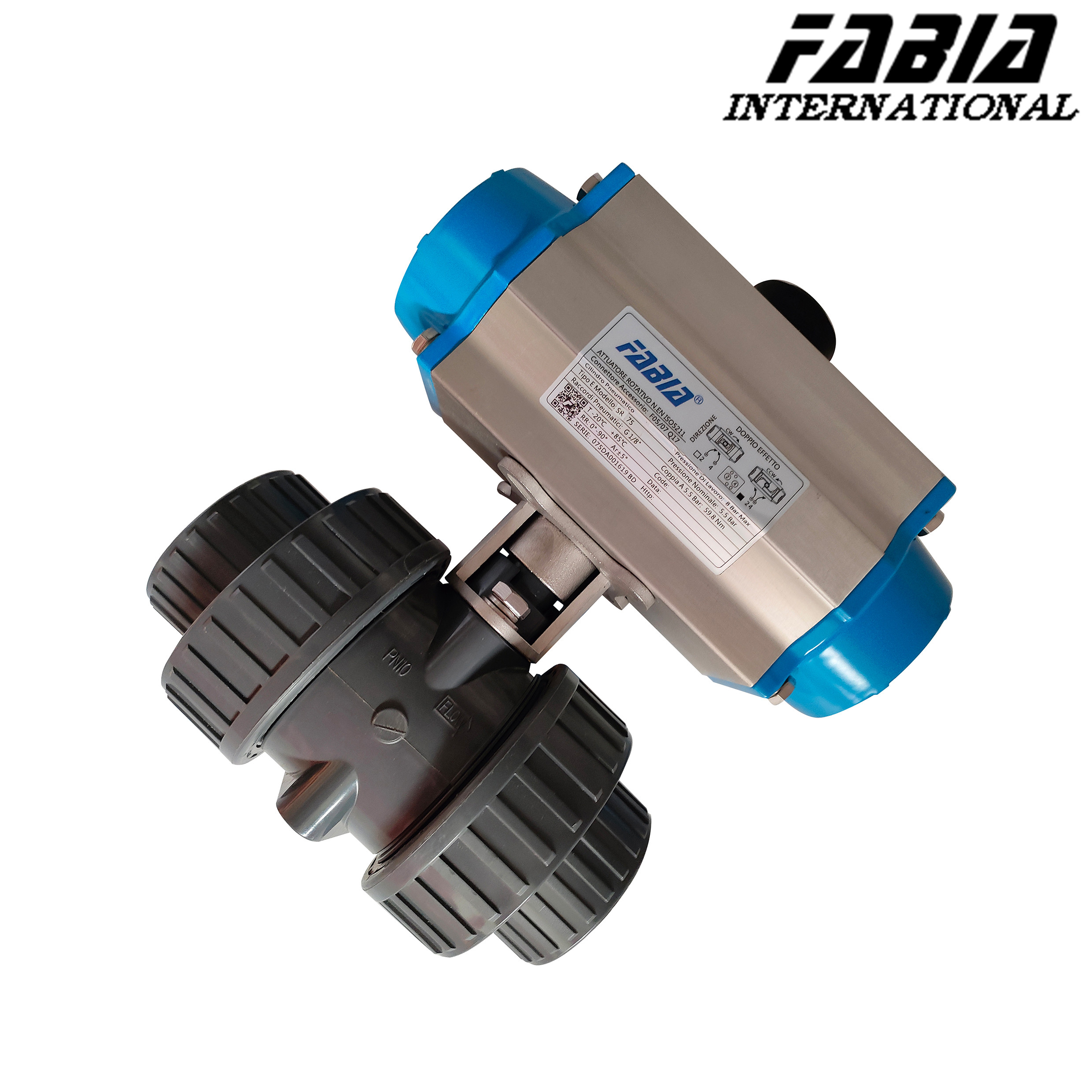

FABIA Pneumatic Double Command Ball Valve with PVC Body
1. Description:

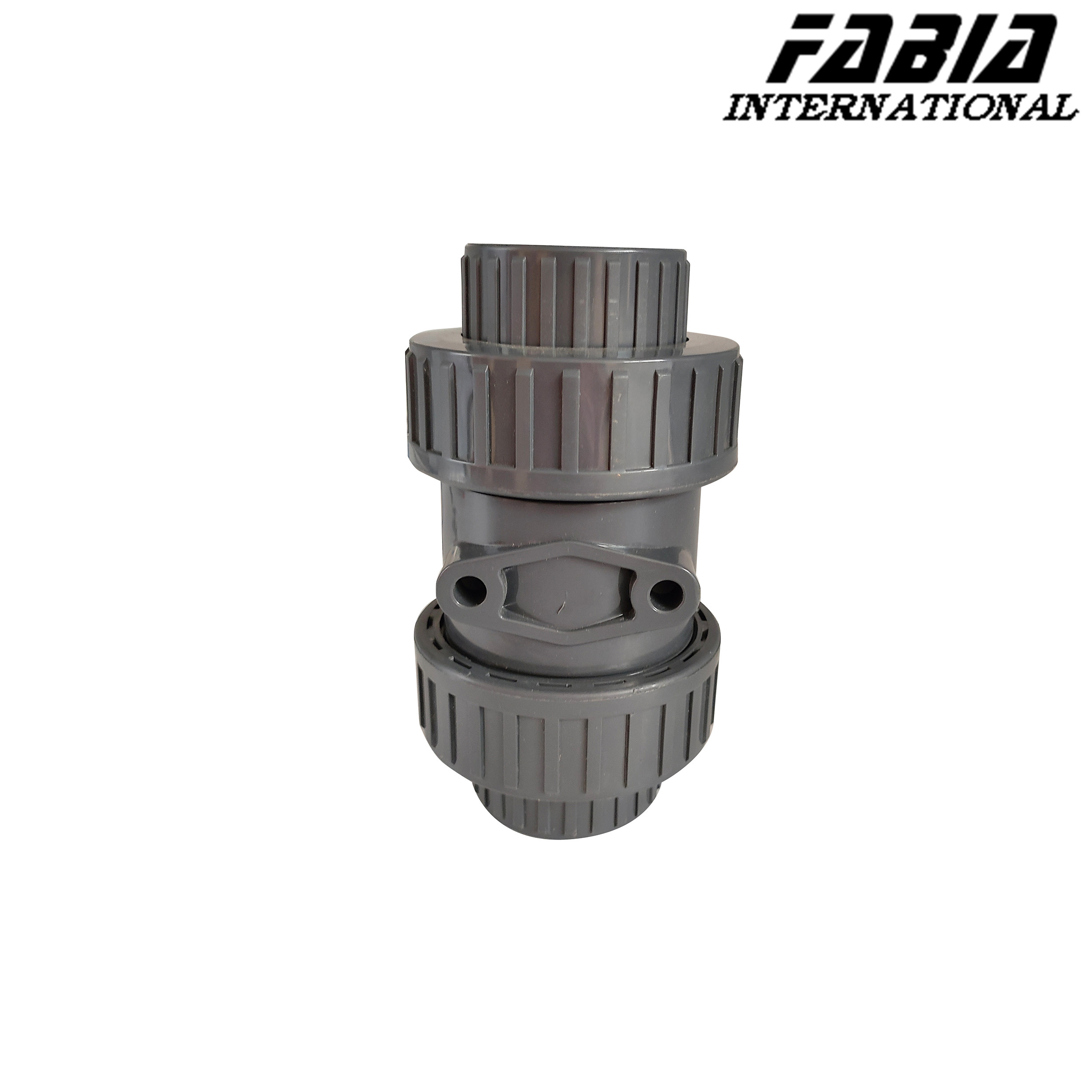

Pneumatic double valve consists of a pneumatic actuator and a PVC ball valve, which are connected by a double valve socket and can be quickly assembled without the use of special tools.
Advantages of compact structure, abrasion resistance, easy disassembly, convenient maintenance and simple maintenance.
Body material health non-toxic, corrosion resistance, light weight, wide range of applications.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic Double Command Ball Valve with PVC Body | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Two-way double command ball valve, can be used at the same time when the command and the valve, can be in the front section of the equipment pipeline without stopping the state, close the ball valve, unload the command, and carry out the later section of the project maintenance.
- Valve body has excellent chemical corrosion resistance, FPM or EPDM "O" ring at the ream end, with the use of brTFE cushion, can prevent the corrosion of most chemical substances.
- Cushion tightness can be moderately adjusted. The wall of the pipe is smooth and smooth, and it has less friction resistance and adhesion when transporting fluid.
- Flame retardant performance for self-extinguishing. Low heat conductivity, about 1/200 of steel. Light weight, equivalent to steel pipe 1/5, copper pipe 1/6.
- Heavy ion content in the medium reaches the ultra-pure water standard, and the health indicators meet the requirements of health standards.
- Excellent aging resistance and UV resistance, so that the normal service life than other pipe systems are greatly extended.
