150-600 psi Pneumatic Ball Valve For Chemical, Petroleum, Electric Power

  • 150-600 psi Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
  • 150-600 psi Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
  • 150-600 psi Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
  • 150-600 psi Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
  • 150-600 psi Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic 3-Way Ball Valve Valve Type Pneumatic Ball Valve
Material Stainless Steel Operation Pneumatic
Connection Threaded Pressure 150-600 Psi
Actuator Pneumatic Actuator Seat PTFE
Temperature -30°C~+150°C End Connection Threaded
Highlight

2 inch pneumatic ball valve

,

3 inch pneumatic ball valve

,

pneumatic actuator 3 way ball valve
Leave a Message
Product Description

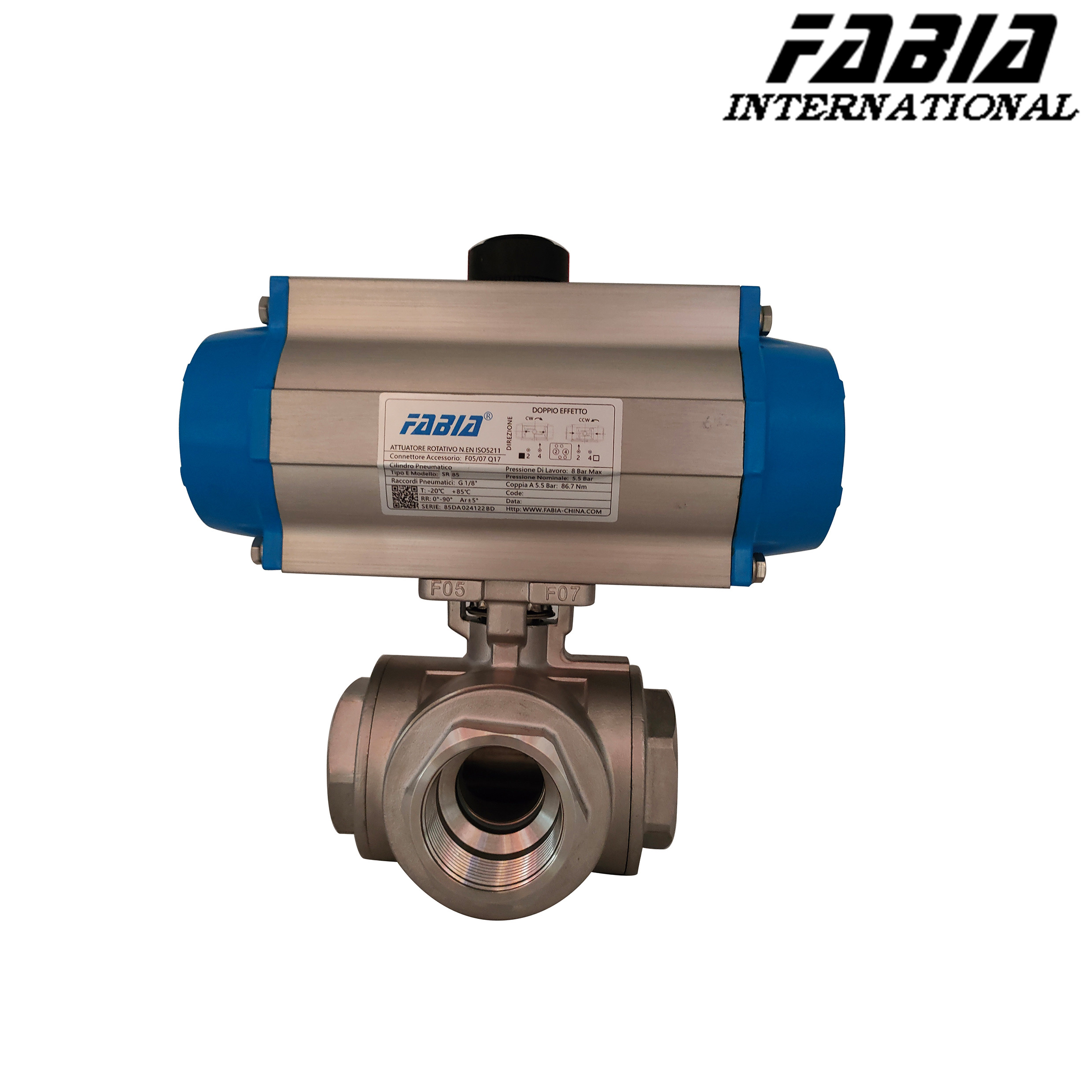

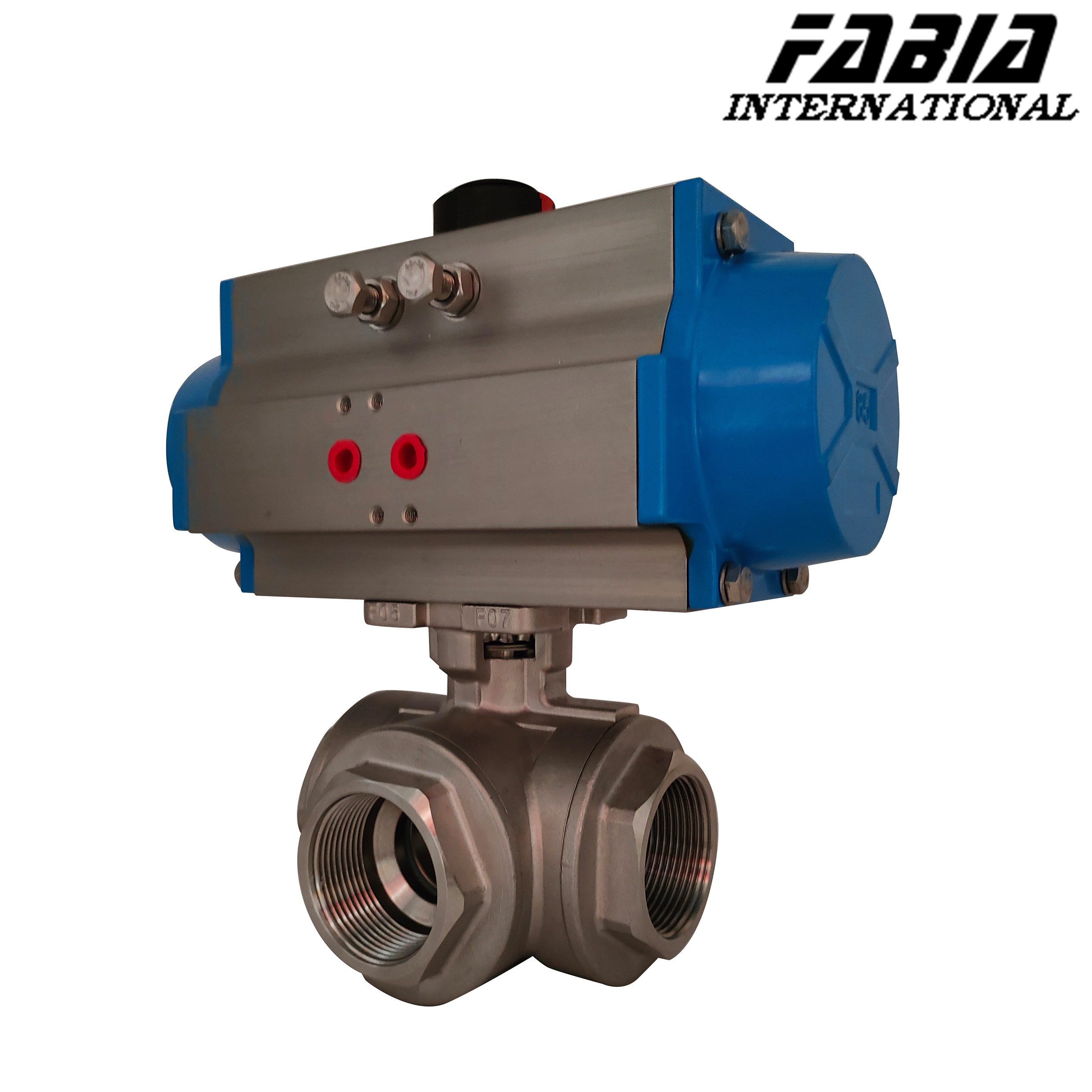

FABIA Pneumatic Ball Valve For Chemical, Petroleum, Electric Power



1.  Description:



Pneumatic three-way ball valve, widely used in chemical, petroleum, power, food, medicine, refrigeration, aviation, aerospace and other industrial fields.



Three-way ball valve, for medium diversion, confluence, flow direction switching, any pipe can be used as an entrance or exit.



Pneumatic three-way ball valve is divided into pneumatic three-way L-type ball valve and pneumatic three-way T-type ball valve, which can meet different production process requirements.



2.Specification:



FABIA Valve Parameter List
Valve type: Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • The fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
  •  Simple structure, small size and light weight.
  • Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
  •  Easy to operate, open and close quickly, from full open to full close as long as the rotation is easy to control at a distance.
  •  When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause the erosion of the sealing surface of the pneumatic three-way ball valve when it is passed.

150-600 psi Pneumatic Ball Valve For Chemical, Petroleum, Electric Power 0

150-600 psi Pneumatic Ball Valve For Chemical, Petroleum, Electric Power 1
