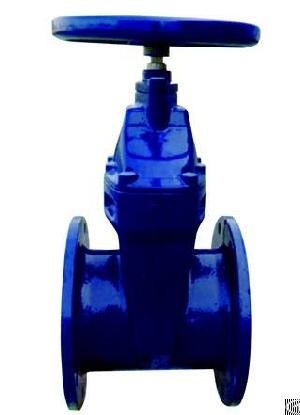

Resilient Seat Cast API 600 Gate Valve Soft Sealing Type

Product Details:

Brand Name:	GOLD TOP
Certification:	API600
Model Number:	Z41H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	WOODEN BOX
Supply Ability:	100+PCS+15DAYS

Contact Now

Detailed Product Description

SIZE:	24"	MATERIAL:	C12A、CA15; A351 CF8、CF8M、CF3、CF3M、CF8C、CN3MN、CK3MCUN、CN7M; A352 LCB、LCC; A494 CW-6MC、CU5MCuC、M35-1; A890 4A(CD3MN)、5A(CE3MN)、6A(CD3MWCuN); ASME B 148 C95800、C95500, Etc.
Design Standard:	API 600、ASME B16.34、	Structural Length:	ASME B16.10
TEST:	API 598	Connecting End:	ASME B16.5
CONNECT:	RF
High Light:	Cast API 600 Gate Valve , Soft Sealing API 600 Gate Valve , Resilient Seat API 600 Gate Valve

cast API 600 Gate Valve, Soft Sealing Type, Resilient Seat DIN

Description:
Flanges : DIN EN 1092 – 2 (DIN 2501)
Face to Face : DIN EN 558 – 1 series 14/15 (DIN 3202 – F4 & F5)
Product Features:
Body material is from cast iron (GGG) and wedge is fully covered by NBR or EPDM. Spindle material is stainless steel. valve is designed such a way that provide safe sealing. By turning the stem clockwise, with the elastic design of the sealing wedge gives absolute tightness with minimum torque.
Corrosion protection:
All casting parts are coated with epoxy powder RAL 5015 or 5005 by electrostatic method.
Application:
Mirab soft sealing gate valves are used for closing and opening fluid flow. The Gate valves soft sealing can be used for fluids up to 70°C such as drinking water and untreated water and also compressed air per Certificate DVGW-G260 (Other media on request). Application fields are water supplies, dams, water treatment, pumping stations, pipe lines, industries, power plants, waste water and irrigation.
Hydrostatic test pressure (bar) according to DIN EN 12266-1
Pressure drop coefficient when the valve is fully open.
Product Group : Gate Valves (GV)،
Fields of Application : fire protection network, water transmission, irrigation, wastewater, power plants, industrial applications, water distribution network
Medium : sea water, raw water, potable water, warm water, oil, wastewater
Body : Ductile Cast Iron
Disc : Ductil Cast Iron/Rubber Coated،
Sealing : NBR/ EPDM
Temperature : up to 70°C
Size (mm) : 50 – 500
Pressure (bar) : 6- 16

Tag:

flexible wedge gate valve,

high pressure gate valve,

flanged gate valve
