1 2 Inch 1 4" Manual Ball Valve High Pressure Three Piece Flanged
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Manual High Pressure Ball Valve | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Material | Stainless Steel | Operation | Manual |
| End Connection | Flanged | Seat | PTFE,EPDM |
| Size | 1/2”-8” | Pressure Rating | Class 150-2500 |
| Temperature Range | -30°C To 135°C | ||
| Highlight | manual ball valve,1 4 ball valve,1 2 inch ball valve |
||
Product Description

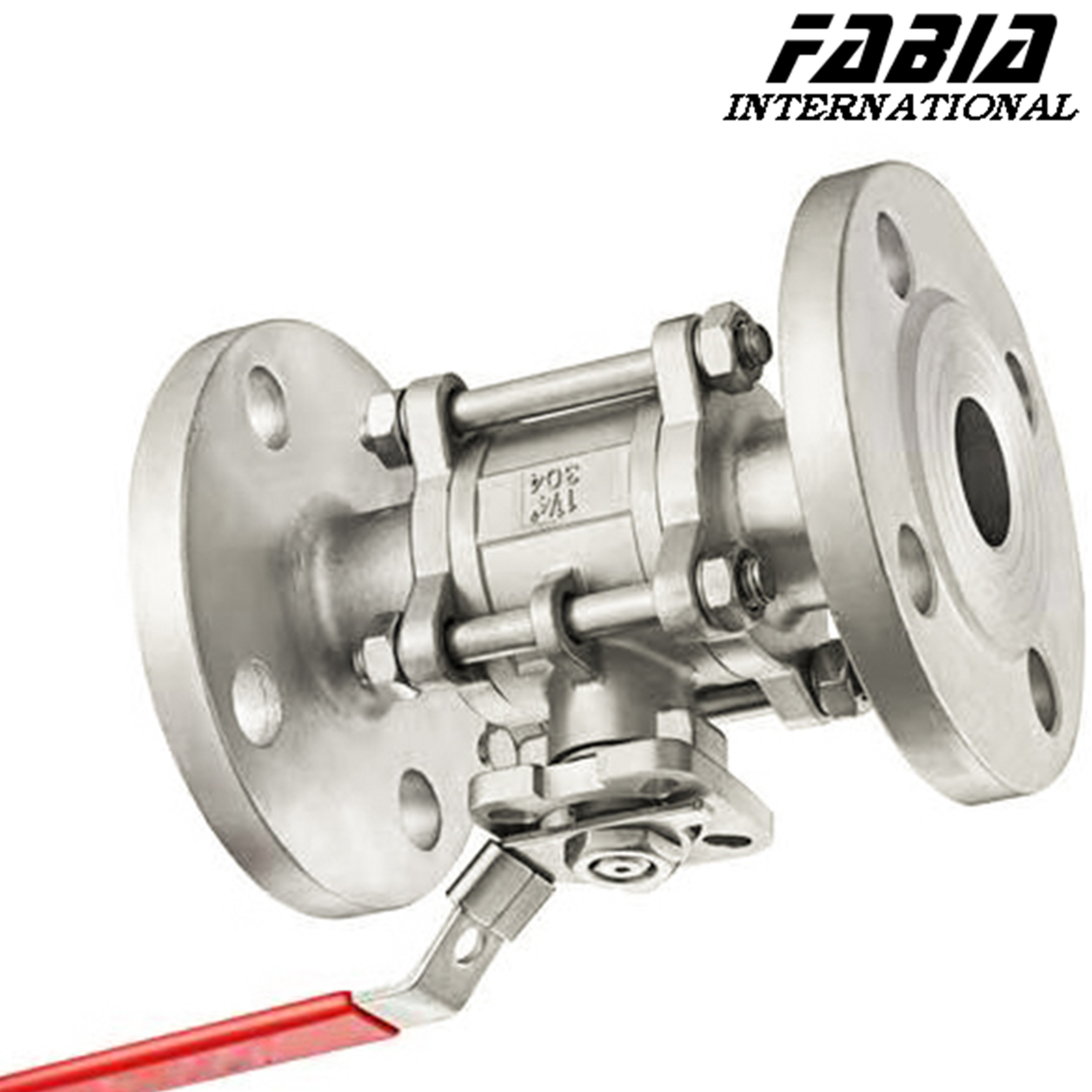

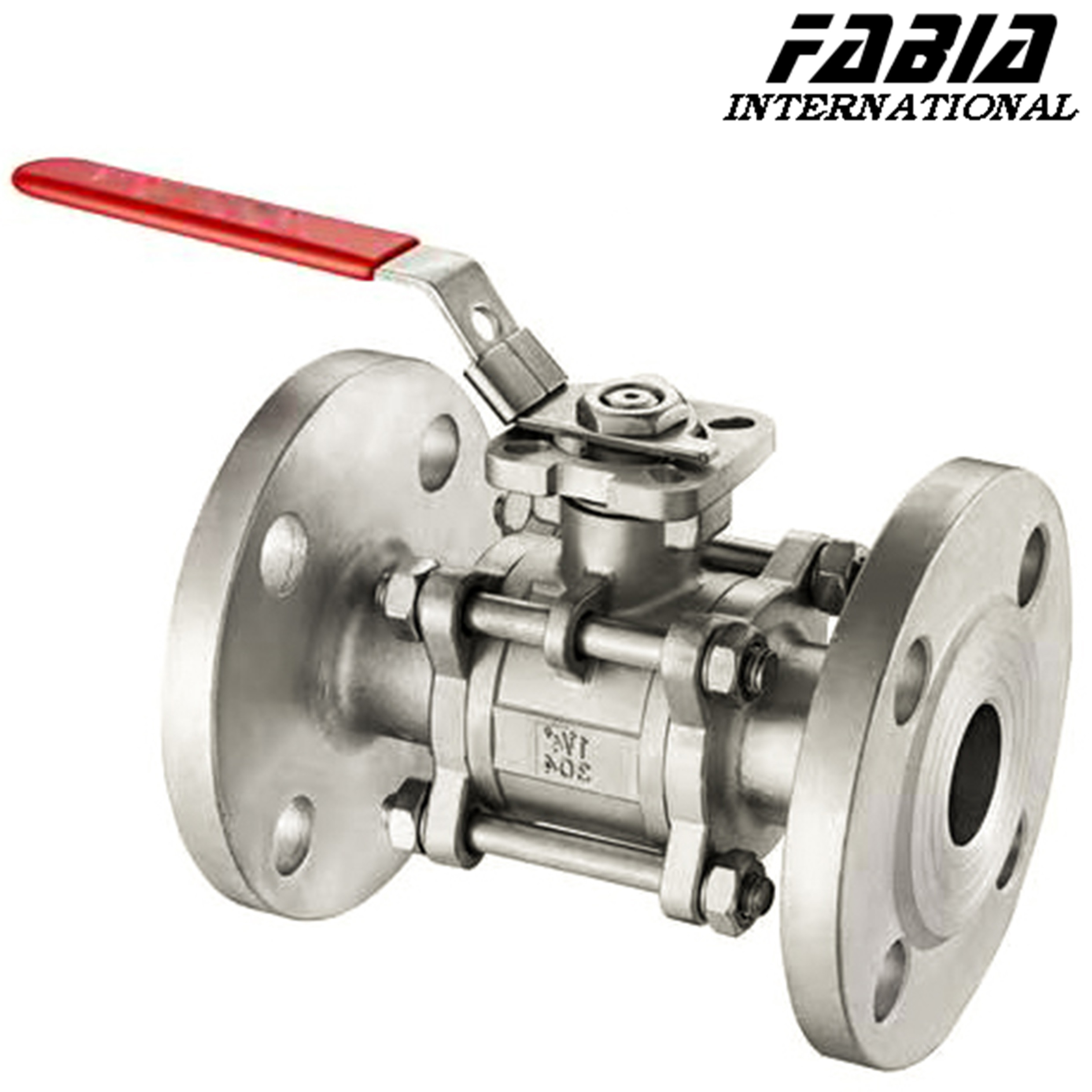

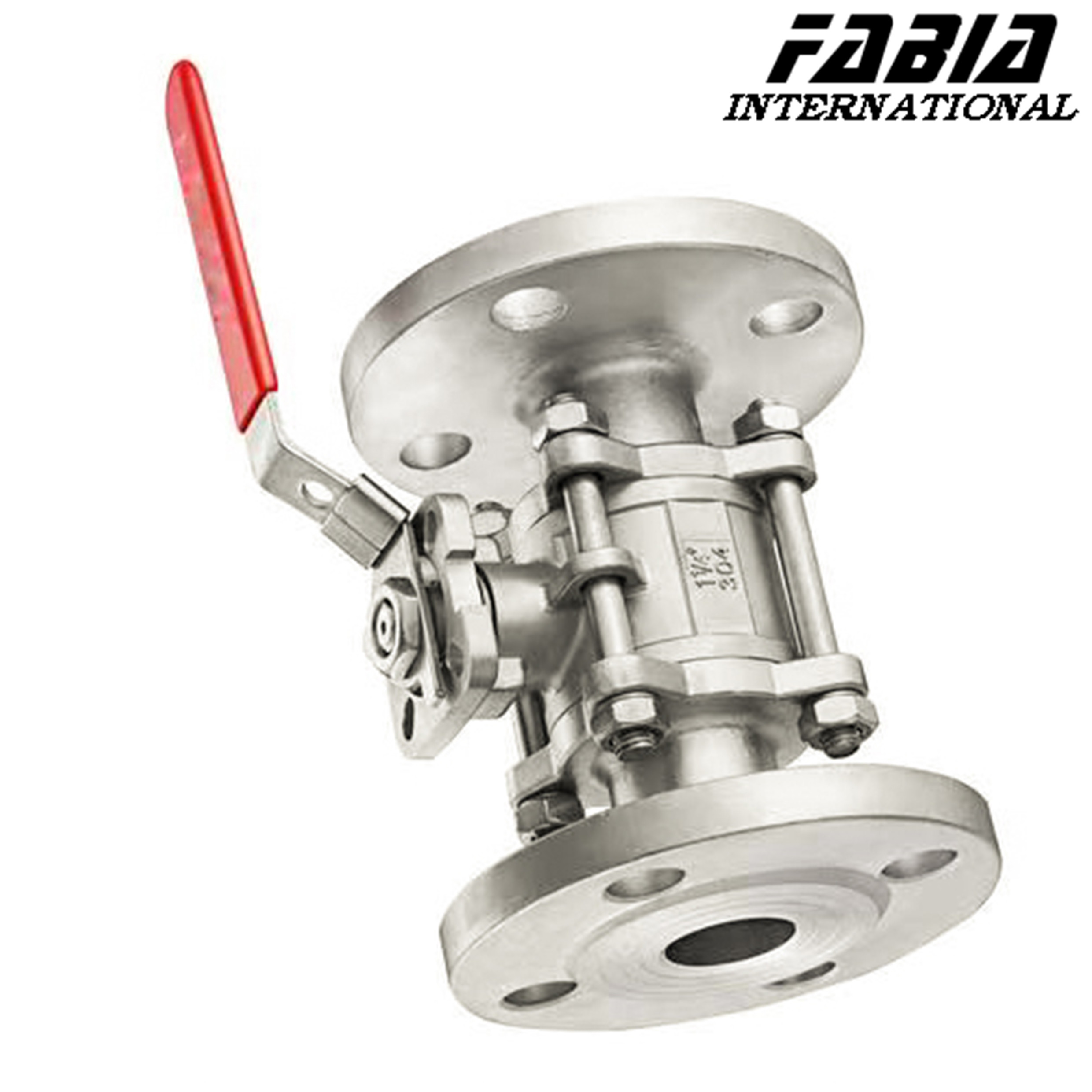

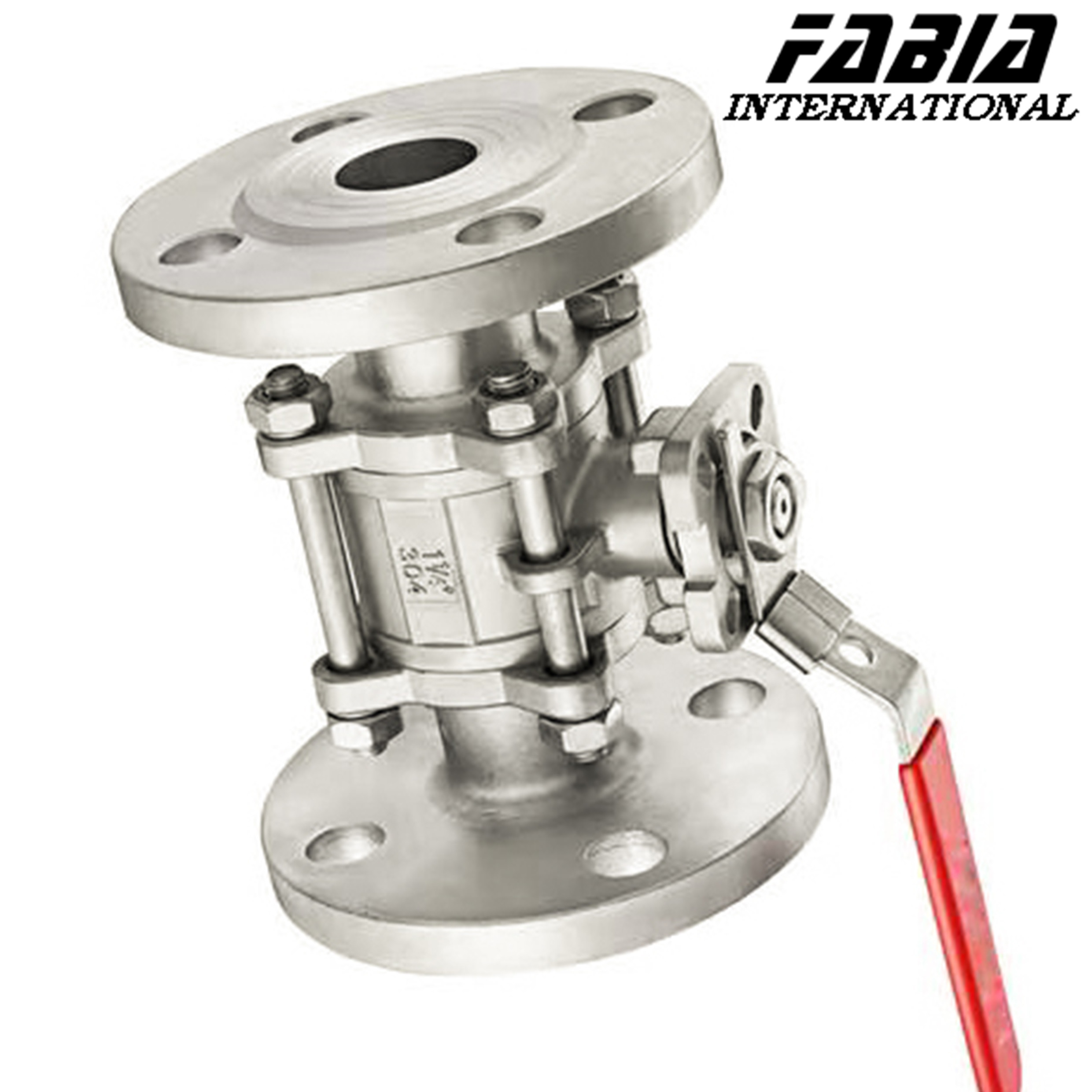

FABIA Manual High Pressure Three Piece Flanged Ball Valve
1. Description:
Working principle of the manual high-pressure three-piece flanged ball valve is to make the valve open or blocked by rotating the valve.
Ball valve switch light, small size, can be made into a large caliber, reliable sealing, simple structure, easy maintenance, sealing surface and sphere are often in a closed state, not easy to be washed by the medium, in various industries have been widely used.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Manual High Pressure Three Piece Flanged Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
- Simple structure, small size, light weight.
- Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has been widely used in the vacuum system.
- Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
- Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
- When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium.
- Medium will not cause erosion of the valve sealing surface when it passes through.
- Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.
- When the ball is rotated 90 degrees, the inlet and outlet should all be spherical, thus cutting off the flow.
