1/2 Inch 2 Inch 1 4 Inch High Pressure Ball Valve Tee Butt Welding
Place of Origin | China |
---|---|
Brand Name | FABIA |
Certification | ISO9001,CE,CCS,DNV |
Model Number | 1/8 inch ~ 36 inch |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 set |
Price | Negotiable |
Packaging Details | Cartons/Wooden cases |
Delivery Time | 15-30 work days |
Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
Supply Ability | 100-1000 set per week |

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | High Pressure Tee Butt Welding Ball Valve | Valve Type | High Pressure Ball Valve |
---|---|---|---|
Material | Stainless Steel | Actuator Type | Electric |
Connection Type | Butt Weld | Operating Temperature | -20 To 300℃ |
Pressure Rating | 1000-3000 Psi | Seat Material | PTFE, PEEK |
Size | 1/2-8 Inch | Testing Standard | API 598, API 6D |
Flow Characteristic | Linear, Equal Percentage | Application | Petroleum, Chemical, Gas, Water |
Highlight | 2 inch high pressure ball valve,1/2 inch high pressure ball valve,Butt Welding Ball Valve |

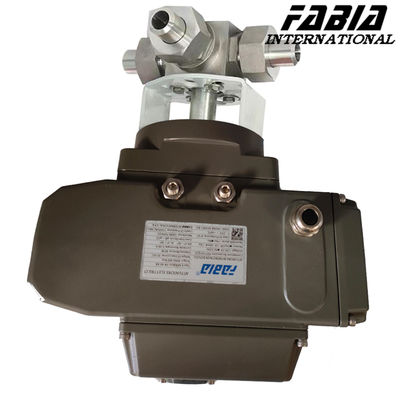

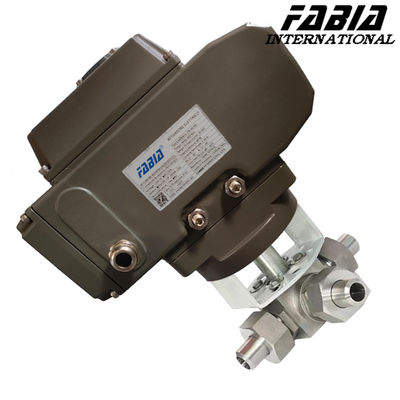

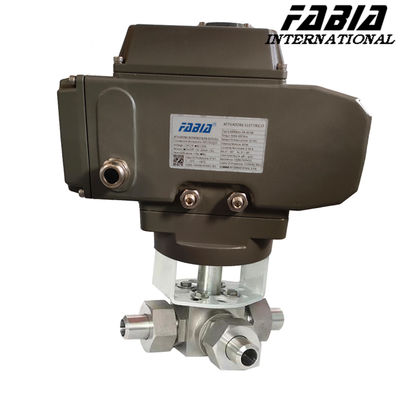

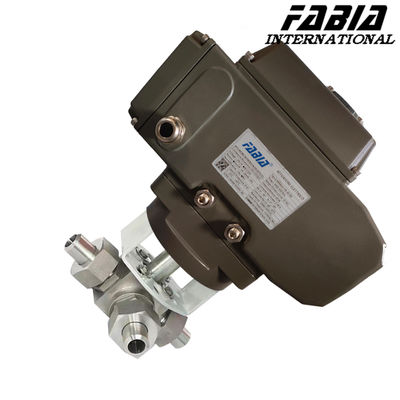

FABIA Electric High Pressure Tee Butt Welding Ball Valve
1. Description:
High-pressure three-way butt welding ball valve as a high-performance valve, will be widely used in environmental protection, energy saving and other fields.
Same time, with the continuous improvement of support for petroleum, chemical, natural gas, electric power and other industries, the demand for these industries will also continue to increase, and the market prospects for high-pressure three-way ball valves are very broad.
2. Specification:
FABIA Valve Parameter List | ||
Valve type: | FABIA Electric High Pressure Tee Butt Welding Ball Valve | |
Size: | 1/8 inch ~ 8 inch | |
Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
Pressure rating: | PN1.0~PN64,ANSI CLASS 150-900,JIS10-20K; | |
Temperature: | -196℃~540℃ | |
Model: | FB-Q.......... |
3. Features:
- High reliability: The sealing structure of the high-pressure three-way butt welded ball valve can effectively prevent leakage and leakage to ensure the safe operation of the system.
- Strong corrosion resistance: corrosion-resistant materials are used in the valve body, ball and seal of the high-pressure tee butt welding ball valve, which can resist the erosion of corrosive media such as strong acid and alkali.
- Space saving: High pressure tee butt welding ball valve adopts compact structure, which can realize tee connection in limited space, saving installation space and improving work efficiency.
- Easy to operate: high pressure three-way butt welding ball valve is simple to operate, only need to turn the handle to achieve switching, adjustment and control, very convenient.
- Long life: The materials and manufacturing of high-pressure three-way butt welding ball valves have a very long service life.
