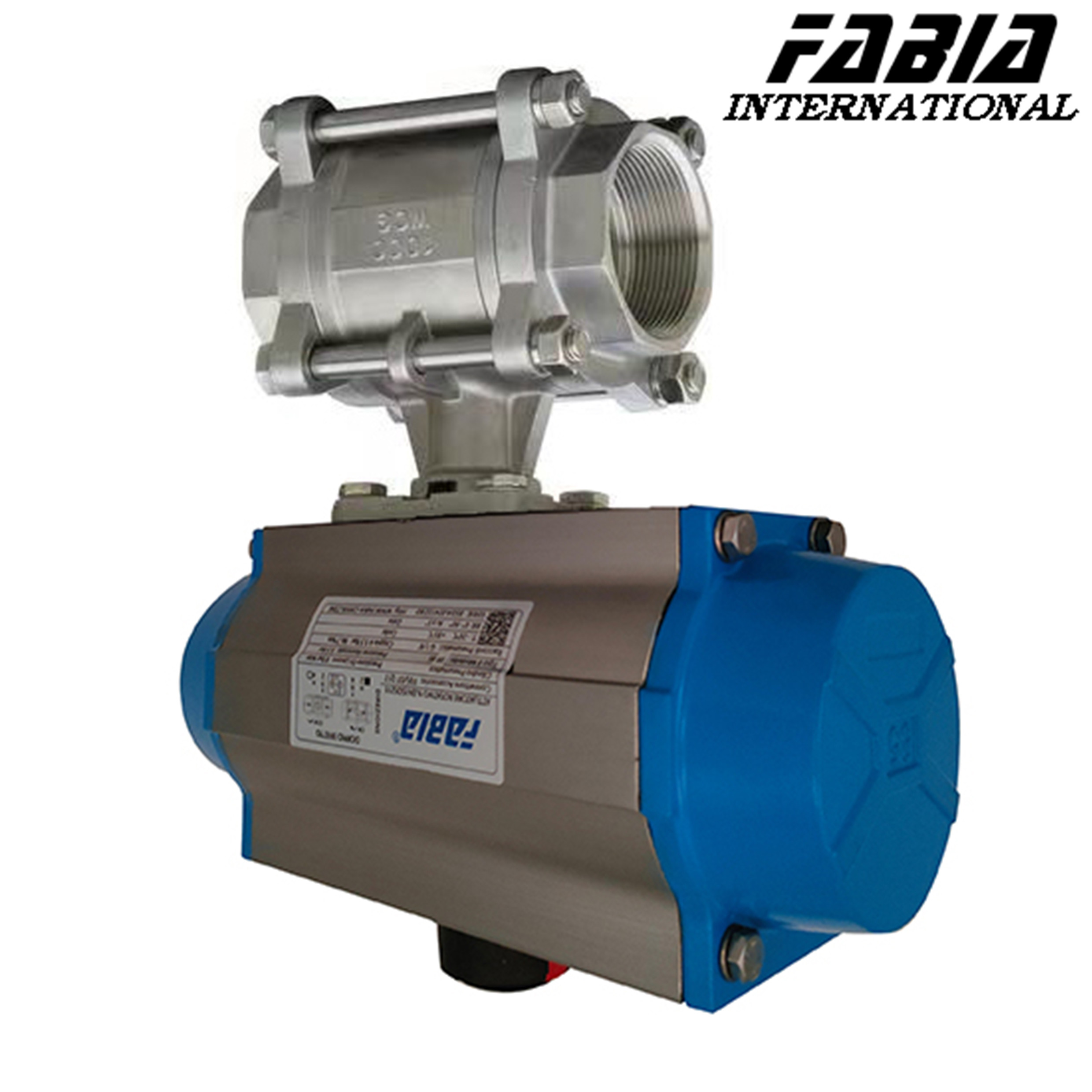

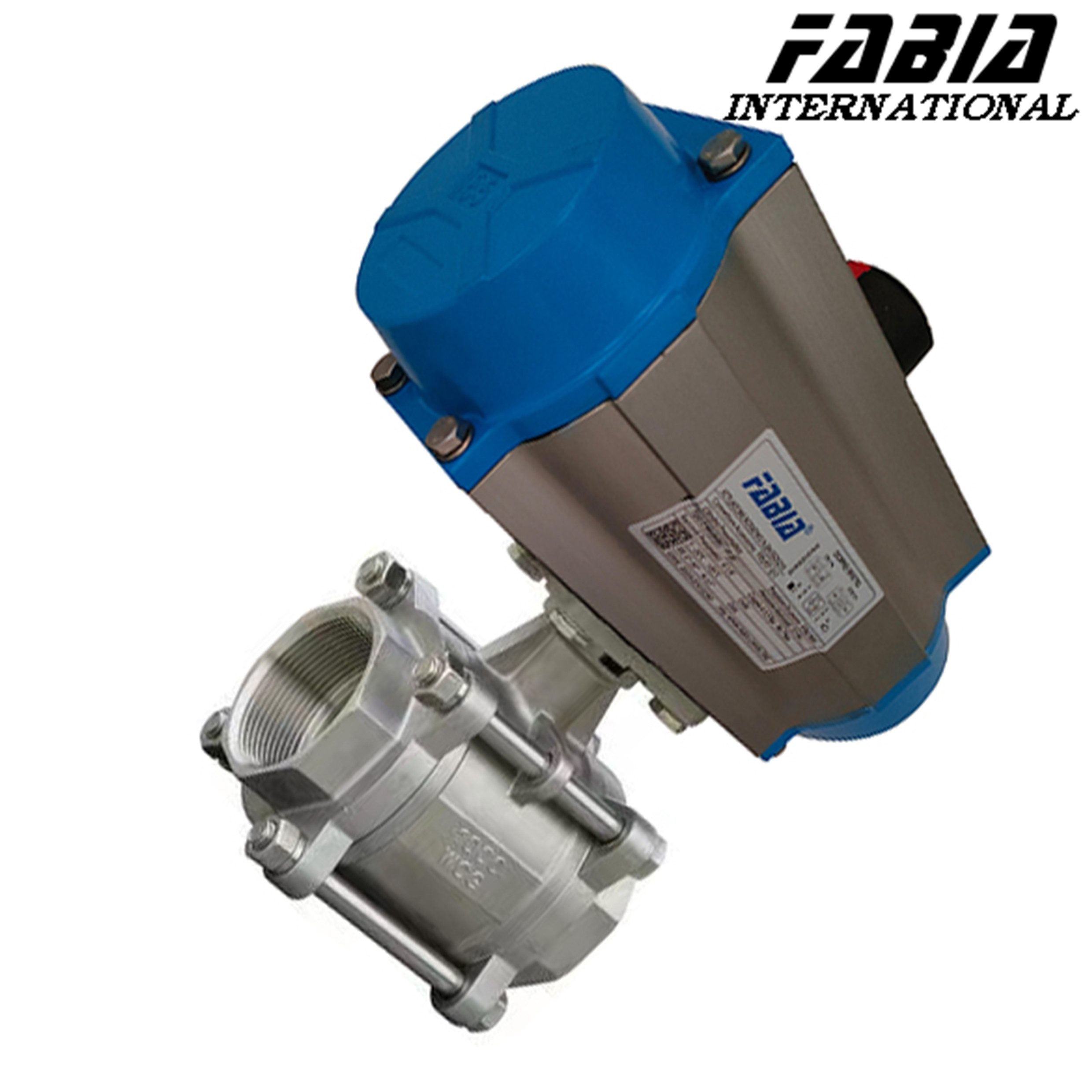

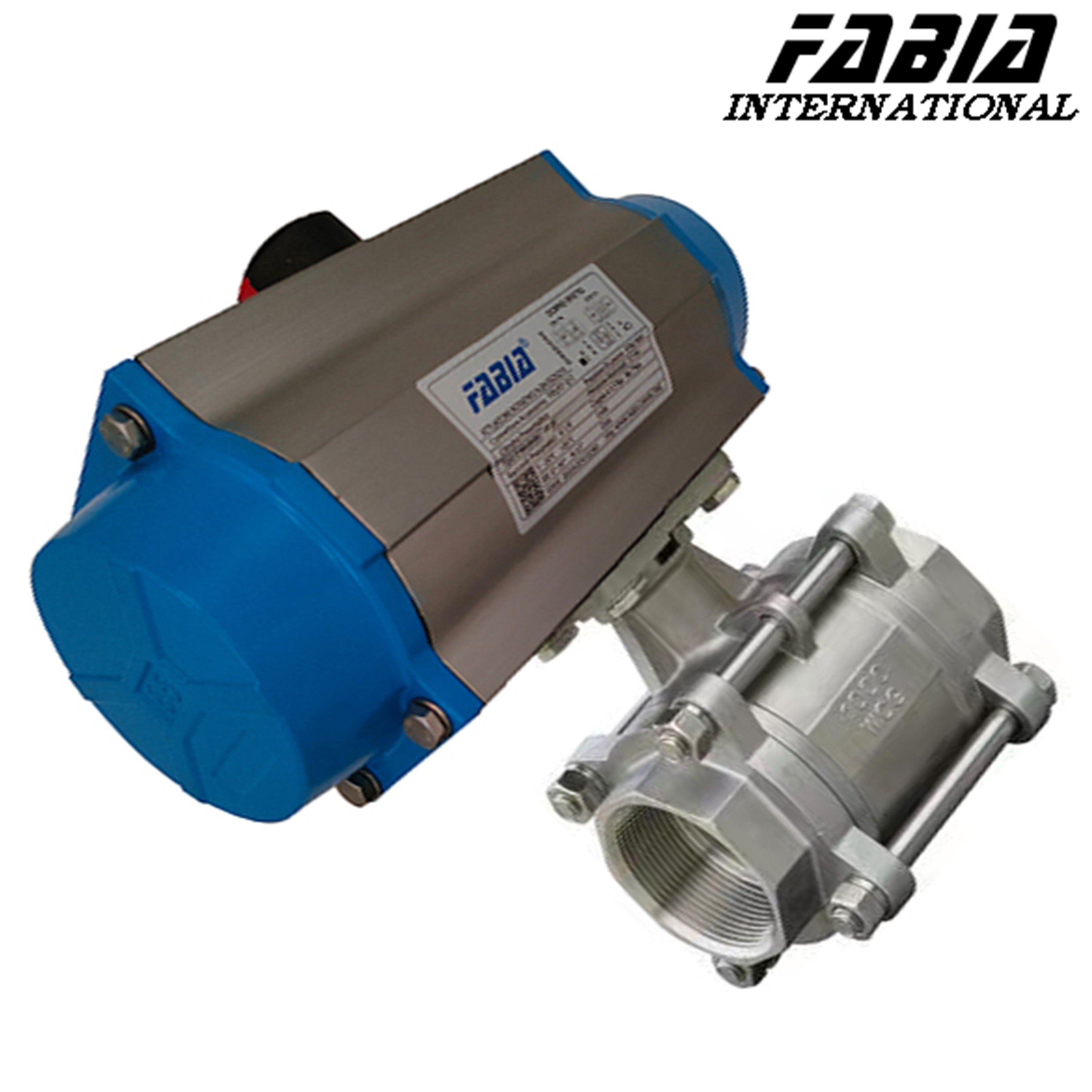

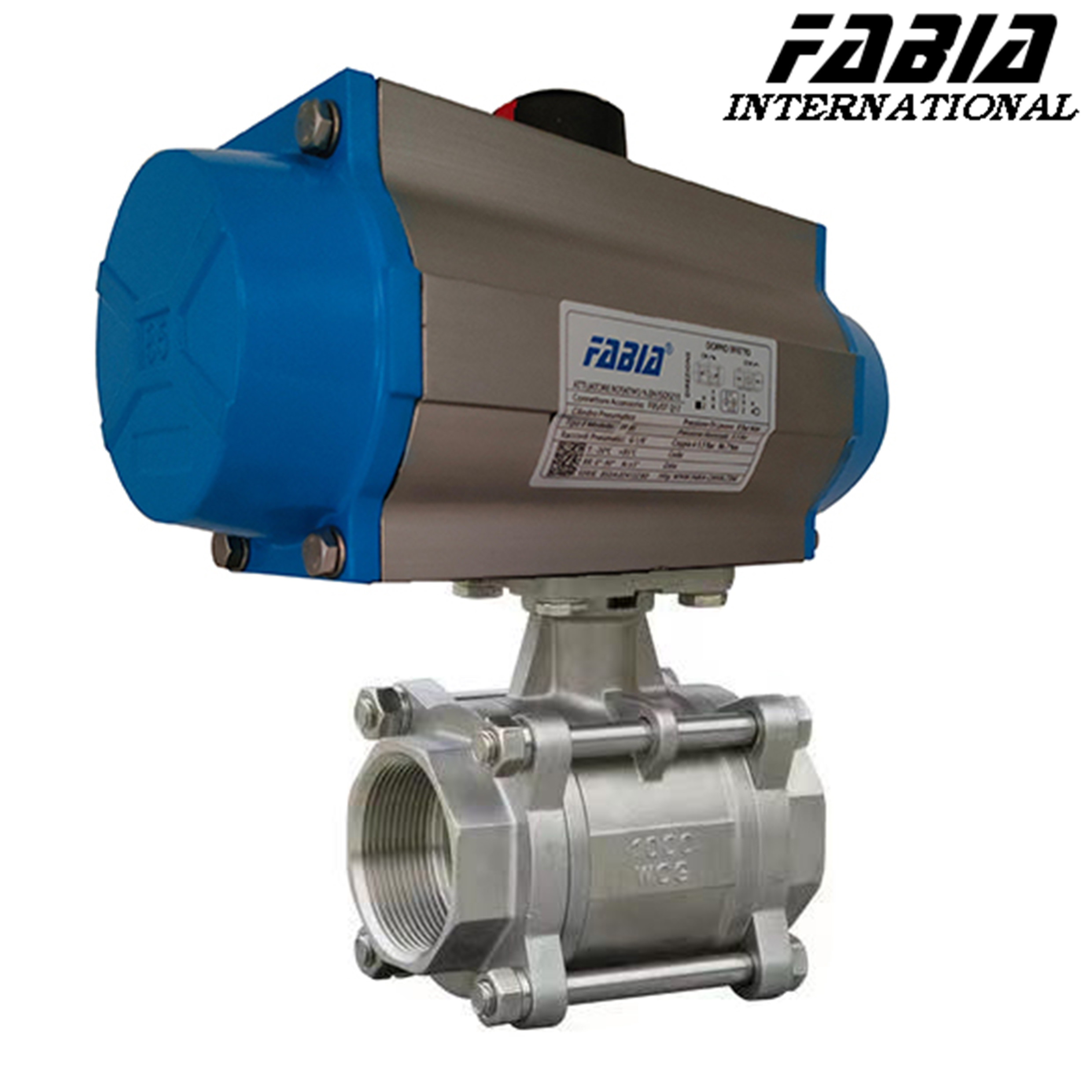

Three Piece Pneumatic High Pressure Ball Valve 1/2" 1/4"

  • Three Piece Pneumatic High Pressure Ball Valve 1/2" 1/4"
  • Three Piece Pneumatic High Pressure Ball Valve 1/2" 1/4"
  • Three Piece Pneumatic High Pressure Ball Valve 1/2" 1/4"
  • Three Piece Pneumatic High Pressure Ball Valve 1/2" 1/4"
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name FABIA Pneumatic High Pressure Ball Valve Valve Type High Pressure Ball Valve
Actuator Type Pneumatic Body Material Stainless Steel
Operating Mode Pneumatic End Connection Screwed
Anti-Static Device Yes ISO Certification Yes
Pressure Rating 3000 PSI Seat Material PTFE/EPDM
Size 8 Inch Temperature Rating 200°F
High Light

High Pressure Three Piece Ball Valve

,

pneumatic high pressure ball valve

,

high pressure pneumatic ball valve
Leave a Message
Product Description

FABIA Pneumatic High Pressure Three Piece Ball Valve



1. Description:



Pneumatic high-pressure three-piece ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline.



2. Specification:



FABIA Valve Parameter List
Valve type: Pneumatic High Pressure Three Piece Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
  • Simple structure, small size, light weight.
  • Tight and reliable, the sealing surface material of the pneumatic three-piece ball valve is widely used in plastic, good sealing, and has been widely used in vacuum systems.
  • Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
  • Convenient maintenance, pneumatic three-piece ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
  • When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.
  • Wide range of application, pneumatic three-piece ball valve has been widely used in petroleum, chemical, power generation, paper making, atomic energy, aviation and other departments, as well as People's Daily life.
  • Ball of the pneumatic three-piece ball valve is floating, and under the action of medium pressure, the ball can produce a certain displacement and press tightly on the sealing surface of the outlet end to ensure that the outlet end is sealed.







Three Piece Pneumatic High Pressure Ball Valve 1/2" 1/4" 0

Three Piece Pneumatic High Pressure Ball Valve 1/2" 1/4" 1
