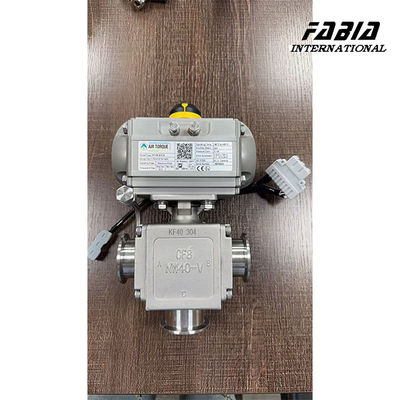

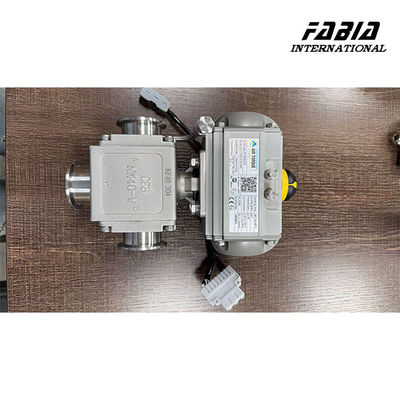

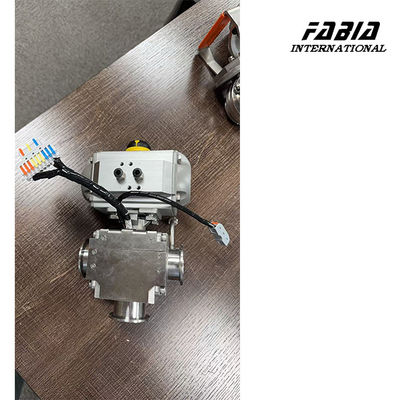

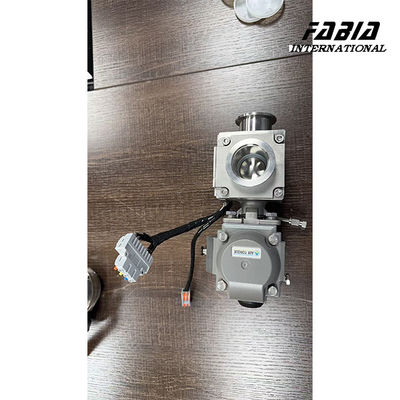

1/2 To 8 Inches KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type With Stainless Steel Body
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Pressure Three Way Ball Valve /L Type | Name | High Pressure Ball Valve |
|---|---|---|---|
| Trim Material | Stainless Steel | Actuator | Electric |
| Body Material | Stainless Steel | Connection Type | Flange |
| Operating Temperature | -20 To 300°F | Fire Safe Design | Yes |
| Pressure Rating | 1000 To 6000 Psi | Seat Material | PTFE, PEEK |
| Size | 1/2 To 8 Inches | Port Type | Full Port, Standard Port |
| Highlight | L Electric Heat Tracing Valve,1/2inch Electric Heat Tracing Valve,SS316 Electric Heat Tracing Valve |
||
Product Description
KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type
1. Description:
Electric heat tracing pneumatic square three-way ball valve is a type of three-way ball valve that integrates an electric heat tracing system and a pneumatic actuator. It is suitable for pipeline systems that require anti freezing insulation or maintenance of medium temperature
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric heat tracing pneumatic square Three Way Ball Valve /L Type | |
| Size: | DN15 ～ DN300 | |
| Material: | SS316 WCB | |
| Connection type: | Welded connection/flange connection/thread connection/KF connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Electric heat tracing type: | 65℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Three way structure (T-shaped/L-shaped): realizes medium diversion, merging, or flow direction switching.
- Pneumatic drive: Control valve opening and closing through compressed air, with fast response and suitable for automation control.
- Electric heat tracing system: The valve body or pipeline is wrapped with an electric heat tracing strip to prevent low-temperature freezing or maintain process temperature.
- Anti freezing and anti condensation: Electric tracing ensures that the valve operates normally in low-temperature environments (such as winter in the north and cold storage), avoiding medium freezing.
- Quick response: Pneumatic actuators have fast opening and closing speeds (usually 1-3 seconds), suitable for frequent switching conditions.
- Good sealing performance: Soft seal (PTFE) or metal seal, leakage level up to ANSI VI.
- Automation integration: Can be connected to DCS/PLC systems to achieve remote control and temperature linkage.
