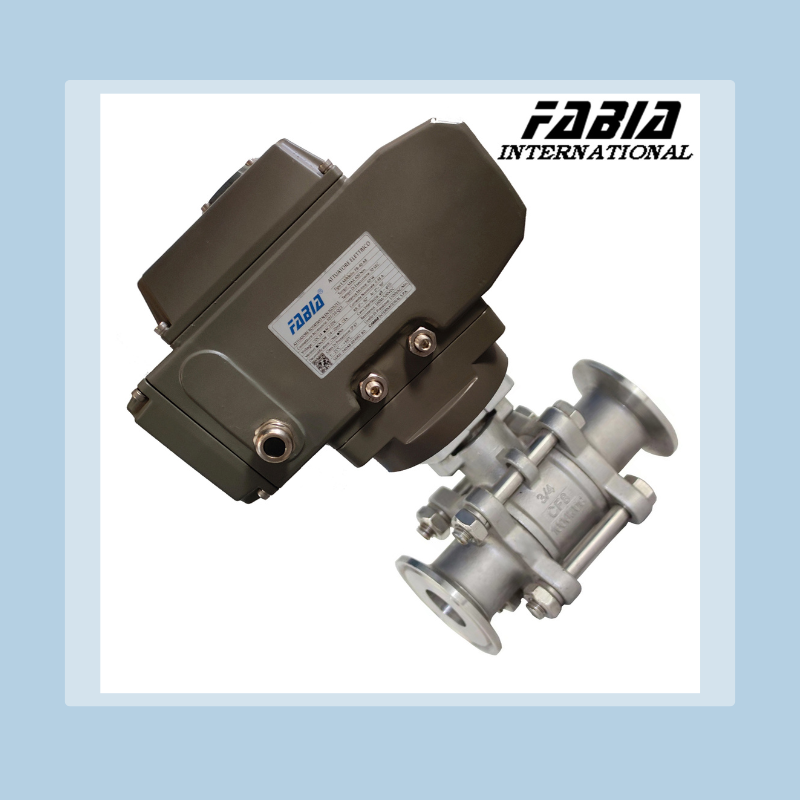

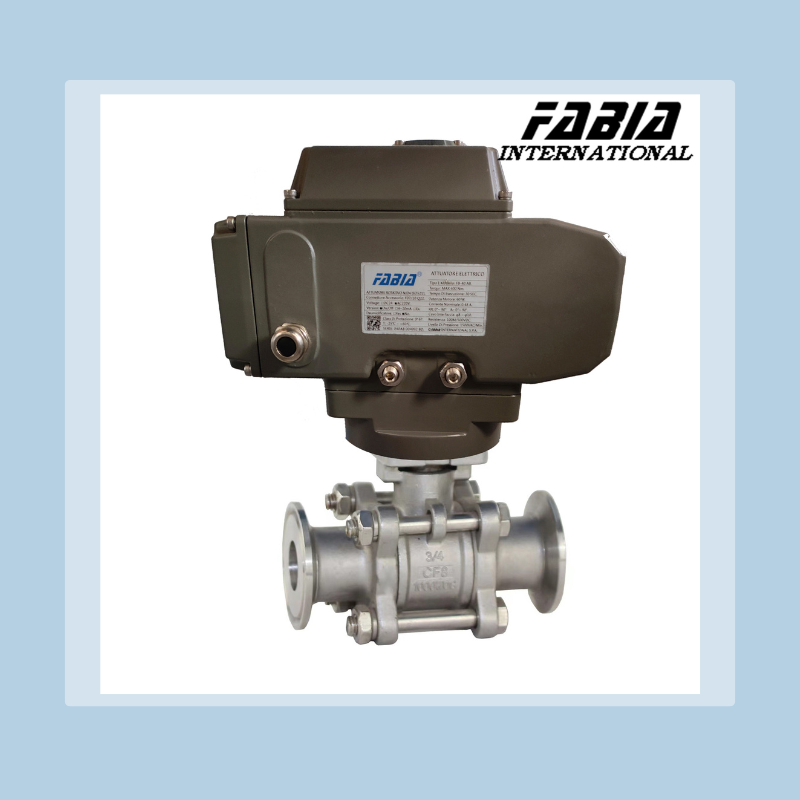

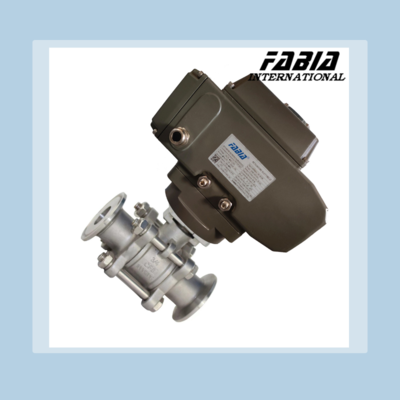

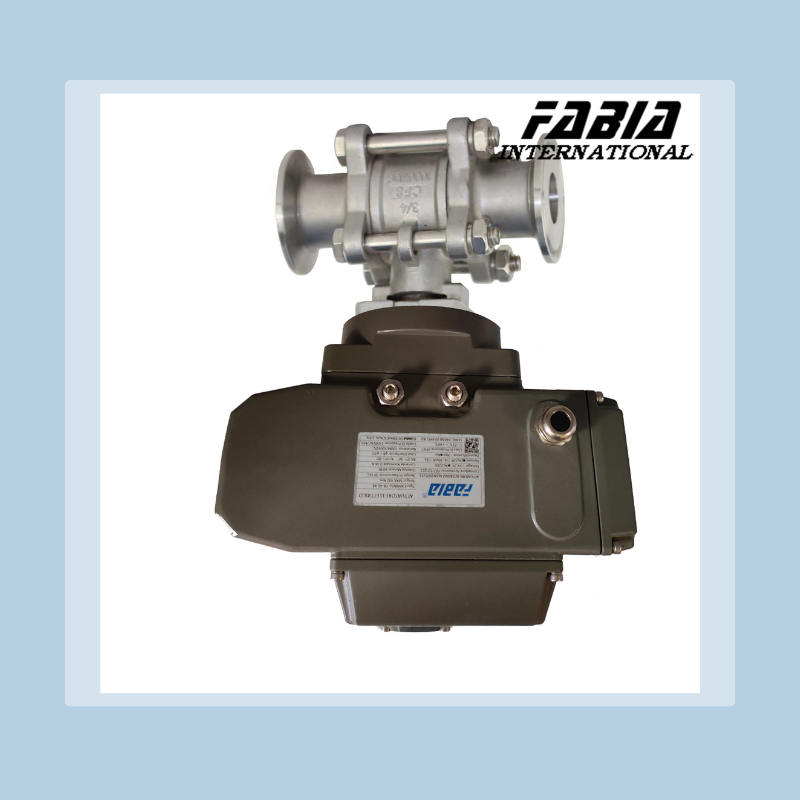

Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient

  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability 100-1000 set per week
Product Details
Product Name Electric High Pressure Three-piece Ball Valve Valve Type High Pressure Ball Valve
Valve Material Stainless Steel Valve Operation Electric
Valve Connection Threaded Valve Design 3-Piece
Valve Pressure 1000 PSI Valve Pressure Rating Class 150
Valve Sealing Metal Sealing Valve Size 1/2-8
Valve Temperature 260°F Valve Application Petroleum, Chemical, Power, Etc
Highlight

High Pressure Three Piece Ball Valve

,

Precise Ball Valve With Internal Teeth
Leave a Message
Product Description

Electric High Pressure Three-Piece Ball Valve With Internal Teeth Precise


1. Description:


Electric high pressure three piece internal thread ball valve ball core channel can be pipe line through the ball.


Overall smooth, simple structure, good sealing performance.


Especially suitable for applications requiring zero leakage rate.


2. Specification:


FABIA Valve Parameter List
Valve type: Electric High Pressure Three-Piece Ball Valve With Internal Teeth
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........


3. Features:


  • Electric three-piece screw ball valve is small in size, and the electric three-piece ball valve is composed of three parts of the valve shell, which is formed by four longer bolts clamping the middle valve body and the valve ball from both ends.
  • Advantage is that the maintenance disassembly does not need to remove the pipe thread, and directly disassemble the four bolts, and the middle part of the valve body can be removed.
  • Working principle is also through the 90 degree rotation of the pneumatic actuator to drive the rotation of the sphere to achieve the flow and block of the medium.



Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient 0


Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient 1
