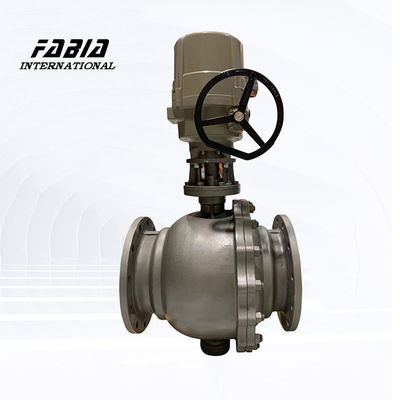

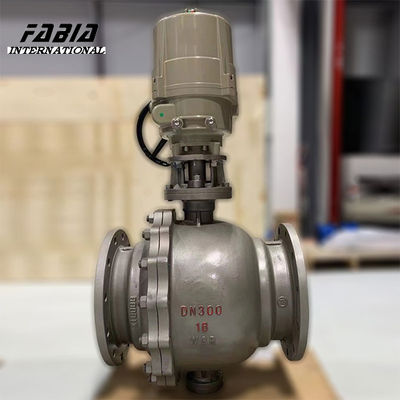

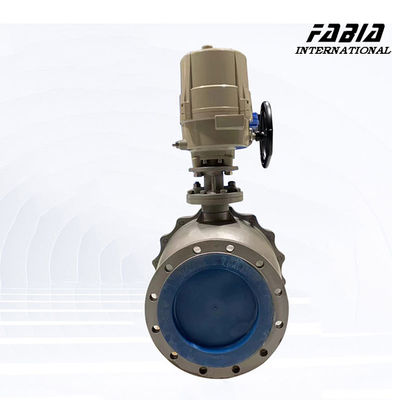

Large Size 20 Inch Two Pieces Ball Valve High Temperature High Pressure
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Electric High Pressure Ball Valve | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Material | Carbon Steel | Operation | Electric |
| Actuator | Electric | Connection | Socket Weld |
| Pressure Range | 150-2500 PSI | Seat | PTFE, PEEK,304,316 |
| Size | 20-40 Inch | Temperature Range | 0-400°F |
| Flow Characteristics | Linear, Equal Percentage | ||
| Highlight | Large Size High Temperature Ball Valve,20 Inch High Pressure Ball Valve,Two Pieces 20 inch Ball Valve |
||
Product Description
Electric High Pressure Two-Piece Butt Welding Industry Ball Valve
1. Description:
The Electric Large-Diameter Ball Valve is designed for precision control of fluid flow in demanding industrial environments. This high-performance valve is equipped with an electric actuator, making it ideal for applications requiring remote operation and automated flow control. Built from robust materials and engineered for large-scale systems, it is perfect for industries such as oil and gas, chemical processing, water treatment, and HVAC systems.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Two-Piece Butt Welding Ball Valve | |
| Size: | 20inch ～ 40inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Material: High-quality carbon steel or stainless steel construction for superior strength and corrosion resistance.
- Actuation: Electric actuator with reliable performance, offering remote operation and automation capabilities.
- Valve Type: Full-bore ball valve design ensures minimal pressure drop and high flow capacity.
- Size Range: Available in large diameters, from DN50 to DN1000, catering to large-scale piping systems.
- Sealing: PTFE or metal seals provide excellent sealing performance, ensuring no leakage.
- Operation Modes: Manual override for emergency operations in case of power failure.
4. Advantage:
- Automated Control: The electric actuator allows for precise and efficient control of the valve position with easy integration into control systems.
- Durability: Heavy-duty construction ensures reliability and long-lasting performance, even under harsh working conditions.
- Low Maintenance: The ball valve design requires minimal maintenance due to its simple mechanism and durable sealing components.
- Versatility: Suitable for handling a wide range of media, including water, oil, gas, and corrosive chemicals.
