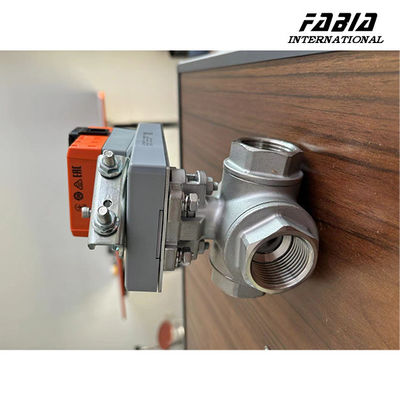

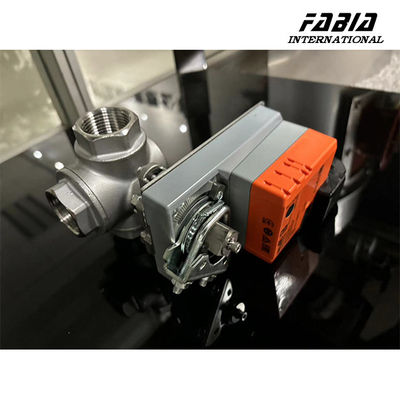

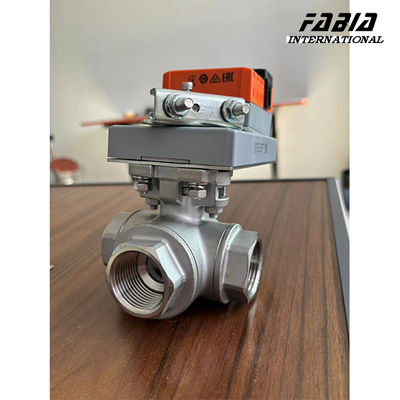

Stainless Steel Electric High Temperature Srew Thread Three Way Ball Valve For Petroleum And Power Industry
Place of Origin | China |
---|---|
Brand Name | FABIA |
Certification | ISO9001,CE,CCS,DNV |
Model Number | 1/8 inch ~ 36 inch |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 set |
Price | Negotiable |
Packaging Details | Cartons/Wooden cases |
Delivery Time | 15-30 work days |
Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | High Temperature Three Way Ball Valve | Name | High Pressure Ball Valve |
---|---|---|---|
Trim Material | Stainless Steel | Actuator | Electric |
Body Material | Stainless Steel | Connection Type | Flange |
Operating Temperature | -20 To 300°F | Fire Safe Design | Yes |
Pressure Rating | 1000 To 6000 Psi | Seat Material | PTFE, PEEK |
Size | 1/2 To 8 Inches | Port Type | Full Port, Standard Port |
Highlight | Electric High temperature Ball Valve,Three Way Ball Valve,Petroleum Ball Valve |
Stainless Steel Electric High temperature Three Way Ball Valve Screwed for Petroleum and power industry
1. Description:
Ball valve has been widely used in petroleum, chemical industry, liquefied gas, water supply and drainage, food, pharmaceutical, power generation, paper making, urban construction, mining, boiler steam system, municipal, atomic energy, aviation, rockets and other departments, as well as People's Daily life.
2. Specification:
FABIA Valve Parameter List | ||
Valve type: | Electric High Pressure Three Way Ball Valve /L Type | |
Size: | 1/8 inch ~ 8 inch | |
Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
Pressure rating: | PN1.0~PN64,ANSI CLASS 150-900,JIS10-20K; | |
Temperature: | -196℃~540℃ | |
Model: | FB-Q.......... |
3. Features:
- Oil, natural gas transmission main line, need to clean the pipeline, but also buried in the ground, choose full diameter, all welded structure ball valve.
- Buried on the ground, choose full-diameter welded connection or flange connection ball valve.
- Branch pipe, choose flange connection, welded connection, full diameter or reduced diameter ball valve.
- Product pipeline and storage equipment, the use of flanged ball valve connection.
- City gas and natural gas pipeline, the use of flange connection and internal thread connection of the floating ball valve.
- Oxygen piping system of the metallurgical system, it is appropriate to select the fixed ball valve with strict degreasing treatment and flange connection.
- Pipeline system and device of low temperature medium should be selected with a low temperature ball valve cover.
- On the pipeline system of the catalytic cracking unit of the refining unit, the lifting rod ball valve can be selected.
- Installation and piping system of corrosive media such as acid and alkali in the chemical system, it is appropriate to choose all stainless steel ball valves made of austenitic stainless steel and polytetrafluoroethylene for the seat sealing ring.
- Metallurgy system, power system, petrochemical equipment, urban heating system in the high-temperature medium pipeline system or device, can choose metal to metal sealing ball valve.
- Need to adjust the flow, can choose worm gear drive, pneumatic or electric with V-shaped opening adjustment ball valve.
