Electric Explosion Proof Sealing Valve Easy Maintanence For Microelectronics And Pharmaceutical Industry

  • Electric Explosion Proof Sealing Valve Easy Maintanence For Microelectronics And Pharmaceutical Industry
  • Electric Explosion Proof Sealing Valve Easy Maintanence For Microelectronics And Pharmaceutical Industry
  • Electric Explosion Proof Sealing Valve Easy Maintanence For Microelectronics And Pharmaceutical Industry
  • Electric Explosion Proof Sealing Valve Easy Maintanence For Microelectronics And Pharmaceutical Industry
  • Electric Explosion Proof Sealing Valve Easy Maintanence For Microelectronics And Pharmaceutical Industry
Place of Origin China
Brand Name FABIA
Certification FM,AMCA,ISO9001,CE,CCS,DNV
Model Number 23 inch ～ 120inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Electric Explosion-Proof Sealing Valve Valve Connection Flange
Material Stainless Steel Valve Body Stainless Steel
ControlMode Manual/Pneumatic/Electric Design Pressure ±3000Pa
Leakage 0l/s/m³ Apply Biopharmaceutical Exhaust Systems
Highlight

Easy Maintanence Explosion-Proof Sealing Valve

,

Microelectronics Explosion-Proof Sealing Valve

,

Pharmaceutical Industry Explosion-Proof Sealing Valve
Leave a Message
Product Description

Electric Explosion-Proof Sealing Valve Easy Maintanence For Microelectronics and Pharmaceutical Industry

1. Description:



This valve is mainly used in biopharmaceutical exhaust systems, and the valves are mostly linkage structures.

2. Specification:



Product No. Size Thickness
(body)		 Thickness
(blade)		 D(shaft) Control Model
FB-SAD-0300-01 D300 2.5 4.0 D25 Manual/Pneumatic/Electric
FB-SAD-0350-02 D350 2.5 4.0 D25
FB-SAD-0400-03 D400 2.5 4.0 D25
FB-SAD-0450-04 D450 2.5 4.0 D25
FB-SAD-0500-05 D500 3.0 5.0 D30
FB-SAD-0550-06 D550 3.0 5.0 D30
FB-SAD-0600-07 D600 3.0 5.0 D30
FB-SAD-0650-08 D650 3.0 5.0 D30
FB-SAD-0700-09 D700 3.0 5.0 D30
FB-SAD-0750-10 D750 3.0 5.0 D30
FB-SAD-0800-11 D800 3.0 5.0 D30
FB-SAD-FREE FREE



3. Features:



  • Structure:achieving a push in extrusion effect to achieve sealing by multi link structure; Adopting a multi link water valve structure to achieve airtightness
  • Design Pressure:±2000Pa
  • Leakage:Zero leakage
  • Material:Stainless
  • Control Model:Manual/Pneumatic/Electric

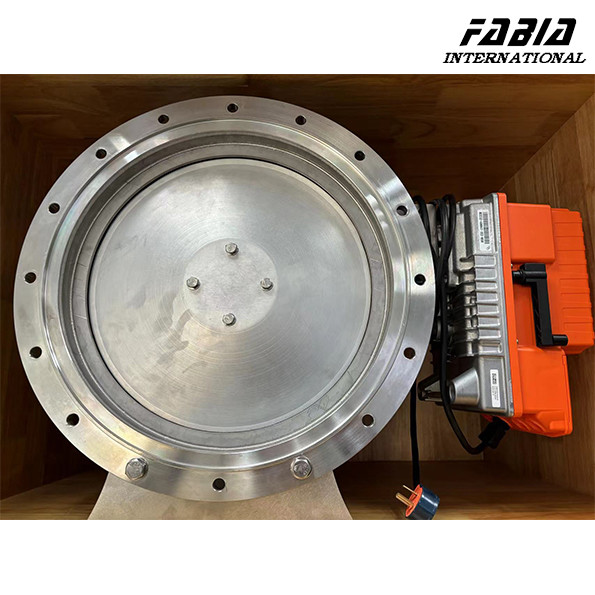

Electric Explosion Proof Sealing Valve Easy Maintanence For Microelectronics And Pharmaceutical Industry 0

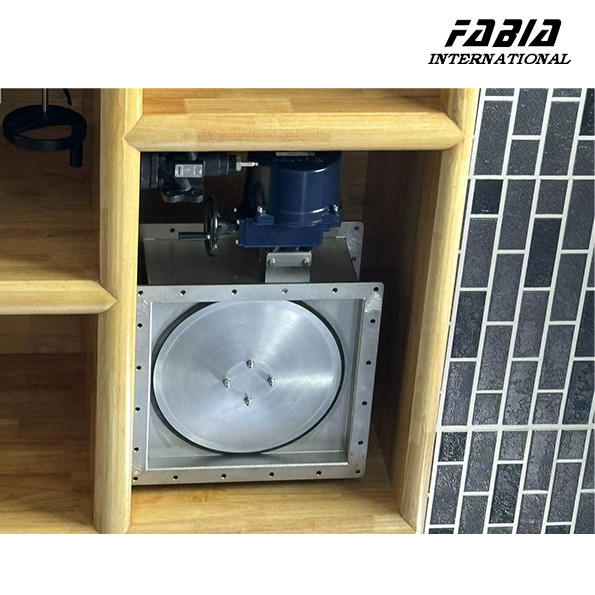

Electric Explosion Proof Sealing Valve Easy Maintanence For Microelectronics And Pharmaceutical Industry 1
