500*500 Stainless Steel Louver Valve Precise Flow Control For Dust Collection And Filtration Systems
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | FM,AMCA,ISO9001,CE,CCS,DNV，CCS |
| Model Number | 300mm*300mm-1000mm*1000mm |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Louver Valve | Valve Connection | Flange |
|---|---|---|---|
| Material | Stainless Steel//Galvanized Steel/Carbon Steel | Valve Body | Stainless Steel//Galvanized Steel/Carbon Steel |
| ControlMode | Worm Gear Drive/Pneumatic/Electric | Design Pressure | ±6000Pa |
| Leakage | 56l/s/m³（2000Pa） | Apply | Semiconductors, LCD Panels, Biopharmaceuticals |
| Highlight | Dust Collection Louver Valve,Precise Flow Control Louver Valve,500*500 Stainless Steel Louver Valve |
||
Product Description

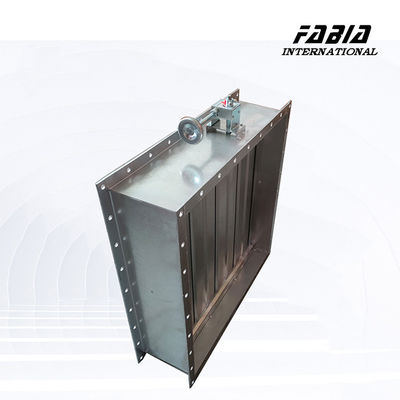

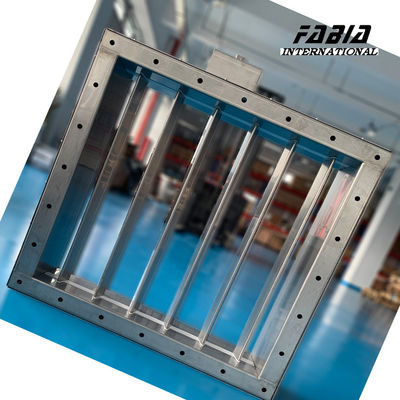

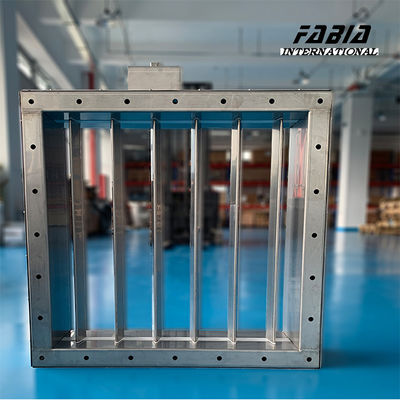

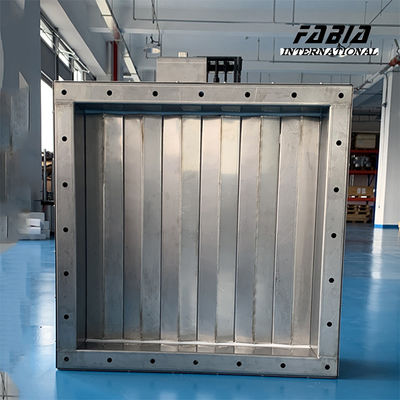

500*500 stainless steel Louver Valve Precise Flow Control For Dust Collection and Filtration Systems
1. Description:
The Louver Valve is designed for precise flow control and regulation of air, gas, or other fluids in various industrial applications. Its multi-blade louvered design ensures smooth, adjustable airflow, making it a versatile solution for both ventilation and flow management systems.
2. Specification:
| Product No. | Size(A) | Size(B) | Height | Thickness (body) |
Thickness (blade) |
D(shaft) | Control Model |
| FB-REMD-0300*0300-01 | 300 | 300 | 250 | 2.5 | 2.5 | D18 | Worm gear drive Pneumatic/Electric |
| FB-REMD-0400*0400-02 | 400 | 400 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-0500*0500-03 | 500 | 500 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-0600*0600-04 | 600 | 600 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-0700*0700-05 | 700 | 700 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-0800*0800-06 | 800 | 800 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-0900*0900-07 | 900 | 900 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-1000*1000-08 | 1000 | 1000 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-1100*1100-09 | 1100 | 1100 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-1200*1200-10 | 1200 | 1200 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-1300*1300-11 | 1300 | 1300 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-1400*1400-12 | 1400 | 1400 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-1500*1500-13 | 1500 | 1500 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-1600*1600-14 | 1600 | 1600 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-1700*1700-15 | 1700 | 1700 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-1800*1800-16 | 1800 | 1800 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-1900*1900-17 | 1900 | 1900 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-2000*2000-18 | 2000 | 2000 | 250 | 2.5 | 2.5 | D18 | |
| FB-REMD-2200*2200-19 | 2200 | 2200 | 250 | 3.0 | 2.5 | D18 | |
| FB-REMD-2500*2500-20 | 2500 | 2500 | 250 | 3.0 | 2.5 | D18 | |
| FB-REMD-3000*3000-21 | 3000 | 3000 | 250 | 3.0 | 2.5 | D18 | |
| FB-REMD-FREE | FREE | ||||||
3. Features:
- Louvered Design: The multi-blade construction provides fine control over the flow, allowing for smooth and gradual adjustments.
- Durable Construction: Built with high-quality materials for strength and longevity, ensuring reliable performance even in harsh environments.
- Efficient Flow Regulation: Provides excellent control over airflow or fluid flow, optimizing system performance with minimal pressure drop.
- Corrosion Resistance: Designed to withstand corrosive elements, making it suitable for demanding industrial environments.
- Customizable Sizes: Available in various sizes to fit different duct or pipeline configurations, ensuring compatibility with a wide range of systems.
- Easy Maintenance: Simple design for easy cleaning and maintenance, reducing downtime and improving operational efficiency.
| Attribute Name | Attribute Value |
|---|---|
| Product Name | Rectangular Louver valve |
| Material | Stainless steel/Galvanized steel/Carbon steel |
| Valve Body | Stainless steel |
| Control Mode | Worm gear drive / Pneumatic / Electric |
| Design Pressure | ±6000 Pa |
| Leakage | 56 l/s/m³ (2000 Pa) |
| Application | Semiconductors, LCD panels, biopharmaceuticals |
| Shape | Rectangular |
| Blades | Multi-blade |
| Adjustability | Adjustable blades for precise airflow control |
| Sealing | Excellent sealing for minimal leakage |
| Durability | Corrosion-resistant, suitable for harsh environments |
