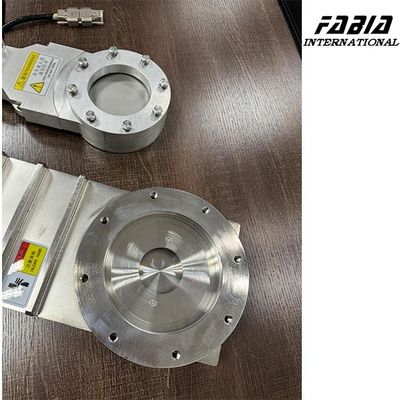

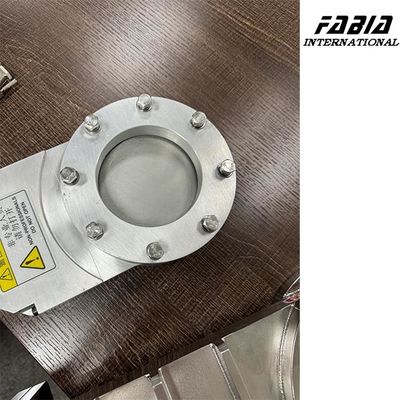

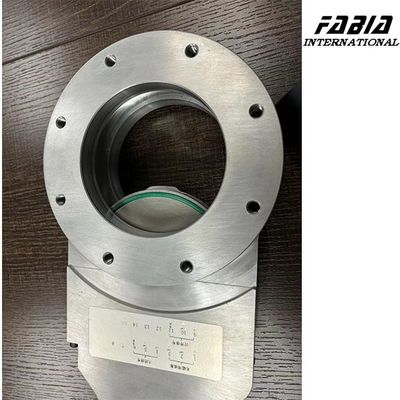

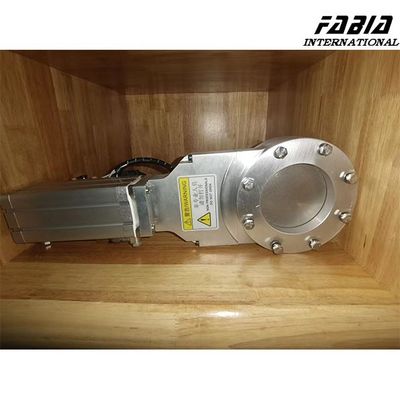

Pneuamtic Ultra High Vacuum Flapper Valve Low Leakage For Clean Air And Non Corrosive Gas

  • Pneuamtic Ultra High Vacuum Flapper Valve Low Leakage For Clean Air And Non Corrosive Gas
  • Pneuamtic Ultra High Vacuum Flapper Valve Low Leakage For Clean Air And Non Corrosive Gas
  • Pneuamtic Ultra High Vacuum Flapper Valve Low Leakage For Clean Air And Non Corrosive Gas
  • Pneuamtic Ultra High Vacuum Flapper Valve Low Leakage For Clean Air And Non Corrosive Gas
  • Pneuamtic Ultra High Vacuum Flapper Valve Low Leakage For Clean Air And Non Corrosive Gas
Place of Origin China
Brand Name FABIA
Certification FM,AMCA,ISO9001,CE,CCS,DNV，CCS
Model Number DN63-GN250
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ultra High Vacuum Flapper Valve Valve Connection Flange
Material Stainless Steel Valve Body Stainless Steel
ControlMode Manaul/Pneumatic Leakage 1.3*10-7pa L/s
Install Vertical Or Horizantal Mediun Clean Air And Non Corrosive Gas
Highlight

Non Corrosive Gas Flapper Valve

,

Clean Air Flapper Valve

,

Low Leakage Flapper Valve
Leave a Message
Product Description

Pneuamtic Ultra High Vacuum Flapper Valve

1. Description:

The CC series ultra-high vacuum plug valve is driven by a handwheel with a screw, and the connecting rod mechanism is pushed (pulled) by the transmission rod to drive the valve plate to move axially, realizing the opening or closing of the valve, thereby achieving the purpose of facilitating or cutting off the airflow in the ultra-high vacuum system. Reasonably designed in structure, aesthetically pleasing in appearance, and characterized by stability, small size, large flow channels, and reliable use. The advantages of good sealing performance and long service life can be widely used in ultra-high vacuum equipment. The suitable working medium is clean air and non corrosive gases.

2. Specification:



Specification DN A B C D E L φN F
CC-63 63 130 64 124 54 170 380 100 50
CC-80 80 166 77 140 61 210 530 100 50
CC-100 100 186 160 72 230 552 100 50
CC-150 150 234 207 96 307 673 125 63
CC-200 200 280 254 121 382 776 125 63
CC-250 250 342 80 312 148 462 892 200 80



Pneuamtic Ultra High Vacuum Flapper Valve Low Leakage For Clean Air And Non Corrosive Gas 0

3. Features:

  • Leakage(pa.L/S):1.3*10-7
  • Valve baking temperature:≤150℃
  • Disc seal:FKM
  • Sealing element at the shaft seal:stainless steel bellows
  • Install:Vertical or horizontal

Pneuamtic Ultra High Vacuum Flapper Valve Low Leakage For Clean Air And Non Corrosive Gas 1

Pneuamtic Ultra High Vacuum Flapper Valve Low Leakage For Clean Air And Non Corrosive Gas 2



Parameter Details
Product Name Ultra high vacuum flapper valve
Valve Connection Flange
Material Stainless steel
Control Mode Manual/Pneumatic
Leakage 1.3 x 10^-7 Pa L/s
Installation Vertical or Horizontal
Medium Clean air and non-corrosive gas
Pressure Range Ultra high vacuum (UHV)
Temperature Range -196°C to 400°C
Sealing Metal-to-metal (Helium leak tested)
