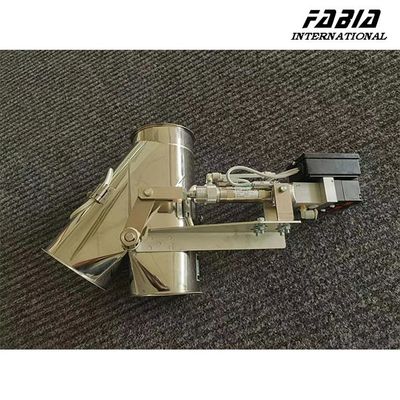

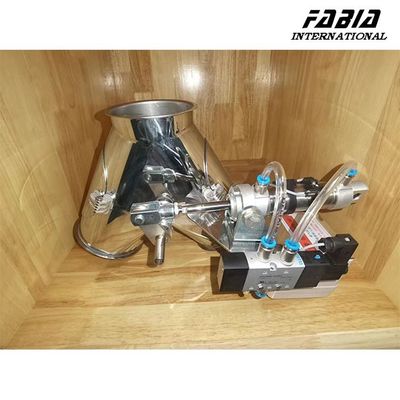

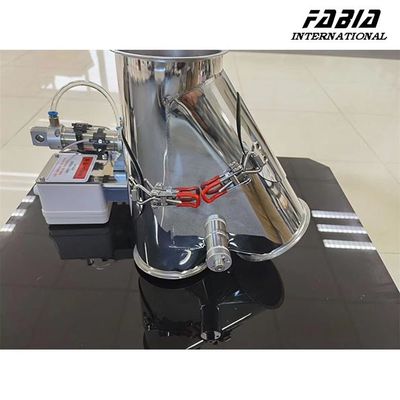

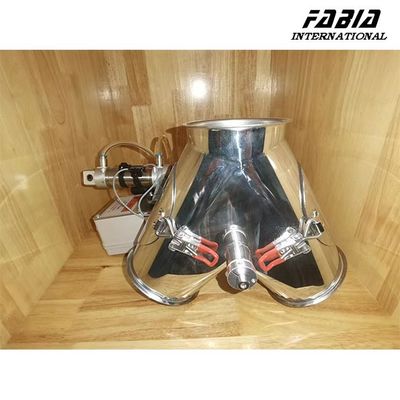

Pneumatic Three Way Switching Damper For Chemical Industry And Grain Transportation With High Performance
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | FM,AMCA,ISO9001,CE,CCS,DNV，CCS |
| Model Number | 4inch-28inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Three-way Switching Damper | Valve Connection | Clamp |
|---|---|---|---|
| Material | Stainless Steel | Valve Body | Stainless Steel |
| ControlMode | Pneumatic | Design Pressure | ±2000Pa |
| Apply | Chemical Industry And Grain Transportation | ||
| High Light | Pneumatic Three-way switching damper,Chemical Industry Three-way switching damper,Grain Transportation Three-way switching damper |
||
Product Description
Pneumatic Three-way switching damper for chemical industry and grain transportation with high performance
1. Description:
This valve is mainly used in chemical and grain machinery conveying systems. Mainly used for switching between conveying branches. According to the needs, the angle between the two branch pipes can be customized and processed according to the needs.
2. Specification:
| Product No. | Size | Thickness (body) |
Thickness (blade) |
D(shaft) | Control Model |
| FB-TSD-0100-01 | D100 | 3.0 | 4.0 | D30 | Pneumatic |
| FB-TSD-0150-02 | D150 | 3.0 | 4.0 | D30 | |
| FB-TSD-0200-03 | D200 | 3.0 | 4.0 | D30 | |
| FB-TSD-0250-04 | D250 | 3.0 | 4.0 | D30 | |
| FB-TSD-0300-05 | D300 | 3.0 | 4.0 | D30 | |
| FB-TSD-0350-06 | D350 | 3.0 | 4.0 | D30 | |
| FB-TSD-0400-07 | D400 | 4.0 | 5.0 | D50 | |
| FB-TSD-0450-08 | D450 | 4.0 | 5.0 | D50 | |
| FB-TSD-0500-09 | D500 | 4.0 | 5.0 | D50 | |
| FB-TSD-0550-10 | D550 | 4.0 | 5.0 | D50 | |
| FB-TSD-0600-11 | D600 | 4.0 | 5.0 | D50 | |
| FB-TSD-0650-12 | D650 | 4.0 | 5.0 | D50 | |
| FB-TSD-0700-13 | D700 | 4.0 | 5.0 | D50 | |
| FB-TSD-FREE | FREE | ||||
3. Features:
- Material:Stainless steel
- Contact type jog switch,70 ℃ fireproof probe, 180 ℃ smoke exhaust probe
- Pressure Design:±2000Pa
- Including access door for maintenance
- When the cylinder controls the left and right movement of the blades, the left and right branch pipes are used as both channels and limits, which is more space saving than installing a butterfly valve on each of the two branches, and there is no obstruction from the blades when conveying the medium.
