12 Inch Pneumatic Slide Damper With High Performance For Biopharmaceutical Exhaust Systems
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | FM,AMCA,ISO9001,CE,CCS,DNV |
| Model Number | 11 inch ～ 31inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic Slide Damper | Valve Connection | Flange |
|---|---|---|---|
| Material | Stainless Steel | Valve Body | Stainless Steel |
| ControlMode | Pneumatic | Design Pressure | ±10000Pa |
| Apply | Biopharmaceutical Exhaust Systems | ||
| Highlight | 12inch Pneumatic Slide Damper,high performance Pneumatic Slide Damper,biopharmaceutical exhaust systems Pneumatic Slide Damper |
||
Product Description

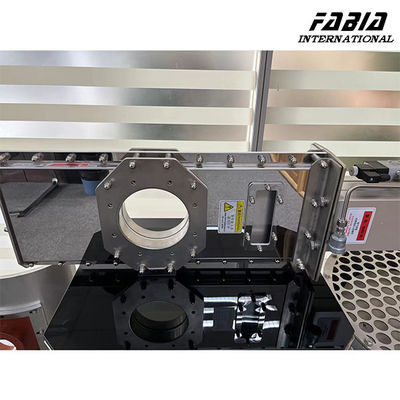

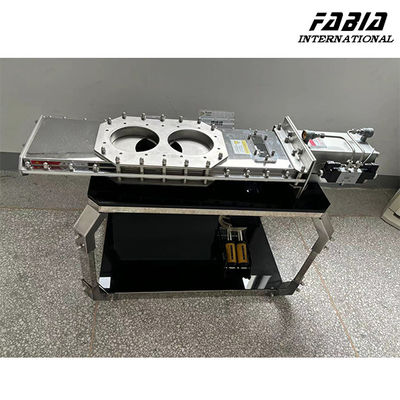

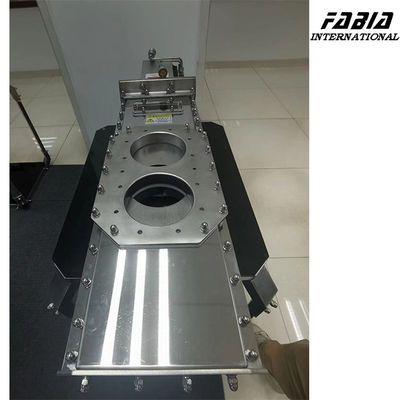

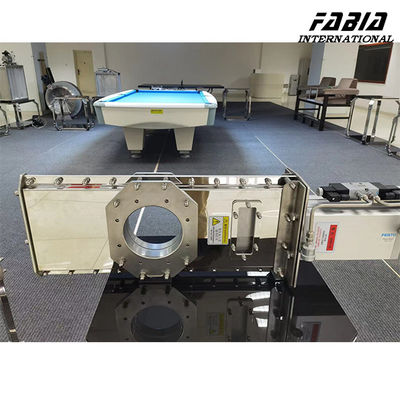

12inch Pneumatic Slide Damper with high performance for biopharmaceutical exhaust systems
1. Description:
This valve is mainly used in biopharmaceutical and waste classification high-speed conveying systems, and the main conveying medium is medical supplies (such as surgical gowns, bed sheets, etc.)
2. Specification:
| Product No. | Size | Thickness (body) |
Thickness (blade) |
D(shaft) | Control Model |
| FB-SD-0300-01 | D300 | 3.0 | 10.0 | D30 | Pneumatic |
| FB-SD-0350-02 | D350 | 3.0 | 10.0 | D30 | |
| FB-SD-0400-03 | D400 | 3.0 | 10.0 | D30 | |
| FB-SD-0450-04 | D450 | 3.0 | 12.0 | D40 | |
| FB-SD-0500-05 | D500 | 4.0 | 12.0 | D40 | |
| FB-SD-0550-06 | D550 | 4.0 | 12.0 | D40 | |
| FB-SD-0600-07 | D600 | 4.0 | 12.0 | D40 | |
| FB-SD-0650-08 | D650 | 4.0 | 12.0 | D40 | |
| FB-SD-0700-09 | D700 | 4.0 | 12.0 | D40 | |
| FB-SD-0750-10 | D750 | 4.0 | 12.0 | D40 | |
| FB-SD-0800-11 | D800 | 4.0 | 12.0 | D40 | |
| FB-SD-FREE | FREE | ||||
3. Features:
- Structure:Single hole channel and Porous channel
- Design Pressure:±10000Pa
- Multiple rows of channels can be customized and processed according to needs
- Install:Horizontal or Vertical
- Including access door
- Multiple layers of sealing gaskets are installed on both sides of the blade
- Material:Stainless
- Control Model:Pneumatic
