Vortex Damper For Fan Inlet And Outlet Of Ventilation And Exhaust System

  • Vortex Damper For Fan Inlet And Outlet Of Ventilation And Exhaust System
  • Vortex Damper For Fan Inlet And Outlet Of Ventilation And Exhaust System
  • Vortex Damper For Fan Inlet And Outlet Of Ventilation And Exhaust System
  • Vortex Damper For Fan Inlet And Outlet Of Ventilation And Exhaust System
Place of Origin China
Brand Name FABIA
Certification FM,AMCA,ISO9001,CE,CCS,DNV
Model Number 23 inch ～ 120inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Vortex Damper Valve Connection Flange
Material Stainless Steel Valve Body Stainless Steel
ControlMode Manual/Pneumatic/Electric Design Pressure ±6000Pa
Leakage 63l/s/m³（2000Pa） Apply Fan Inlet And Outlet Of Exhaust System
High Light

Ventilation Vortex Damper

,

Exhaust System Vortex Damper

,

Fan Inlet Vortex Damper
Leave a Message
Product Description

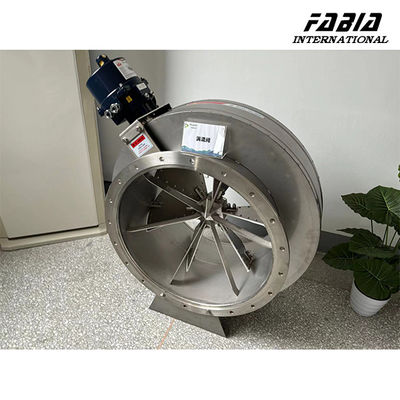

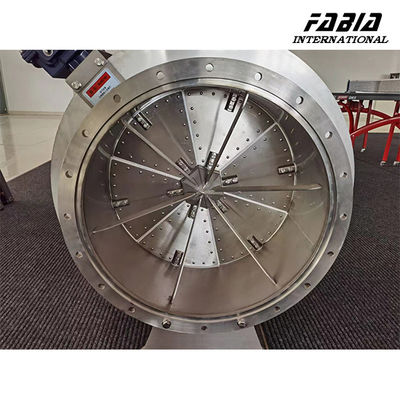

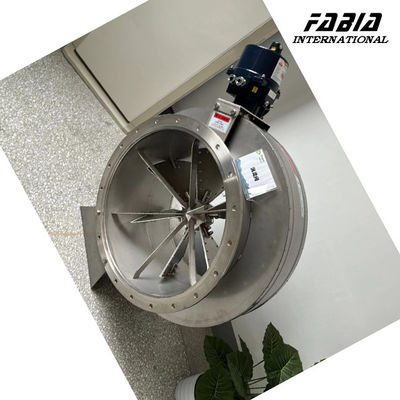

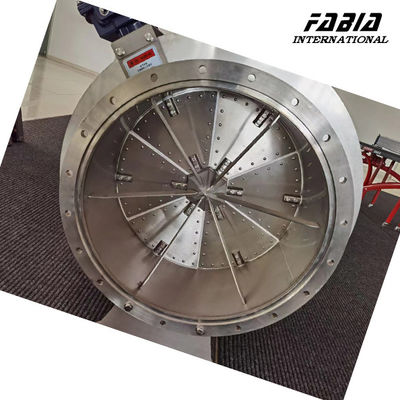

Vortex Damper for Fan inlet and outlet of ventilation and exhaust system

1. Description:



This valve is mainly used for the fan inlet and outlet of ventilation and exhaust system , and the valve structure can be set to two types: external linkage and internal linkage



2. Specification:



Product No. Size Height Thickness
(body)		 Thickness
(blade)		 D(shaft) Control Model
FB-VD-0600-01 D600 300 2.5 2.0 D18 Manual/Pneumatic/Electric
FB-VD-0700-02 D700 300 2.5 2.0 D18
FB-VD-0800-03 D800 300 2.5 2.0 D18
FB-VD-0900-04 D900 300 2.5 2.0 D18
FB-VD-1000-05 D1000 300 2.5 2.0 D18
FB-VD-1100-06 D1100 400 2.5 2.0 D18
FB-VD-1200-07 D1200 400 2.5 2.0 D18
FB-VD-1300-08 D1300 400 2.5 2.0 D18
FB-VD-1400-09 D1400 400 2.5 2.0 D18
FB-VD-1500-10 D1500 400 2.5 2.0 D18
FB-VD-1600-11 D1600 400 3.0 2.5 D18
FB-VD-1700-12 D1700 400 3.0 2.5 D18
FB-VD-1800-13 D1800 400 3.0 2.5 D18
FB-VD-1900-14 D1900 400 3.0 2.5 D18
FB-VD2000-15 D2000 400 3.0 2.5 D18
FB-VD-2200-16 D2200 400 3.0 2.5 D18
FB-VD-2500-17 D2500 400 3.0 2.5 D18
FB-VD-3000-18 D3000 400 3.0 2.5 D18
FB-VD-FREE FREE



3. Features:



  • Valve body structure: divided into external linkage and internal linkage
  • Design Pressure:±6000Pa
  • Leakage:63L/s/m³(2000Pa)
  • Advantage:If choosing a butterfly valve or a multi-blade regulating valve , turbulence will occur during the opening and closing process. The small installation gap between the valve and the fan will not only cause large fluctuations in wind pressure, but also exert pressure on the fan impeller.These problems can be avoided by using a vortex valve.
