Fire Damper Valve Optimize Flow Control With Efficiently Designed

Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ~ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fire Damper Valve Connection Flange
Material Carbon Steel Valve Body Carbon Steel
Temperature 70℃ ControlMode Manual/Pneumatic/Electric
Valve Media Water/Oil/Gas
Highlight

Optimize Flow Control Fire Damper Valve

,

Efficiently Designed Fire Damper Valve

,

Efficiently Designed Damper Valve

Leave a Message
Product Description

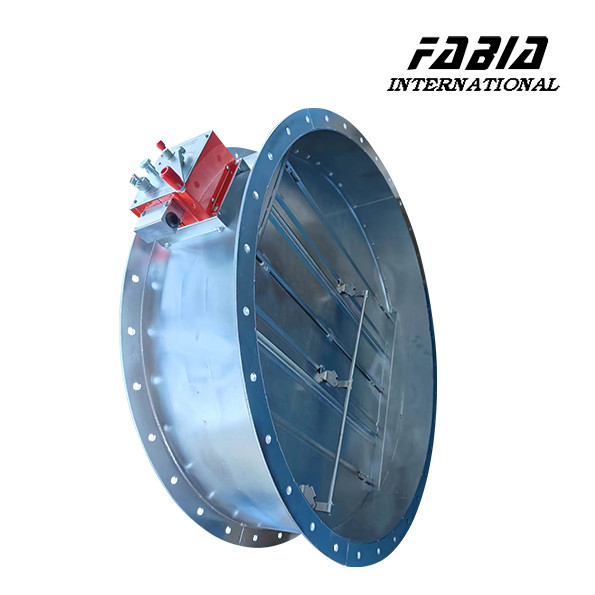

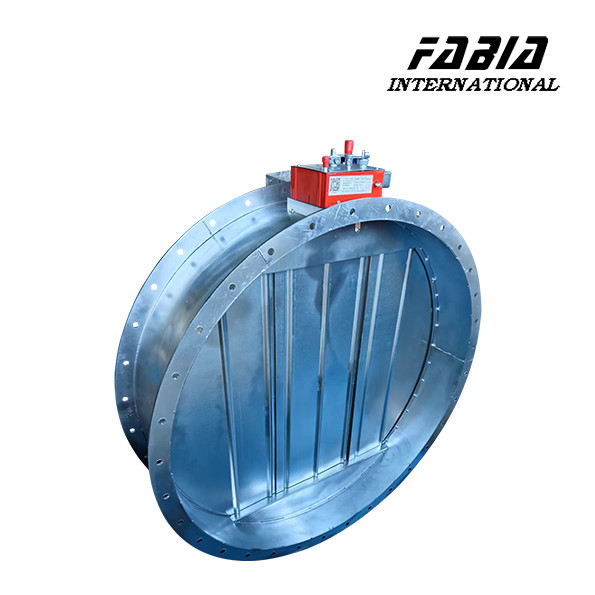

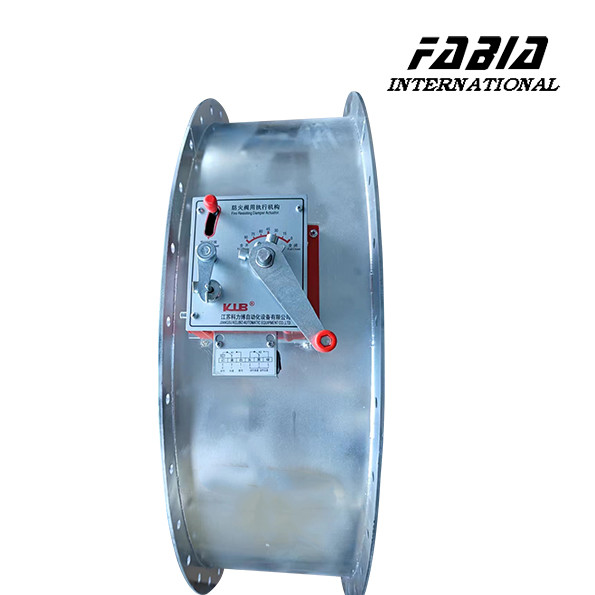

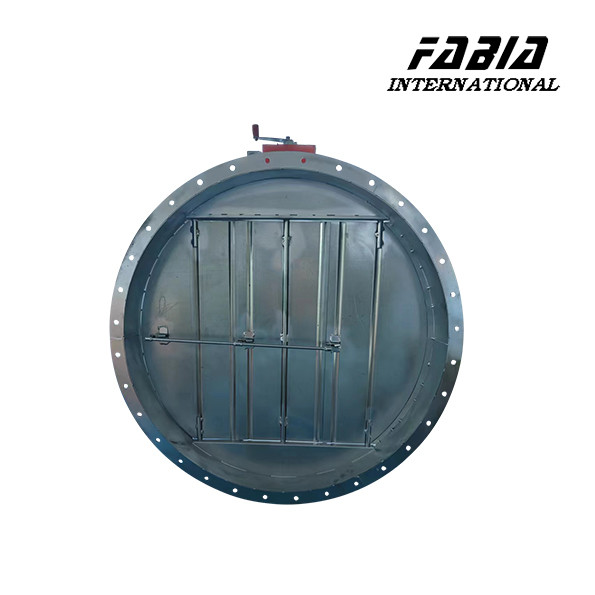

Fire Damper Valve Optimize Flow Control With Efficiently Designed



1. Description:



This damper is installed on the supply and return air ducts of ventilation and air conditioning systems, usually in an open state. In case of fire, it closes when the smoke temperature inside the duct reaches 70 ℃ and can meet the requirements of smoke leakage and fire resistance integrity for a certain period of time, serving as a smoke and fire barrier. The first version of the fire damper consists of components such as the valve body, blades, actuator, and temperature sensor.

2. Specification:



FABIA Valve Parameter List
Valve type:  Fire Damper with Efficiently Designed Damper Valve
Size: 1/8 inch ~ 18 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: ±4000Pa
Temperature: 500℃
Model: FD..........



3. Features:

  • Low leakage rate and good airtightness performance
  • Strong corrosion resistance and long service life
  • Flexible valve opening and closing, accurate position feedback signal
  • Excellent fire resistance integrity
