High PHressure Two Way Butt Welding High Temperature Ball Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 ～ 36 Inch |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic High PHressure Ball Valve | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Material | Stainless Steel | Operation Mode | Pneumatic |
| Connection Type | Threaded | Pressure Test | PN16 |
| Pressure Rating | High Pressure | Seal Material | Metal Sealing |
| Size | 1/8 Inch ～ 8 Inch | Temperature Range | -20 To 450°C |
Product Description

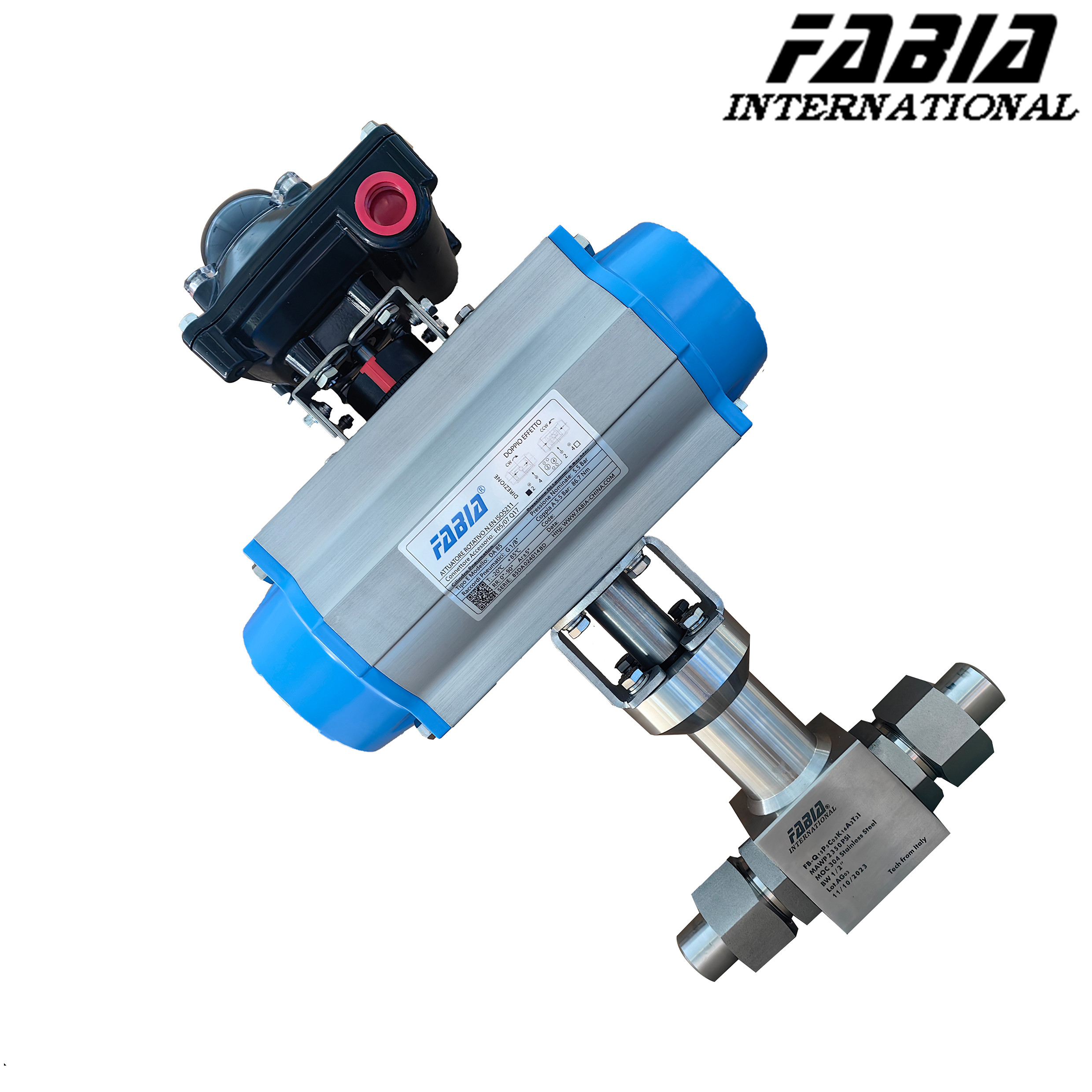

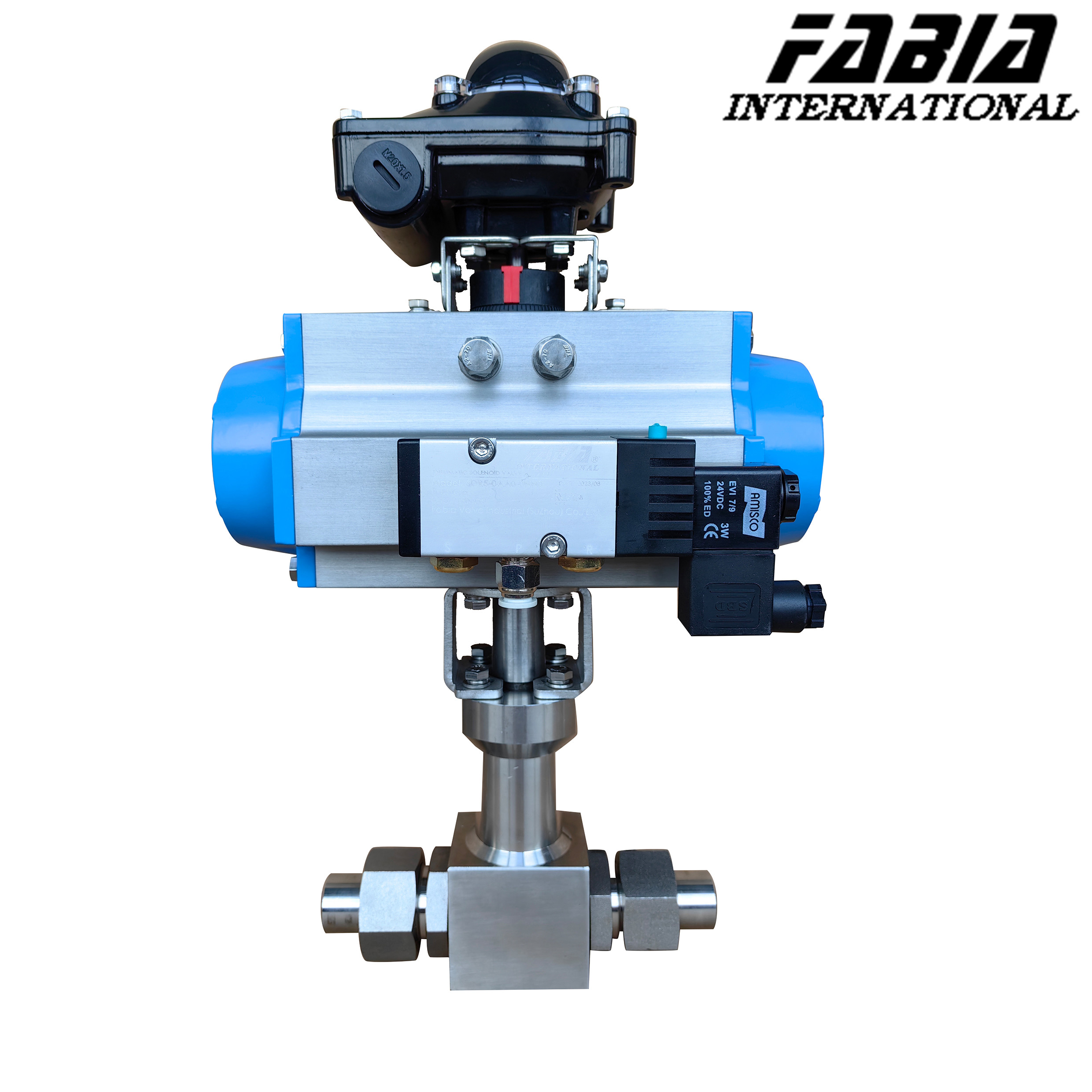

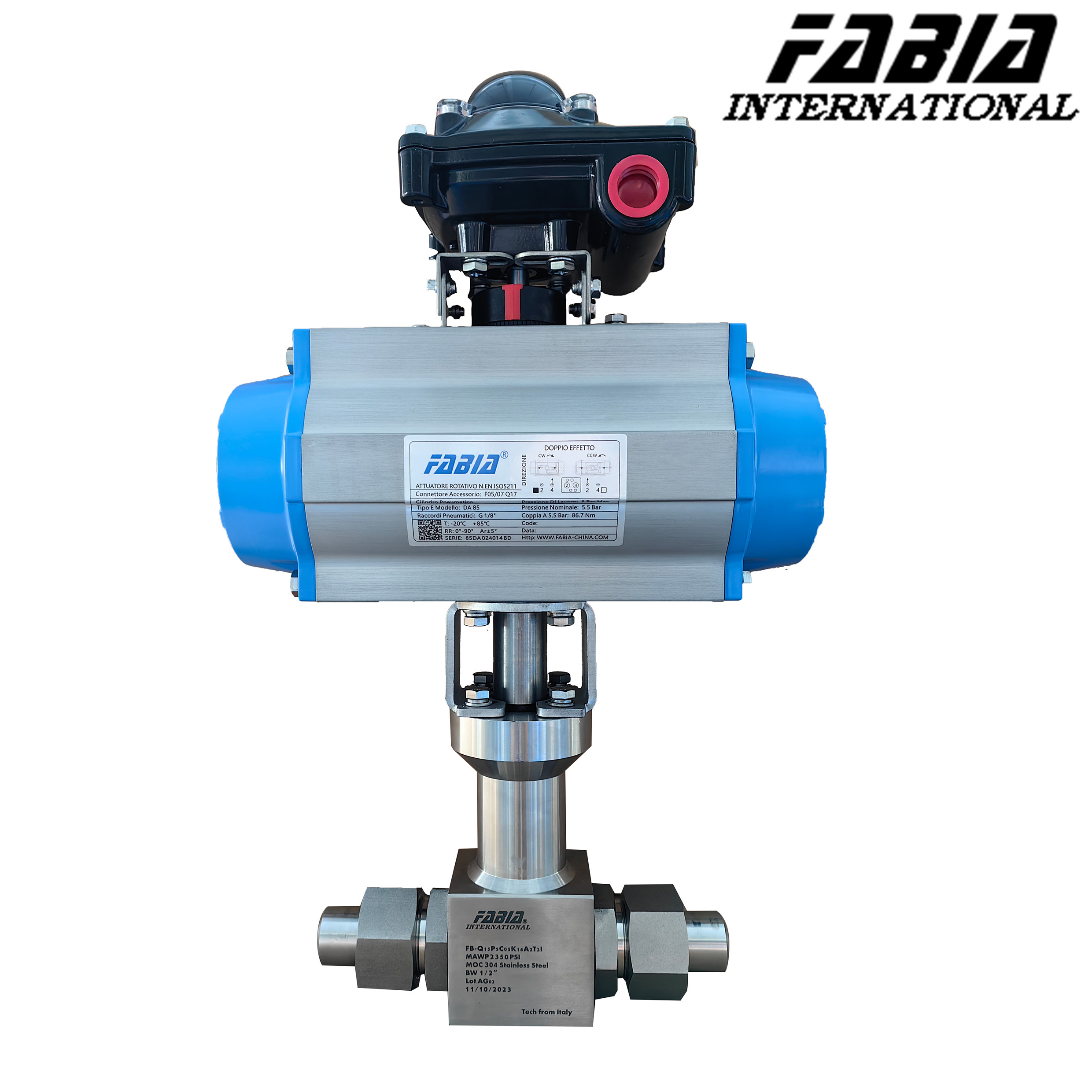

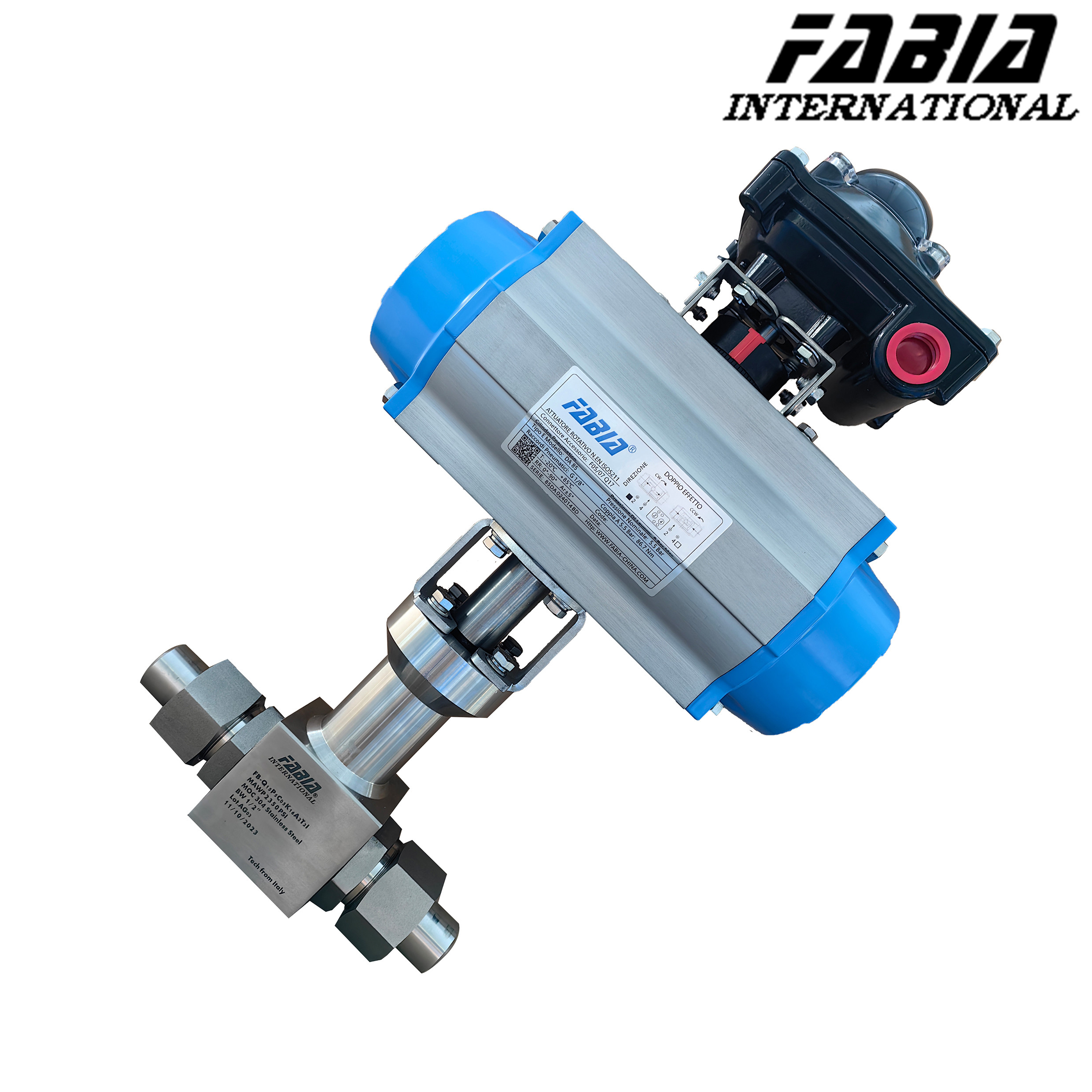

High Pressure Two Way Butt Welding High Temperature Ball Valve
1. Description:
Pneumatic high pressure ball valve is a kind of control valve widely used in high pressure environment. Its structure is simple, easy to use, good sealing performance, long life, so it has been widely used in petroleum, chemical, electric power and other industries.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | High Pressure Two Way Butt Welding High Temperature Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
- Structure is relatively simple, the volume is also small, the weight is very light.
- Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has been widely used in the vacuum system.
- Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
- Convenient maintenance, pneumatic ball valve simple structure, sealing ring is generally active, disassembly and replacement are more convenient.
- When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.
