Butt Welding High Pressure Ball Valve Three Piece Electric Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Three Piece Butt Welding Ball Valve | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Material | Stainless Steel | Connection | Butt Welding |
| Operation | Electric | Application | Oil, Gas, Water |
| Pressure | 1000-6000 PSI | Seal | PTFE, EPDM |
| Size | 1/2-8 Inch | Temperature | -30 To 300°C |
| Certificate | ISO 9001, API | Feature | Anti-Static, Fire Safe |
| Highlight | Electric Ball Valve 1000 PSI,Three Piece Butt Welding Ball Valve,EPDM Seal High Pressure Ball Valve |
||
Product Description

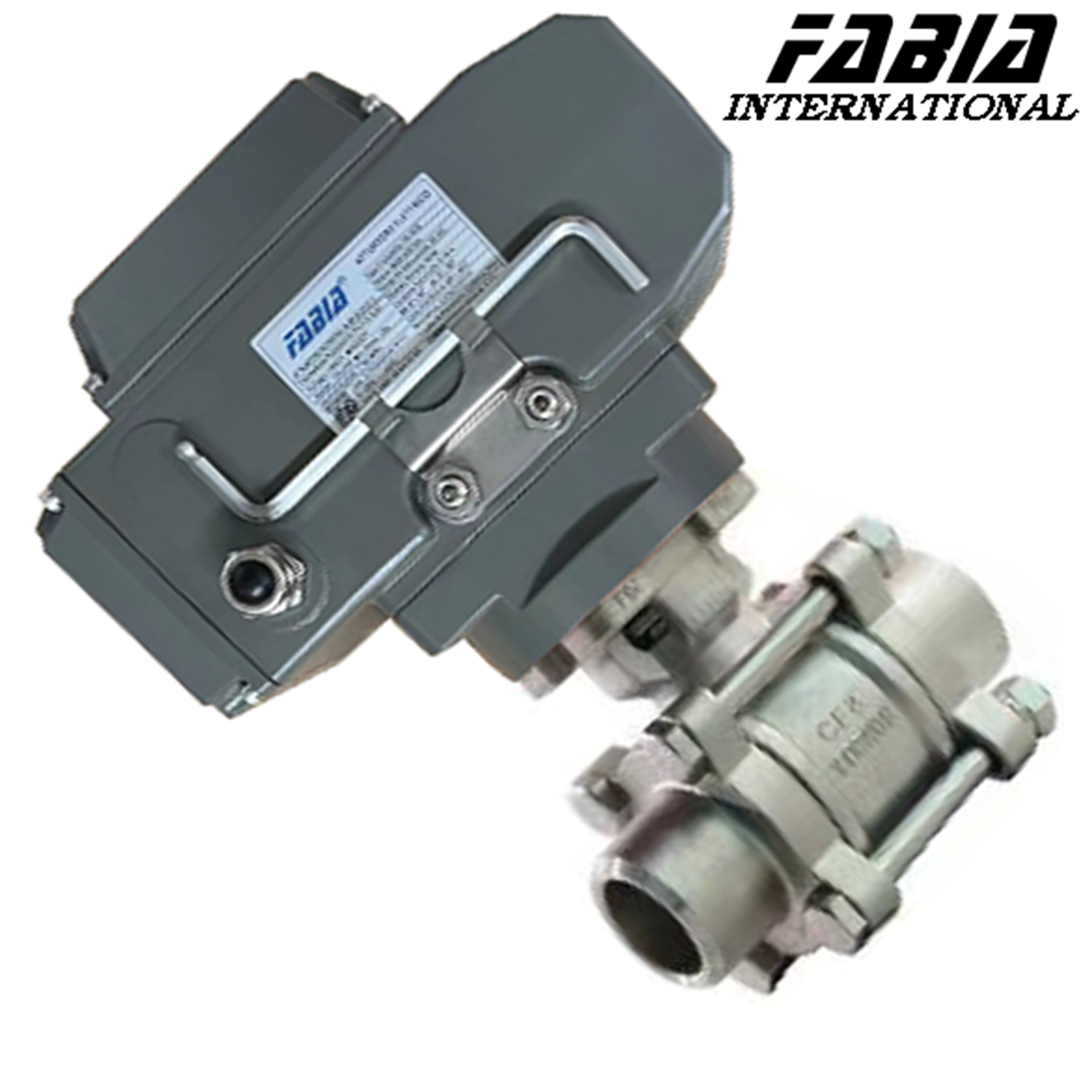

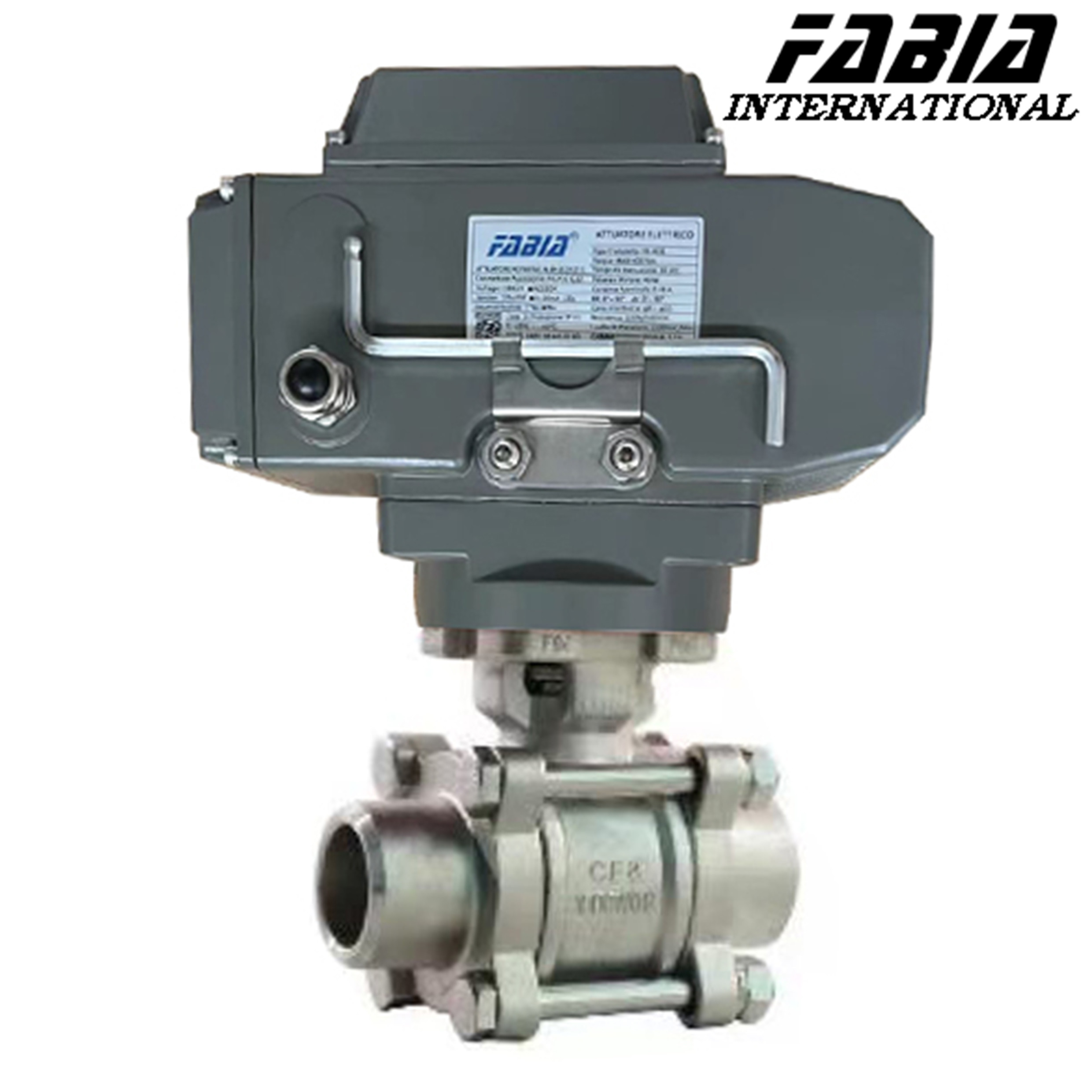

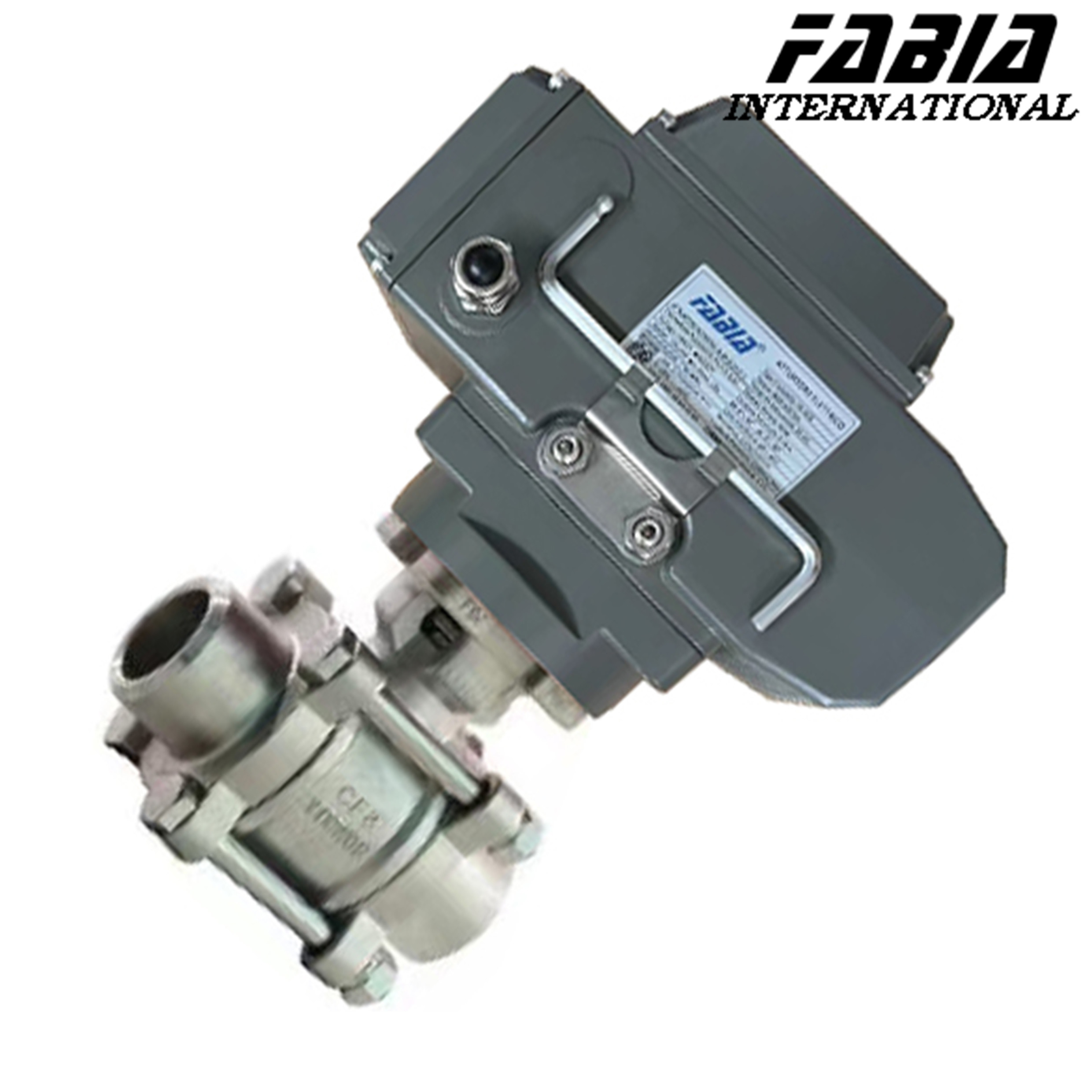

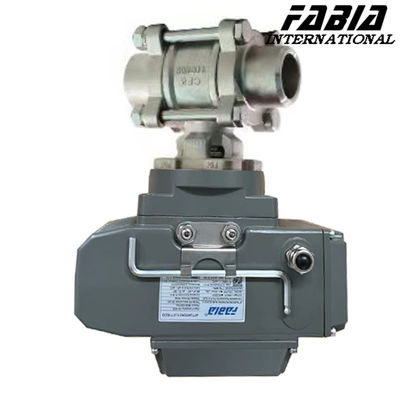

Electric High Pressure Three Piece Butt Welding Ball Valve
1. Description:
Electric high pressure three-piece welding ball valve is widely used as a gas valve, with its own advantages, friction-free switch, seal will not be worn, small opening and closing torque, the optional actuator is mainly compact type to achieve cutting off or adjusting the medium.
Now it is gas equipment, petrochemical, aerospace, vacuum equipment, electroplating equipment, agricultural machinery, food machinery, iron and steel metallurgy, HVAC, drying equipment, biopharmaceutical, medical equipment, and other industries.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Three Piece Butt Welding Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, ball valve is one of the small fluid resistance of all valves, even the reduced diameter ball valve, its fluid resistance is quite small.
- Thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
- Sealing performance of the seat is good, the sealing ring made of polytetrafluoroethylene and other elastic materials, the structure is easy to seal, and the sealing capacity of the ball valve increases with the increase of the medium pressure.
- Valve stem seal is reliable, because the valve stem is only as if rotating without lifting movement, the packing seal of the valve stem is not easy to destroy, and the sealing capacity increases with the pressure of the medium.
- Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss with the ball is small, so the service life of the ball valve is long.
- Lower mounted valve stem and valve stem head convex step to prevent the valve stem ejecta, such as fire caused by the valve stem seal damage, the convex step and the valve body can also form metal contact to ensure the valve stem seal.
- Anti-static function: set the spring between the ball, valve stem and valve body, which can export the static electricity generated by the switching process.
