Electric Flanged Stainless Steel Ball Valve High Pressure Two Piece
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Pressure Flanged Ball Valve | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Material | Stainless Steel | Connection Type | Flanged |
| Operation | Electric | Pressure Rating | 150LB-2500LB |
| Certificate | ISO 9001, API 6D | Seal | PTFE, EPDM |
| Size | 1/2”-48” | Temperature Range | -196℃-450℃ |
| Pressure Test Standard | API 598, API 6D, Etc. | Application | Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc. |
| High Light | Flanged Electric High Pressure Ball Valve,Two Piece Flanged Ball Valve,Metallurgy Stainless Steel Ball Valve |
||
Product Description

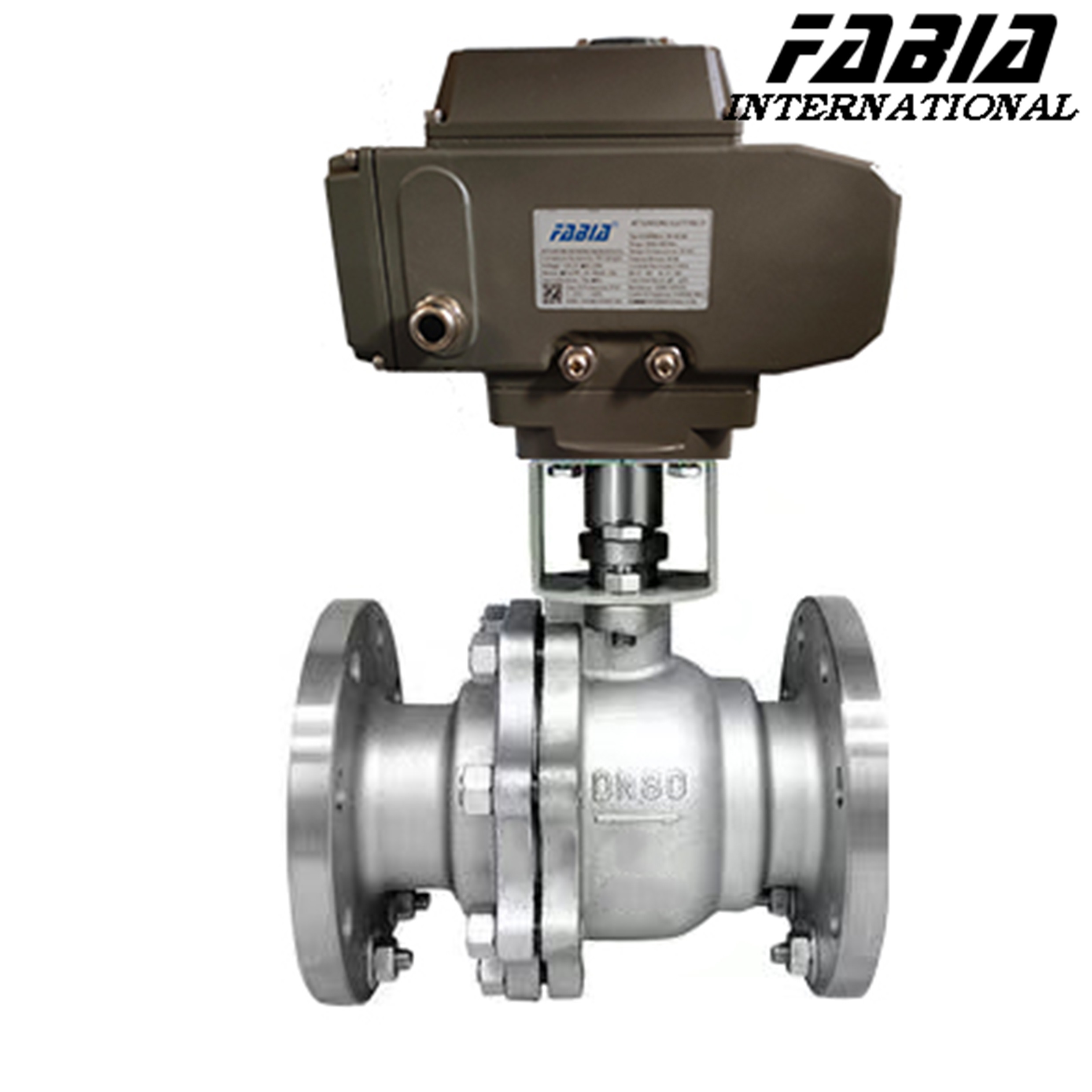

Electric High Pressure Two Piece Flanged Stainless Steel Ball Valve
1. Description:
Wide range of application: electric flange ball valve is suitable for a variety of fluid media, including gas, water, oil, etc.
Can work under high temperature, high pressure, corrosion and other harsh conditions.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Two Piece Flanged Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fast response: The electric flange ball valve has a fast response speed and can complete the opening and closing operation in a short time, improving production efficiency and safety.
- Good stability: The actuator of the electric flange ball valve adopts a high-precision electronic control system, which can ensure the stability and reliability of the valve.
- Energy saving and environmental protection: the actuator of the electric flange ball valve can realize the control of the fluid, avoid the waste and pollution of the fluid, and achieve the purpose of energy saving and environmental protection.
- Simple operation: The operation of the electric flange ball valve is simple, and the opening and closing operation can be completed by pressing the button, reducing the complexity of manual operation.
