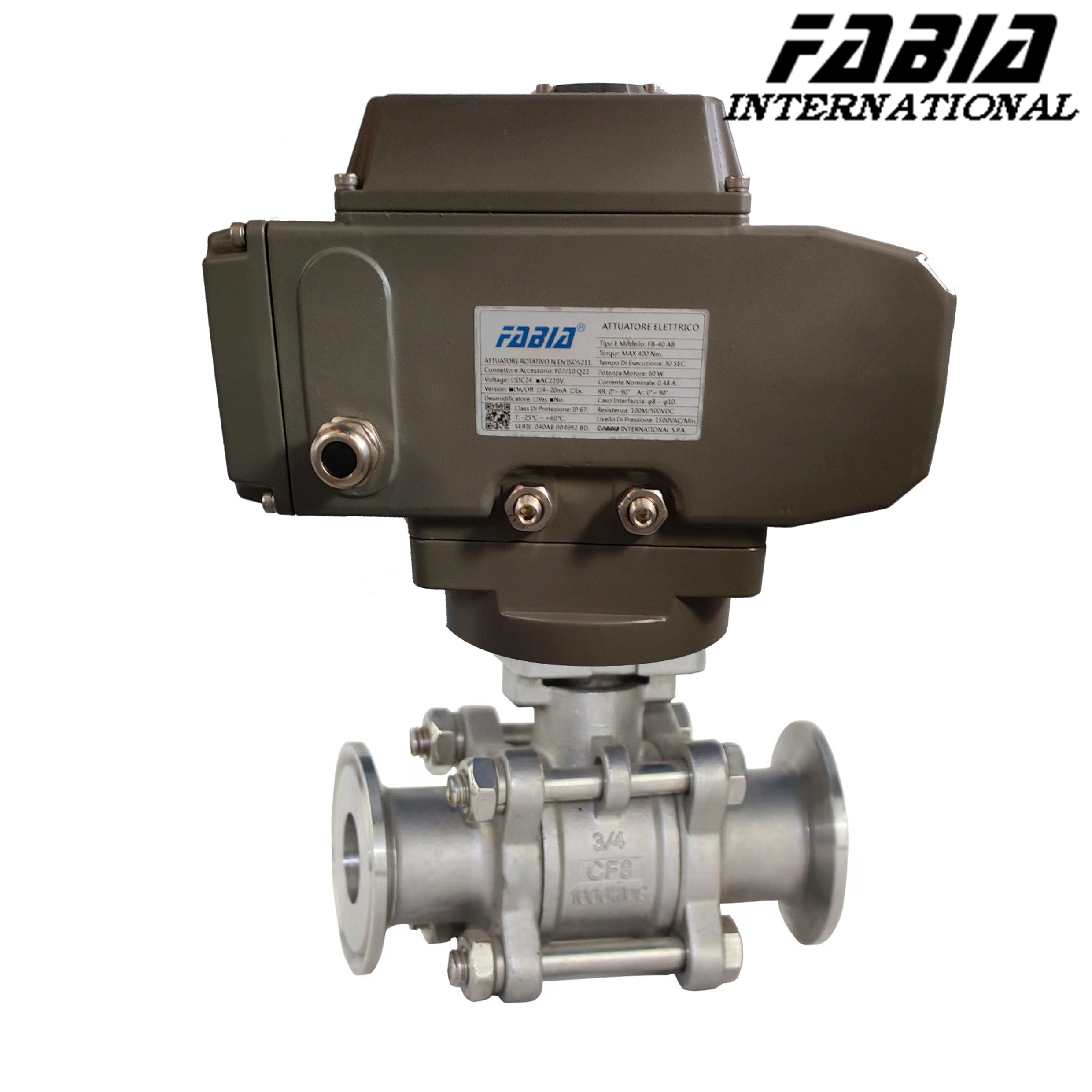

Electric High Pressure Ball Valve Stainless Steel Clamp Industrial Ball Valve

  • Electric High Pressure Ball Valve Stainless Steel Clamp Industrial Ball Valve
  • Electric High Pressure Ball Valve Stainless Steel Clamp Industrial Ball Valve
  • Electric High Pressure Ball Valve Stainless Steel Clamp Industrial Ball Valve
  • Electric High Pressure Ball Valve Stainless Steel Clamp Industrial Ball Valve
  • Electric High Pressure Ball Valve Stainless Steel Clamp Industrial Ball Valve
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Electric Clamp Ball Valve Valve Type High Pressure Ball Valve
Valve Material Stainless Steel Valve Operation Electric
Valve Connection Clamp Valve Sealing Metal Sealing
Valve Certification API, CE, ISO Valve Pressure 150-2500 PSI
Valve Application Petroleum, Chemical, Gas Valve Size 1/2-8 Inch
Valve Temperature 150-600°F Valve Design Floating Ball, Trunnion Mounted
Highlight

Petroleum High Pressure Ball Valve

,

Stainless Steel Clamp Industrial Ball Valve

,

High Pressure Ball Valve
Leave a Message
Product Description

High Performance Electric Stainless Steel Clamp Industrial Ball Valve



1. Description:



Weakly corrosive materials in chemical and petrochemical production.



Corrosive materials in chemical production.



Low temperature materials in refrigeration.



Light industry food, pharmaceutical production of health requirements of the material.



2. Specification:



FABIA Valve Parameter List
Valve type: Electric High Pressure Clamp Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Clamp ball valve connection operation is very simple, no special professional skills, ordinary workers can operate after simple training.
  • Clamp ball valve is simple to operate, the required operating space is smaller, which brings a lot of convenient conditions for future maintenance.
  • Maintenance and replacement, just loosen the two clips can be arbitrarily more find, rotate, modify a section of pipe.
  • No need to damage the surrounding walls, reducing maintenance time and maintenance costs.

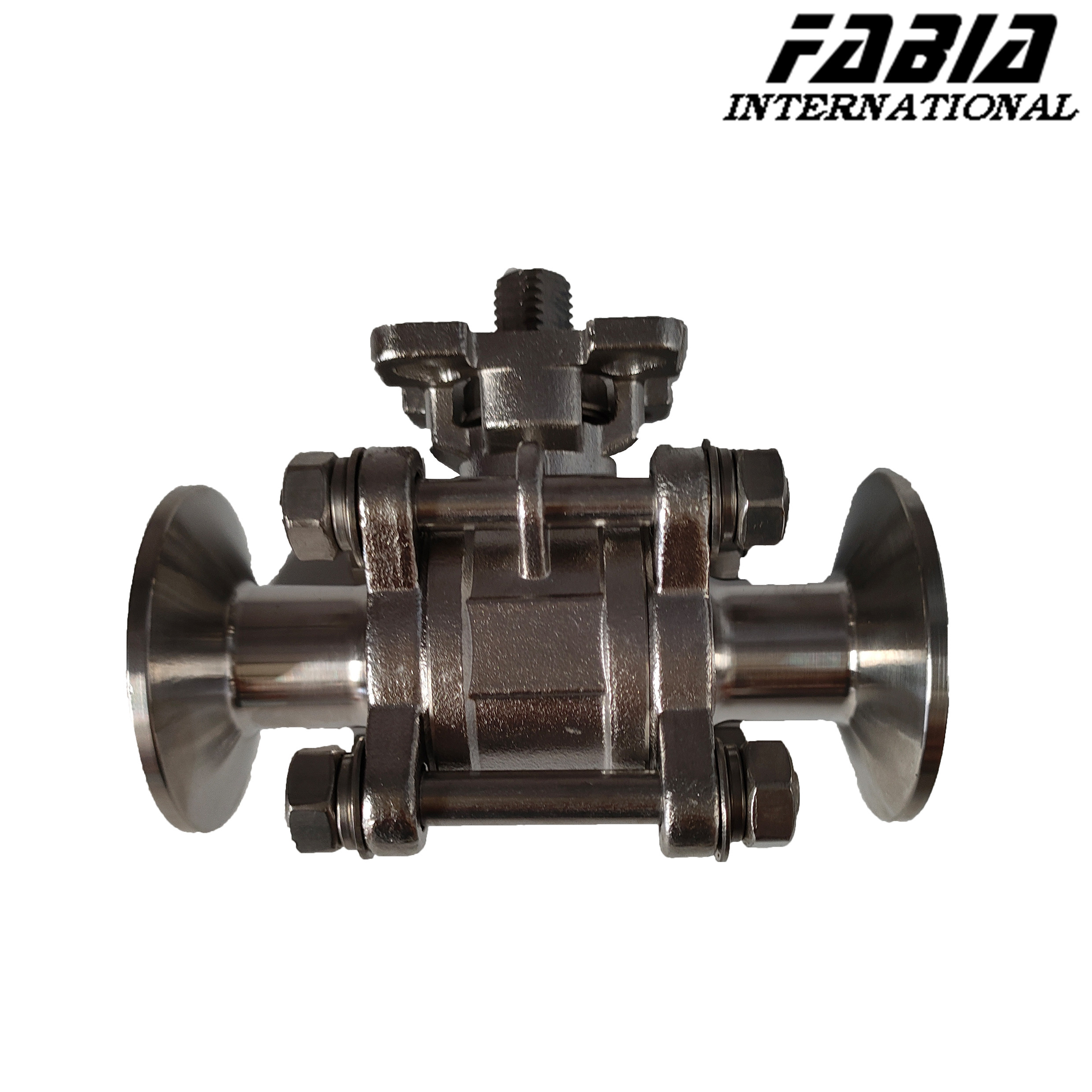

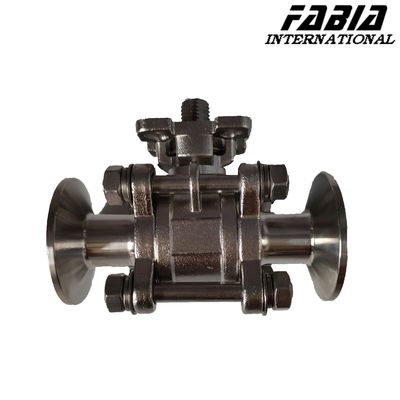

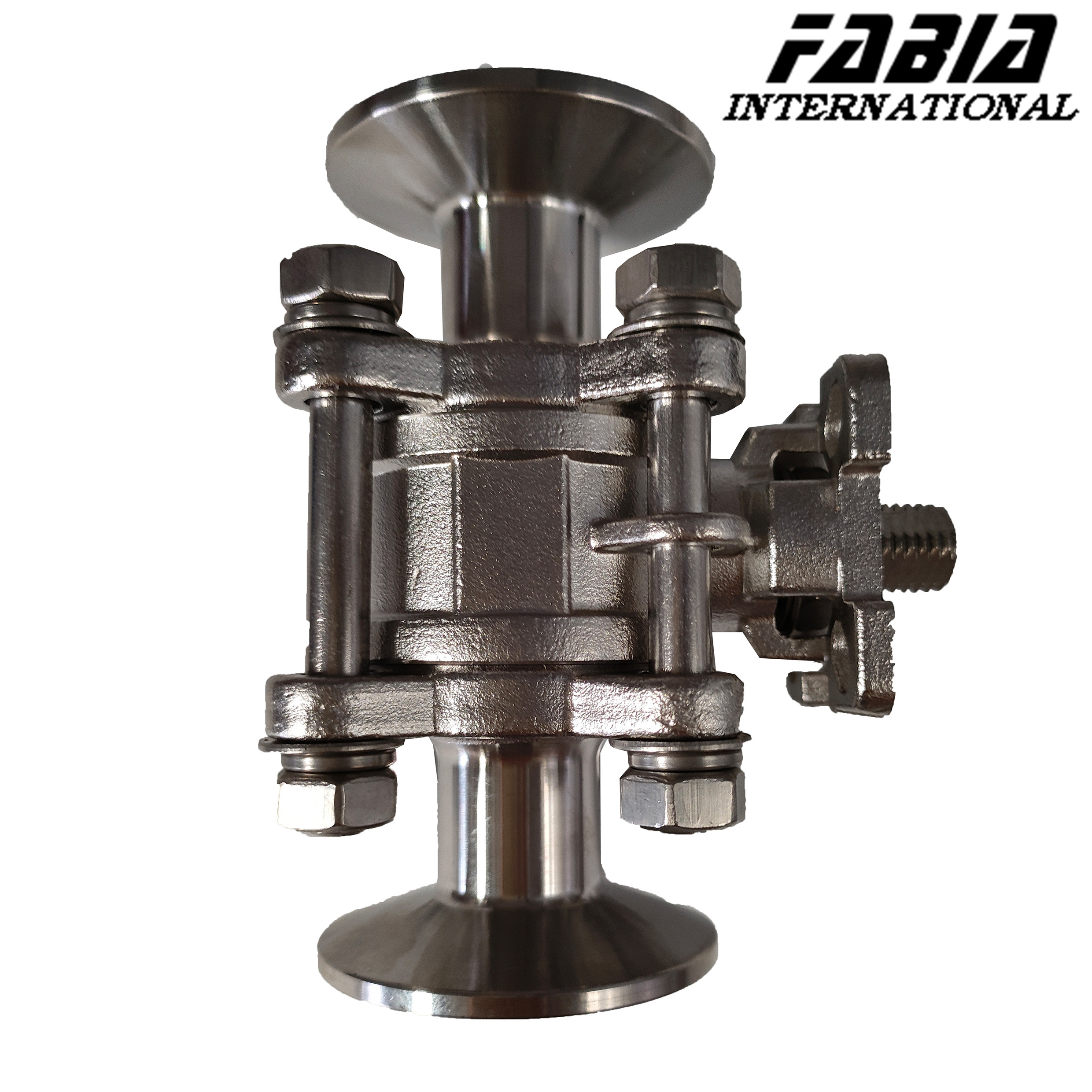

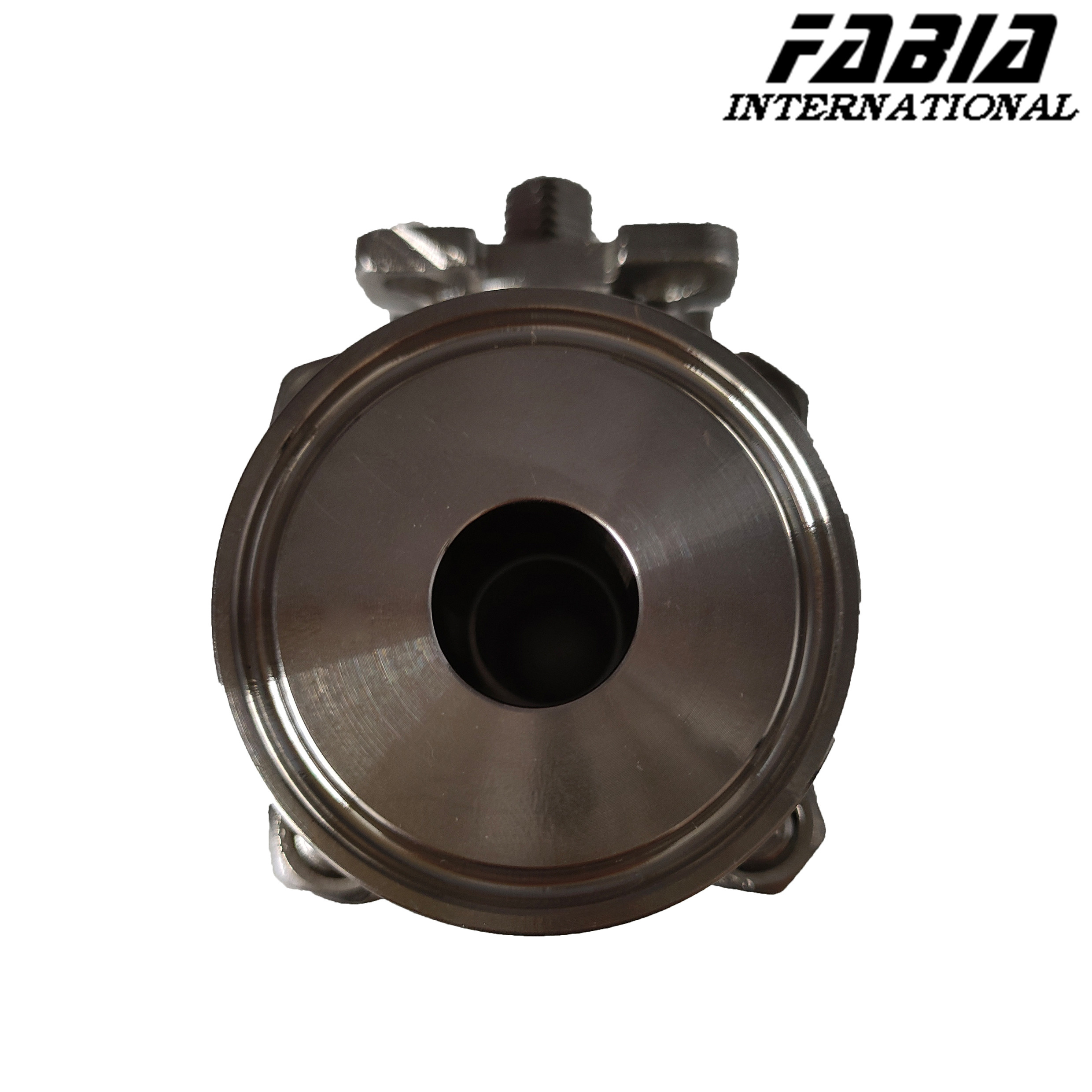

Electric High Pressure Ball Valve Stainless Steel Clamp Industrial Ball Valve 0

Electric High Pressure Ball Valve Stainless Steel Clamp Industrial Ball Valve 1
