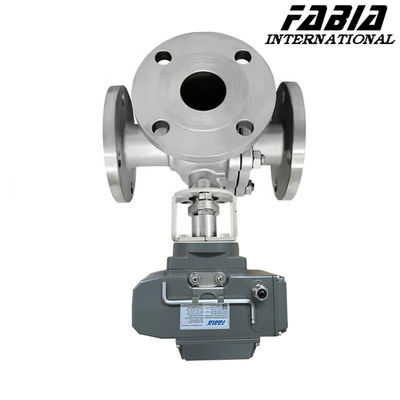

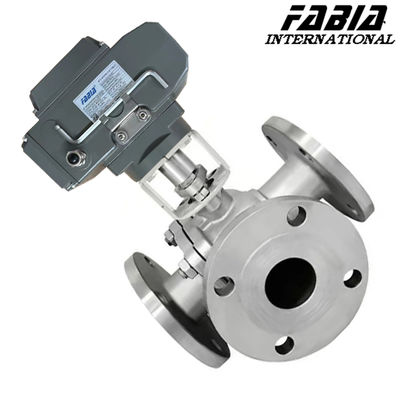

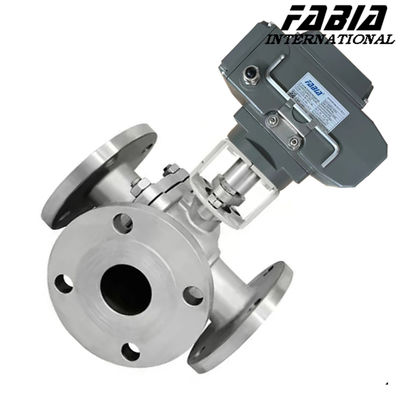

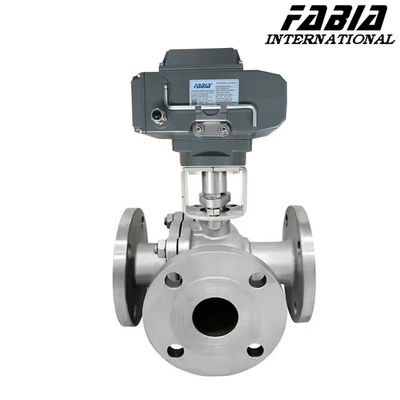

Electric High Pressure Three Way Ball Valve L Type

  • Electric High Pressure Three Way Ball Valve L Type
  • Electric High Pressure Three Way Ball Valve L Type
  • Electric High Pressure Three Way Ball Valve L Type
  • Electric High Pressure Three Way Ball Valve L Type
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Pressure Three Way Ball Valve /L Type Name High Pressure Ball Valve
Trim Material Stainless Steel Actuator Electric
Body Material Stainless Steel Connection Type Flange
Operating Temperature -20 To 300°F Fire Safe Design Yes
Pressure Rating 1000 To 6000 Psi Seat Material PTFE, PEEK
Size 1/2 To 8 Inches Port Type Full Port, Standard Port
High Light

three way high pressure ball valve

,

high pressure three way ball valve

,

high pressure three way valve
Leave a Message
Product Description

FABIA Electric High Pressure Three Way Ball Valve /L Type



1. Description:



Ball valve has been widely used in petroleum, chemical industry, liquefied gas, water supply and drainage, food, pharmaceutical, power generation, paper making, urban construction, mining, boiler steam system, municipal, atomic energy, aviation, rockets and other departments, as well as People's Daily life.



2. Specification:



FABIA Valve Parameter List
Valve type: Electric High Pressure Three Way Ball Valve /L Type
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Oil, natural gas transmission main line, need to clean the pipeline, but also buried in the ground, choose full diameter, all welded structure ball valve.
  • Buried on the ground, choose full-diameter welded connection or flange connection ball valve.
  • Branch pipe, choose flange connection, welded connection, full diameter or reduced diameter ball valve.
  • Product pipeline and storage equipment, the use of flanged ball valve connection.
  • City gas and natural gas pipeline, the use of flange connection and internal thread connection of the floating ball valve.
  • Oxygen piping system of the metallurgical system, it is appropriate to select the fixed ball valve with strict degreasing treatment and flange connection.
  • Pipeline system and device of low temperature medium should be selected with a low temperature ball valve cover.
  • On the pipeline system of the catalytic cracking unit of the refining unit, the lifting rod ball valve can be selected.
  • Installation and piping system of corrosive media such as acid and alkali in the chemical system, it is appropriate to choose all stainless steel ball valves made of austenitic stainless steel and polytetrafluoroethylene for the seat sealing ring.
  • Metallurgy system, power system, petrochemical equipment, urban heating system in the high-temperature medium pipeline system or device, can choose metal to metal sealing ball valve.
  • Need to adjust the flow, can choose worm gear drive, pneumatic or electric with V-shaped opening adjustment ball valve.





Electric High Pressure Three Way Ball Valve L Type 0



Electric High Pressure Three Way Ball Valve L Type 1
