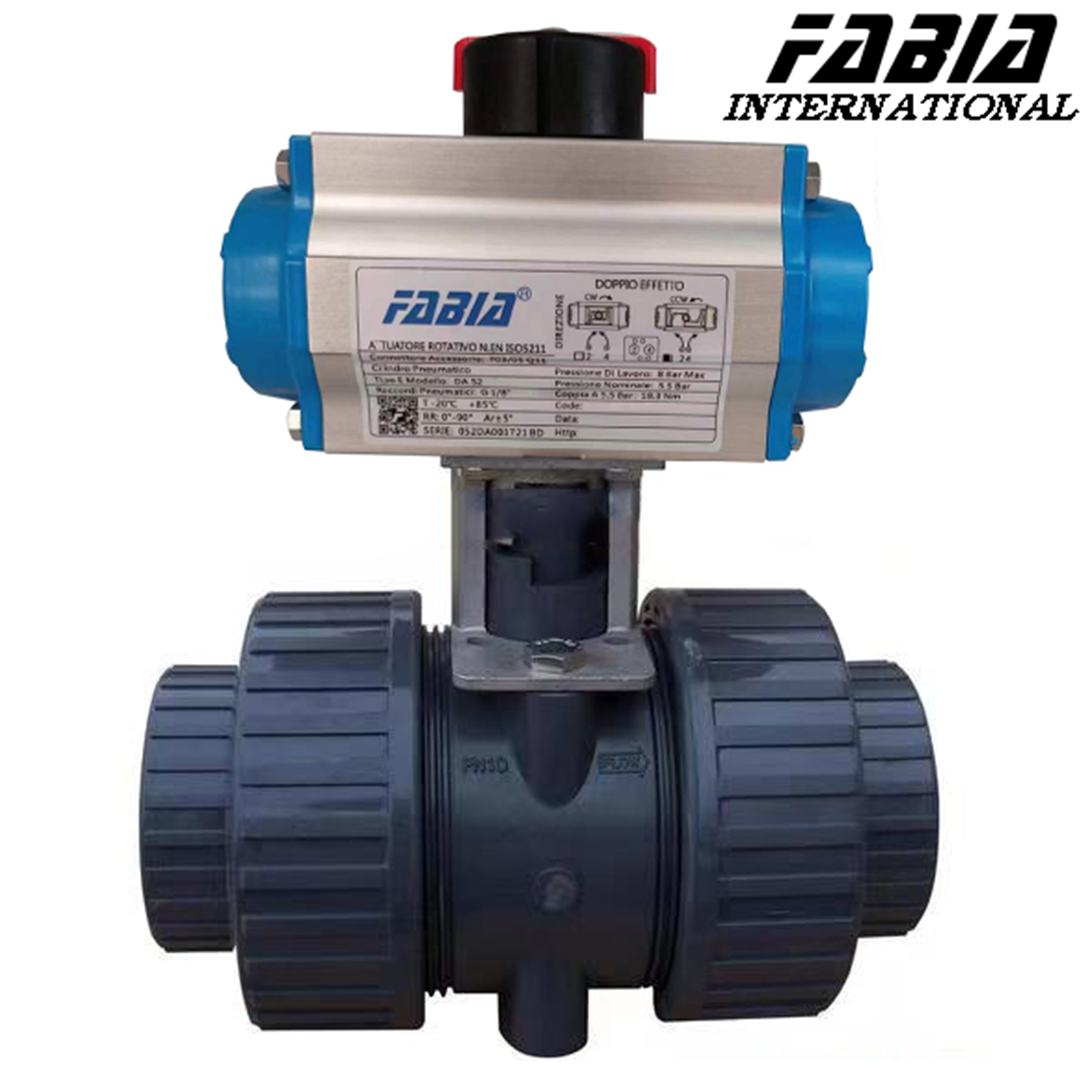

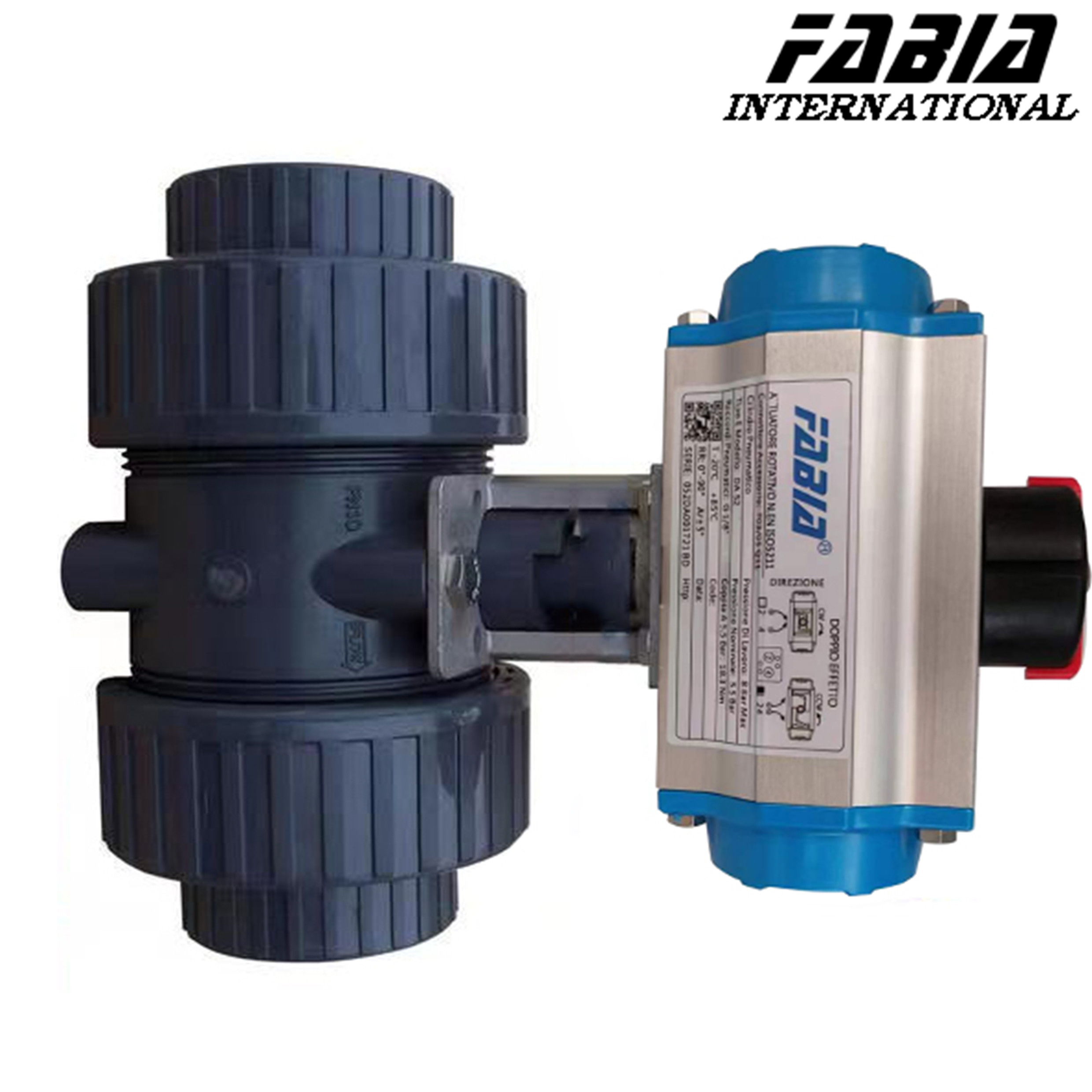

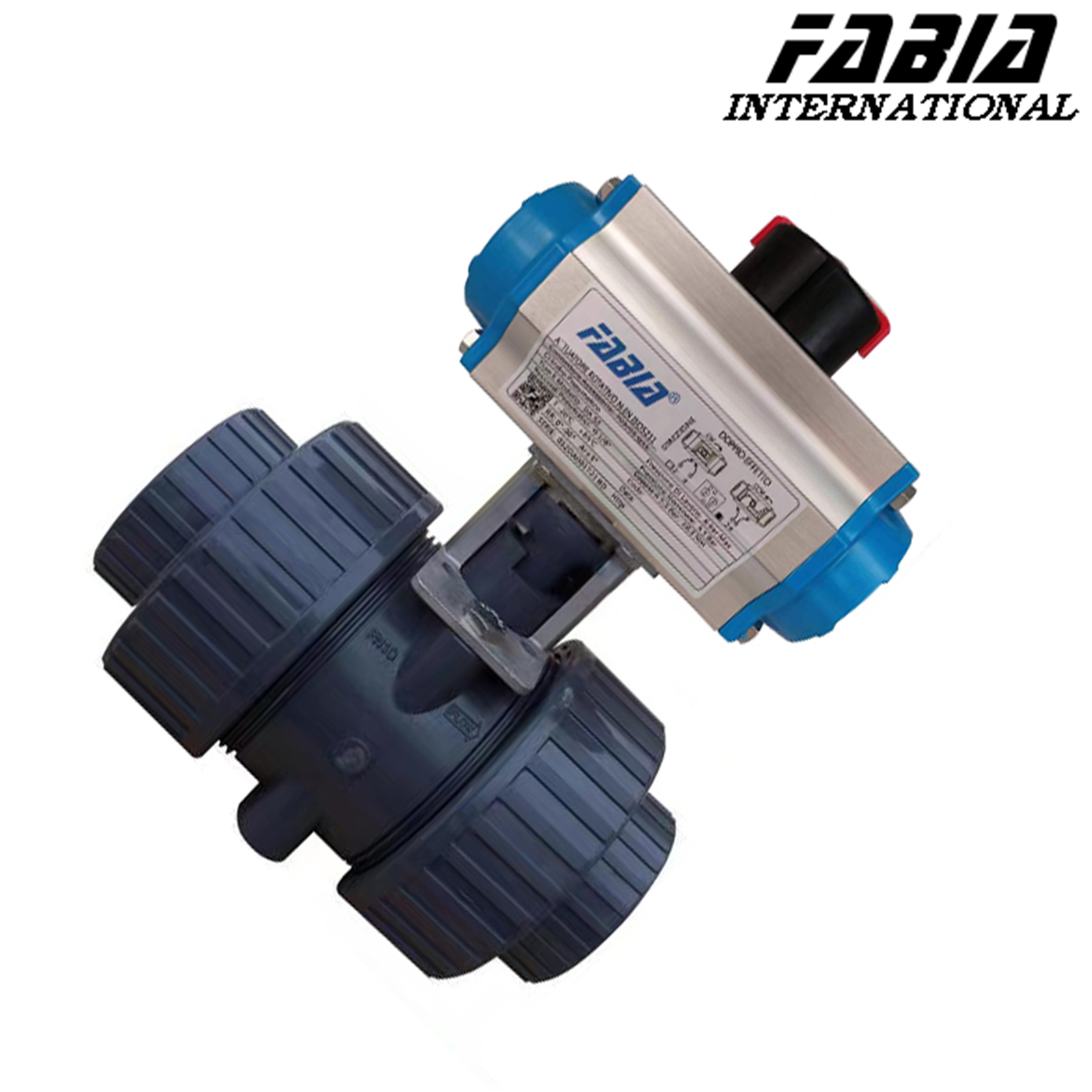

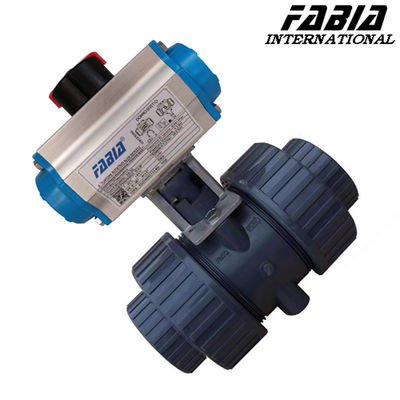

1/4” 1/2" Pneumatic High Pressure Soft Seal Ball Valve

  • 1/4” 1/2" Pneumatic High Pressure Soft Seal Ball Valve
  • 1/4” 1/2" Pneumatic High Pressure Soft Seal Ball Valve
  • 1/4” 1/2" Pneumatic High Pressure Soft Seal Ball Valve
  • 1/4” 1/2" Pneumatic High Pressure Soft Seal Ball Valve
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic High Pressure Ball Valve Valve Type High Pressure Ball Valve
Valve Material Stainless Steel Valve Actuator Type Pneumatic
Valve Connection Type Threaded Valve Sealing Type Soft Sealing
Valve Operation Type Pneumatic Valve Pressure Rating 1000 PSI
Valve Body Type 2-piece Valve Size 1/2-8 Inch
Valve Temperature Rating 150°F
High Light

High Pressure Soft Seal Ball Valve

,

1/2 high pressure ball valve

,

1/4 high pressure ball valve
Leave a Message
Product Description

FABIA Pneumatic High Pressure Soft Seal Ball Valve



1. Description:



When turning off, rotate the handwheel with the second hand, the rim begins to decline and the ball leaves the nozzle and begins to rotate.



Continue to rotate the handwheel, and the rim is acted by the guide pin embedded in its upper spiral groove, so that the shaft sleeve and the cube rotate 90° at the same time.



When close, the cube has been rotated 90° without contact with the washer.



First few turns of the handwheel shaking, the angular plane above the rim of the wheel is mechanically wedged to press the cube, so that it is closely pressed on the nozzle to achieve a complete seal.



2. Specification:



FABIA Valve Parameter List
Valve type: Pneumatic High Pressure Soft Seal Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Fluid resistance is small, and the valve of the full diameter has basically no flow resistance.
  • Simple structure, small size, light weight.
  • Be close. It has two sealing surfaces, and the sealing surface material of the valve uses all kinds of plastics, which has good sealing performance and can achieve complete sealing. It can also be used in vacuum systems.
  • Convenient operation, fast opening and closing, high-power valve from full run to full close as long as the rotation of 90°, in order to remote control.
  • Easy to repair, simple valve structure, sealing ring is usually active, disassembly and replacement are more convenient.
  • When fully open or fully closed, the sealing surface of the cube and nozzle is isolated from the medium, and the medium will not cause erosion of the sealing surface of the ball valve when it passes through.
  • Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.
  • Because the valve has scrubbing property during opening and closing, it can be suitable for media with floating solid particles.









1/4” 1/2" Pneumatic High Pressure Soft Seal Ball Valve 0

1/4” 1/2" Pneumatic High Pressure Soft Seal Ball Valve 1
