1 1 2" 3 Inch 1 2 Inch Pneumatic High Pressure Clamp Ball Valve

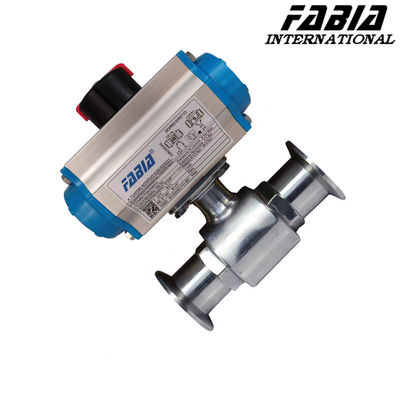

  • 1 1 2" 3 Inch 1 2 Inch Pneumatic High Pressure Clamp Ball Valve

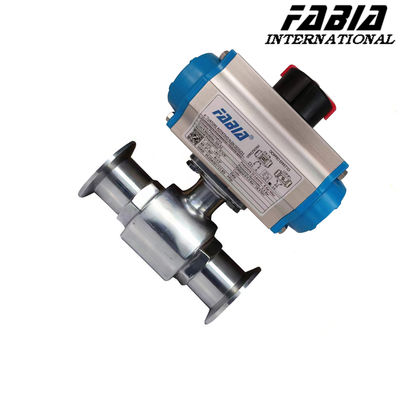

  • 1 1 2" 3 Inch 1 2 Inch Pneumatic High Pressure Clamp Ball Valve

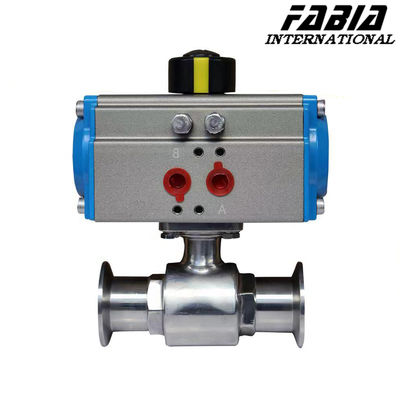

  • 1 1 2" 3 Inch 1 2 Inch Pneumatic High Pressure Clamp Ball Valve

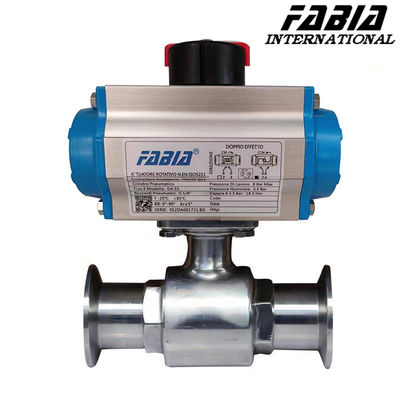

  • 1 1 2" 3 Inch 1 2 Inch Pneumatic High Pressure Clamp Ball Valve
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic High Pressure Ball Valve Valve Type High Pressure Ball Valve
Valve Body Material Stainless Steel Valve Operation Pneumatic
Valve Connection Clamp Valve Application Oil, Gas, Water, Chemical
Valve Pressure 1000-3000psi Valve Certification ISO, API
Valve Sealing Soft Sealed Valve Size 1/2 - 8 Inch
Valve Temperature -30℃-150℃ Valve Standard API, ANSI, DIN, JIS
Valve Packing Wooden Box, Carton Box Valve Feature Anti-Static, Fire Safe, Anti-Blowout
High Light

3 inch high pressure ball valve

,

1 2 inch high pressure ball valve

,

1 1 2 high pressure ball valve
Leave a Message
Product Description

FABIA Pneumatic High Pressure Clamp Ball Valve



1. Description:



Chemical, petrochemical production of weakly corrosive materials, such as: water, ammonia, oil, hydrocarbons, etc.



Corrosive materials in chemical production, such as: caustic soda, soda ash, concentrated sulfuric acid, carbonic acid, acetic acid, ester acid, etc.



Low temperature materials in refrigeration, such as liquid methane, liquid ammonia, liquid oxygen and various coolants.



Light industrial food, pharmaceutical production of health requirements of the material, such as: beer, beverages, dairy products, food pulp, etc.



2. Specification:



FABIA Valve Parameter List
Valve type: Pneumatic High Pressure Clamp Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Ball valve channel is smooth and smooth for pipeline cleaning, and can transport medium such as slurry and solid particles.
  • PTFE(Teflon) and other materials as a seal, with good lubricity and elasticity, small friction with the sphere, long service life.
  • Fast opening and closing, just turn the ball 90° when opening and closing, convenient and rapid.
  • Fluid resistance of the ball valve is small, the cross-sectional area of the ball channel, the valve body channel and the connecting pipe are equal when fully opened, and the medium flows through the ball valve, which is equivalent to flowing through a straight pipe, and the fluid resistance of the ball valve is the least in all kinds of valves.









1 1 2" 3 Inch 1 2 Inch Pneumatic High Pressure Clamp Ball Valve 0

1 1 2" 3 Inch 1 2 Inch Pneumatic High Pressure Clamp Ball Valve 1
