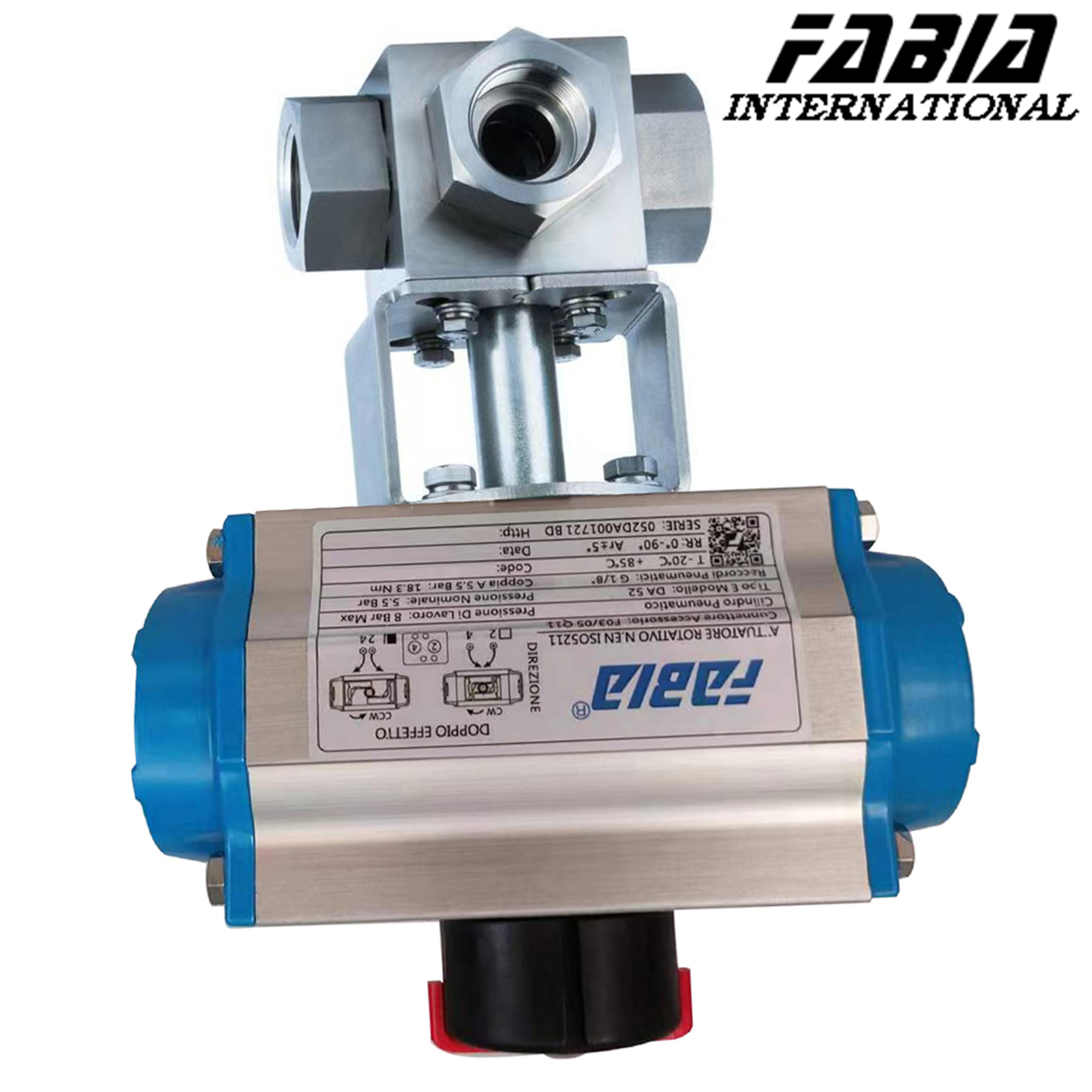

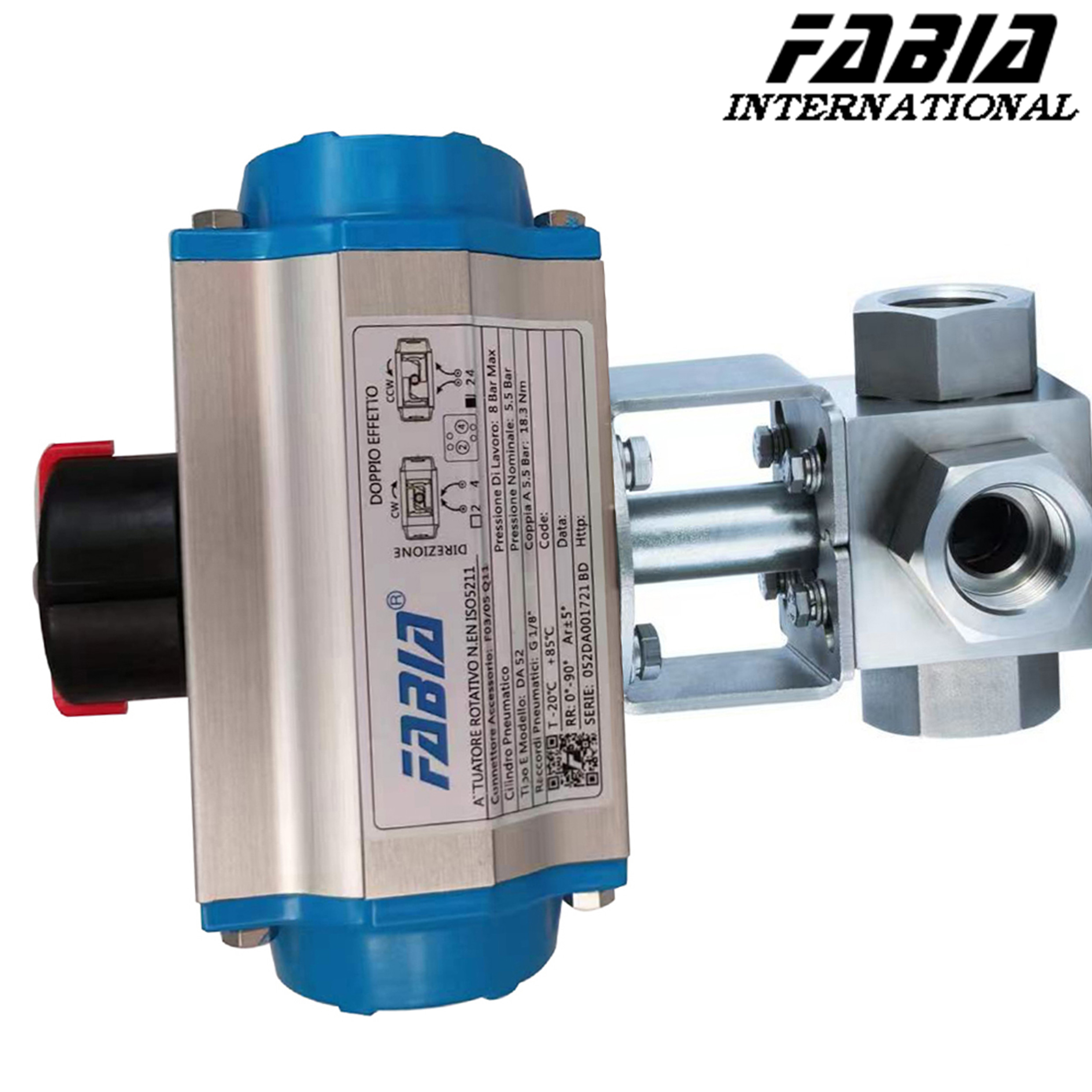

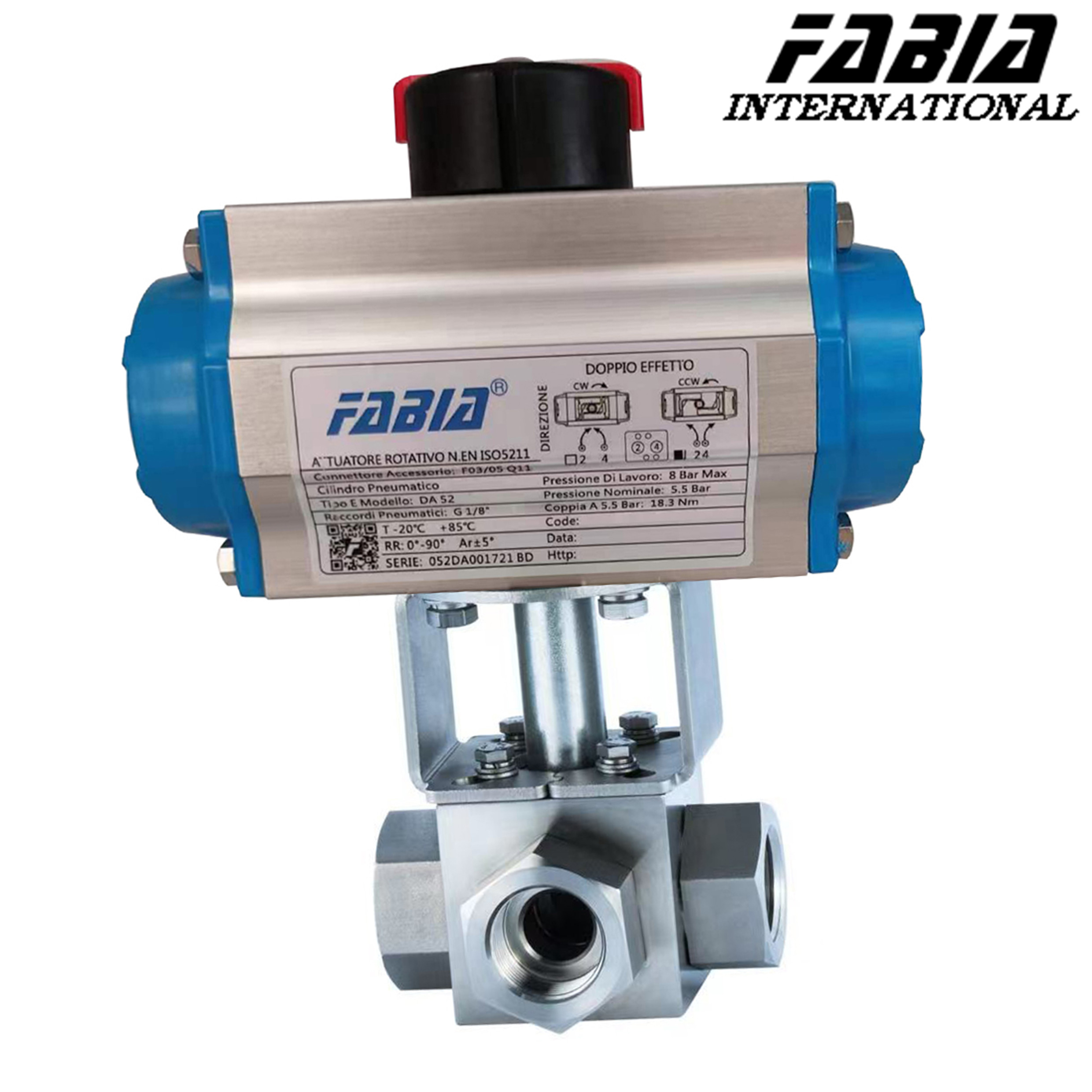

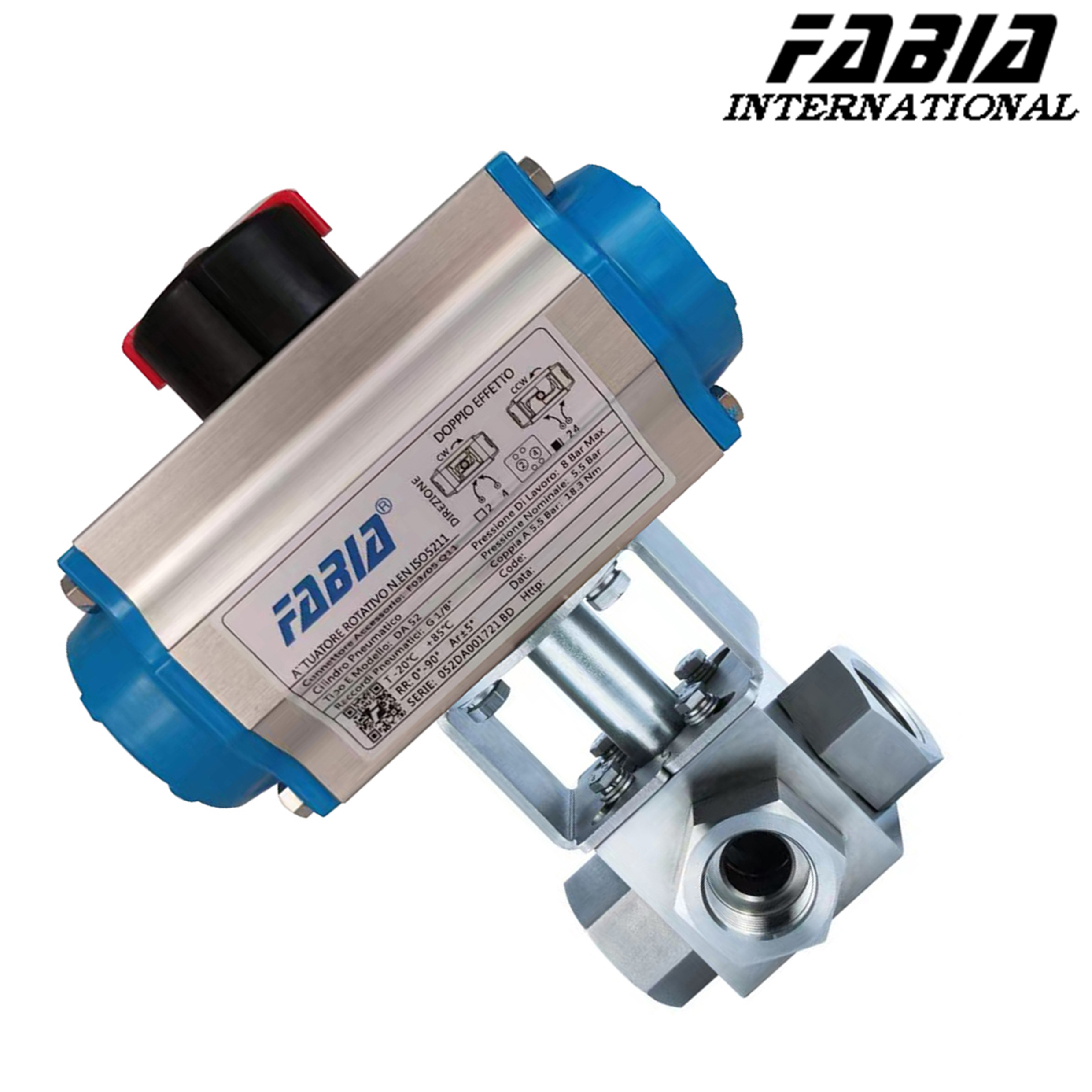

Pneumatic Actuated High Pressure Ball Valve Three-Way Ball Valve FABIA
Place of Origin | China |
---|---|
Brand Name | FABIA |
Certification | ISO9001,CE,CCS,DNV |
Model Number | 1/8 inch ~ 36 inch |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 set |
Price | Negotiable |
Packaging Details | Cartons/Wooden cases |
Delivery Time | 15-30 work days |
Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Pneumatic High Pressure Ball Valve | Valve Type | High Pressure Ball Valve |
---|---|---|---|
Material | Stainle Steel | Pressure Rating | High Pressur |
Connection Type | Threaded | Sealing Material | PTFE/EPDM |
Application | Industrial | Pressure Range | 0-150Mpa |
Size Range | 1/2 Inch - 8 Inch | Temperature Range | -20℃ To 180℃ |
Media | Water, Oil, Gas | Structure | Floating Ball Valve |
Working Principle | Open And Close | ||
Highlight | pneumatic actuated high pressure ball valve FABIA,high pressure ball valves FABIA,ball valve pressure FABIA |
FABIA Pneumatic High Pressure Three-Way Ball Valve
1. Description:
High pressure pneumatic three-way ball valve is one of the basic components of pipeline fluid control, its application field is very wide, but compared with other types of valves, it has its own unique characteristics.
By opening and closing the rotary high-pressure pneumatic three-way ball valve works, its main role is to connect or cut off the fluid, can also be used to adjust and control the fluid, and the high pressure knife gate valve can work through the lifting movement.
2. Specification:
FABIA Valve Parameter List | ||
Valve type: | Pneumatic High Pressure Three-Way Ball Valve | |
Size: | 1/8 inch ~ 8 inch | |
Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
Pressure rating: | PN1.0~PN64,ANSI CLASS 150-900,JIS10-20K; | |
Temperature: | -196℃~540℃ | |
Model: | FB-Q.......... |
3. Features:
- Another feature of the high-pressure pneumatic three-way ball valve is that it can produce a large shear force between the valve core and the seat made of cemented carbide, so the most suitable medium is not only the connection of fluids, liquids, natural gas, but also small solid particles and fine fibers.
- Multi-pass design of the high-pressure pneumatic three-way ball valve is used, it can also be more flexible to control the shunt, confluence and reversal of the fluid medium.
- Compared with high pressure knife gate valves, high pressure ball valves can withstand less fluid pressure, and full diameter, without any fluid resistance.
- Application range is very wide, can be used in high pressure or high vacuum environment.
- Because of the high shear strength between the ball core and the seat, the high-pressure pneumatic three-way ball valve is ideal for fluids containing suspended solids.
