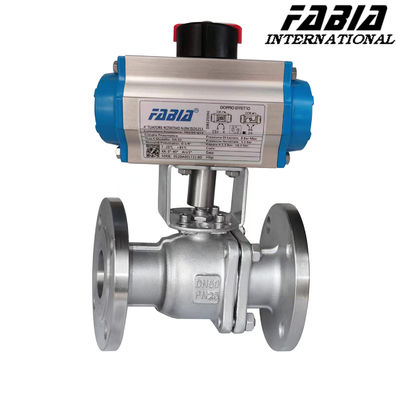

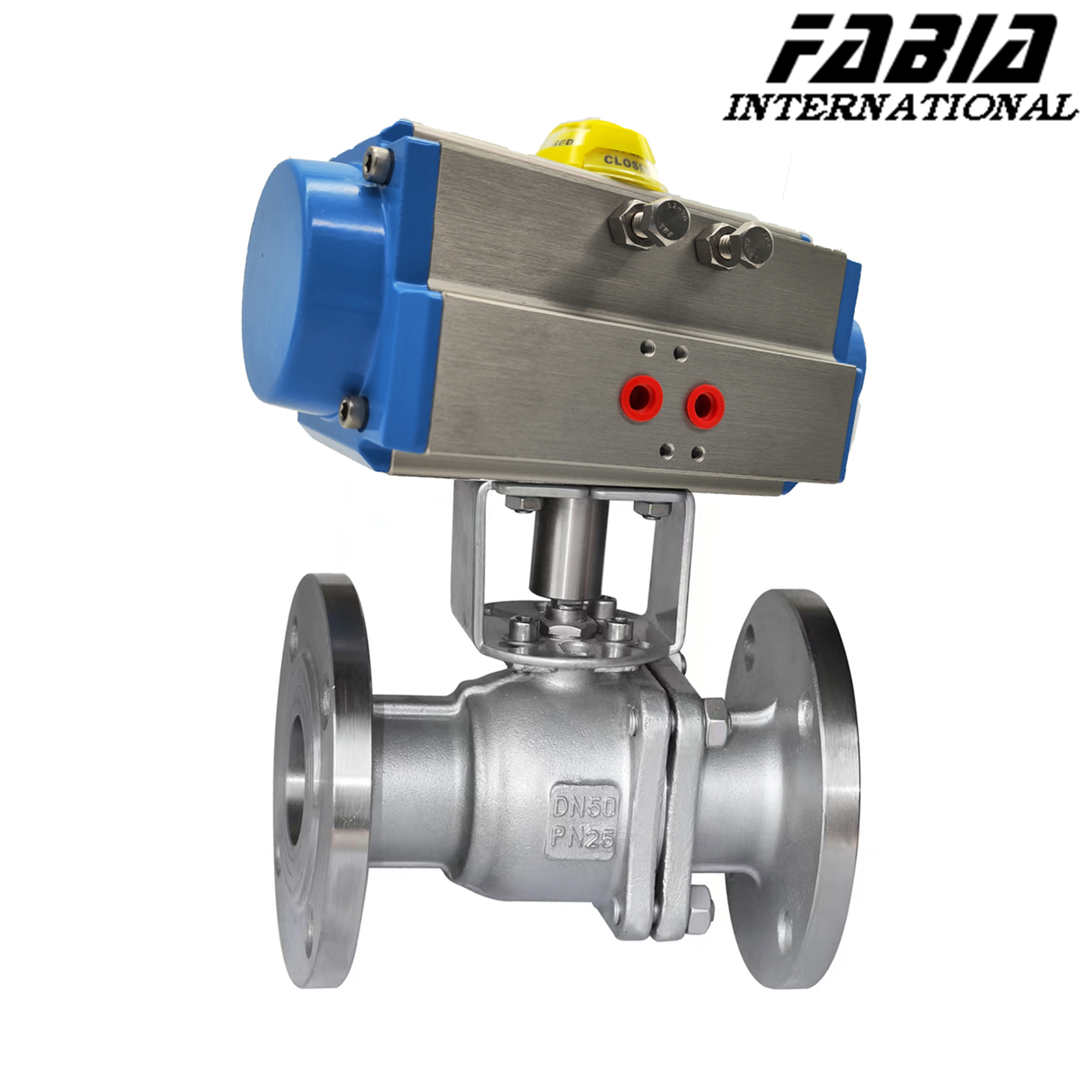

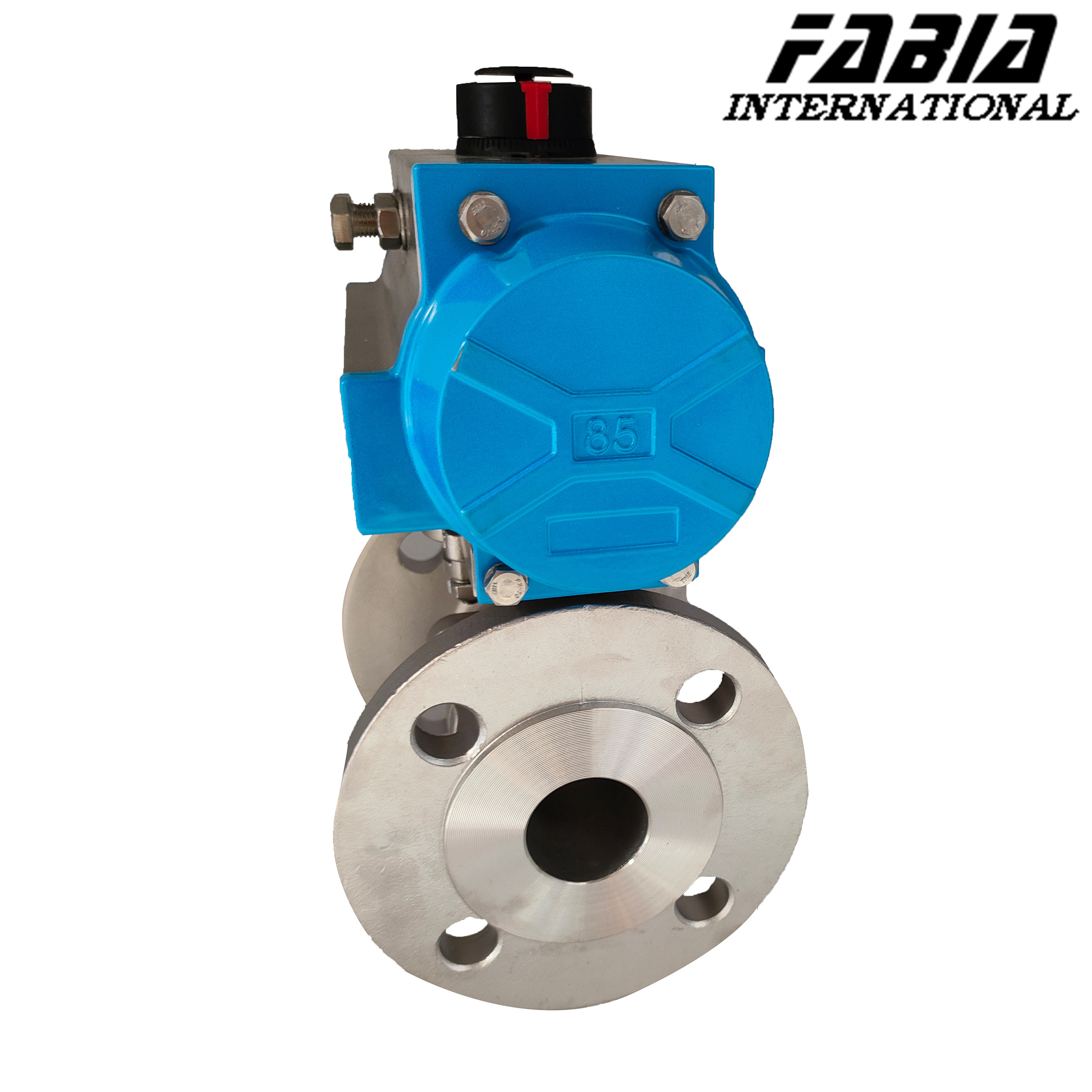

Pneumatic High Pressure Two Way Flange Ball Valve

  • Pneumatic High Pressure Two Way Flange Ball Valve
  • Pneumatic High Pressure Two Way Flange Ball Valve
  • Pneumatic High Pressure Two Way Flange Ball Valve
  • Pneumatic High Pressure Two Way Flange Ball Valve
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic High Pressure Ball Valve Valve Type High Pressure Ball Valve
Material Stainless Steel Actuator Type Pneumatic
Connection Type Flange Seal Type EPDM
Pressure PN25 Seat Type Soft Sealing
Size 1/8 Inch ～ 8 Inch Temperature Rating -40℃~+135℃
Leave a Message
Product Description

FABIA Pneumatic High Pressure Two Way Flange Ball Valve



1. Description:



Widely used in petroleum, chemical industry, electric power, heat, mining, metallurgy, medicine, food, gas, fertilizer, salt, chemical fiber, water supply, environmental protection, industrial and civil construction, nuclear industry and other fields of pipeline system.



2. Specification:



FABIA Valve Parameter List
Valve type: Pneumatic High Pressure Two Way Flange Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Pneumatic high-pressure two-way flange ball valve also has the advantages of low fluid resistance, fast opening and closing, corrosion resistance, etc., which can meet the needs of various complex working conditions.
  • Structural characteristics of pneumatic high-pressure two-way flange ball valves are also worthy of attention.
  • Composed of a valve body, a valve cover, a valve core and an operating mechanism.
  • Among them, the valve body and the valve cover are connected with flanges, which is easy to install and disassemble, and the sealing ring can be replaced as needed.
  • Spool adopts the spherical structure, which can realize fast opening and closing and fluid control.
  • Flange ball valve working principle: The working principle of stainless steel fixed flange ball valve is to make the valve smooth or blocked by rotating the valve stem, the sealing surface and the sphere are often closed, not easy to be eroded by the medium, widely used in various industries.

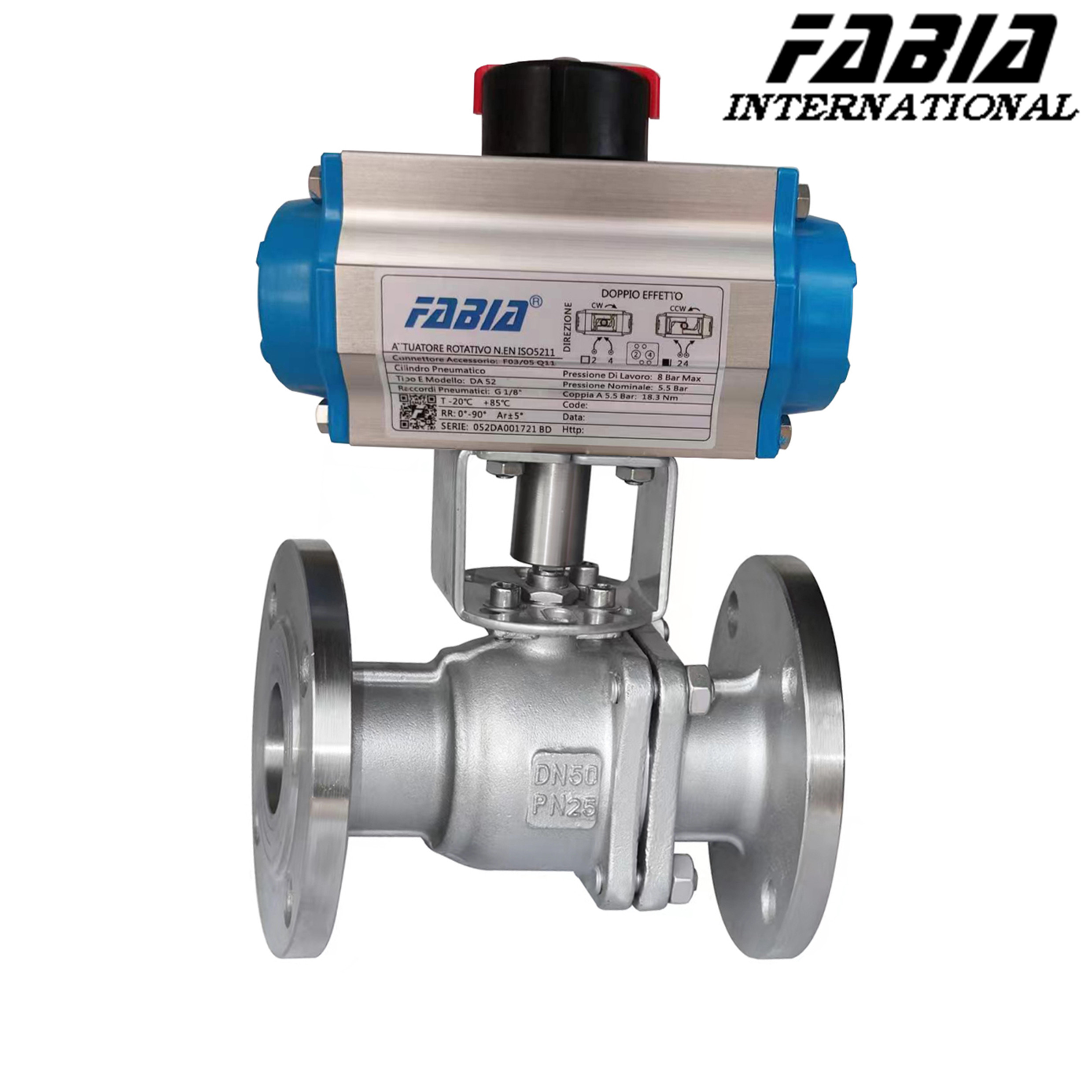

Pneumatic High Pressure Two Way Flange Ball Valve 0

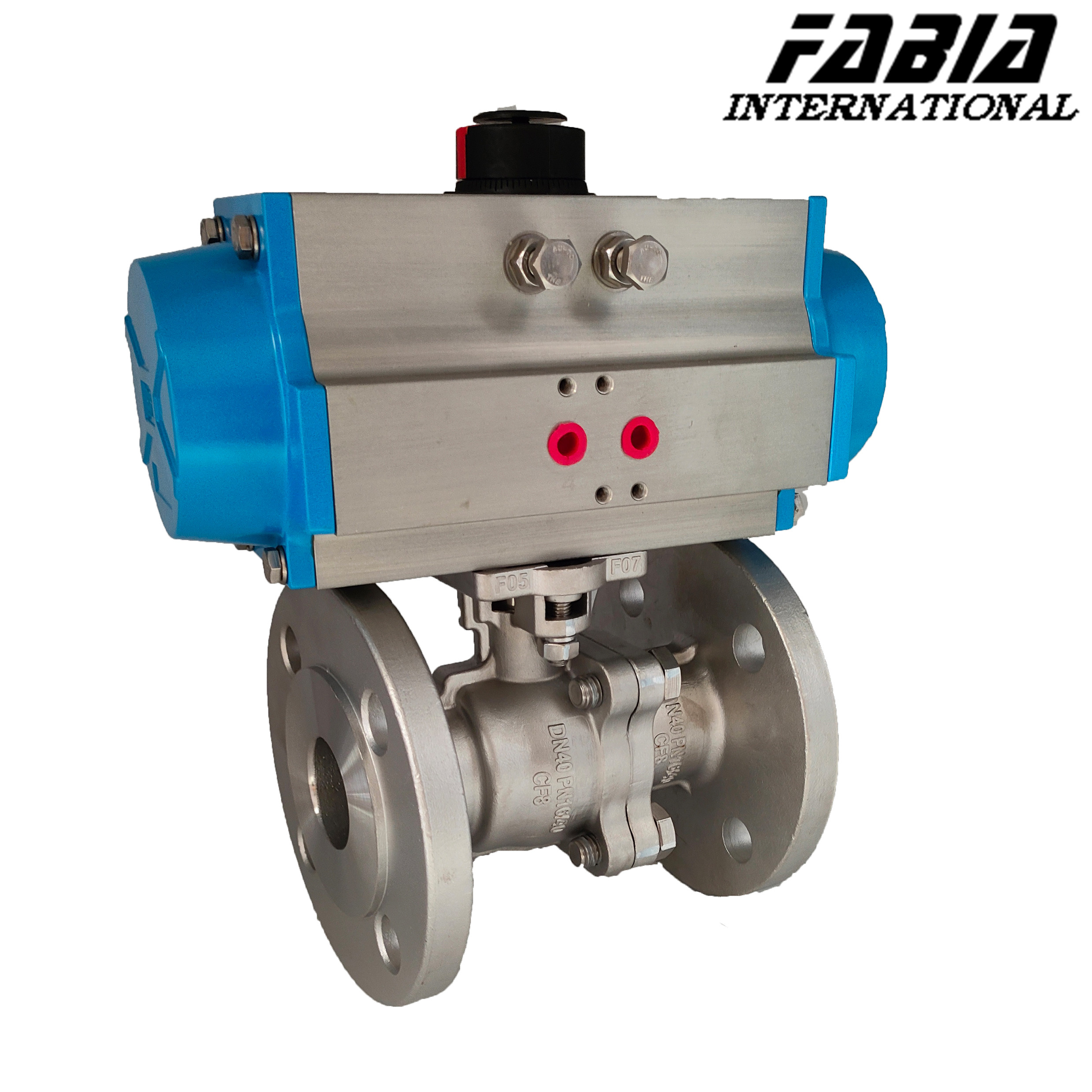

Pneumatic High Pressure Two Way Flange Ball Valve 1
