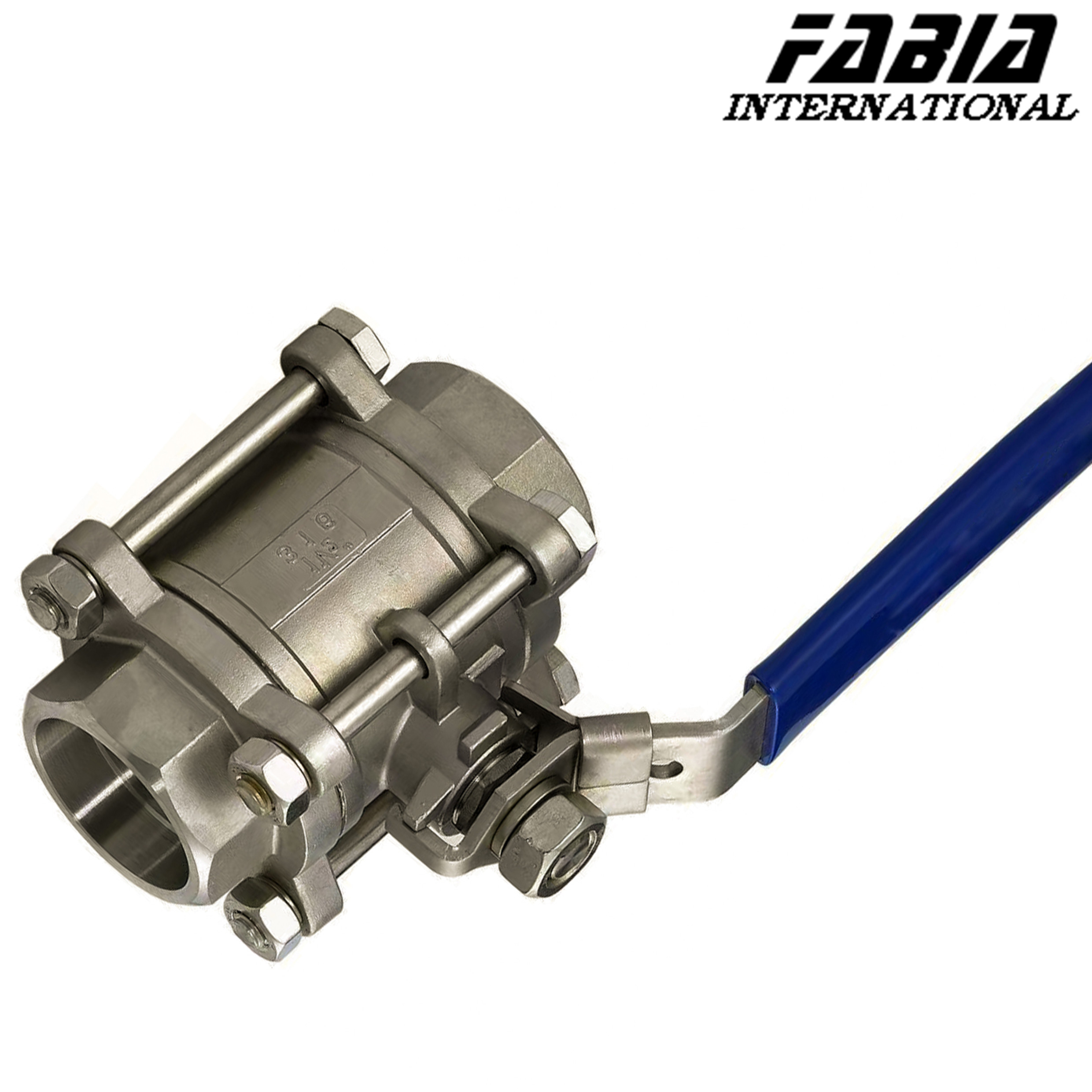

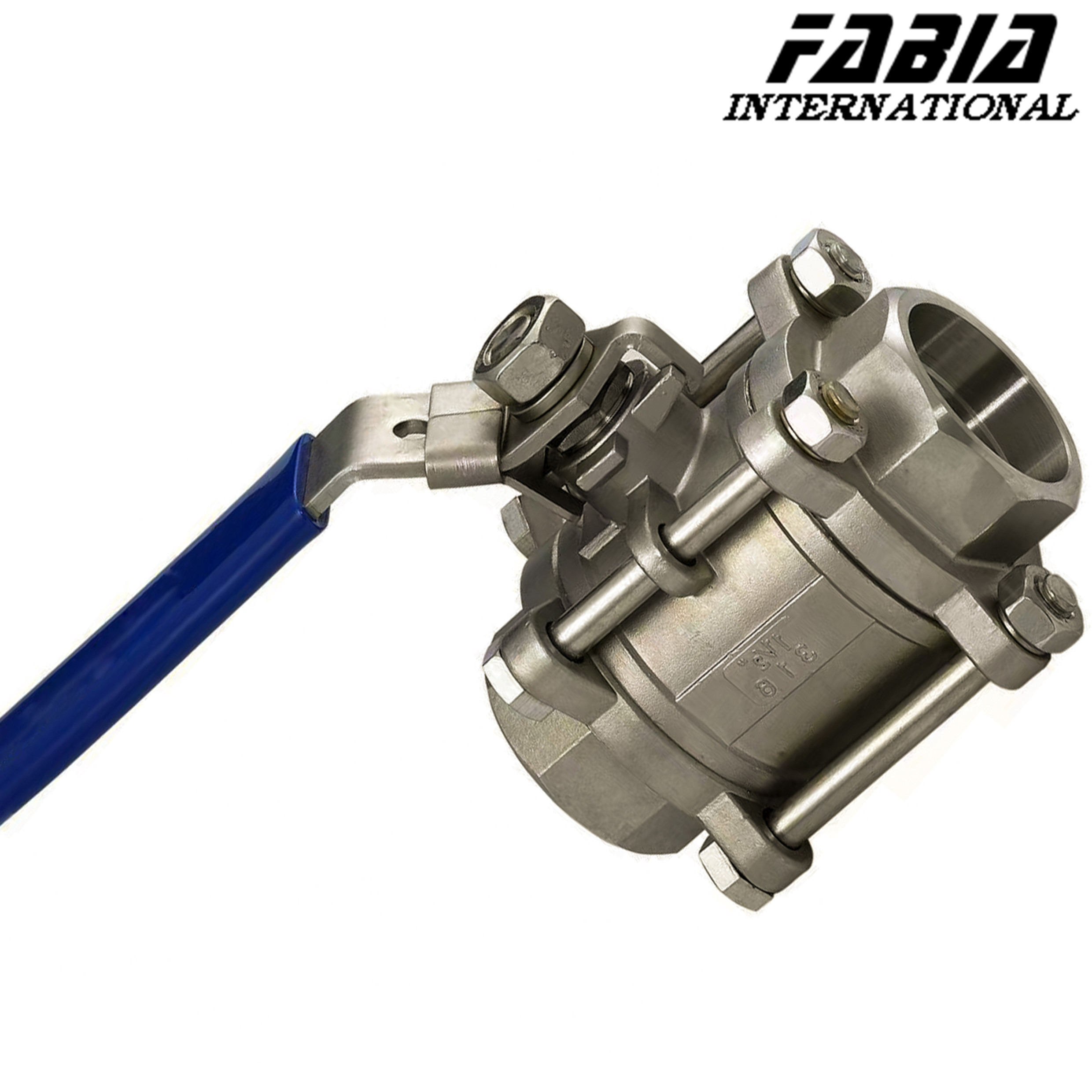

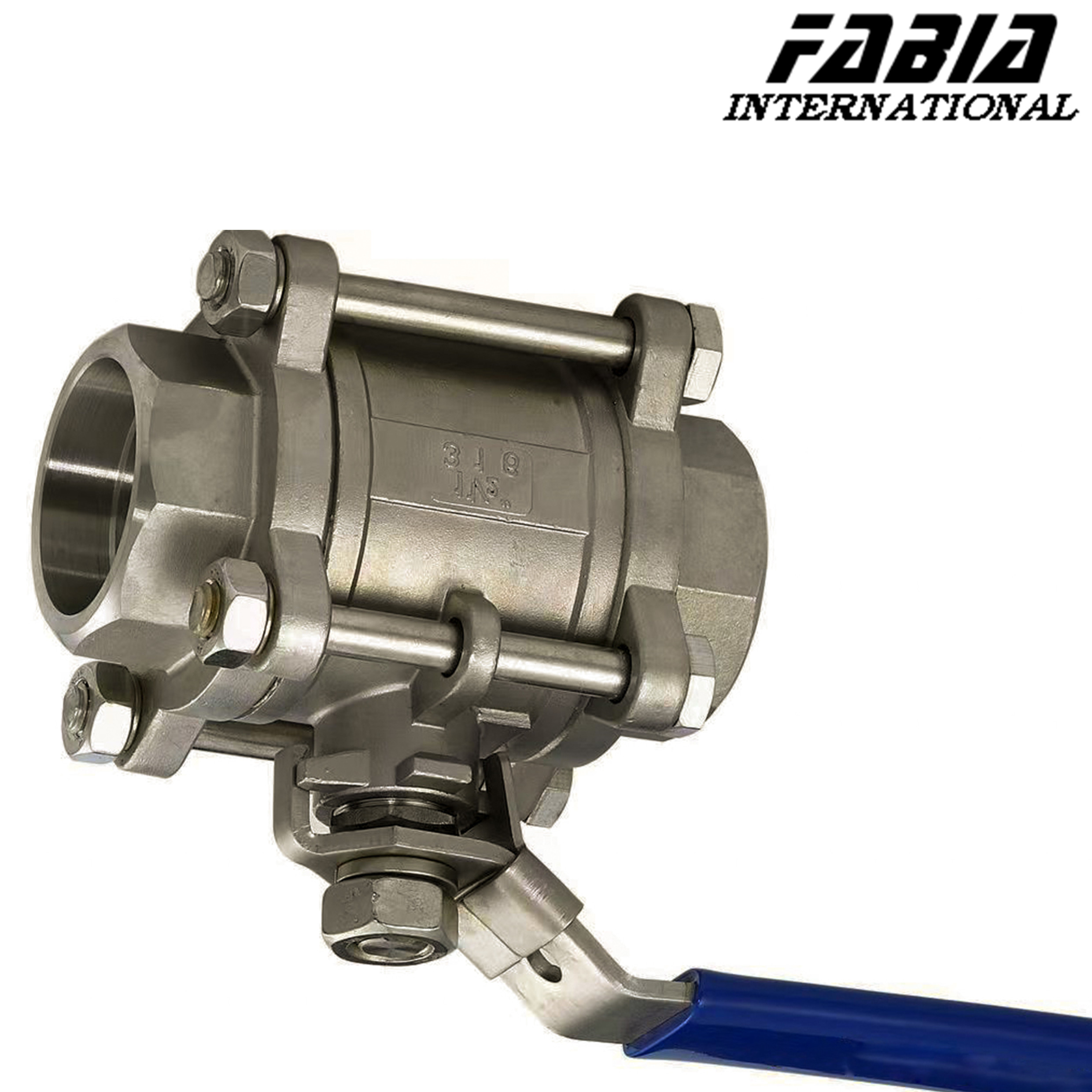

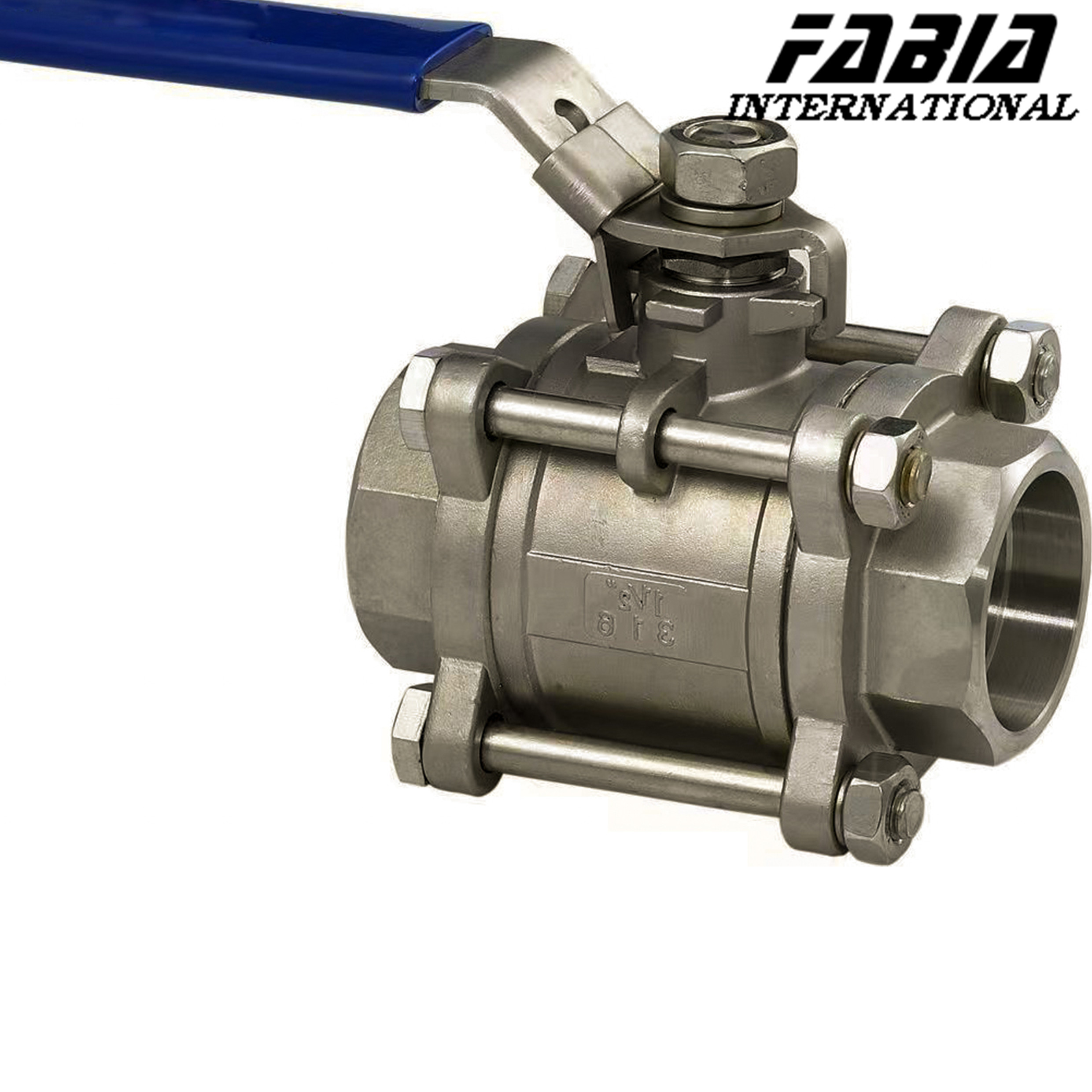

Manual High Pressure Three Piece Ball Valve

  • Manual High Pressure Three Piece Ball Valve
  • Manual High Pressure Three Piece Ball Valve
  • Manual High Pressure Three Piece Ball Valve
  • Manual High Pressure Three Piece Ball Valve
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Manual High Pressure Ball Valve Valve Type High Pressure Ball Valve
Valve Body Material Stainless Steel Operation Type Manual
Connection Type Threaded Application Petroleum, Chemical, Power, Etc
Package Wooden Case, Carton Box Seal Material Metal Sealing
End Connection ANSI B16.5, JIS, DIN Actuator Type Lever, Gear
Temperature Range -30℃ - 150℃ Valve Size 1/8 Inch - 8 Inch
Pressure Rating Class 150 - Class 2500
High Light

High Pressure Three Piece Ball Valve

,

Manual Three Piece Ball Valve

,

Three Piece Valve
Leave a Message
Product Description

FABIA Manual High Pressure Three Piece Ball Valve



1. Description:



Unique automatic pressure relief function, when the pressure of the medium in the valve cavity exceeds the spring preload force, the outlet end of the valve seat is withdrawn from the ball, to achieve automatic pressure relief effect, and the valve seat automatically returns after pressure relief, suitable for water, solvent, acid and natural gas and other general working media, but also suitable for poor working conditions of the media, such as oxygen, hydrogen peroxide, methane and ethylene, etc.



2. Specification:



FABIA Valve Parameter List
Valve type: Manual High Pressure Three Piece Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Unique seat sealing structure The seat has a front seal design with a bi-directional seal and automatic pressure relief in the central cavity. The sealing seat inlaid with the sealing material is floating, it is loaded by the spring, in the closed position, the sealing surface is always in close contact with the ball, to ensure that the valve can achieve a leak seal at high and low pressure differences.
  • Automatic pressure relief structure When the pressure in the middle cavity is abnormally increased, the ball valve with single seal structure has the function of automatic pressure relief, while the ball valve with double seal structure has the additional pressure relief device on the valve body for pressure relief.
  • Sealed emergency rescue function valve design with auxiliary seat emergency sealing system. Once the sealing surface is damaged, the corresponding sealant can be injected through the auxiliary sealing system for emergency rescue, and if necessary, the auxiliary system can also wash and lubricate the seat area.
  • Anti-static device When the valve is operated, electrostatic charges are generated and accumulate in the ball rows due to friction between the ball seats. In order to prevent electrostatic sparks, the anti-static device is set on the valve to export the generated static electricity.





Manual High Pressure Three Piece Ball Valve 0

Manual High Pressure Three Piece Ball Valve 1
