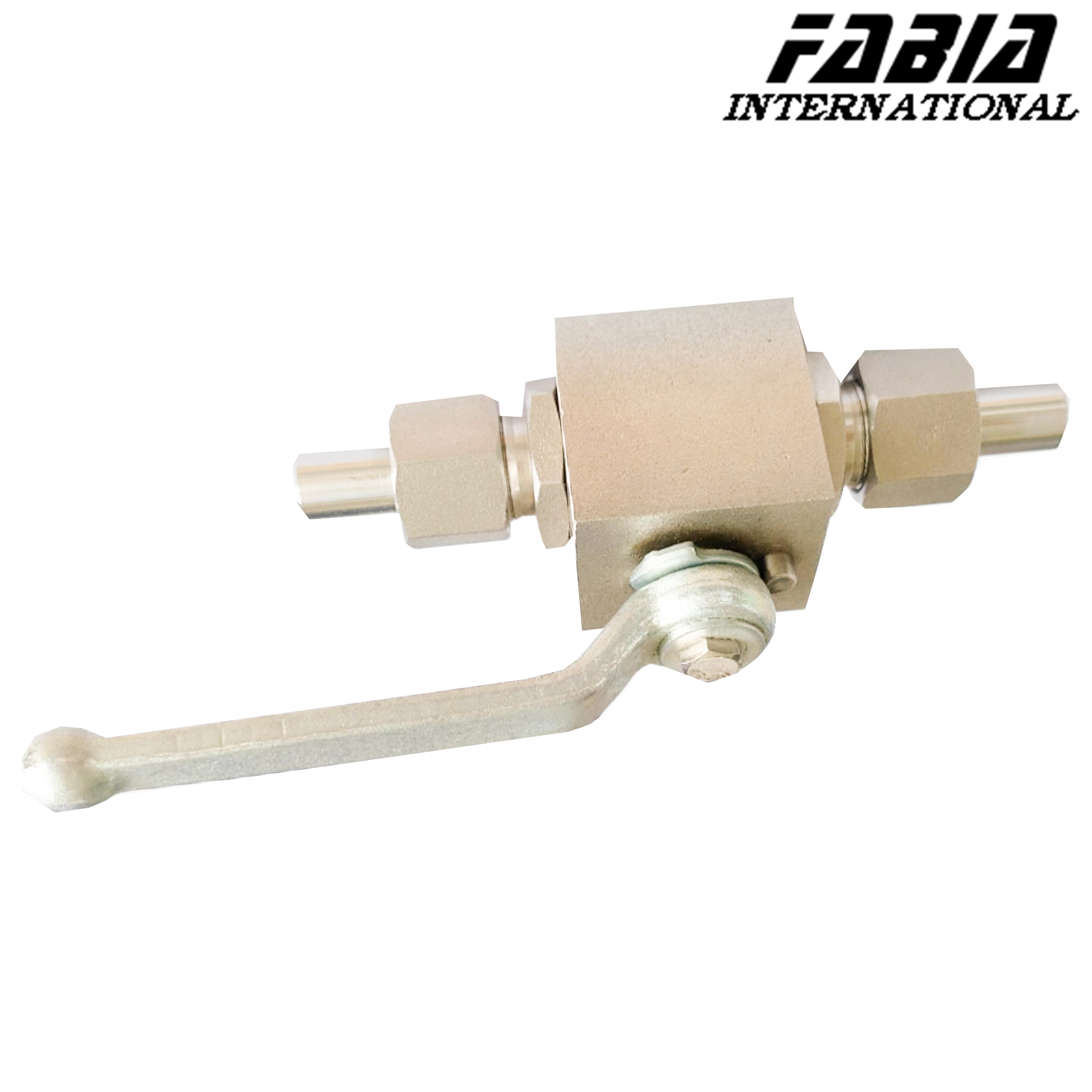

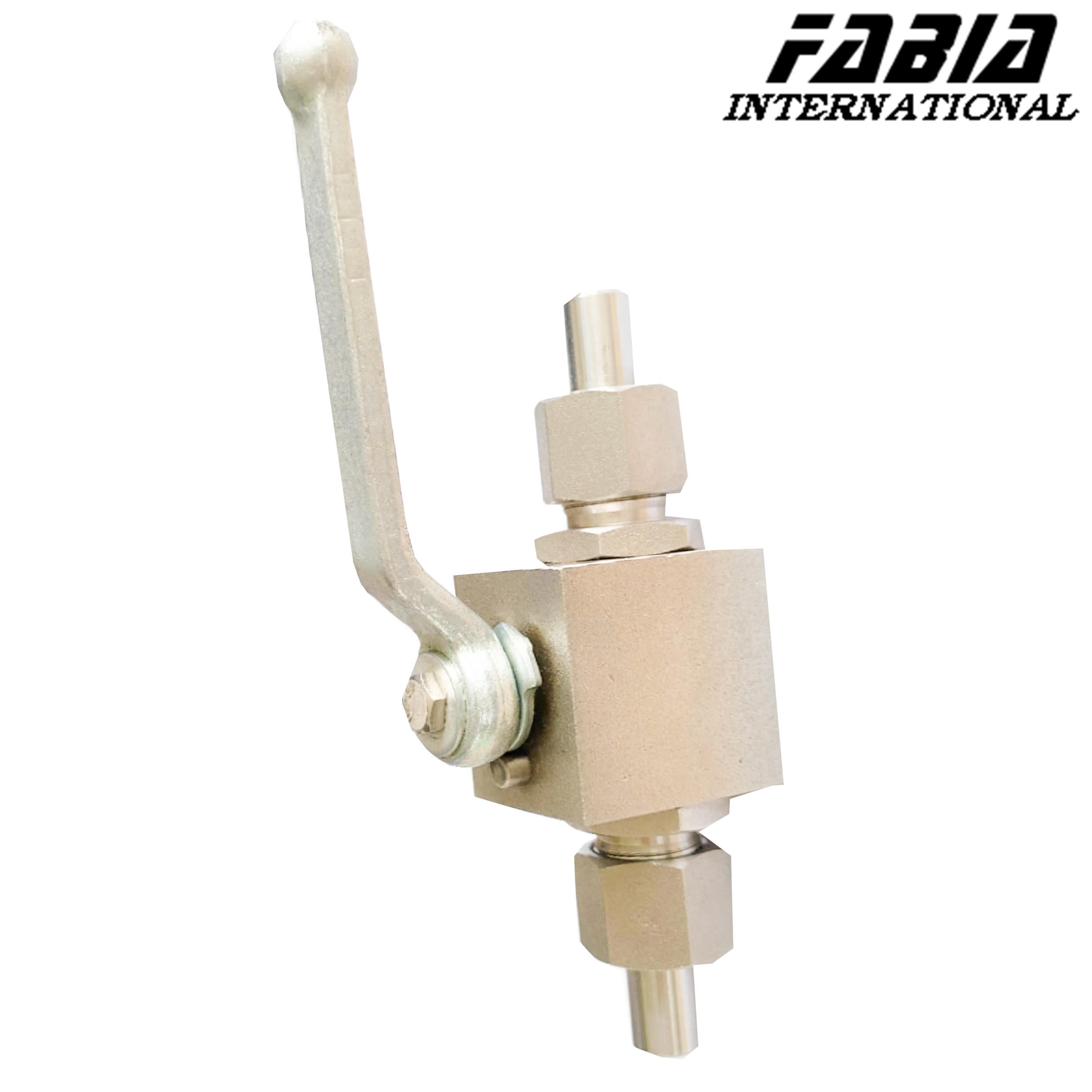

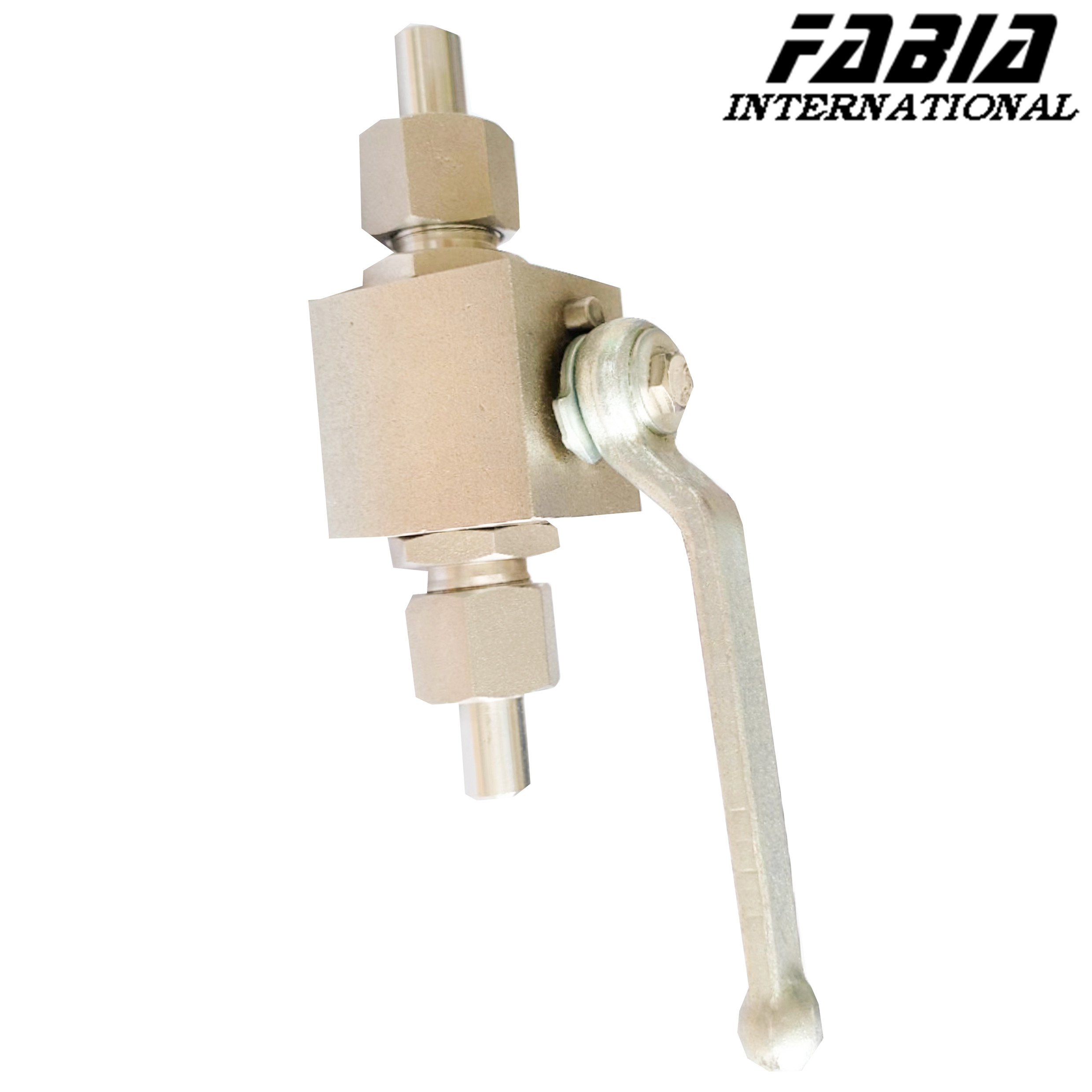

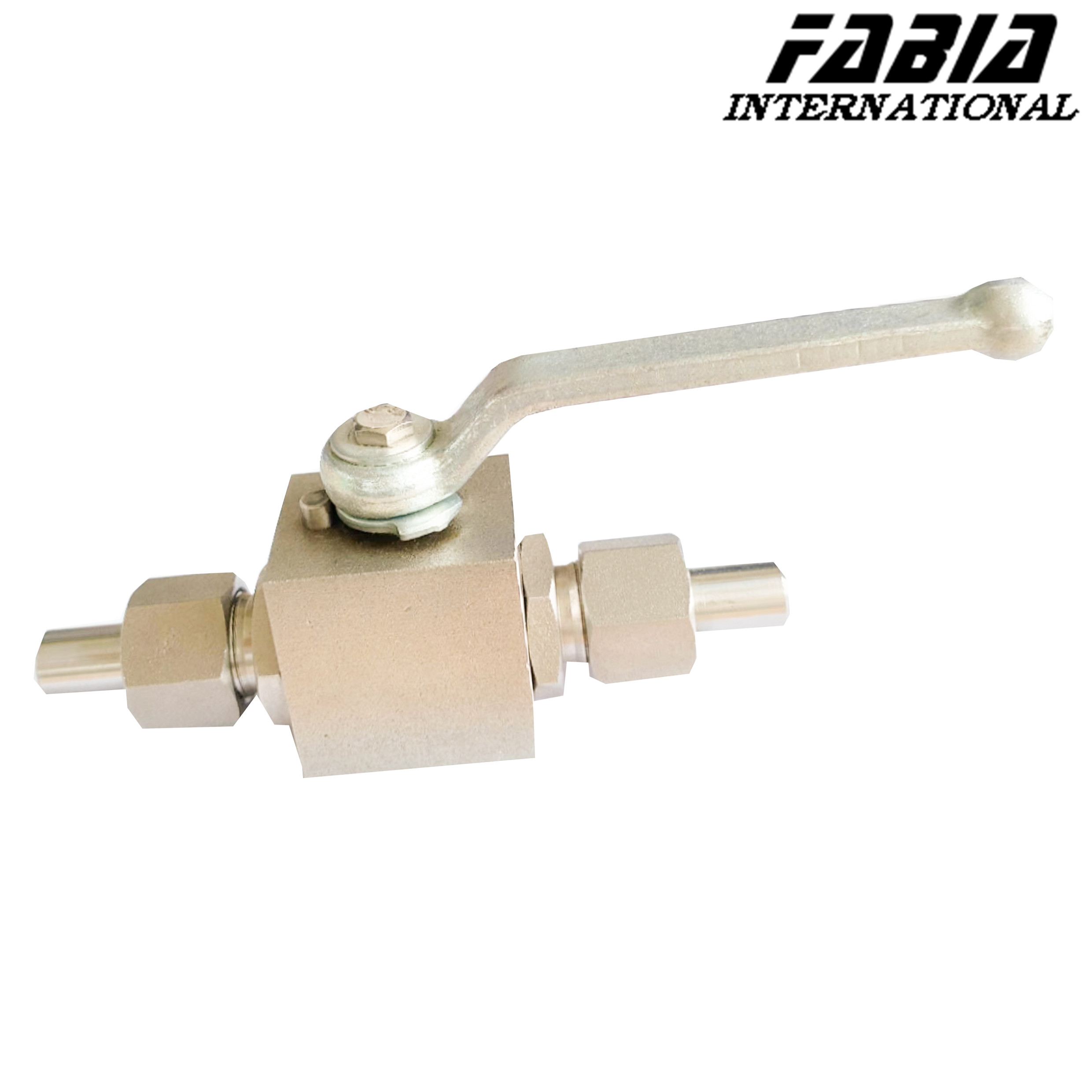

PN16 High Pressure Ss Ball Valves PN16 Manual Hard Seal

  • PN16 High Pressure Ss Ball Valves PN16 Manual Hard Seal
  • PN16 High Pressure Ss Ball Valves PN16 Manual Hard Seal
  • PN16 High Pressure Ss Ball Valves PN16 Manual Hard Seal
  • PN16 High Pressure Ss Ball Valves PN16 Manual Hard Seal
  • PN16 High Pressure Ss Ball Valves PN16 Manual Hard Seal
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Manual High Pressure Ball Valve Valve Type High Pressure Ball Valve
Body Material Stainless Steel Operation Type Manual
Connection Type Threaded Application Petroleum, Chemical, Power, Etc.
Seal Material Metal Sealing Pressure Rating Class 150-2500
Pressure Test PN16 Size 1/2-8 Inch
Temperature Range -20℃~+200℃
Highlight

high pressure ss ball valves

,

PN16 ball valves

,

Ss Ball Valves PN16
Leave a Message
Product Description

FABIA Manual High Pressure Hard Seal Ball Valve



1. Description:



Ball valve structure is divided into floating ball type and fixed ball type, and the connection form is flange connection, welding connection and thread connection.



2. Specification:



FABIA Valve Parameter List
Valve type: Manual High Pressure Hard Seal Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Small flow resistance.
  • Simple structure.
  • Small size, light weight.
  • At present, the sealing surface material of the ball valve is plastic, and the sealing is good.
  • Easy to operate, open and close quickly, easy to remote control.
  • Easy maintenance, sealing rings are generally active, easy to disassemble and replace.
  • When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium.
  • Medium will not cause the erosion of the sealing surface of the valve.







PN16 High Pressure Ss Ball Valves PN16 Manual Hard Seal 0



PN16 High Pressure Ss Ball Valves PN16 Manual Hard Seal 1
