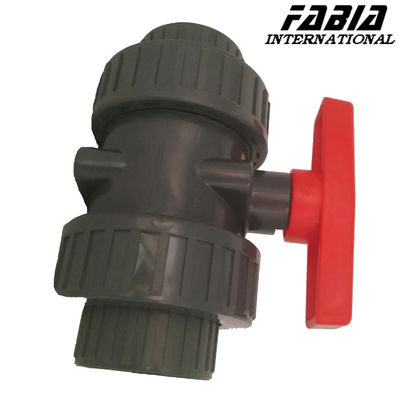

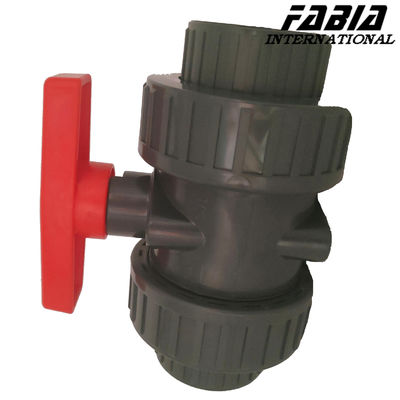

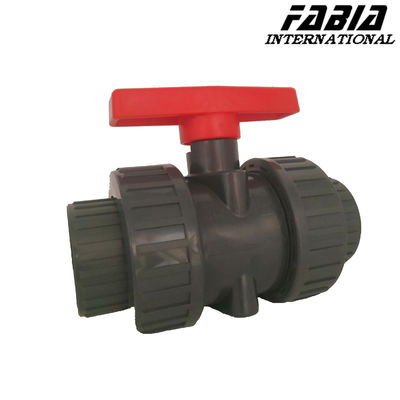

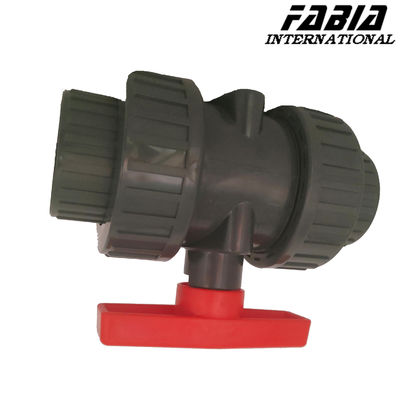

High Pressure Threaded Ball Valve Manual Soft Seal Ball Valve For Water Tank

  • High Pressure Threaded Ball Valve Manual Soft Seal Ball Valve For Water Tank
  • High Pressure Threaded Ball Valve Manual Soft Seal Ball Valve For Water Tank
  • High Pressure Threaded Ball Valve Manual Soft Seal Ball Valve For Water Tank
  • High Pressure Threaded Ball Valve Manual Soft Seal Ball Valve For Water Tank
  • High Pressure Threaded Ball Valve Manual Soft Seal Ball Valve For Water Tank
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Manual Soft Seal Ball Valve Valve Type Ball Valve
Actuator Type Manual Material PVC
Connection Type Threaded Flow Characteristic Equal Percentage
Flow Direction Bidirectional Handle Type Lever
Port Type Full Port Pressure Rating PN16
Seat Type Soft Size 1/2-8
Temperature Rating 150°F Valve Design 3-Piece
Highlight

high pressure threaded ball valve

,

Manual Soft Seal Ball Valve

,

high pressure ball valve for water tank
Leave a Message
Product Description

FABIA Manual High Pressure Soft Seal Ball Valve



1. Description:



Soft seal ball valve is very convenient for both application and maintenance in the middle and late stages, and the overall step is very simple in the operation process, only need to turn 90° to complete the opening and closing.



Follow-up maintenance, because the structure is very simple, and the sealing ring is able to move, it is very convenient to disassemble or disassemble parts.



2. Specification:



FABIA Valve Parameter List
Valve type: Manual High Pressure Soft Seal Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Low resistance The flow resistance of this kind of valve belongs to the smaller one, and most of the water flow or other liquid objects can be successfully completed and can not feel the obvious obstruction.
  • Compact structure The structure of the soft seal ball valve is very simple, so its volume is very small, so the overall net weight is relatively light, and it will not increase the working pressure of the entire bank flow system software.
  • Strong sealing The soft seal ball valve has two sealing surfaces, and the materials used in the sealing surface are particularly many, and the application scope is relatively wide, and because there are two sealing surfaces to support, and its overall sealing is very good, there is no problem to complete the complete seal.

High Pressure Threaded Ball Valve Manual Soft Seal Ball Valve For Water Tank 0



High Pressure Threaded Ball Valve Manual Soft Seal Ball Valve For Water Tank 1
