Water High Pressure Stainless Steel 3 Way Ball Valve Manual T Type

Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ~ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Manual High Pressure Ball Valve/T Type Valve Type High Pressure Ball Valve
Material Stainless Steel Connection Type Threaded
Operation Manual Stem Seal PTFE, RPTFE
Pressure 150 To 2500 LB Size 1/2 To 24 Inch
Media Water/Oil/Gas Application Petroleum, Chemical, Power, Etc.
Temperature Range -196 To 540 Degree Celsius Pressure Rating Class 150, 300, 600, 900, 1500, 2500
High Light

high pressure stainless steel 3 way ball valve


high pressure water ball valve


water high pressure Valve

Leave a Message
Product Description

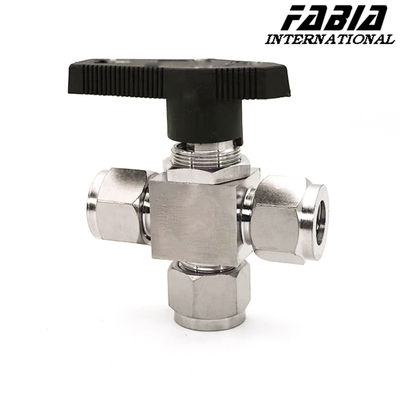

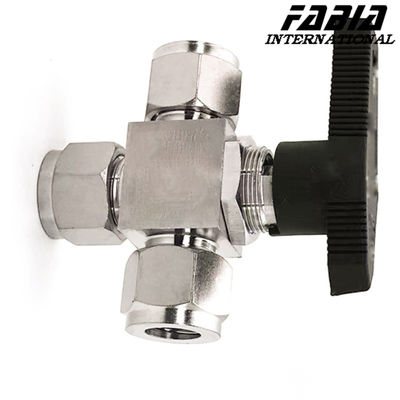

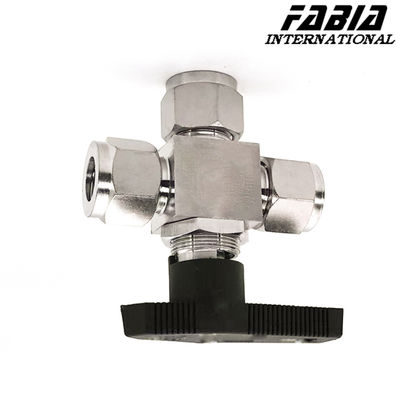

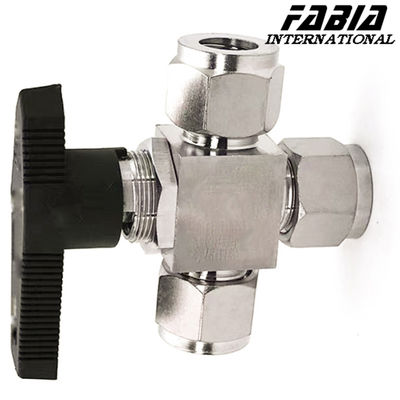

FABIA Manual High Pressure Three Way Ball Valve/T Type


1. Description:


T-type three-way ball valve is widely used in water supply, petrochemical, metallurgy, mining, textile, energy, paper, food, steel and other pipeline systems to switch the flow of the medium and the diversion of the medium or mixed fluid.


2. Specification:


FABIA Valve Parameter List
Valve type: Manual High Pressure Three Way Ball Valve/T Type
Size: 1/8 inch ~ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0~PN64,ANSI CLASS 150-900,JIS10-20K;
Temperature: -196℃~540℃
Model: FB-Q..........


3. Features:


  • Compact structure, fast opening and closing, smooth flow path, low fluid resistance.
  • Easy maintenance: after the system pressure relief, without removing the entire valve body can be inspected and repaired.
  • Good sealing performance: the use of four-sided seat material polytetrafluoroethylene elastic deformation to achieve leak-free sealing.
  • Multi-purpose valve: any port can be used as an entrance without leakage, three can be made into L-shaped port, can also be made into T-shaped three-way ball valve port.

Water High Pressure Stainless Steel 3 Way Ball Valve Manual  T Type 0

Water High Pressure Stainless Steel 3 Way Ball Valve Manual  T Type 1
