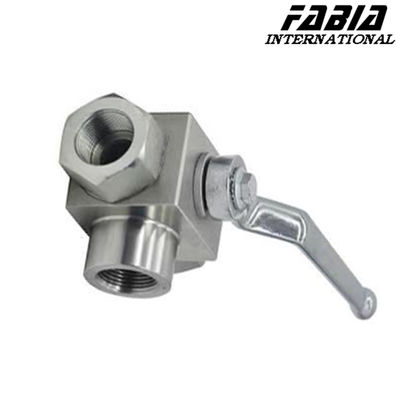

Gas High Pressure Pvc Ball Valve Manual Three Way L Type
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Manual High Pressure Ball Valve /L Type | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Material | Stainless Steel | Operation | Manual |
| Connection Type | Threaded | Handle Type | Handle/turbine |
| Seat Type | Soft/Metal To Metal | Surface Treatment | Sand Blasting, Polishing |
| Port Type | Full Port/Reduced Port | Application | Oil, Gas, Water, Chemical |
| Pressure Rating | 150 - 2500 PSI | Size | 1/2 - 8 Inch |
| Temperature Range | -30°C~ +180°C | ||
| Highlight | high pressure pvc ball valve,High Pressure Gas Ball Valve,Gas High Pressure Ball Valve |
||
Product Description
FABIA Manual High Pressure Three Way Ball Valve /L Type
1. Description:
Ball valve is divided into two types of single action and double action according to the action type. characteristic of the single action type is that once the power source fails, the ball valve will be in the state required by the control system.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Manual High Pressure Three Way Ball Valve /L Type | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
- Simple structure, small size, light weight.
- Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
- Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
- Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
- When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.
- Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.
- High-pressure three-way ball valve adopts the integrated structure in the structure, the sealing type of the 4-side seat, the flange connection is less, the reliability is high, and the design realizes the lightweight.
- High pressure tee ball core L shape, long service life, large circulation capacity, small resistance.
