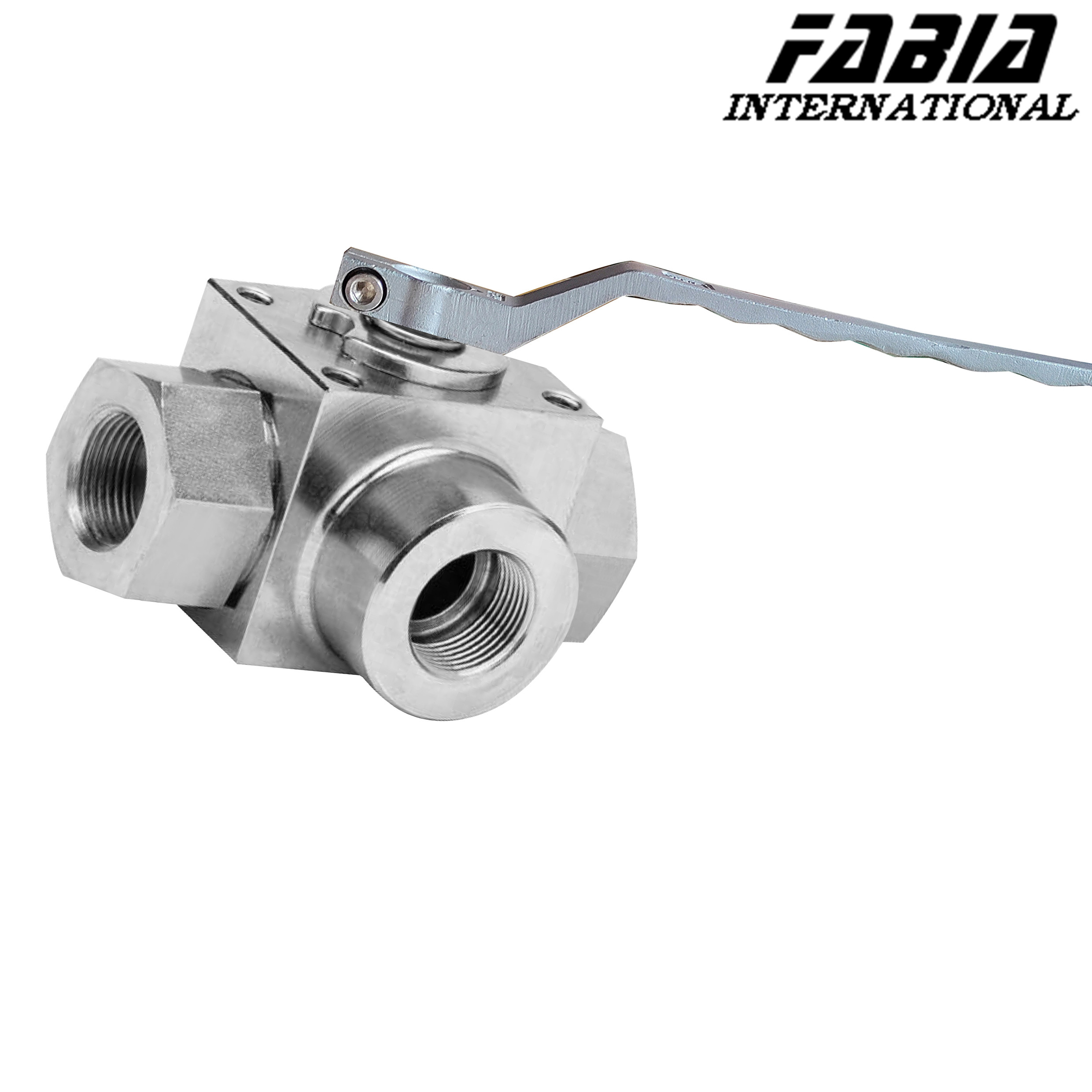

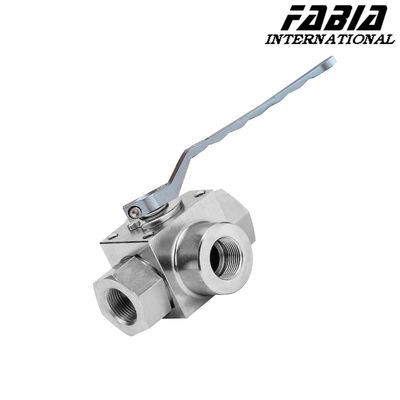

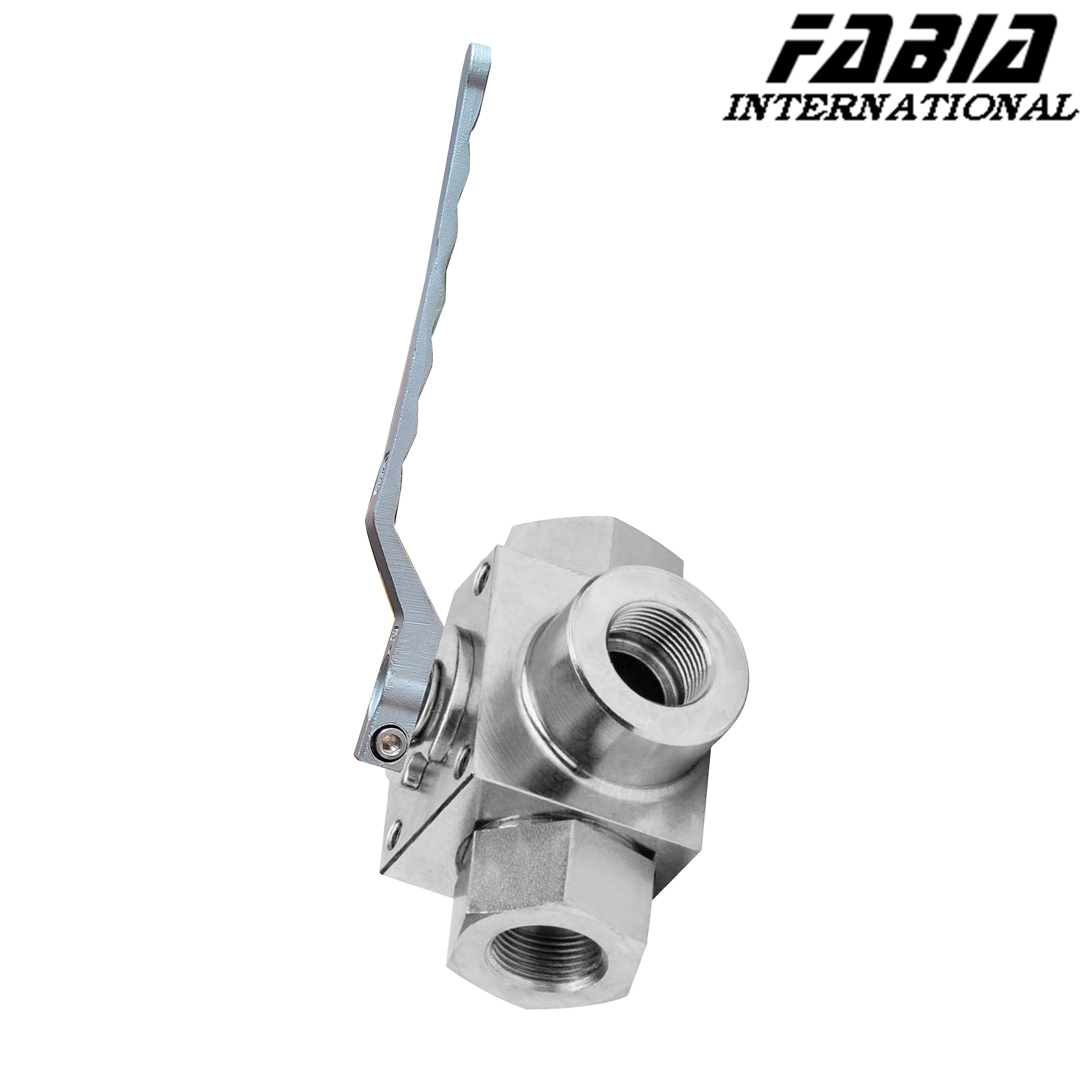

Manual High Pressure Three-Way Ball Valve With Internal Teeth

  • Manual High Pressure Three-Way Ball Valve With Internal Teeth
  • Manual High Pressure Three-Way Ball Valve With Internal Teeth
  • Manual High Pressure Three-Way Ball Valve With Internal Teeth
  • Manual High Pressure Three-Way Ball Valve With Internal Teeth
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Manual High Pressure Ball Valve Valve Type High Pressure Ball Valve
Valve Material Stainless Steel Valve Operation Manual
Valve Feature High Pressure, High Temperature Valve Connection Thread
Valve Application Oil & Gas, Chemical, Etc. Valve Certification ISO 9001, CE, API, Etc.
Valve Sealing Soft Sealing Valve Pressure 1000-6000 Psi
Valve Size 1/2-8 Inch Valve Temperature -20-260℃
Valve Standard ANSI, DIN, JIS, Etc. Valve Structure Floating Ball, Trunnion Ball
Leave a Message
Product Description

FABIA Manual High Pressure Three-Way Ball Valve With Internal Teeth



1. Description:



Working principle of the high pressure three-way internal tooth ball valve is to rotate the ball through the rotation of the handle, so as to realize the valve switch.



When the handle is rotated perpendicular to the pipe axis, the seal between the ball and the seat is disconnected, and the medium can flow through the valve.



When the handle is rotated parallel to the pipe axis, the seal between the ball and the seat is closed, and the medium cannot flow through the valve



2. Specification:



FABIA Valve Parameter List
Valve type: Manual High Pressure Three-Way Ball Valve With Internal Teeth
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Simple structure: The structure of the high-pressure three-way internal tooth ball valve is simple, composed of a small number of parts, easy to maintain and replace.
  • Good sealing: The valve seat of the high-pressure three-way internal tooth ball valve is made of elastic material, which has good sealing performance and can effectively prevent media leakage.
  • Easy to operate: The handle of the high pressure three-way internal tooth ball valve is simple to operate, and the valve can be switched on and off only by rotating.
  • Strong corrosion resistance: the ball, seat and other parts of the high-pressure three-way internal tooth ball valve are made of corrosion-resistant materials, which can adapt to the corrosion of various media.
  • Wide range of application: high pressure three-way internal tooth ball valve is suitable for diverting, confluence, regulating flow and other functions of various media, widely used in petroleum, chemical, electric power, metallurgy and other industries.



Manual High Pressure Three-Way Ball Valve With Internal Teeth 0



Manual High Pressure Three-Way Ball Valve With Internal Teeth 1
