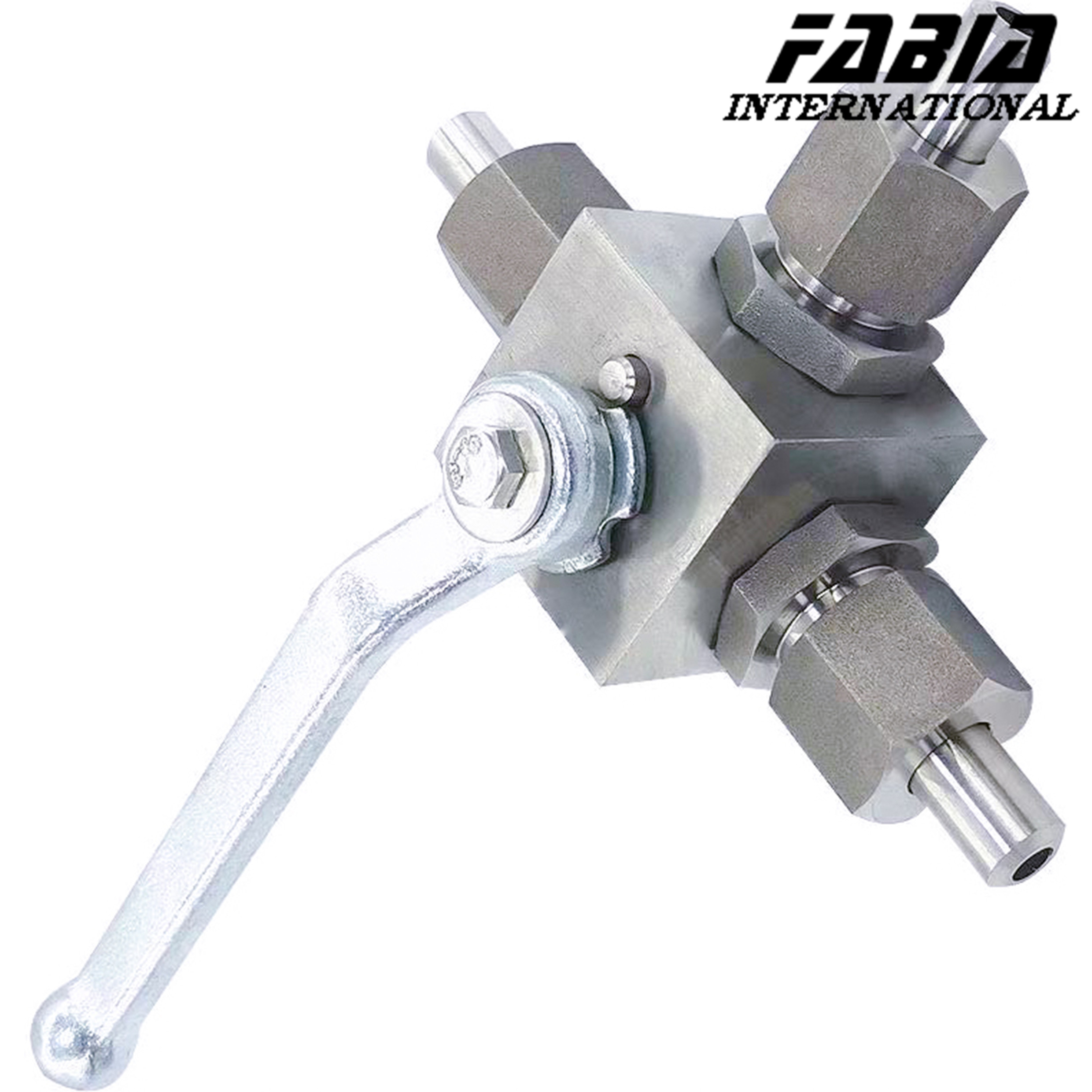

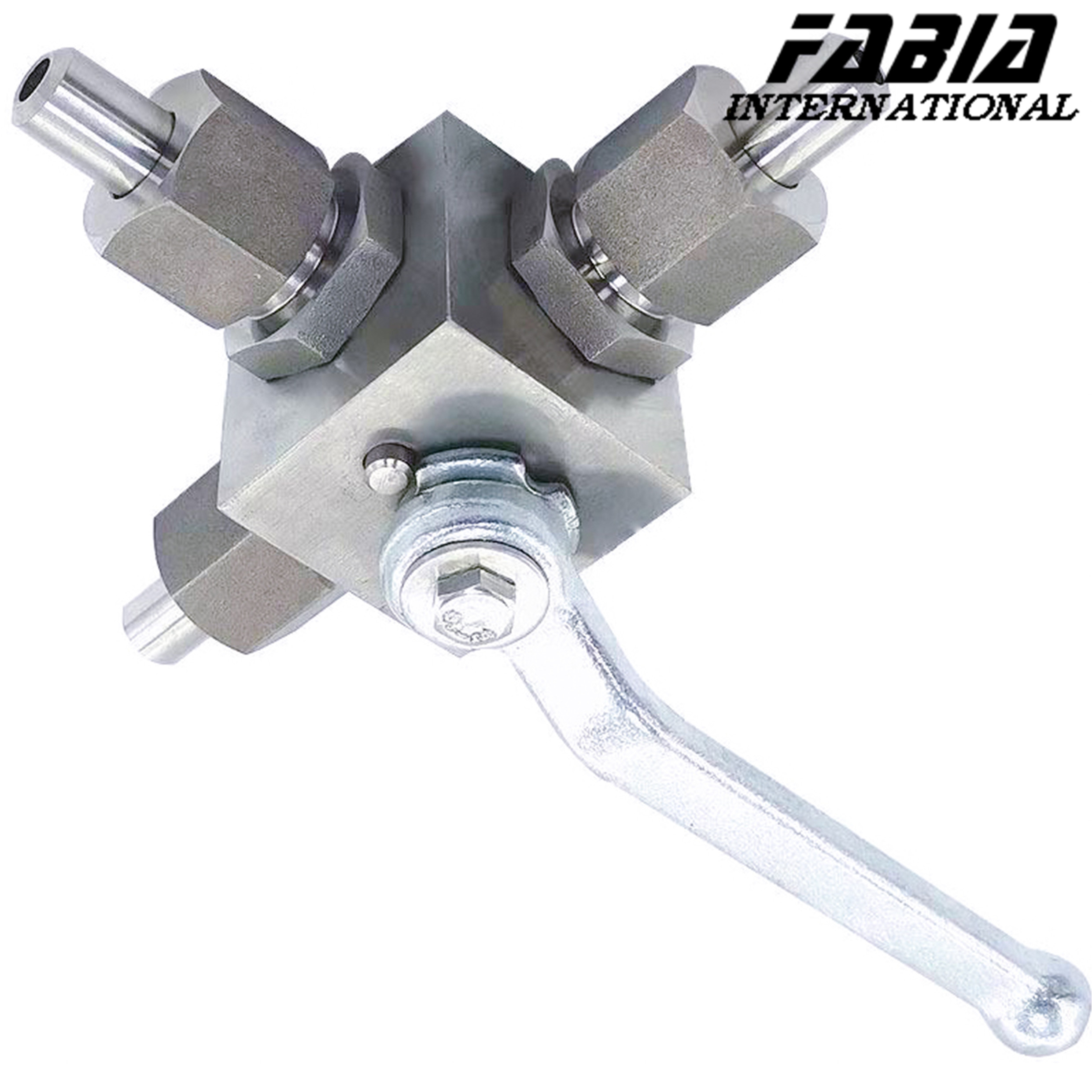

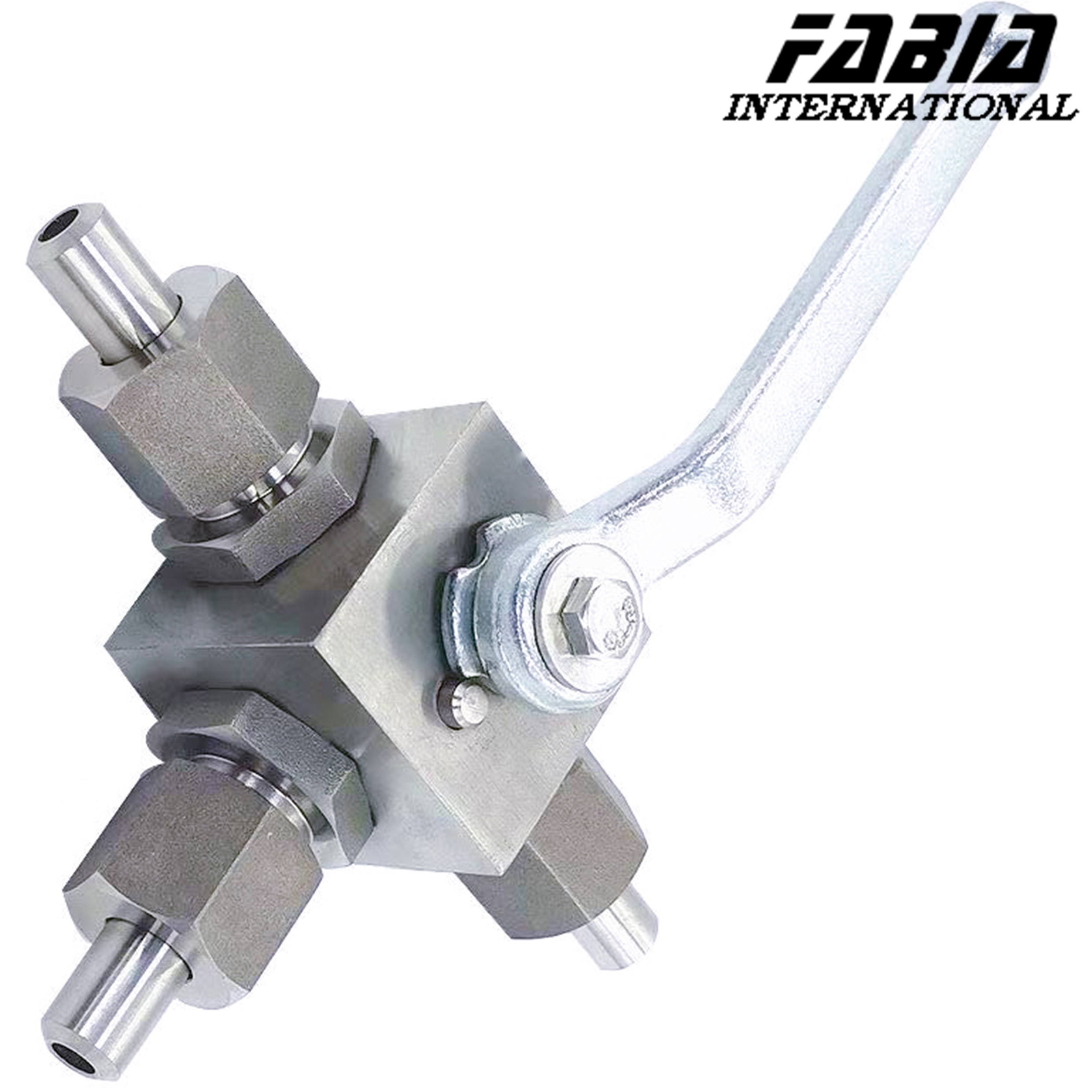

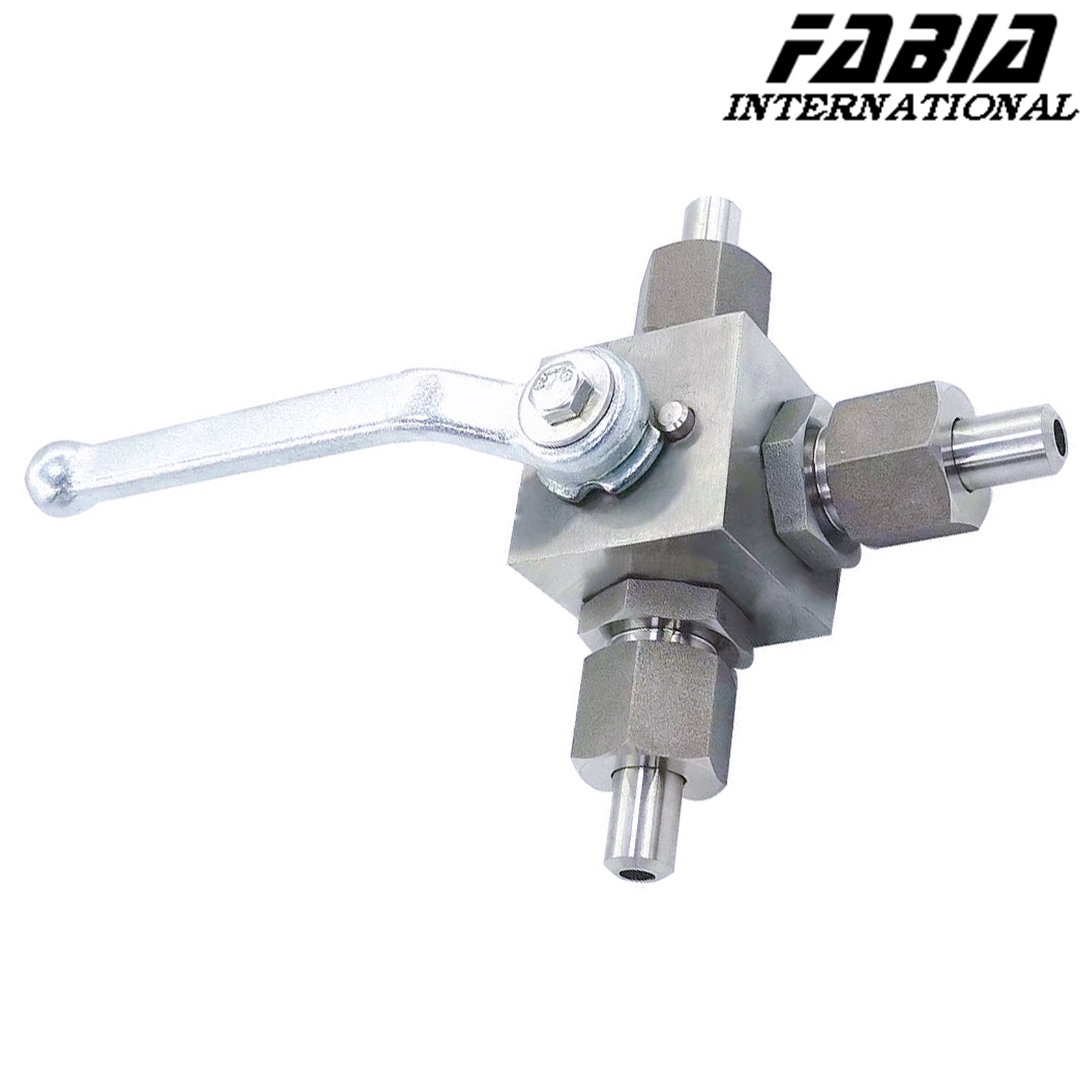

Manual High Pressure Tee Butt Welding Ball Valve

Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ~ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Features Anti-corrosion, Anti-abrasion, Long Service Life Product Name Manual High Pressure Ball Valve
Valve Type High Pressure Ball Valve Material Stainless Steel
Operation Manual Connection Type Socket Welded
Application Petroleum, Chemical, Power Plant Media Water, Oil, Gas
Certificate ISO 9001 Pressure Rating 1000-6000 Psi
Seat PTFE, PEEK Size 1/2-8 Inch
Temperature Range -20 To 200°C
Leave a Message
Product Description

FABIA Manual High Pressure Tee Butt Welding Ball Valve


1. Description:


Composed of ball, valve seat, stem, handle, etc., with simple structure, good sealing, easy operation and other characteristics, widely used in petroleum, chemical, electric power, metallurgy and other industries.


2. Specification:


FABIA Valve Parameter List
Valve type: Manual High Pressure Tee Butt Welding Ball Valve
Size: 1/8 inch ~ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0~PN64,ANSI CLASS 150-900,JIS10-20K;
Temperature: -196℃~540℃
Model: FB-Q..........


3. Features:


  • Fluid resistance is small, the ball valve is one of the small fluid resistance in all valves, even if it is a reduced diameter ball valve, the fluid resistance is quite small.
  • Thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
  • Sealing performance of the seat is good, the sealing ring made of polytetrafluoroethylene and other elastic materials, the structure is easy to seal, and the sealing capacity of the ball valve increases with the increase of the medium pressure.
  • Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss with the ball is small, so the service life of the ball valve is long.
  • Lower mounted valve stem and valve stem head convex step to prevent the valve stem ejecta, such as fire caused by the valve stem seal damage, the convex step and the valve body can also form metal contact to ensure the valve stem seal.
  • Anti-static function: set the spring between the ball, valve stem and valve body, which can export the static electricity generated by the switching process. High pressure three-way ball valve is a common pipe connection device, mainly used for shunt, confluence, regulating flow and so on.

Manual High Pressure Tee Butt Welding Ball Valve 0
Manual High Pressure Tee Butt Welding Ball Valve 1
Manual High Pressure Tee Butt Welding Ball Valve 2
