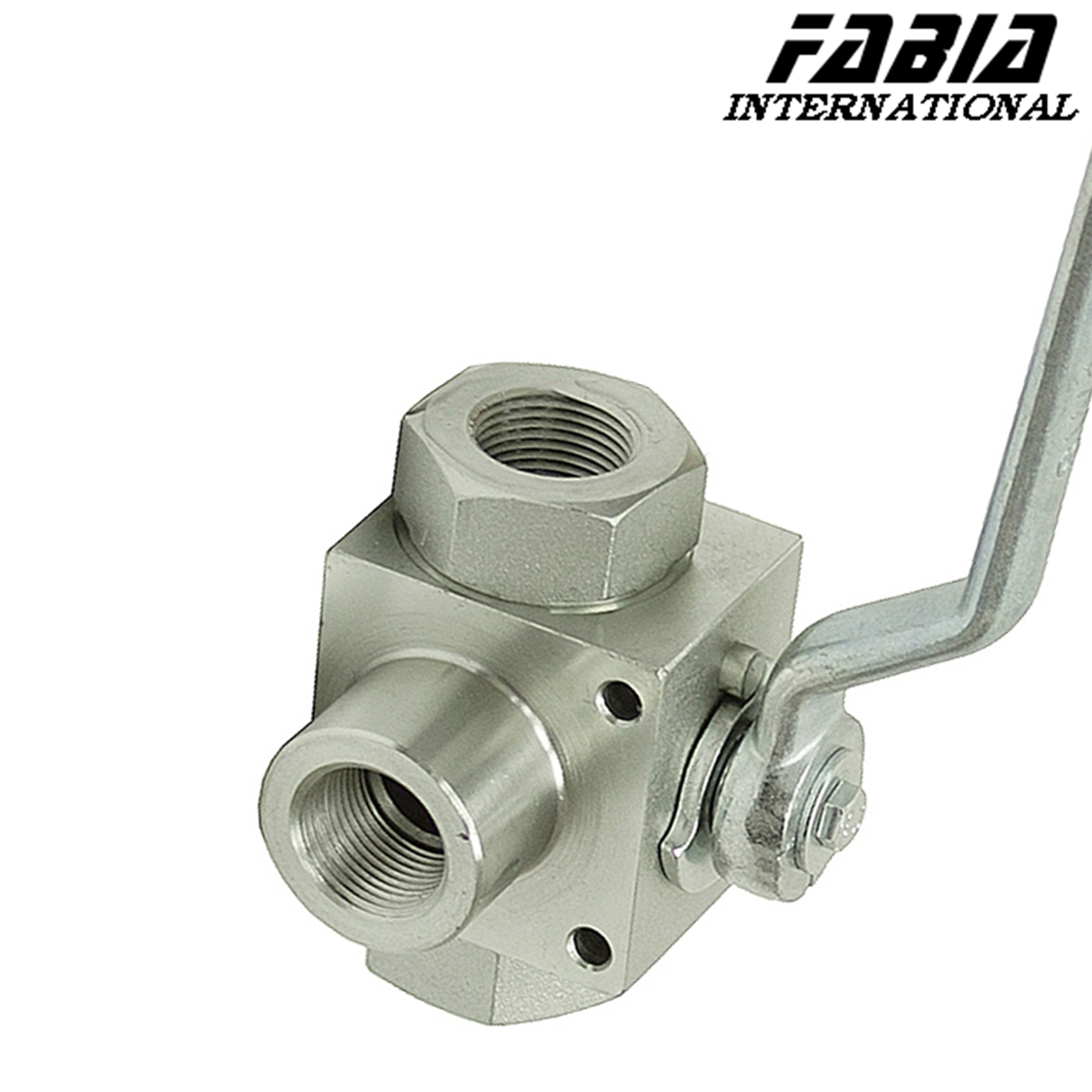

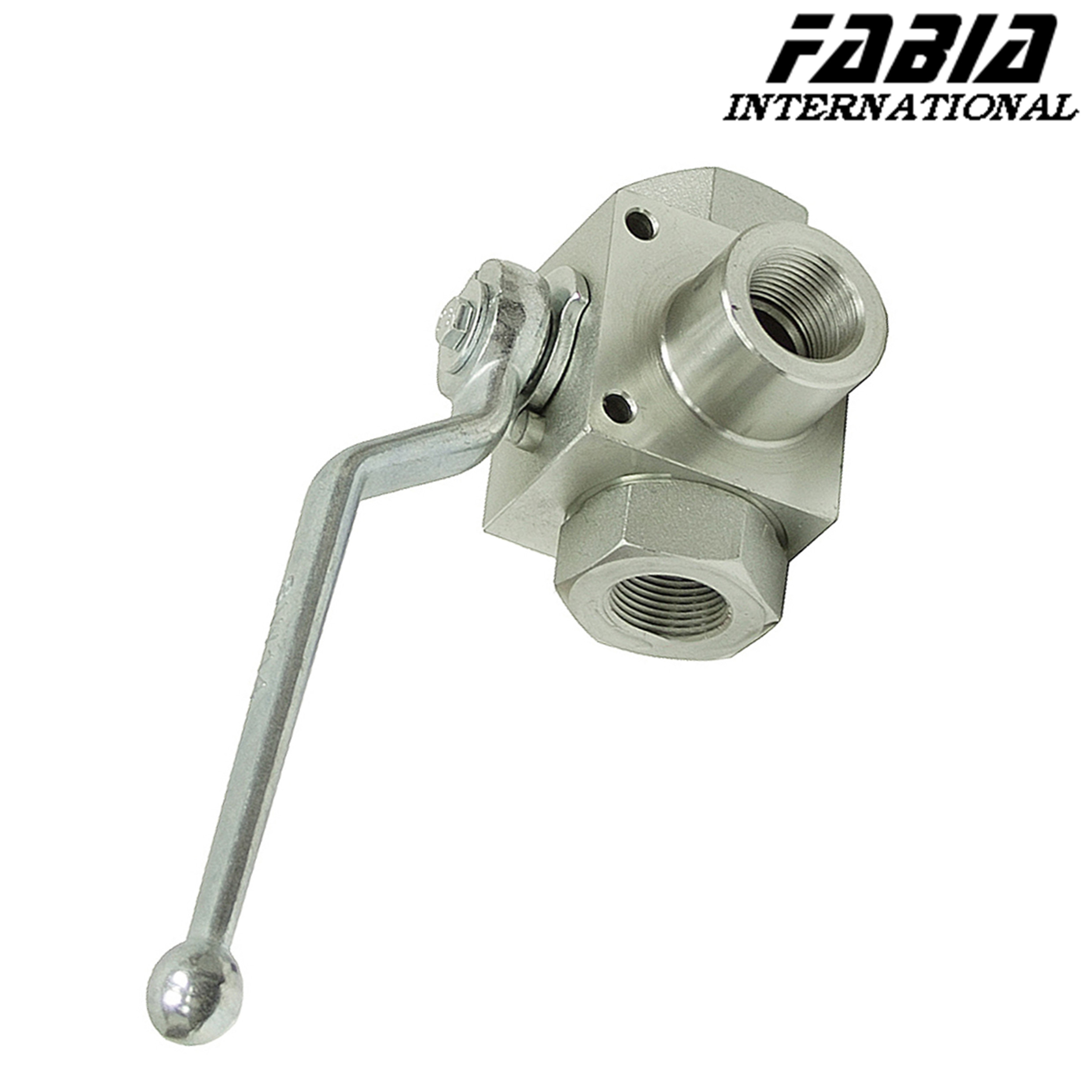

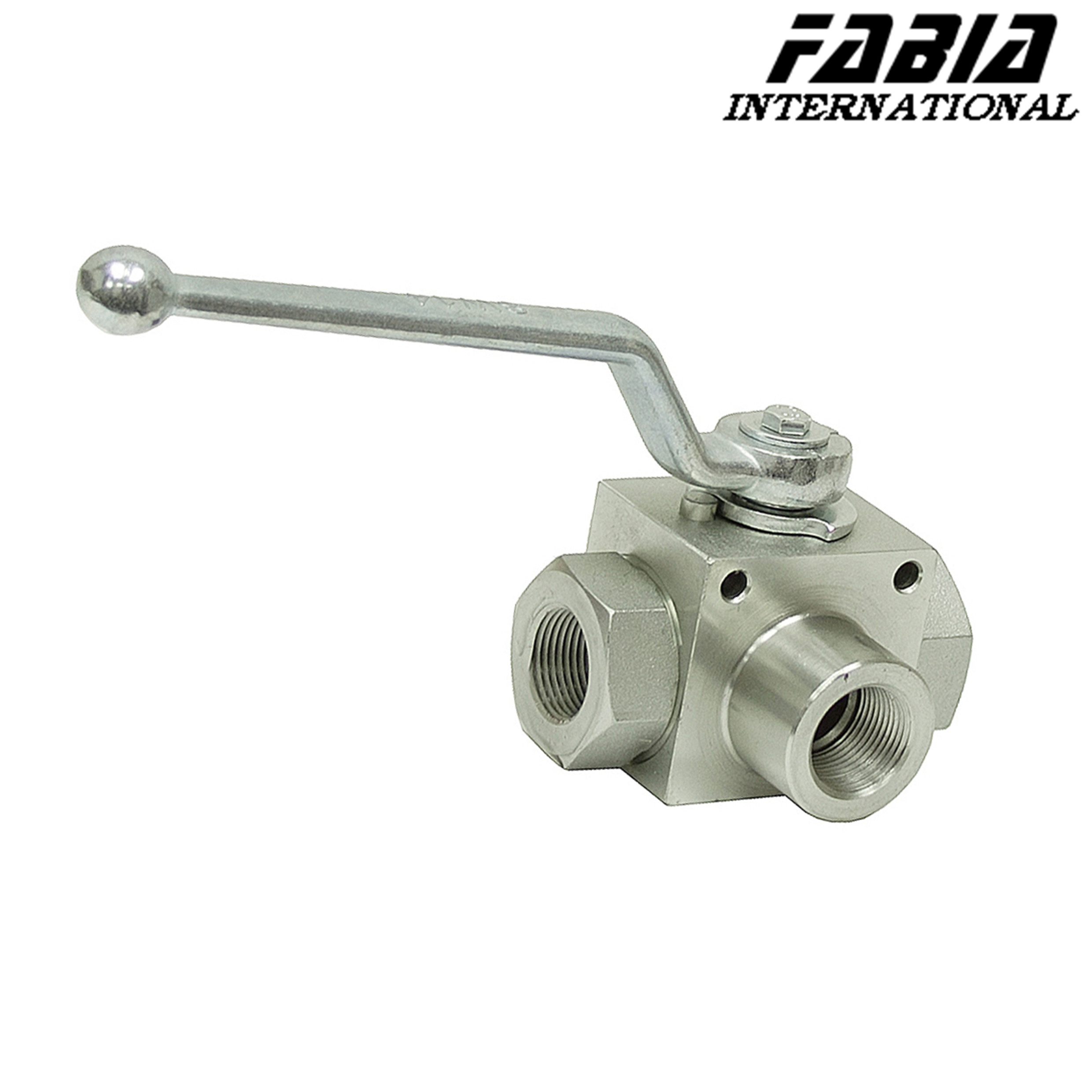

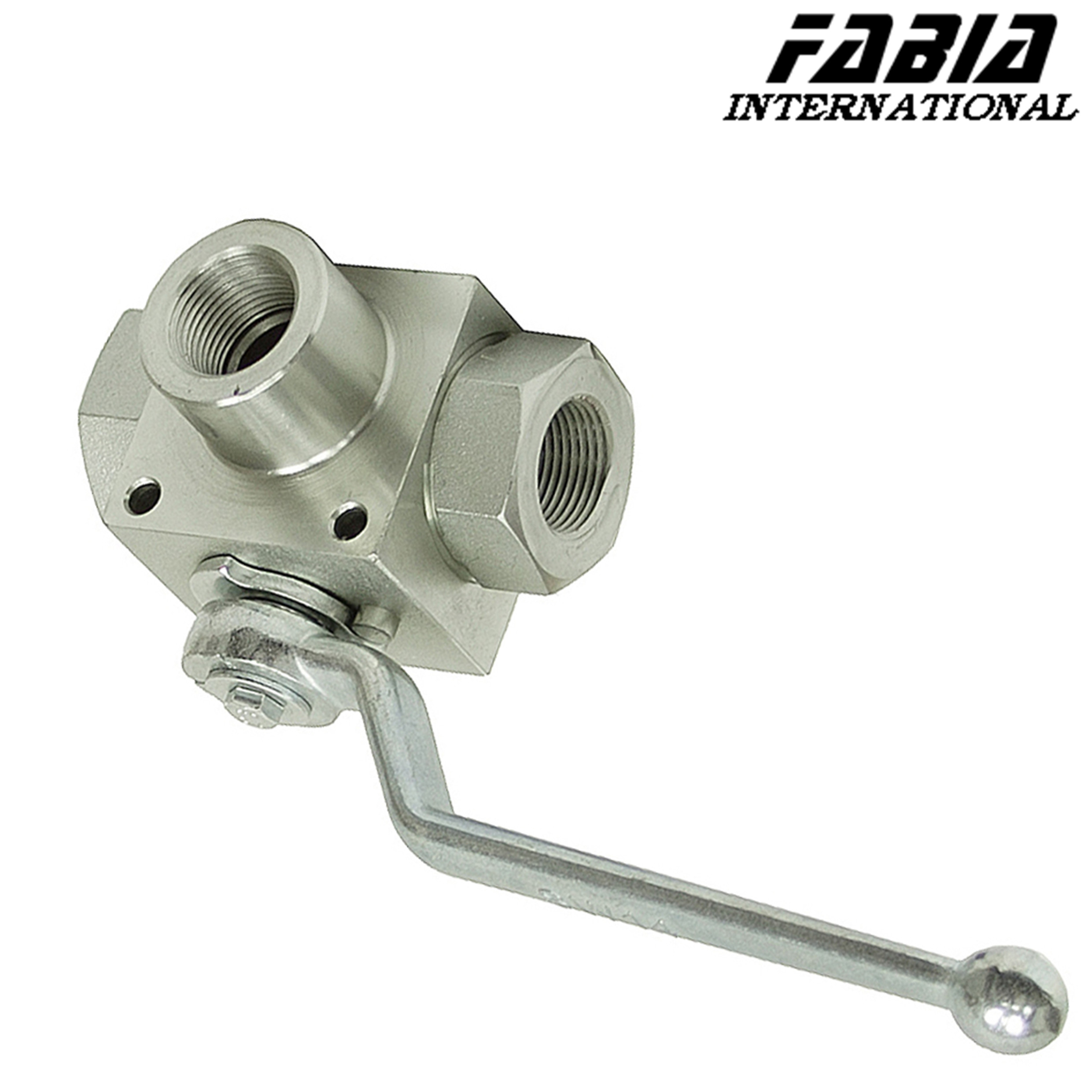

Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve

  • Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve
  • Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve
  • Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve
  • Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve
  • Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Manual High Pressure Ball Valve Valve Type High Pressure Ball Valve
Material Stainless Steel Operation Manual
End Connection Threaded Actuator Handle/turbine
Application Oil & Gas, Petrochemical, Power Plant, Etc. Seat Material PTFE
Pressure Test Hydrostatic Test, Pneumatic Test Size 1/8 To 24 Inches
Pressure Rating Class 150 To Class 2500 Temperature Range -20 To 200°C
Highlight

Manual Three Way Ball Valve
Leave a Message
Product Description

FABIA Manual High Pressure Three-Way Ball Valve



1. Description:



Role of water supply, petrochemical, metallurgy, mining, textile, energy, paper, food, steel and other pipeline system intermediary flow direction switch, as well as the role of the medium shred or mixed fluid.



2. Specification:



FABIA Valve Parameter List
Valve type: Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Compact structure, fast opening and closing, smooth flow path, small fluid resistance.
  • Easy maintenance: After decompressing the system, the entire valve body can be inspected and maintained without disassembling.
  • Good sealing performance: the elastic deformation of the four-side seat material PTFE can achieve a leak-free seal.
  • Valve has a variety of uses: any port can be used as an inlet without leakage.
  • Tees can be made into L-shaped ports or T-shaped ports.

Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve 0



Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve 1
