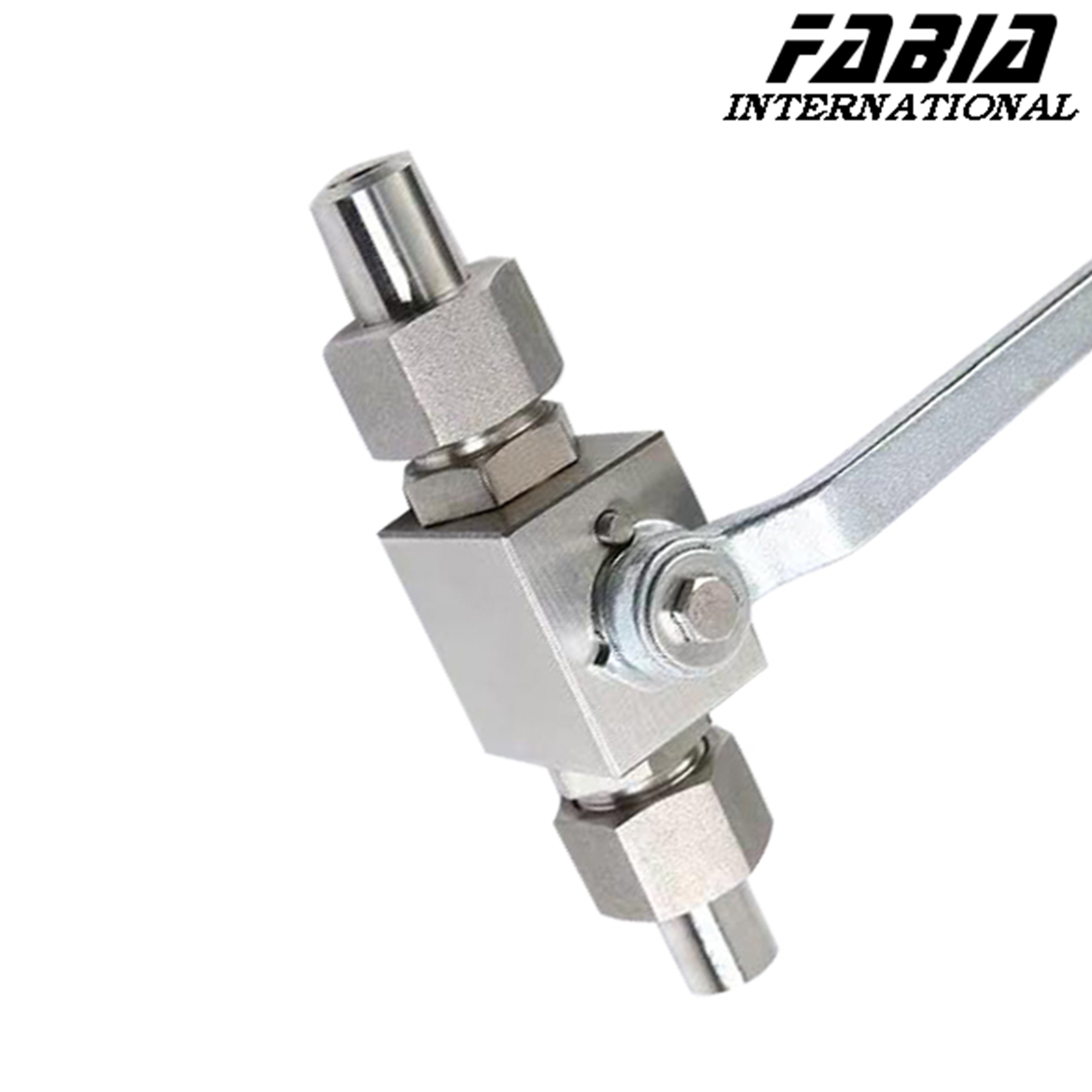

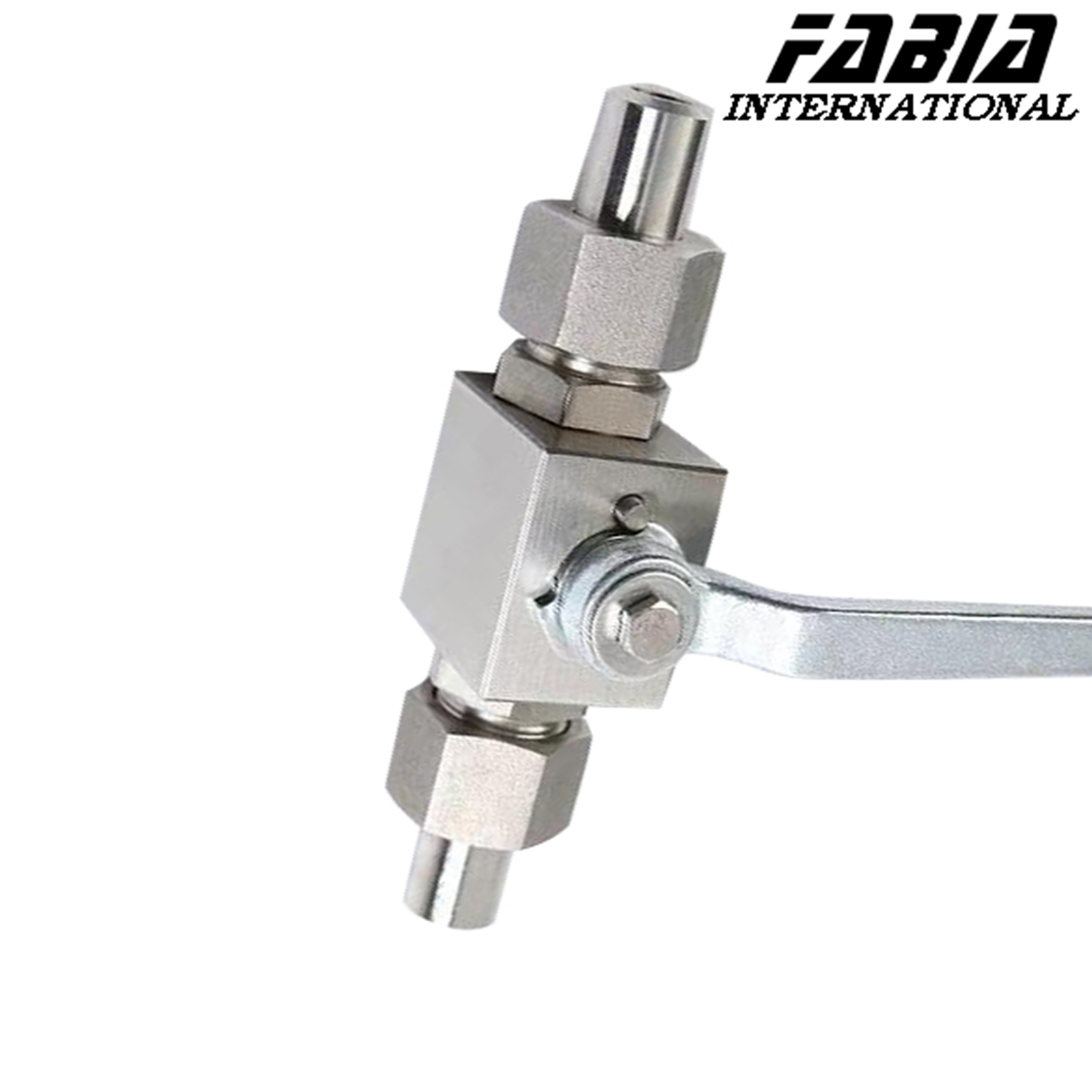

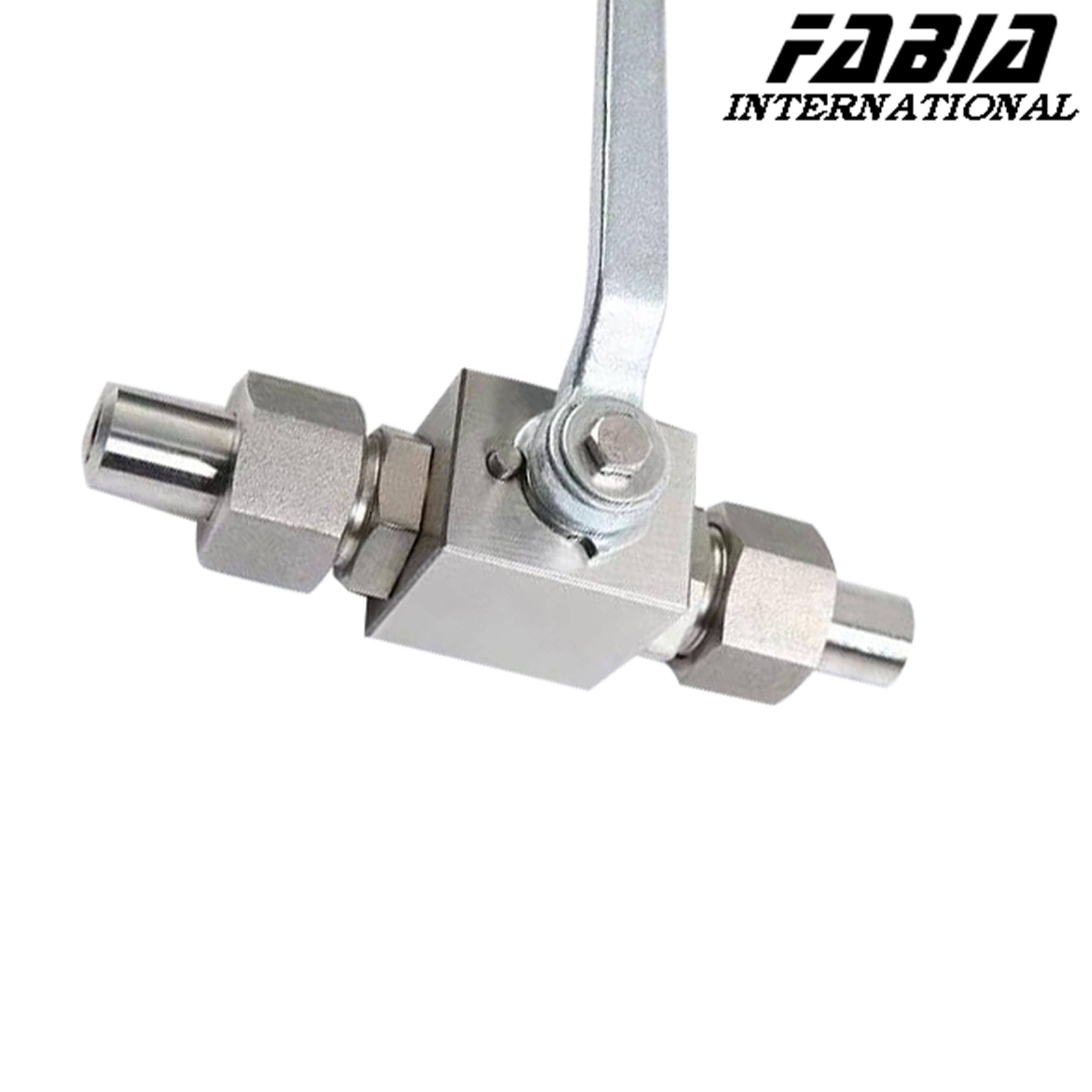

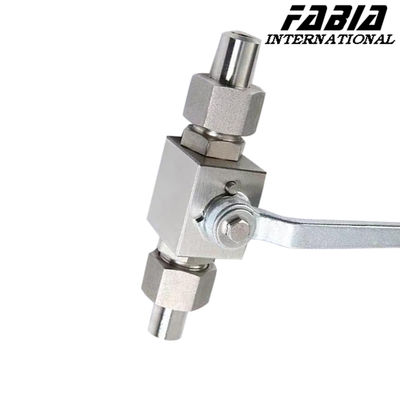

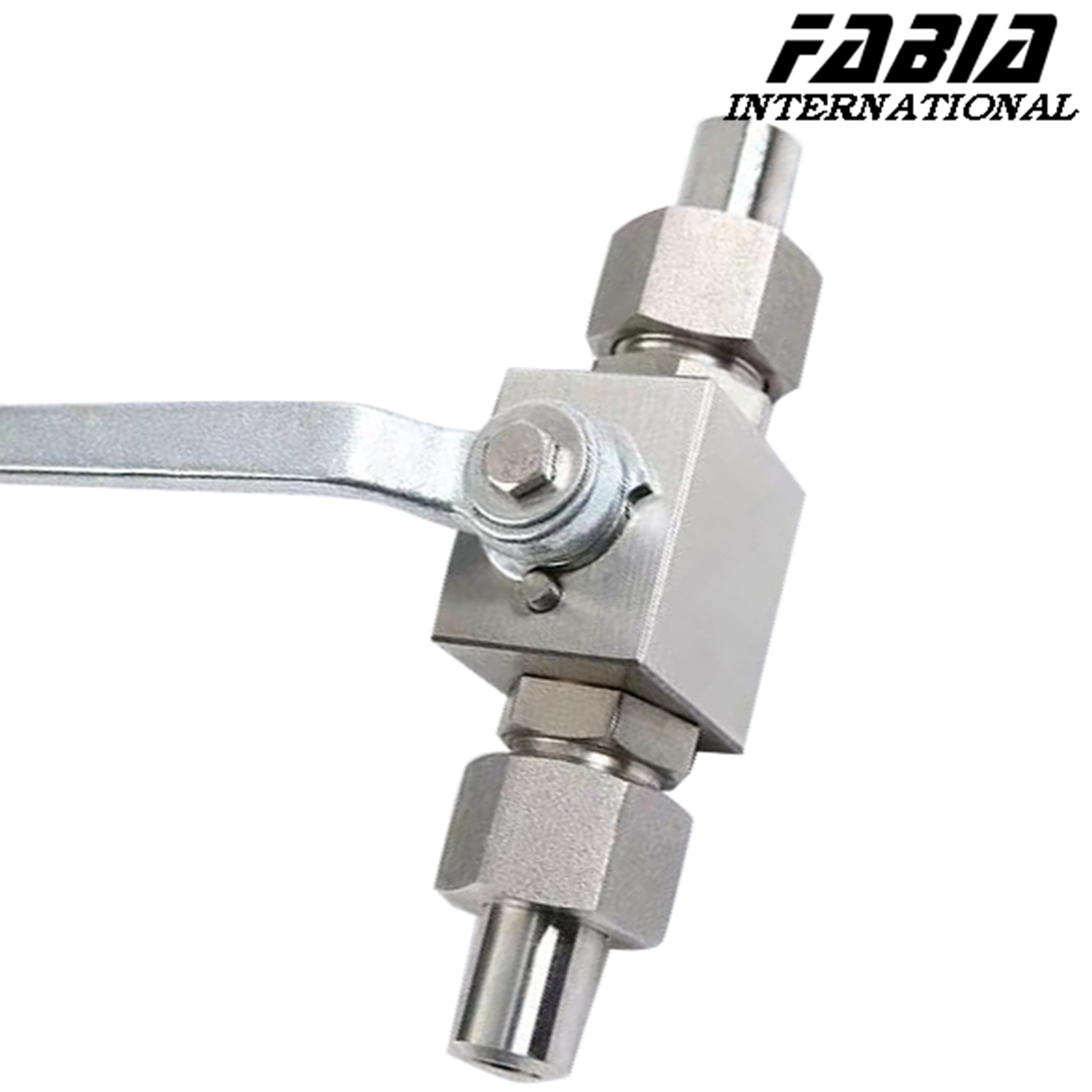

Manual High Pressure Two Way Butt Welding Ball Valve Stainless Steel

  • Manual High Pressure Two Way Butt Welding Ball Valve Stainless Steel
  • Manual High Pressure Two Way Butt Welding Ball Valve Stainless Steel
  • Manual High Pressure Two Way Butt Welding Ball Valve Stainless Steel
  • Manual High Pressure Two Way Butt Welding Ball Valve Stainless Steel
  • Manual High Pressure Two Way Butt Welding Ball Valve Stainless Steel
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Manual High Pressure Ball Valve Actuator Handle/turbine
Material Stainless Steel Operation Manual
End Connection Butt Weld Application Oil, Gas, Water, Chemical
Certificate ISO, CE, API Pressure 10-100Mpa
Seat PEEK Size 1/8-8 Inch
Temperature -30℃~+540℃
Leave a Message
Product Description

FABIA Manual High Pressure Two Way Butt Welding Ball Valve



1. Description:



Been widely used in petroleum, chemical, power generation, paper, atomic energy, aviation, rocket and other departments.



2. Specification:



FABIA Valve Parameter List
Valve type: Manual High Pressure Two Way Butt Welding Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Small fluid resistance, full diameter ball valve basically no flow resistance.
  • Simple structure, small size, light weight.
  • Tight and reliable. It has two sealing surfaces, and the sealing surface material of the ball valve is widely used in various plastics, which has good sealing property and can achieve complete sealing. It has also been widely used in vacuum systems.
  • Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90°, easy to remote control.
  • Easy maintenance, ball valve structure is simple, sealing ring is generally active, disassembly and replacement are more convenient.
  • When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause the erosion of the sealing surface of the valve.



Manual High Pressure Two Way Butt Welding Ball Valve Stainless Steel 0



Manual High Pressure Two Way Butt Welding Ball Valve Stainless Steel 1
