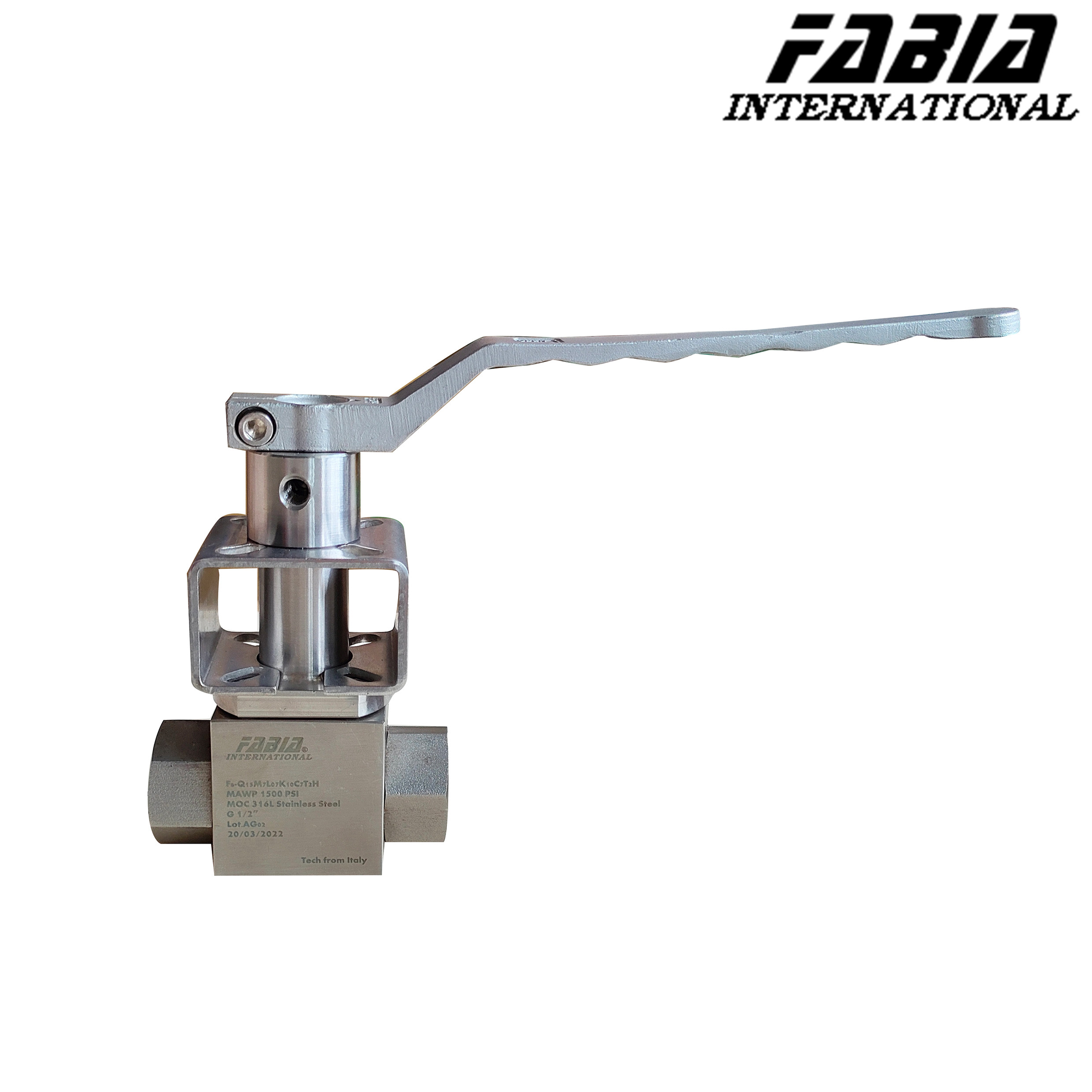

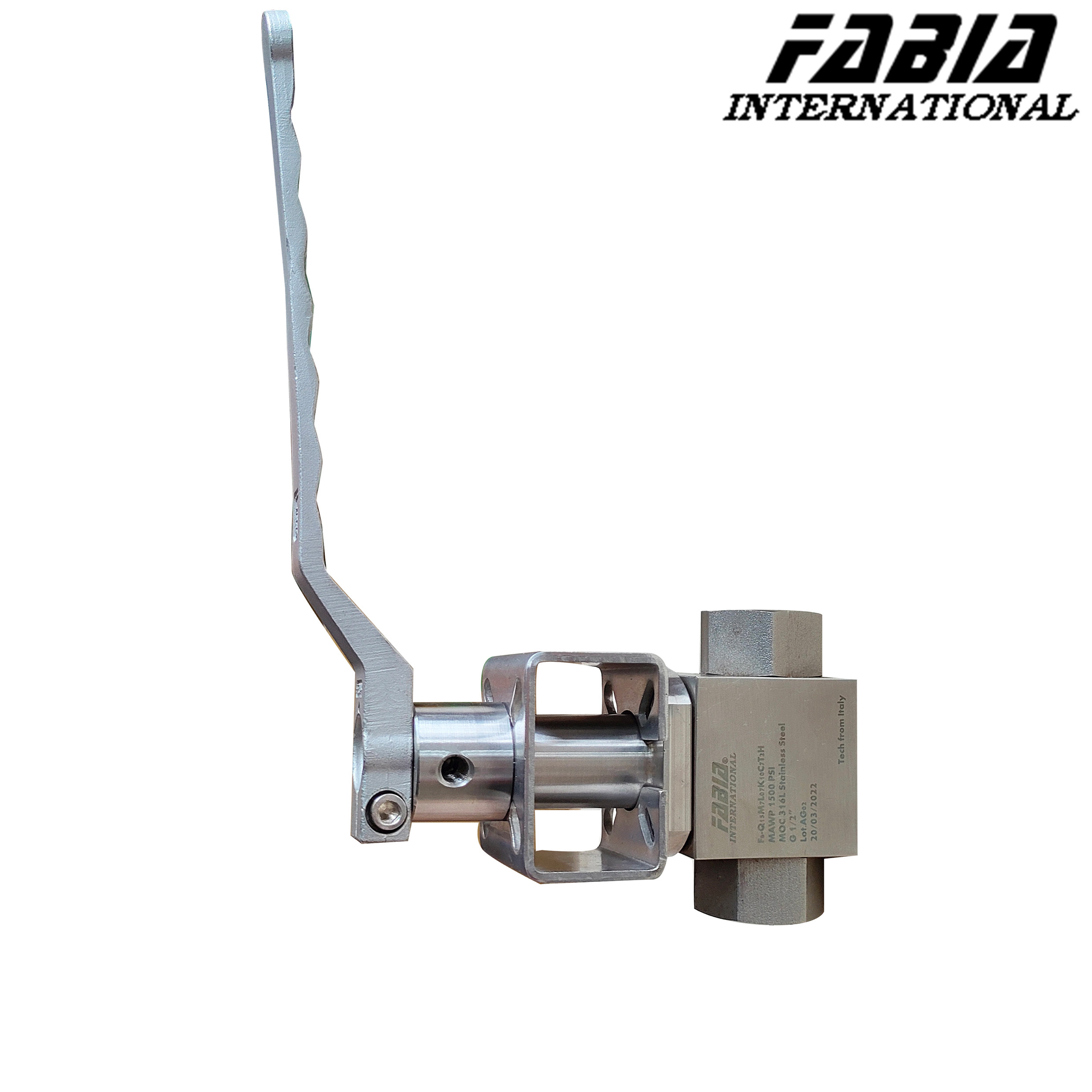

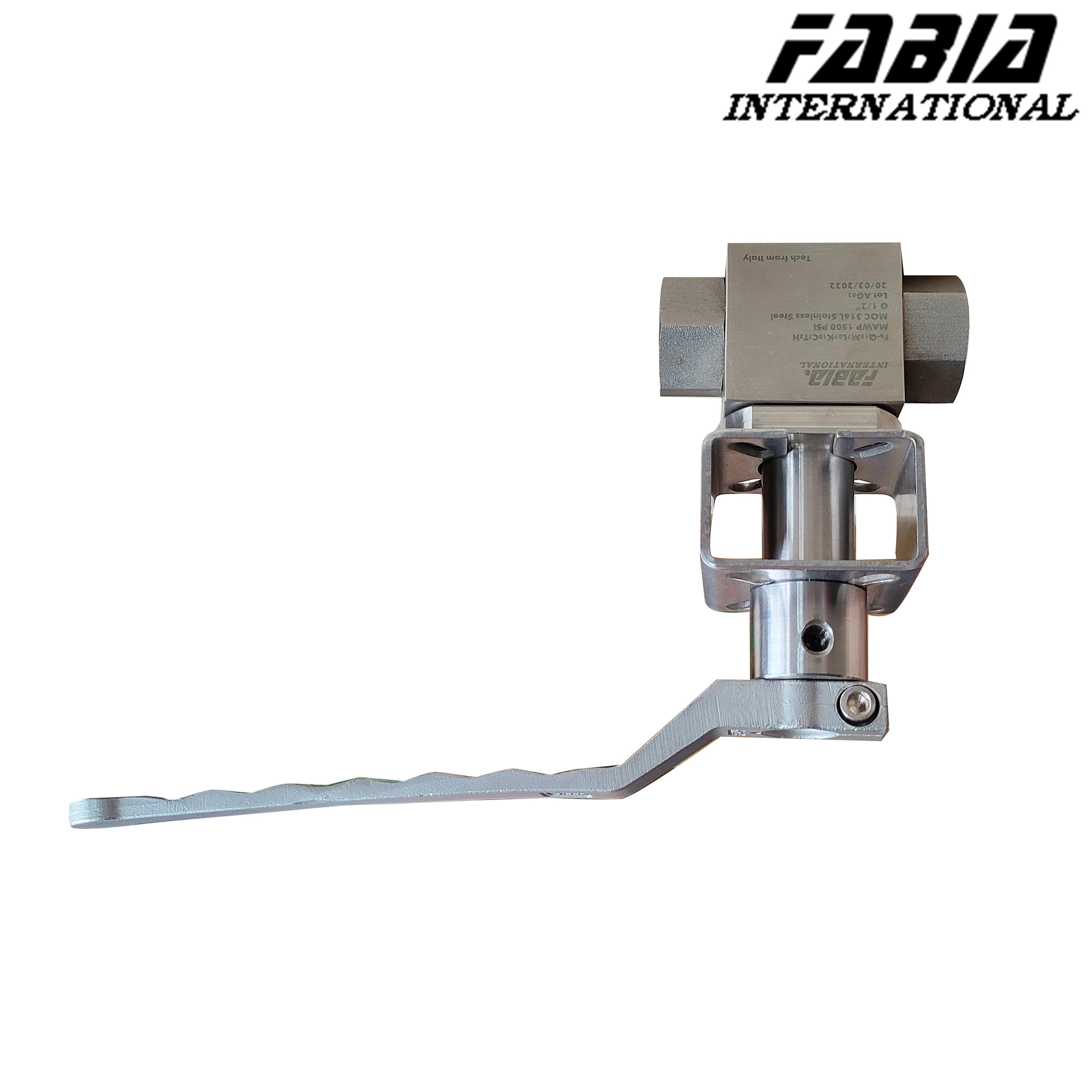

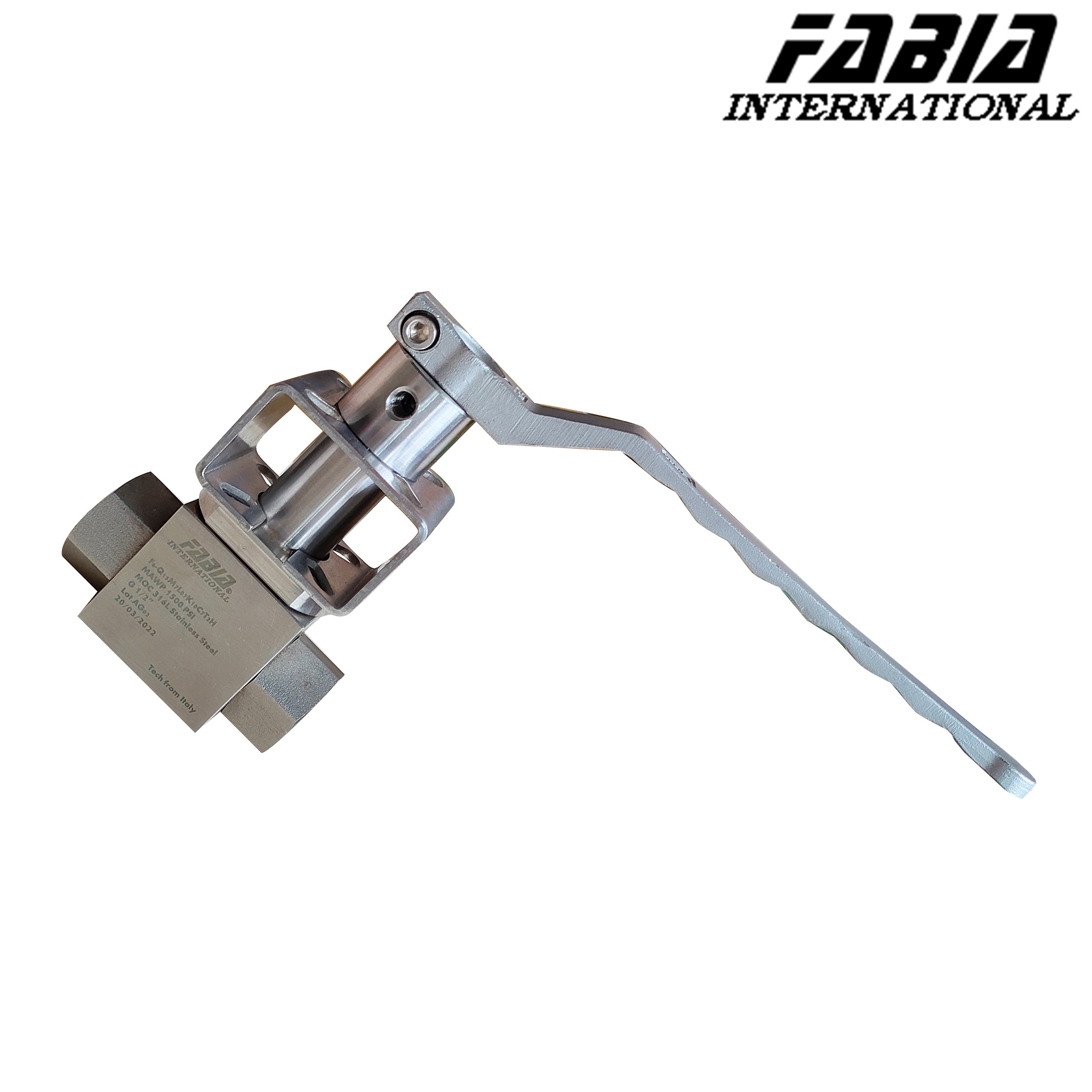

Manual Twoway Stainless Steel Ultra-High Pressure Ball Valve

  • Manual Twoway Stainless Steel Ultra-High Pressure Ball Valve
  • Manual Twoway Stainless Steel Ultra-High Pressure Ball Valve
  • Manual Twoway Stainless Steel Ultra-High Pressure Ball Valve
  • Manual Twoway Stainless Steel Ultra-High Pressure Ball Valve
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Manual High Pressure Ball Valve Valve Type High Pressure Ball Valve
Valve Material Stainless Steel Valve Actuator Manual
Valve Connection Threaded Valve Temperature High Temperature
Valve Application Petroleum, Chemical, Power, Etc. Valve Certification ISO 9001
Valve Feature Anti-corrosion Valve Handle Lever
Valve Pressure High Pressure Valve Seal EPDM
Valve Size 1/8-8 Inch
Leave a Message
Product Description

Manual Twoway Stainless Steel Ultra-High Pressure Ball Valve



1. Description:



Sealing surface material of the ball valve is widely used in various plastics, which has good sealing property and can achieve complete sealing, also been widely used in vacuum systems.



2. Specification:



FABIA Valve Parameter List
Valve type: Manual Twoway Stainless Steel Ultra-High Pressure Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Low fluid resistance, full diameter ball valve  basically no flow resistance.
  • Simple structure, small size, light weight.
  • Tight and reliable two sealing surfaces.
  • Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
  • Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
  • When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.











Manual Twoway Stainless Steel Ultra-High Pressure Ball Valve 0



Manual Twoway Stainless Steel Ultra-High Pressure Ball Valve 1
