Ducting Damper Valve Stainless Steel Flapper Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Electric Duct Flapper Valve Stainless Steel | Valve Type | Damper Valve |
|---|---|---|---|
| Valve Actuator | Electric | Valve Body | Stainless Steel |
| Valve Control | On/Off | Connection | Flanged |
| Valve Material | Stainless Steel | Valve Pressure | 150 Psi |
| Valve Size | 1/8 Inch ～ 18 Inch | Valve Temperature | 1000°C |
| Valve Seal | Stainless Steel Elastic Seal And EPDM Seal Strip | ||
| High Light | Stainless Steel Flapper Valve,damper valve for duct,ducting damper valve |
||
Product Description

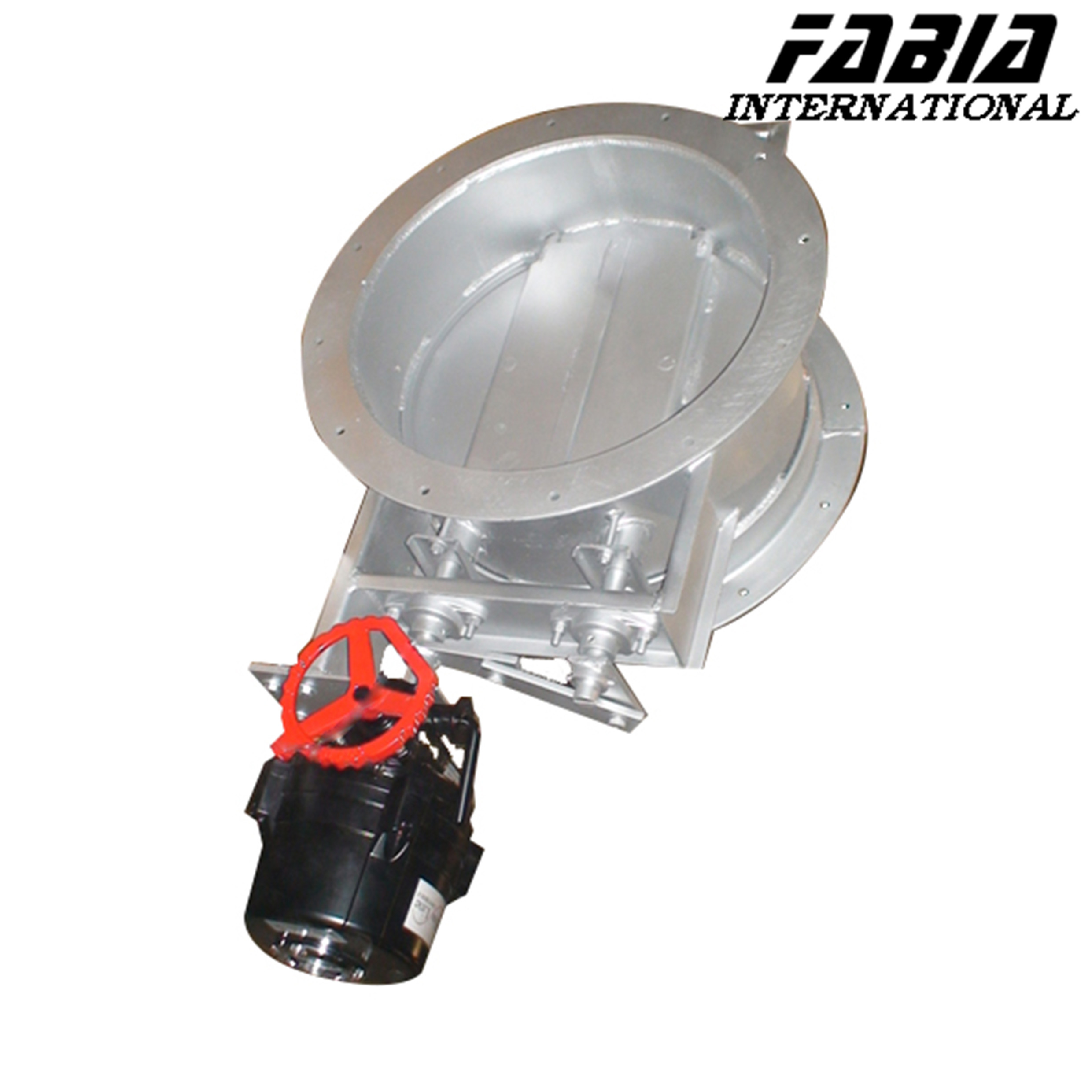

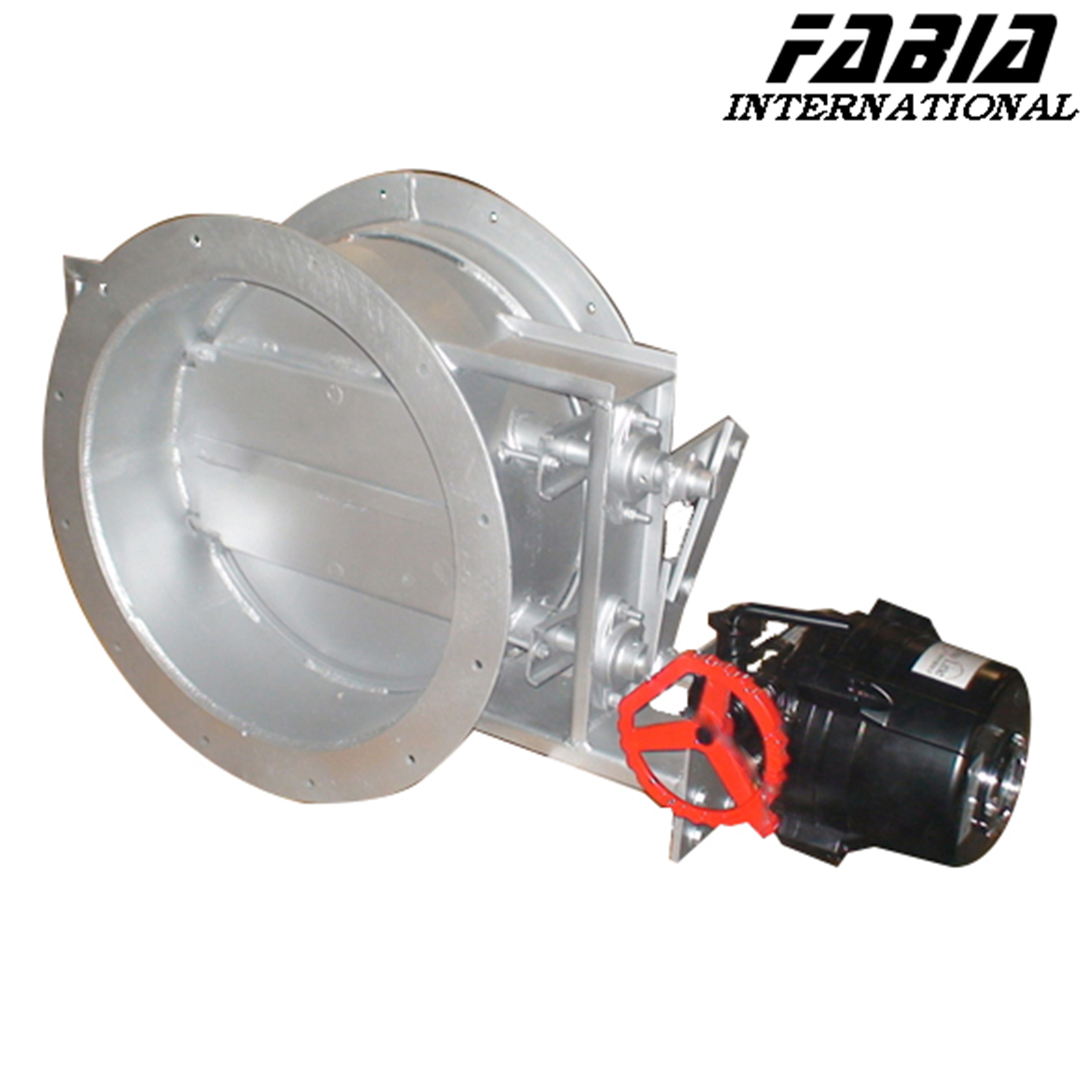

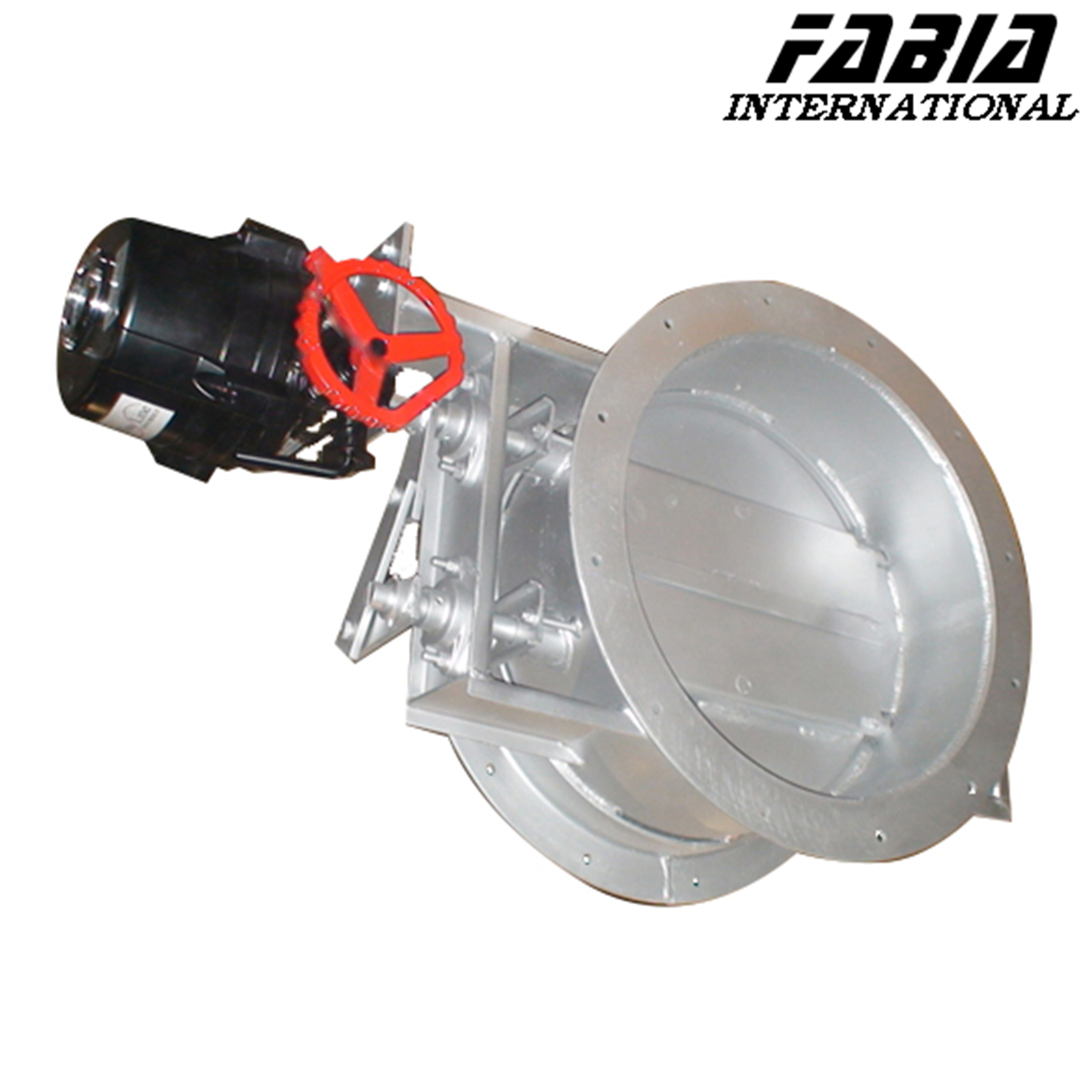

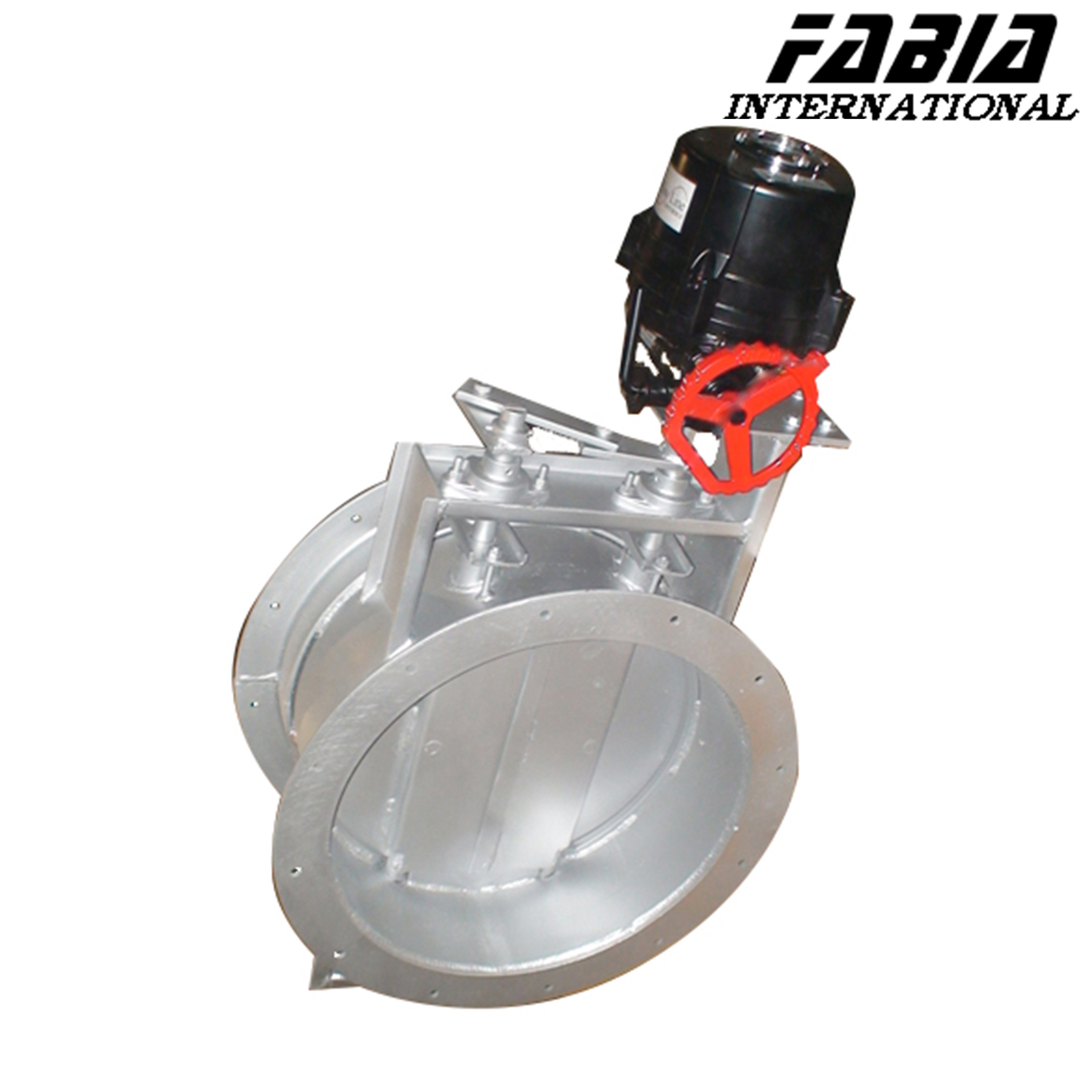

FABIA Electric Duct Flapper Valve Stainless Steel Flapper Valve
1. Description:
Structure, performance and characteristics of the electric baffle valve are made according to foreign advanced technology and draw on the experience gained in the design and operation process of the same type of domestic products.
Electric baffle valve is mainly used for intercepting the air in the air duct of the ventilation system, with the function of full opening and full closing, and can also be used to adjust the air volume.
In the ventilation system such as coal mine, it is usually used for intercepting air in the air duct before and after the air wellhead fan.
Structural design is light, the operation of the opening and closing rotation is flexible, the driving force is short, the sealing performance is good, can withstand the working pressure and temperature in the air duct. Full air pressure switch time is less than 40 seconds.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric Duct Flapper Valve Stainless Steel Flapper Valve | |
| Size: | 1/8 inch ～ 18 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-DB.......... | |
3. Features:
- Motor voltage: 380V.
- Can be controlled locally and remotely and has a handwheel opening mode.
- Protection grade of the electric actuator is IP65.
- Valve opening and closing time is less than 60s.
- With fully open, fully closed limit switch, and with the damper switch position display.
- Can accept the open, close and stop operation signals from the control system.
- With mechanical limit block.
- With torque overload and current protection device.
- Damper actuator, stable work, sensitive response, low noise, good sealing, long life, small maintenance.
